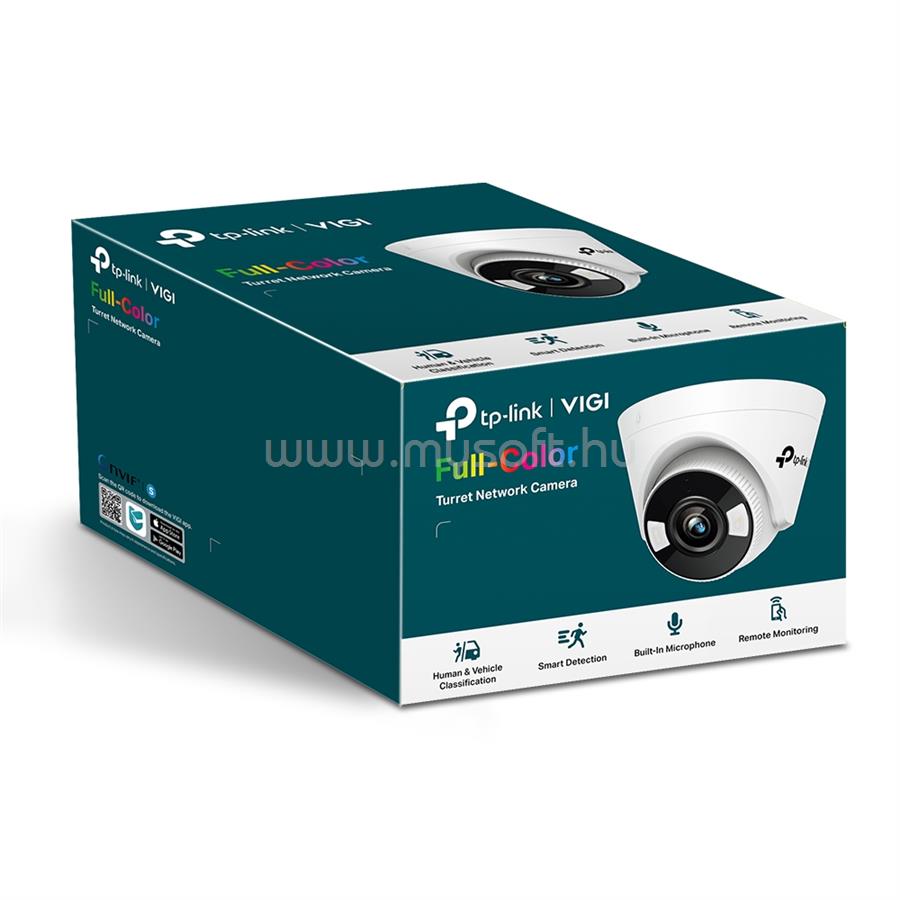

TP-LINK VIGI C430 (4MM) 3MP FULL-COLOR TURRET NETWORK CAMERA

• Kamera

• Képérzékelő
• 1/2.8" Progressive Scan CMOS
• Shutter Speed
• 1/3 to 1/10000 s
• Slow Shutter
• Yes
• Aperture
• F1.6
• Optika
• 4 mm
• Lens Mount
• M12
• Min. szükséges megvilágítás
• Color: 0.005 Lux; 0 Lux with IR/White Light
• Day/Night Mechanism
• IR Cut Filter
• Day/Night Switch
• Unified/ Scheduled/ Auto
• Digital Noise Reduction
• 3D DNR
• WDR
• DWDR
• IR Working Distance
• 30m
• Látószög
• 4mm: 89.1°/45.1°/106.9°(H/V/D)

• LENS

• Type
• Fixed Focal Lens
• Focal Length
• 4 mm
• Aperture
• F1.6
• FOV
• 4mm:
• Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°
• Lens Mount
• M12
• DORI Distance
• 4 mm
• Detect: 70 m (230 ft)
• Observe: 29 m (96 ft)
• Recognize: 14 m (46 ft)
• Identify: 7 m (23 ft)

• Angle Adjustment (Manual)

• Range
• Pan: 0° to 360°
• Tilt: 0° to 85°
• Rotate: 0° to 360°

• ILLUMINATOR

• IR LED
• Quantity: 2
• Range: 30m
• Wavelength: 850nm
• White LED
• Quantity: 2
• Range: 30m
• Illuminator On/Off Control
• Auto/Scheduled/Always on/Always off

• VIDEO

• Max. Resolution
• 2304 × 1296
• Main Stream
• Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Sub-Stream
• Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Resolution: 704x576, 640x480, 352x288, 320x240
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Bit Rate Control
• CBR, VBR
• Video Compression
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type
• Main Profile/High Profile
• H.264+
• Main Stream Supported
• H.265 Type
• Main Profile
• H.265+
• Main Stream Supported
• Video Bit Rate
• Main Stream: 256 Kbps to 4 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps

• Image

• Image Settings
• Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
• Image Enhancement
• BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range
• WDR
• SNR
• > 52 dB
• Image Parameters Switch
• Yes
• Privacy Mask
• Up to 4 Masks
• ROI
• 1 Region
• OSD Setting
• Yes

• Hang

• Hangkommunikáció
• N/A
• Hangbemenet
• Yes
• Hangkimenet
• N/A
• Hangtömörítés
• Yes
• Audio Sampling Rate
• 8KHz
• Environment Noise Filtering
• Yes
• Audio Bit Rate
• 64 Kbps(G.711 alaw)

• Hálózat

• Szabvány
• TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
• RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• Yes
• API
• ONVIF
• Simultaneous Live View
• 3 Main Streams & 3 Sub-Streams
• Client
• VIGI App, VIGI Security Manager, VIGI NVR, Web
• Web Browser
• Google Chrome© 57 and above
• Firefox© 52 and above
• Safari© 11 and above
• Microsoft© Edge 91 and above
• Cloud
• Yes
• Biztonság
• Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

• Figyelmeztetési és eseménykezelési vezérlés

• Smart Event
• Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
• Basic Event
• Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
• Alarm Linkage
• White Light Flashing, Message Push
• Linkage Method
• N/A
• Output Notification
• Message Push

• Fizikai kezelőfelület

• Hálózati csatlakozás
• 1 RJ45 10/100M Self-Adaptive Ethernet Port
• Alarm
• N/A
• Reset Button
• N/A
• Power
• DC Power Port
• Gomb
• -
• Video Output
• -
• On-board Storage
• N/A
• Built-in Microphone
• Yes
• Built-in Speaker
• N/A
• Audio
• N/A

• Általános

• Operating Temperature
• -30-60 °C
• Storage Temperature
• -40-60 °C
• Operating Humidity
• 95% or Less (Non-Condensing)
• Storage Humidity
• 95% or Less (Non-Condensing)
• Csomagolás tartalma
• VIGI Network Camera
• Quick Start Guide
• Mounting Accessories
• Méret (Ma x Sz x Mé)
• 123 × 123 × 83 mm
• Material
• Plastic
• General Features
• Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
• Net Weight
• 0.21 Kg
• Gross Weight
• 0.36 Kg
• Power Consumption
• 12V DC: Max 4.2W
• PoE: Class 0
• Power Supply
• 12V DC ? 5%, 5.5mm Coaxial Power Plug
• PoE (802.3af/at, class 0)
• Protection
• N/A
• Product Dimensions (L x W x H)
• 123× 83× 123 mm
• Certifications
• CE/BSMI/VCCI/ONVIF

• Videó/Kép

• Videó tömörítés
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• Kép frissítés (frame) és felbontás
• Main Stream:
• Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
• Sub-Stream:
• Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution: 704x576, 640x480, 352x288, 320x240
• Max. Resolution
• 3MP (2304 × 1296)
• Videótovábbítás
• Main Stream
• Sub-Stream
• Képbeállítás
• Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
• Image Enhancement
• BLC/3D DNR/HLC/SmartIR
• Video Bit Rate
• 64 Kbps to 4 Mbps
• Day/Night Switch
• Day/Night/Auto/Schedule

• SMART FEATURE-SET

• Smart Event
• Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
• Basic Event
• Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
• Linkage Method
• Trigger Notification: ONVIF, HTTPS
• Region of Interest
• 1 Region

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
