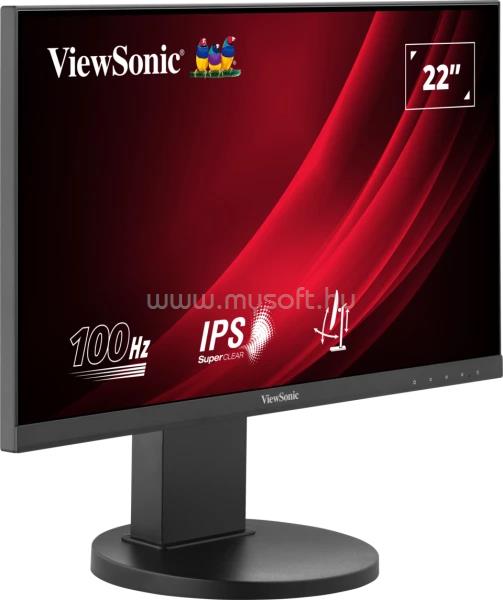

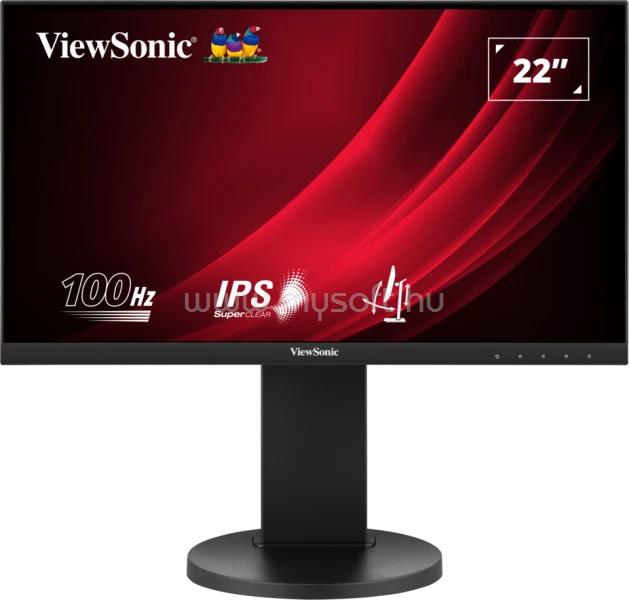

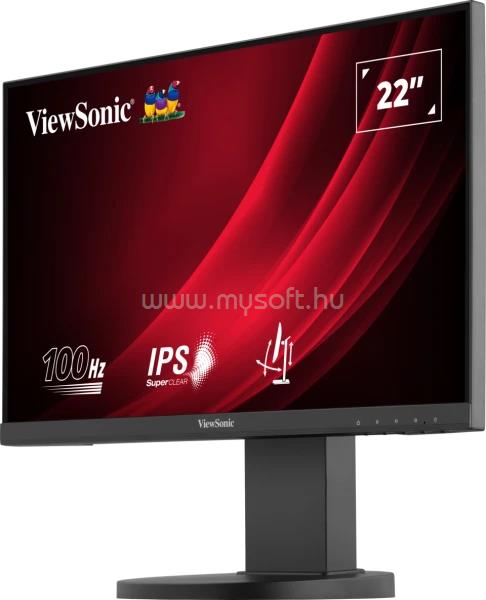

VIEWSONIC VG2208A-HD MONITOR

Kijelző

• Képátló: 22"
  Felbontás: 1920x1080
  Panel: IPS
  Képarány: 16:9

Csatlakozók

• • 1x VGA
  • 0x DVI
  • 1x DisplayPort
  • 1x HDMI
  • TV-tuner

• Display

• Display Size (in.)
• 22
• Viewable Area (in.)
• 21.5
• Panel Type
• IPS Technology
• Resolution
• 1920 x 1080
• Resolution Type
• FHD (Full HD)
• Static Contrast Ratio
• 1,000:1 (typ)
• Dynamic Contrast Ratio
• 50M:1
• Light Source
• LED
• Brightness
• 250 cd/m2 (typ)
• Colors
• 16.7M
• Color Space Support
• 8 bit (6 bit + FRC)
• Aspect Ratio
• 16:9
• Response Time (Typical GTG)
• 5ms
• Response Time (GTG w/OD)
• 5ms
• Viewing Angles
• 178° horizontal, 178° vertical
• Backlight Life (Hours)
• 30000 Hrs (Min)
• Curvature
• Flat
• Refresh Rate (Hz)
• 100
• Variable Refresh Rate Technology
• Yes
• Low Blue Light
• Software solution
• Flicker-Free
• Yes
• Color Gamut
• NTSC: 72% size (Typ)
• sRGB: 104% size (Typ)
• Pixel Size
• 0.249 mm (H) x 0.241 mm (V)
• Surface Treatment
• Anti-Glare, Hard Coating (3H)

• Compatibility

• PC Resolution (max)
• 1920x1080
• Mac© Resolution (max)
• 1920x1080
• PC Operating System
• Windows 10/11 certified; macOS tested
• Mac© Resolution (min)
• 1920x1080

• Connector

• VGA
• 1
• 3.5mm Audio Out
• 1
• HDMI 1.4
• 1
• DisplayPort
• 1
• Power in
• 3-pin Socket (IEC C14 / CEE22)

• Power

• Eco Mode (Conserve)
• 10W
• Eco Mode (optimized)
• 11W
• Consumption (typical)
• 13W
• Consumption (max)
• 17W
• Voltage
• AC 100-240V
• Stand-by
• 0.3W
• Power Supply
• Internal Power Supply

• Additional Hardware

• Kensington Lock Slot
• 1

• Controls

• Physical Controls
• Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
• On Screen Display
• Input Select, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

• Operating Conditions

• Temperature
• 32°F to 104°F (0°C to 40°C)
• Humidity (non-condensing)
• 20% to 90%

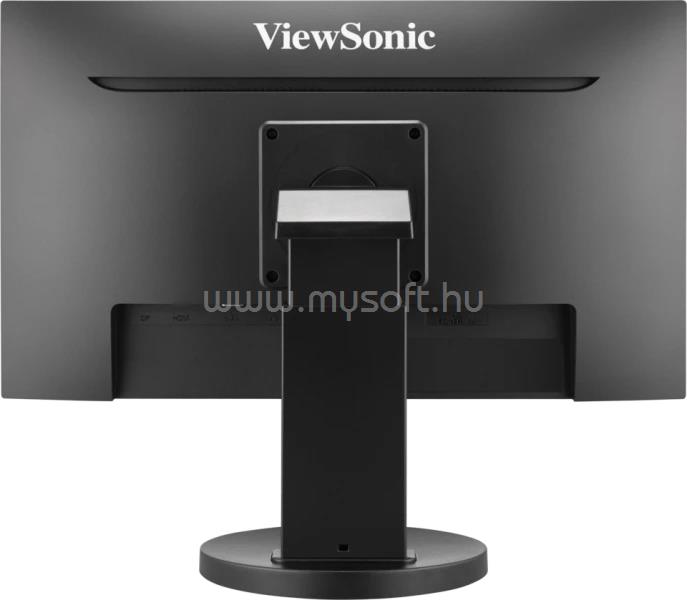

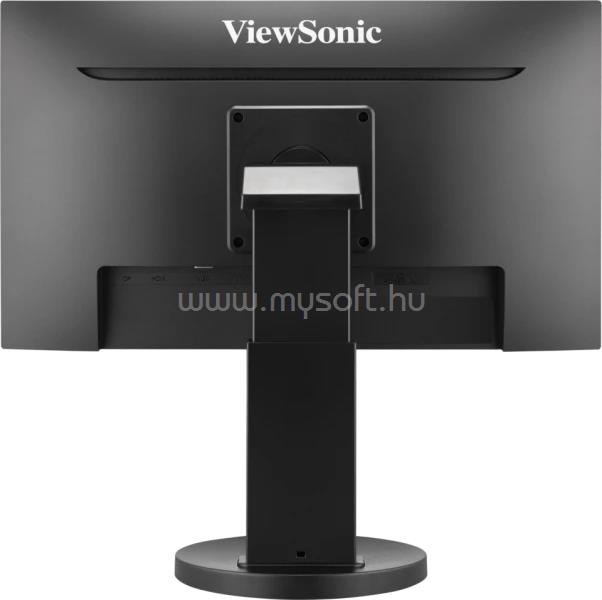

• Wall Mount

• VESA Compatible
• 100 x 100 mm

• Input Signal

• Frequency Horizontal
• RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 24 ~ 115KHz, DisplayPort (v1.2): 24 ~ 115KHz
• Frequency Vertical
• RGB Analog: 48 ~ 75Hz, HDMI (v1.4): 48 ~ 100Hz, DisplayPort (v1.2): 48 ~ 100Hz

• Video Input

• Digital Sync
• TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
• Analog Sync
• Separate - RGB Analog

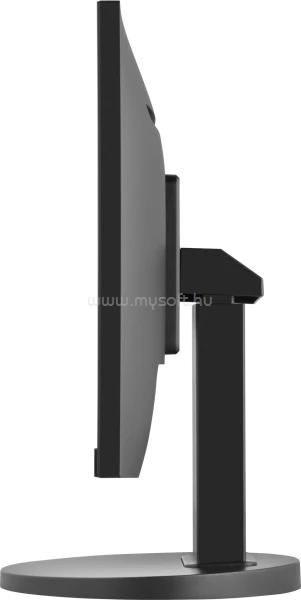

• Ergonomics

• Height Adjust (mm)
• 100
• Swivel
• 340 °

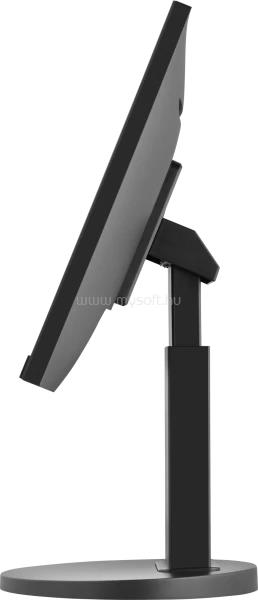

• Tilt (Forward/Back)
• -3.5o / 23o

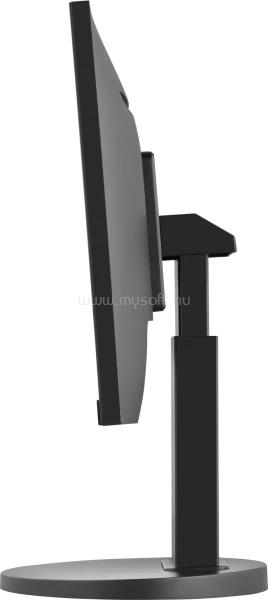

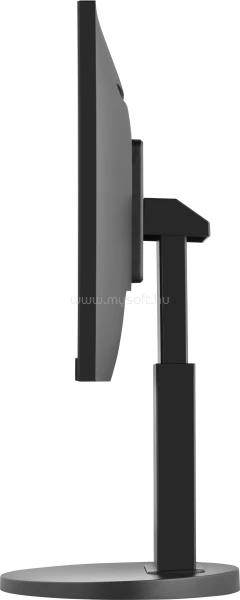

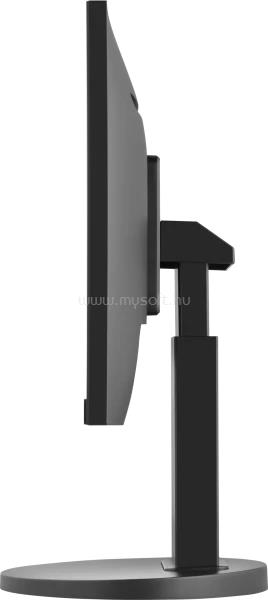

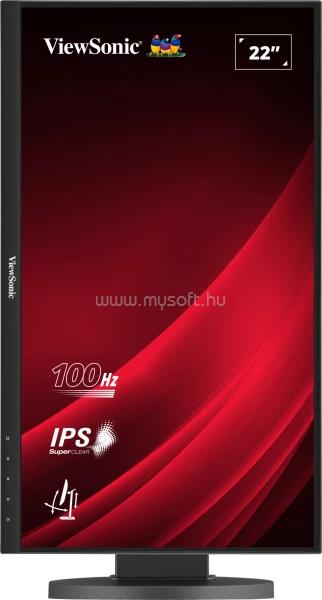

• Pivot (Right/Left)
• 90° / 0°

• Weight (imperial)

• Net (lbs)
• 8.4
• Net Without Stand (lbs)
• 4.9
• Gross (lbs)
• 11.2

• Weight (metric)

• Net (kg)
• 3.8
• Net Without Stand (kg)
• 2.2
• Gross (kg)
• 5.1

• Dimensions (imperial) (wxhxd)

• Packaging (in.)
• 21.7 x 13.7 x 6
• Physical (in.)
• 19.4 x 14.11~18.04 x 8.04
• Physical Without Stand (in.)
• 19.4 x 11.28 x 1.69

• Dimensions (metric) (wxhxd)

• Packaging (mm)
• 550 x 348 x 153
• Physical (mm)
• 492.86 x 358.32~458.32 x 204.31
• Physical Without Stand (mm)
• 492.86 x 286.48 x 43.01

• General

• PACKAGE CONTENTS
• VG2208A-HD x1
• 3-pin Plug (IEC C13 / CEE22) x1
• HDMI Cable (v1.4; Male-Male) x1
• Quick Start Guide x1

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 2 év gyártó által biztosított szervizgarancia
