UBIQUITI UNIFI USW-ULTRA-60W 8XGBE LAN PORT 7X POE+ (60W) L2 MENEDZSELHETŐ SWITCH

• Mechanical

• Dimensions
• 203 x 76 x 33 mm (8 x 3 x 1.3")
• Weight
• Device: 320 g (11.3 oz)

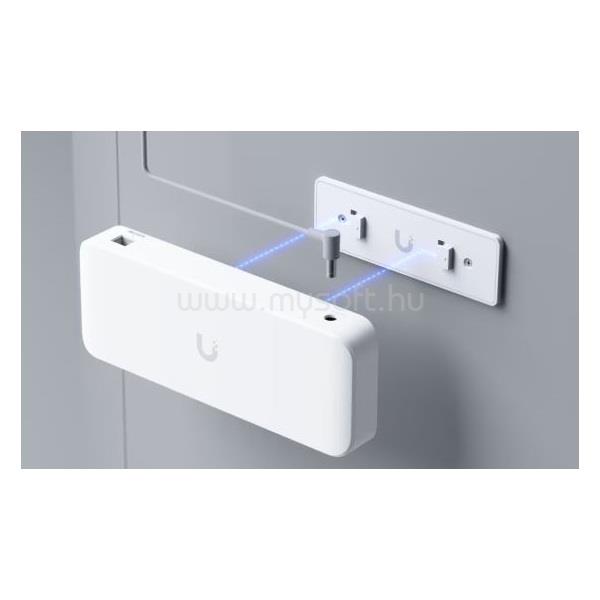

• Wall mount: 45 g (1.6 oz)
• 60W adapter: 330 g (11.6 oz)
• Enclosure material
• Polycarbonate

• Hardware

• Management interface
• Ethernet In-Band
• Networking interface
• (8) GbE RJ45 ports
• PoE interface
• (7) PoE/PoE+ (Pins 1, 2+; 3, 6-)
• Total non-blocking throughput
• 8 Gbps
• Switching capacity
• 16 Gbps
• Power method
• (1) 54V, 1.1A power adapter (Included)
• PoE++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
• Power supply
• 54V, external, 1.1A/60W
• Supported voltage range
• 44-57V DC
• Max. power consumption
• 9W with PoE input (Excluding PoE output)
• 8W with AC adapter input (Excluding PoE output)
• Total available PoE
• PoE++ input: 42W
• PoE+ input: 16W
• 60W PoE adapter input: 42W
• 60W AC adapter input: 52W
• 210W AC adapter input: 202W*
• *At 45° C (113° F) operating temperature. Reduced to 161W (230V) or 121W (115V) at 60° C (140° F)
• Max. PoE+ wattage per port by PSE
• 30W
• Button
• Factory reset
• Ambient operating temperature
• PoE++ input: -30 to 60° C (-22 to 140° F)
• 60W AC adapter input: -20 to 45° C (-4 to 113° F)
• 210W AC adapter input: -20 to 60° C (-4 to 140° F)
• Ambient operating humidity
• 10 to 90% noncondensing
• Certifications
• CE, FCC, IC

• Switching Features

• Layer 2 features
• Port isolation
• Storm control
• Port mirroring
• Multicast / broadcast rate limiting
• Flow control
• Jumbo frames
• Egress rate limit
• Layer 3 features
• -

• LEDs

• System
• Status
• Ethernet
• PoE
• Link/activity

• Application Requirements

• UniFi Network
• Version 8.0.7 and later

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
