UBIQUITI UNIFI UPS-TOWER 1000VA 600W IP20 IEC LINE INTERAKTÍV SZÜNETMENTES TÁPEGYSÉG

• Mechanical

• Dimensions
• 288 x 99 x 280.5 mm (11.3 x 3.9 x 11")
• Weight
• 7.85 kg (17.3 lb)
• Enclosure Material
• Polycarbonate and acrylonitrile butadiene styrene blend
• Form Factor
• Desktop
• Weatherproofing
• IP20

• Hardware

• Management
• Ethernet
• Networking Interface
• (1) 100/10 MbE port for network connection
• (2) GbE ports for surge in/out
• Power

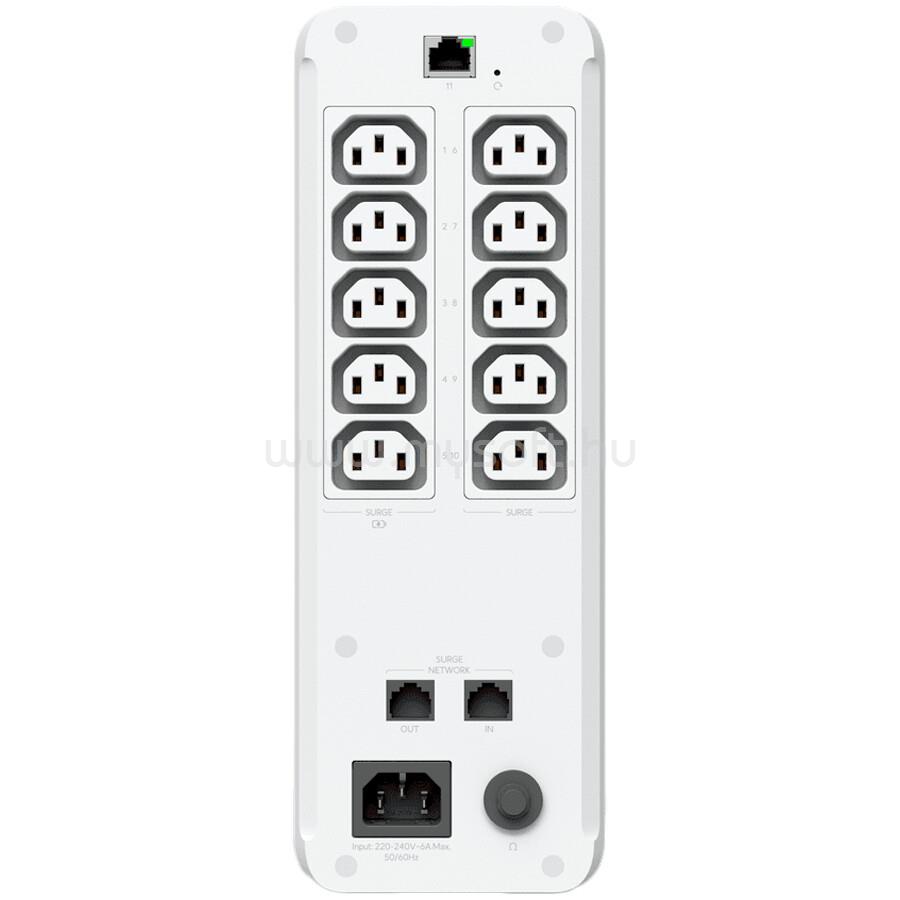

• (1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord
• (5) Battery backup/surge protection: C13
• (5) Surge protection: C13
• Capacity
• 1,000VA/600W
• Type
• Line interactive
• Input Voltage Range
• 170-280V AC
• Power Method
• (1) TN system, 220-240V AC, 6A Max., 50/60 Hz
• Nominal Input Voltage
• 230V AC
• Output Voltage
• 220-240V AC
• Nominal Output Voltage
• 230V AC
• Frequency Range
• AC mode: 50/60 Hz +/-5 Hz (Auto sensing)
• Battery mode: 50 Hz +/-1 Hz
• AC Voltage Regulation
• +/-10% (Battery mode)
• Transfer Time
• 6 ms typical; 10 ms max. (Battery mode)
• Wave Form
• Simulated sine wave (Battery mode)
• Battery Type
• (1) Lead Acid 12V, 9Ah
• Runtime
• Full load: 2 min
• Half load: 7 min
• Battery Charging Time
• 6-8 hours recovery to 90% capacity
• Overload at On-Line Mode
• 110% 5 min go to fault
• 120% go to fault immediately
• Overload at Battery Mode
• 110% shutdown in 5 sec
• 120% shutdown immediately
• Short Circuit Protection at On-Line Mode
• Breaker, 250V AC, 10A
• Output Short-Circuit Current
• Ipeak 401.9A
• Irms 160.7A

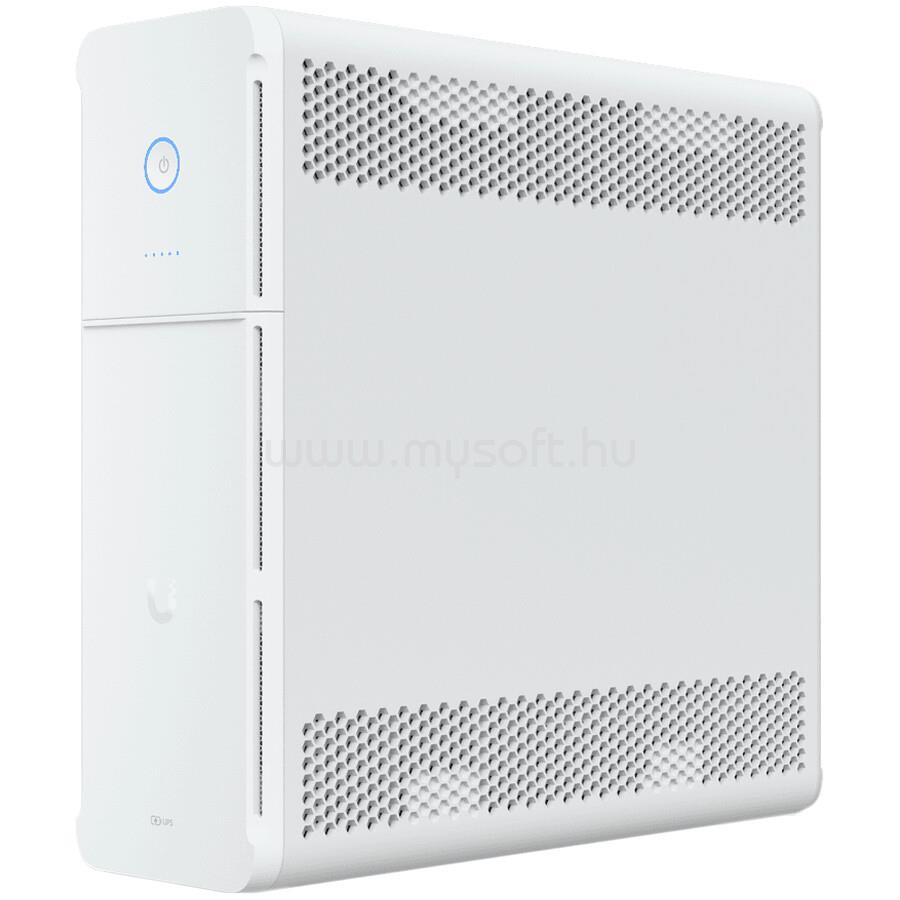

• Buttons
• (1) Power
• (1) Factory reset
• LEDs
• Status
• Off: device not turned on
• Flashing white: initializing / factory default
• Steady white: waiting for adoption
• Steady blue: device adoption and working
• Flashing blue: battery mode
• Alternating white/blue: firmware upgrading
• Rapid flashing blue: locate
• Steady red: warning
• Flashing red: low battery
• Battery Indicator
• All off: 0%
• (1) Steady blue: battery 1-19%
• (2) Steady blue: battery 20-39%
• (3) Steady blue: battery 40-59%
• (4) Steady blue: battery 60-79%
• (5) Steady blue: battery 80-100%
• Operating Altitude
• 3,000 m (1.9 mi)
• Operating Environment
• Pollution Degree 2
• Ambient Storage Temperature
• -20 to 50° C (-4 to 122° F)
• Ambient Operating Temperature
• 0 to 40° C (32 to 104° F)
• Ambient Operating Humidity
• 0 to 95% noncondensing
• Certifications
• CE, IEC 62040-1
