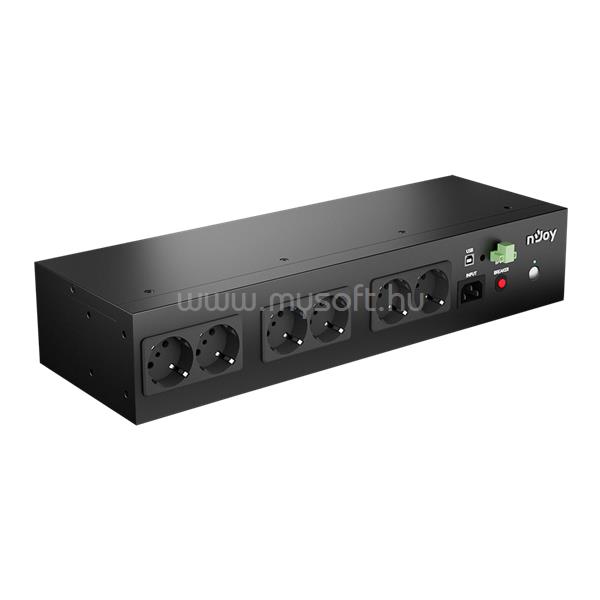

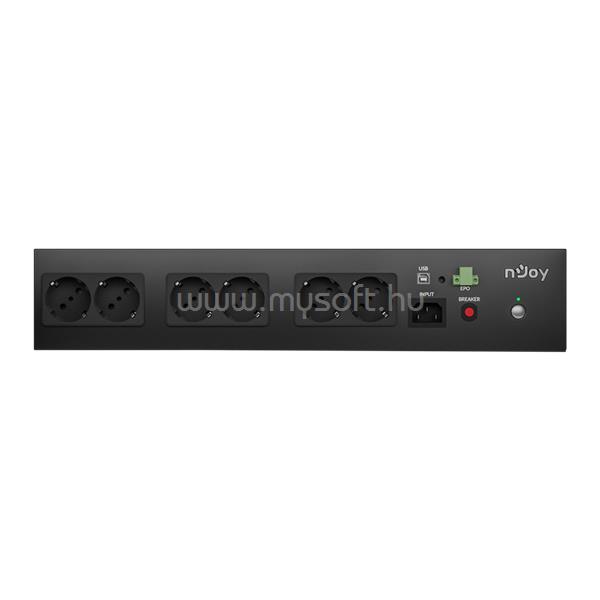

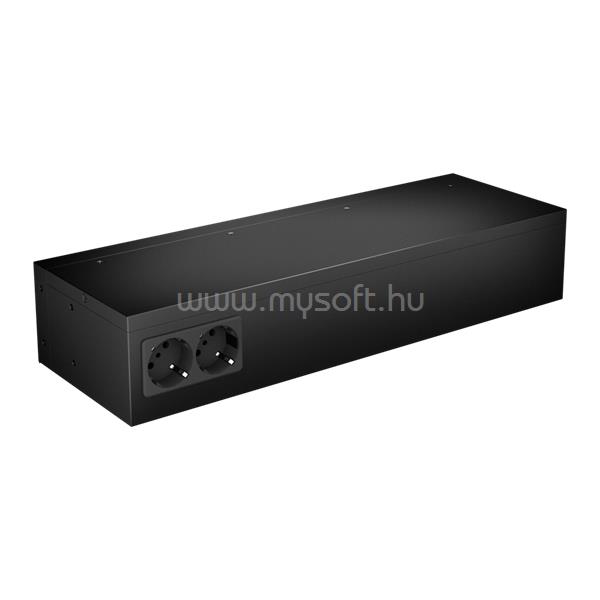

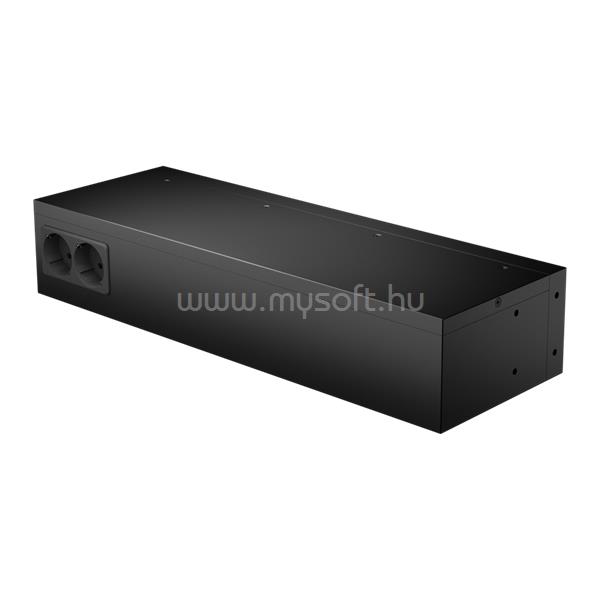

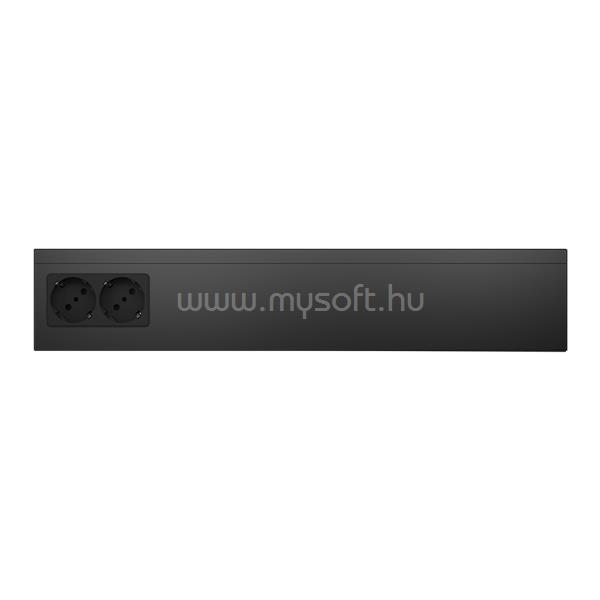

NJOY THERON 800 800VA SZÜNETMENTES ELOSZTÓSOR (8 SCHUKO, OFF-LINE (VFD), USB MENEDZSMENT, 2U RACK)

• Specification

• Capacity
• 800VA/480W
• Type
• Off-line (VFD) (Standby)

• Input

• Nominal Voltage
• 220-240Vac
• Accepted Voltage Range
• 180-270Vac
• Frequency Range
• 50/60 Hz (auto sensing)

• Output

• Nominal Voltage
• 220-240Vac
• AC Voltage Regulation (Batt. Mode)
• +/-7%
• Frequency Range (Batt. Mode)
• 50Hz/60Hz +/-1%
• Power Factor
• > 0.6 @ nominal voltage (100% load)
• Transfer Time
• 14ms maximum
• Waveform (Batt. Mode)
• Simulated Sine Wave
• Outlet Battery backup
• 8 Schuko socket
• Overload (Line)
• >(100%+/-10)% only alarm
• >(130%+/-10)% fault immediately
• Overload (Baterry)
• >(110%+/-10)% fault after alarm 10s
• >(120%+/-10)% fault immediately

• Accessories

• I/P Power cord (For IEC inlet)
• EU PLUG + IEC C13

• Interface

• USB (HID)
• Yes
• EPO
• Yes

• Indicators type

• Display
• LED
• Line mode
• Green LED lighting
• Battery mode
• Green (Flash Once every 30 Seconds)
• Battery Low
• Green (Flash Once every 2 Seconds)
• Overload
• Green (Flash Once every 0.5 Seconds)
• Fault
• Green LED off
• Standby mode
• Green LED off

• Alarm

• Battery Mode
• Sounding every 30 seconds
• Low Battery
• Sounding every 2 seconds
• Overload
• Sounding every 0.5 seconds
• Fault
• Continuously sounding

• Battery

• Battery Type & Number
• 1x GP09122L
• PN: BTVACHUECTD2LCG01B
• Battery Voltage
• 12V
• Typical Recharge Time
• 8 hours up to 90% capacity
• Running time on battery (minutes)
• 25% Load - 26min22s
• 50% Load - 9min40s
• 75% Load - < 3min15s
• 100% Load - < 1min10s

• Environment

• Operating Temperature
• 0 to 40°C
• Humidity
• 0 to 95% (Non-condensing)
• Operating/Storage Elevation
• 0-2000m
• Noise Level(1m)
• Less than 40dB

• Physical

• Product dimensions
• 438 x 150 x 86 mm
• Product weight
• 5.25 kg

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
