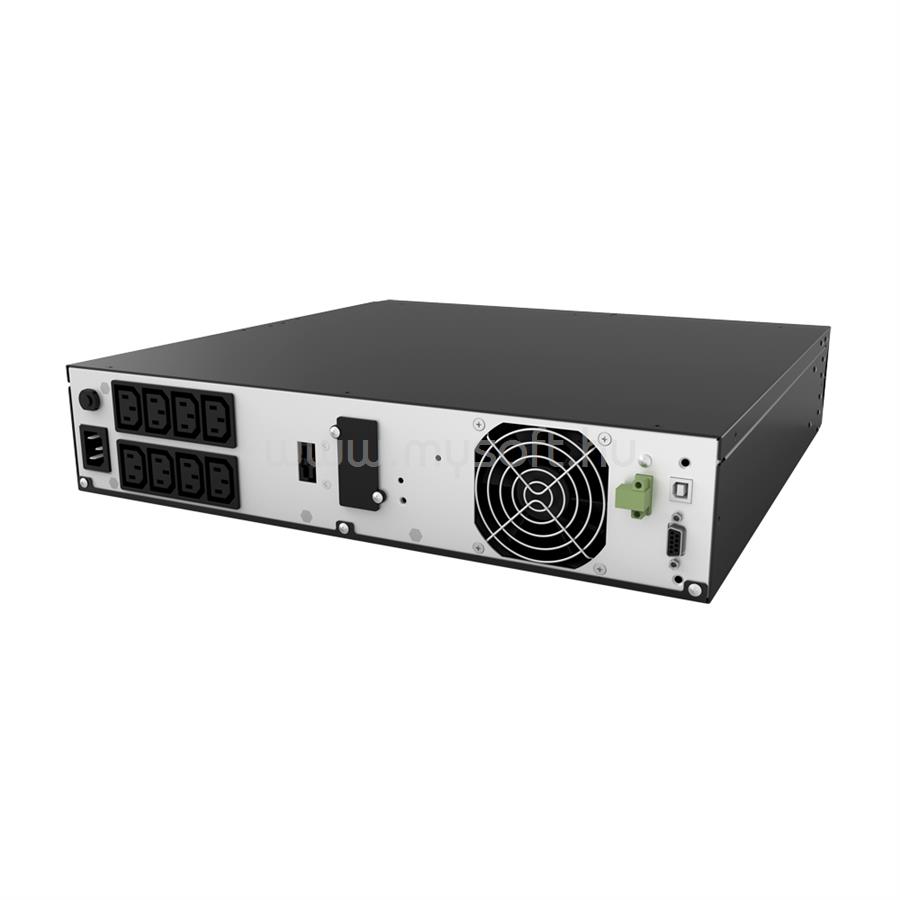

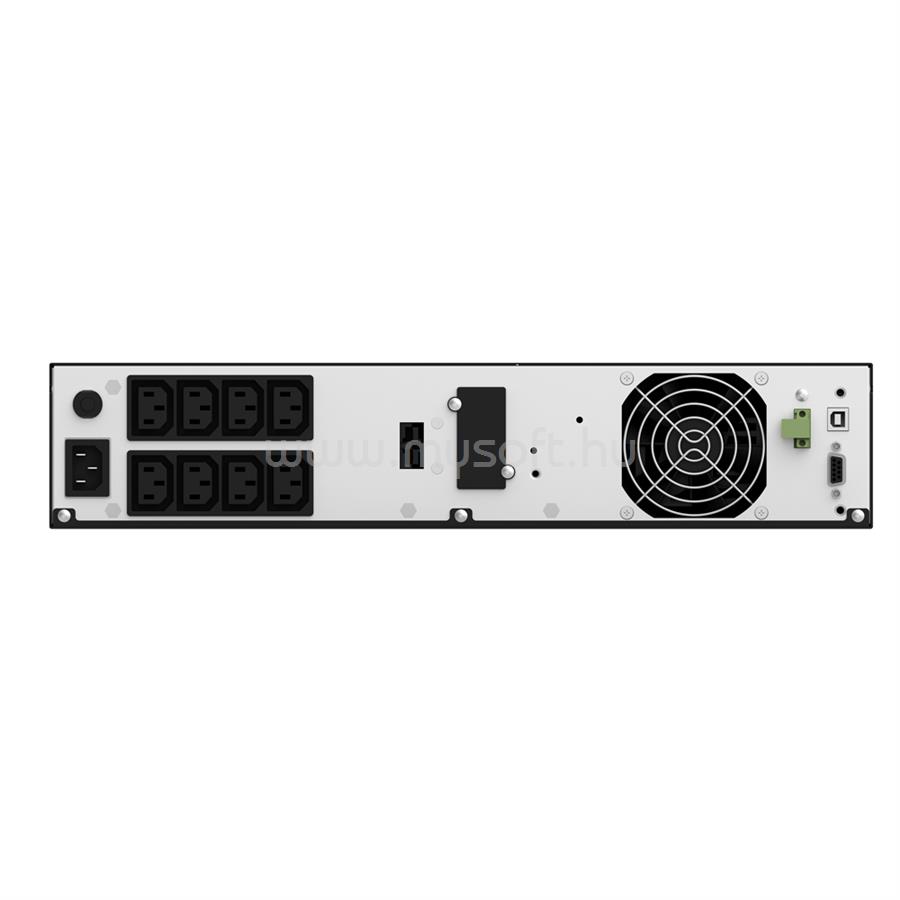

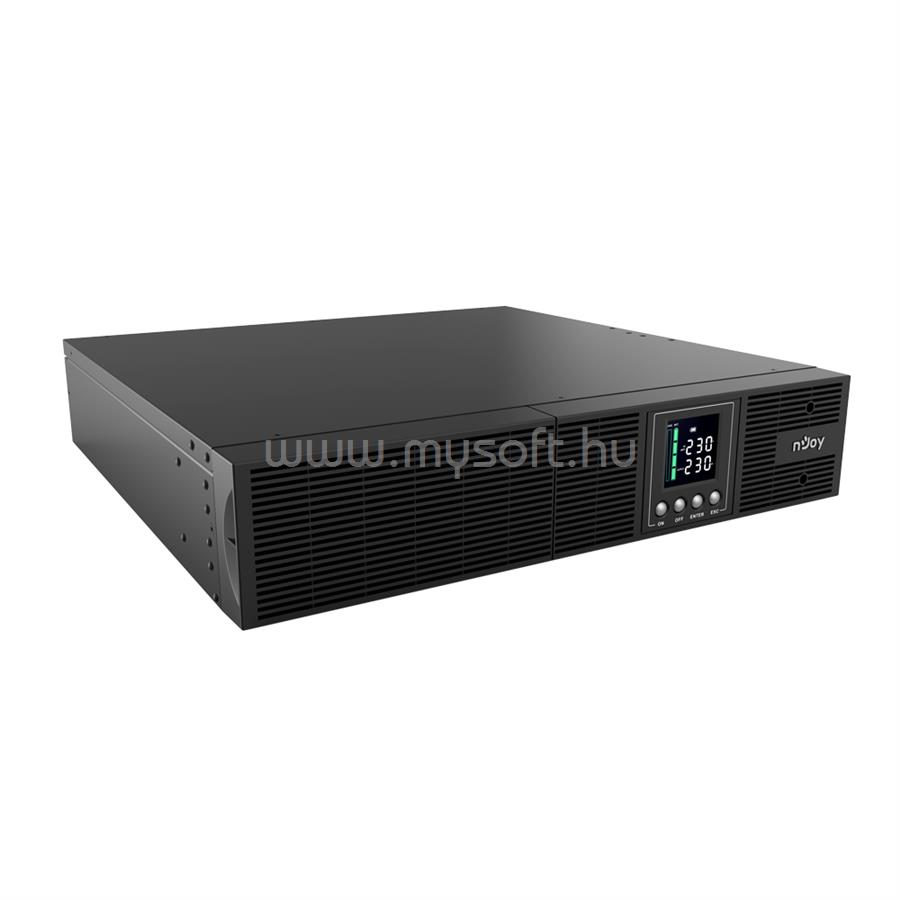

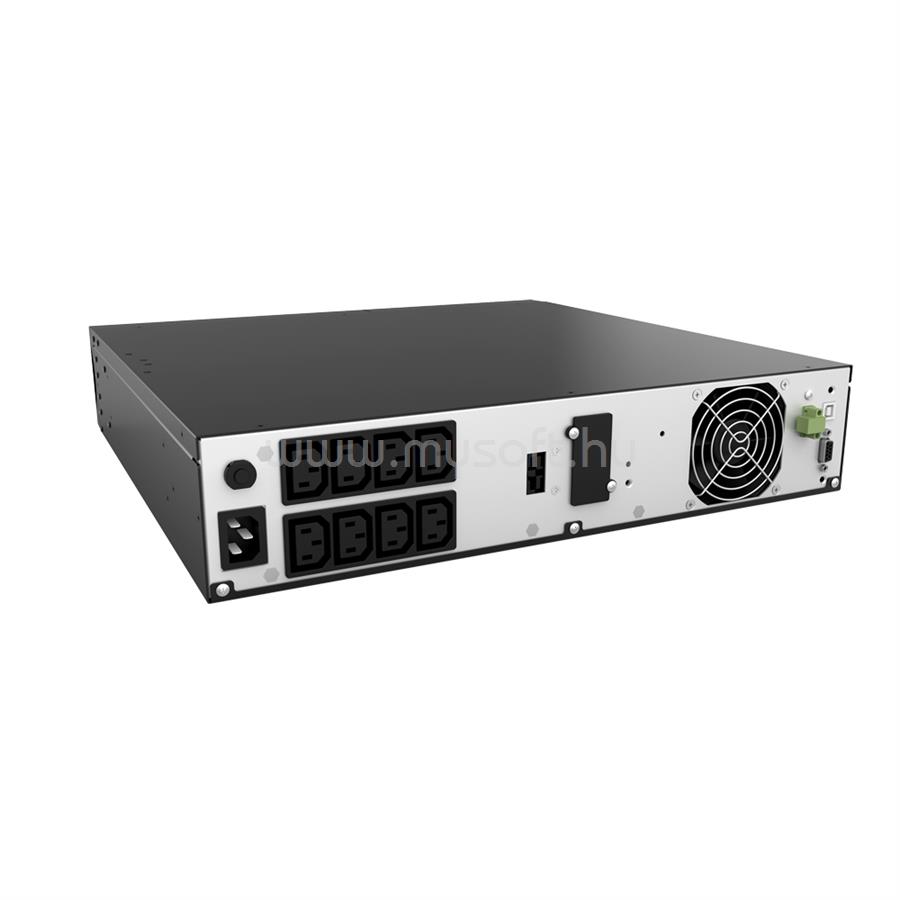

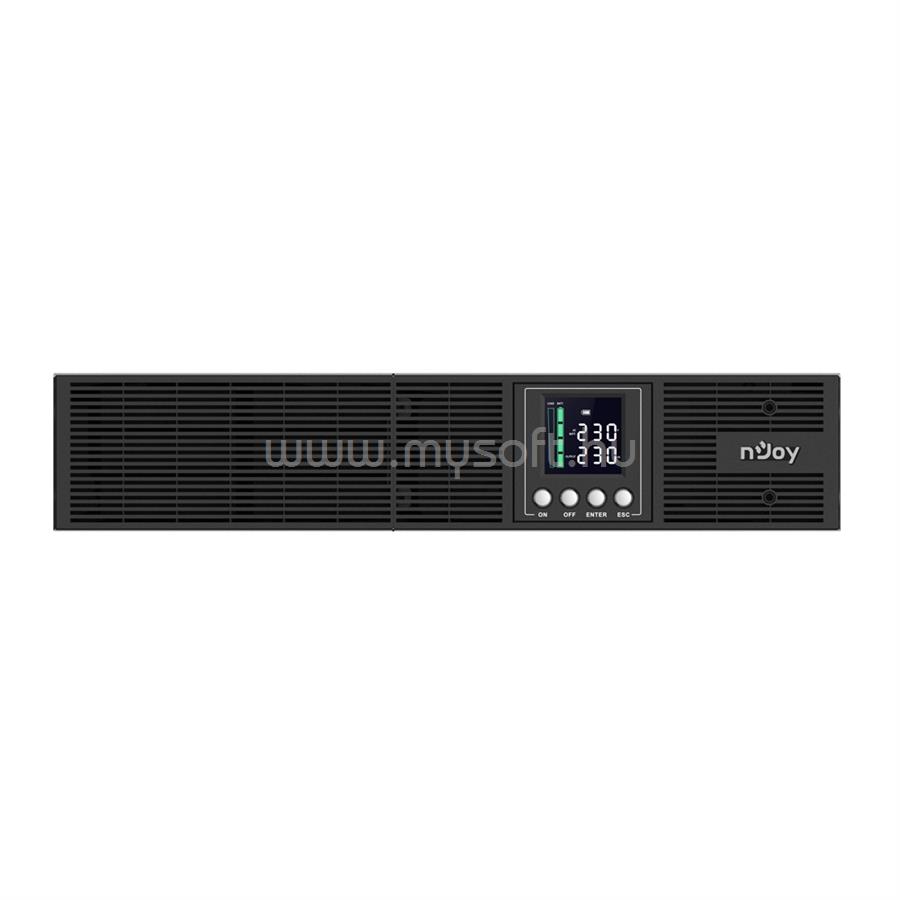

NJOY 2000VA - ASTER 2K SZÜNETMENTES TÁPEGYSÉG (8X IEC C13, ON-LINE, RS232, USB, SZOFTVER, LCD KIJELZŐ, 2U RACK)

• Capacity
• 2000 VA/1800 W
• Type
• On-line

• Input

• Nominal Voltage
• 208/220/230/240 VAC
• Accepted Voltage Range
• 80-300 VAC
• Nominal Frequency
• 50 Hz/60 Hz
• Frequency Range
• 40-70 Hz
• Phase
• Single phase with ground

• Output

• Nominal Voltage
• 208/220/230/240 VAC - user selectable
• AC Voltage Regulation (Batt. Mode)
• +/-1%
• Nominal Frequency
• 50 Hz/60 Hz
• Frequency Range (Batt. Mode)
• 50 Hz / 60 Hz +/- 0.5%
• Waveform (Batt. Mode)
• Pure sine wave
• THDv
• <5%@non-linear load
• Current Crest Ratio
• 3:1
• Transfer Time
• Zero

• Efficiency

• Inverter Mode
• > 90 % at full charged battery
• To Battery Mode
• > 87 % at full charged battery
• ECO Mode
• > 97 % at full charged battery

• Indicators type

• Color LCD Display
• UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
• Alarm
• Load Capacity, Load & Battery level, AC mode, Battery mode, Bypass mode and Fault indicators etc.

• Environement

• Humidity
• 0-90 % (non-condensing)
• Temperature
• 0-40°C
• Noise level
• Less than 50dB

• Protection

• Overload protection
• Line Mode
• 105~110%, Overload warning only (No shutdown)
• 110~120%, Warning, transfer to bypass after
• 60s >120%, Transfer to bypass immediately
• Battery Mode
• 105~110%, Overload warning only (No shutdown)
• 110~120%, Warning, shutdown
• after 10s >120%, Shutdown immediately
• Bypass Mode
• 105~130%, Warning only (No shutdown)
• >130%, Shutdown immediately
• Other protections
• Discharge, Overcharge, Input spike

• Outlets type

• Input
• 1 x IEC-320 C14
• Output
• 8 x IEC-320 C13

• Battery

• Battery Type & Number
• 6 X GP07122L (PN: BTVACFUBBTO2LCG01B)
• Typical Recharge Time
• 4 hours up to 90% capacity
• Running time on battery (minutes)
• 25% Load - 24min 4sec
• 50% Load - 12min 4sec
• 75% Load - 6min 10sec
• 100% Load - 4min 30sec

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
