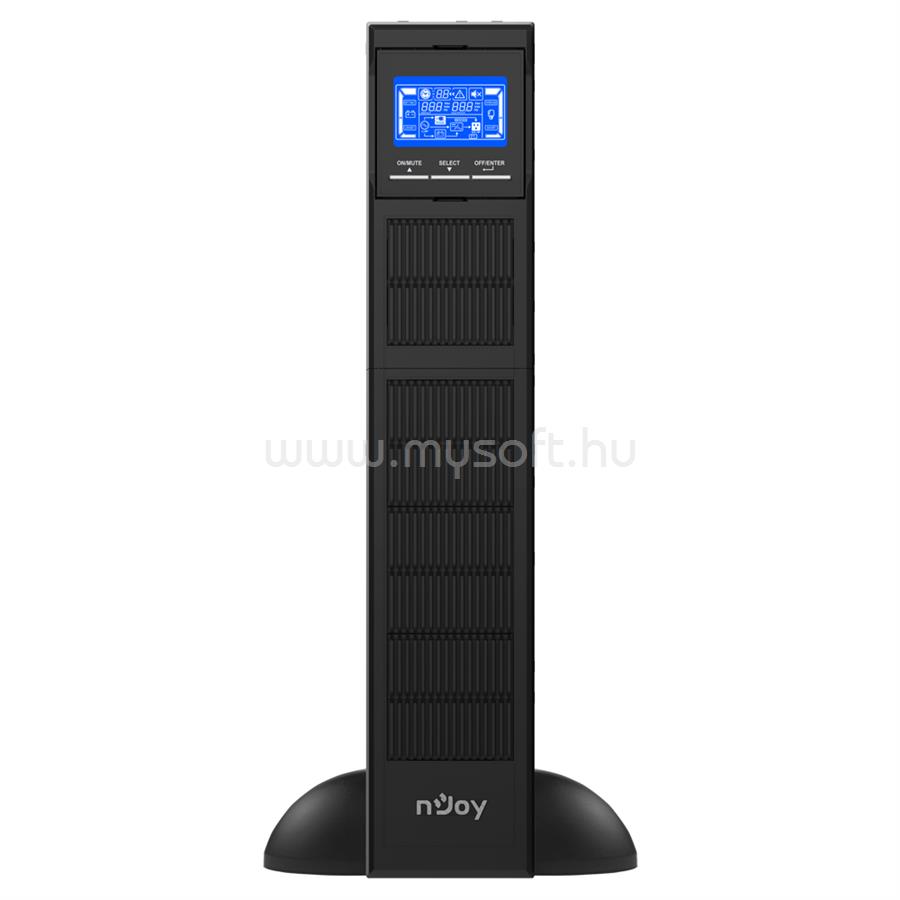

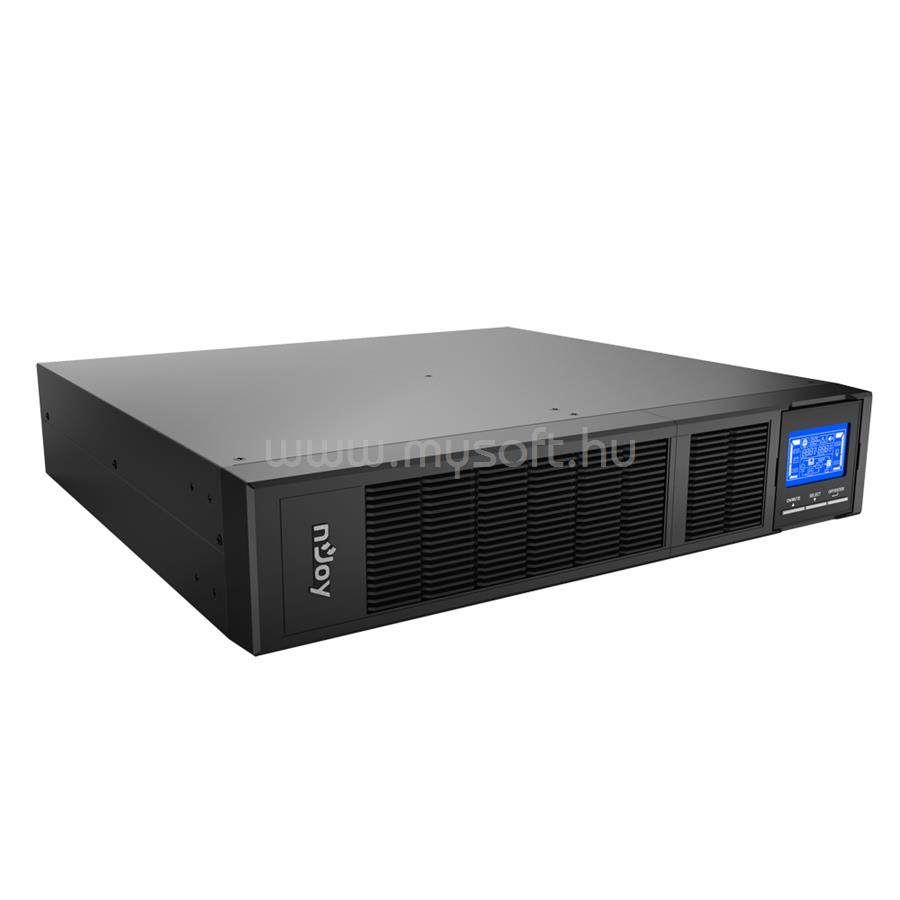

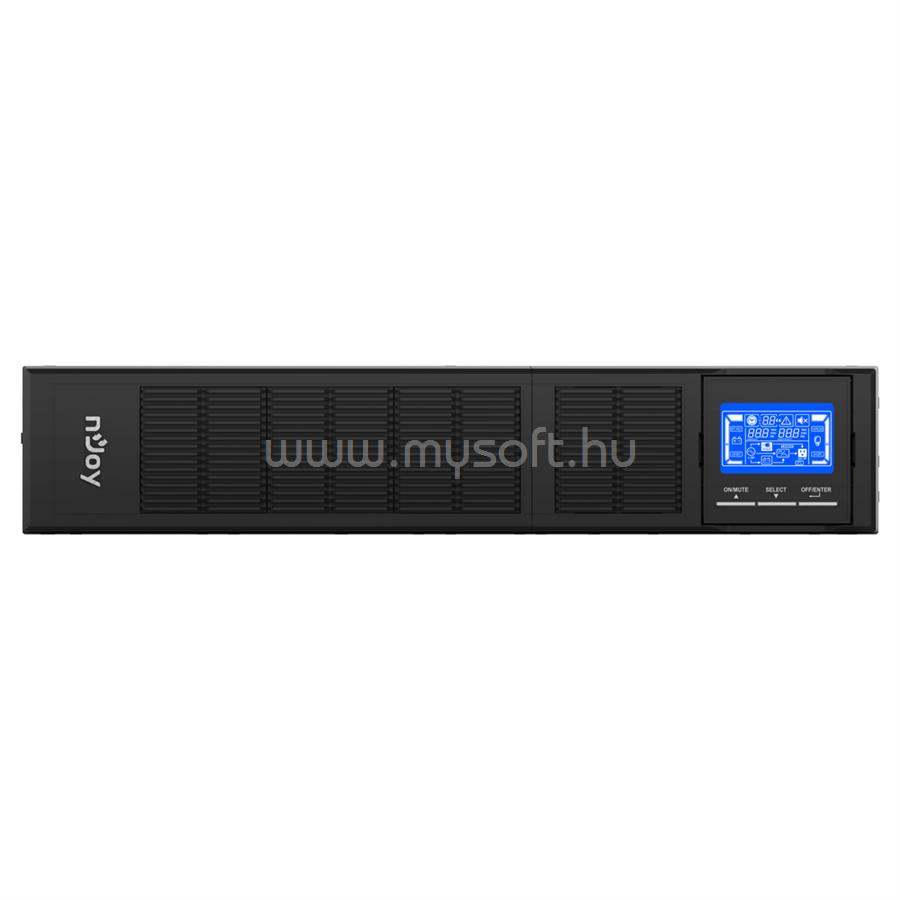

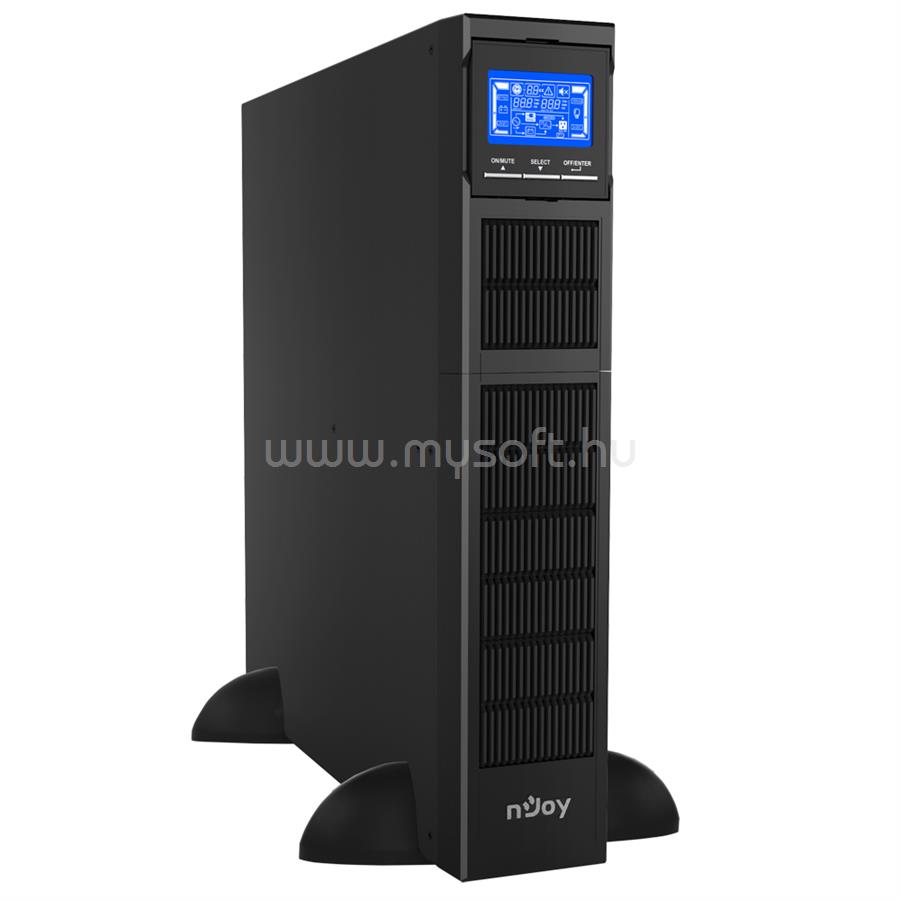

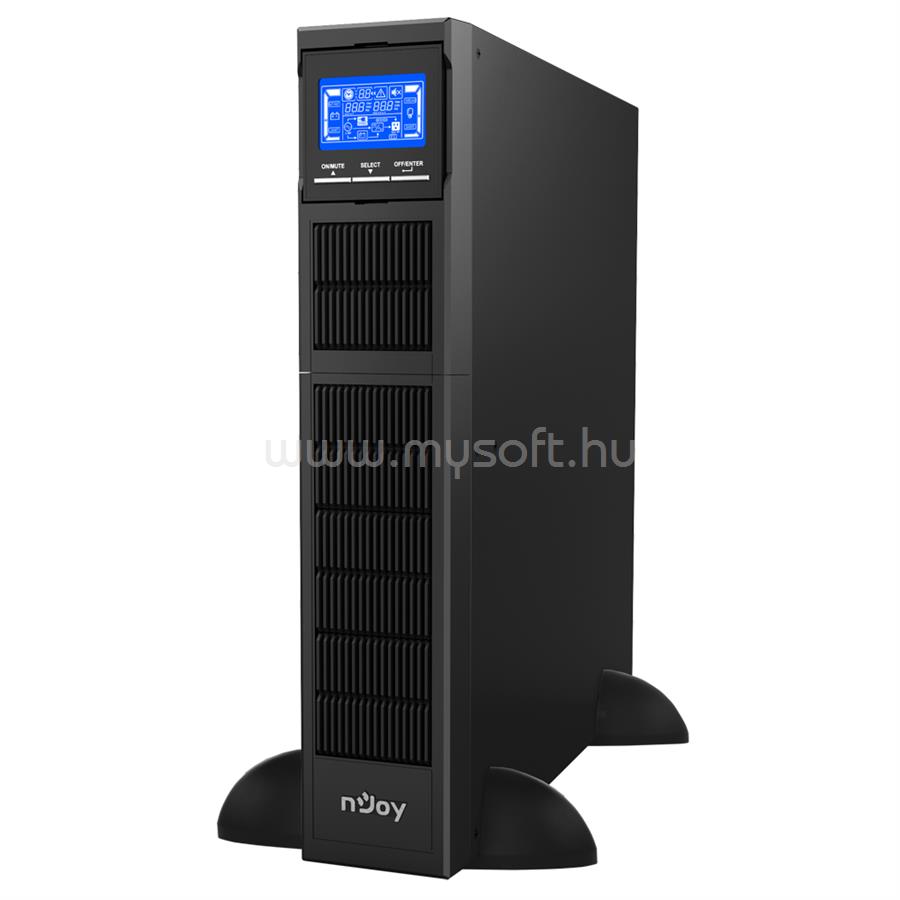

NJOY 1000VA - BALDER 1000 SZÜNETMENTES TÁPEGYSÉG (ON-LINE, RS232, USB, SZOFTVER, LCD KIJELZŐ, 2U RACK)

• Capacity
• 1000 VA / 1000 W
• Type
• On-line

• Input

• Nominal Voltage
• 230 VAC
• Accepted Voltage Range
• 110-300 VAC +/- 5% @ 50% load
• 160-300 VAC +/- 5% @ 100% load
• Nominal Frequency
• 50 Hz / 60 Hz (Auto Sensing)
• Frequency Range
• 40Hz ~ 70 Hz
• Power Factor
• > 0.99 at nominal voltage (100% load)
• Harmonic Distortion
• < 5 % THD at nominal input voltage
• Phase
• Single phase with ground

• Output

• Nominal Voltage
• 200/208/220/230/240 VAC
• AC Voltage Regulation (Batt. Mode)
• +/- 1%
• Frequency Range (Batt. Mode)
• 50 Hz +/- 0.1 Hz
• Frequency Range (Synchronized Range)
• 47 ~ 53 Hz
• Current Crest Ratio
• 3:1 (max.)
• Harmonic Distortion
• < 2 % THD (Linear Load)
• < 4 % THD (Non-linear Load)
• Waveform (Batt. Mode)
• Pure Sinewave

• Transfer Time

• AC Mode to Batt. Mode
• Zero
• Inverter to Bypass
• Typical 4 ms

• Efficiency

• AC Mode
• > 89 % at full charged battery
• To Battery Mode
• > 88 % at full charged battery
• ECO Mode
• > 95 % at full charged battery

• Indicators type

• LCD Display
• UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
• Alarm
• Load Capacity, Load & Battery level, AC mode, Battery mode, Bypass mode and Fault indicators etc.

• Protection

• Full protection
• Overload, Discharge & Overcharge protection, Input spike protection, Over-temperature
• Surge rating energy
• 624 Joules

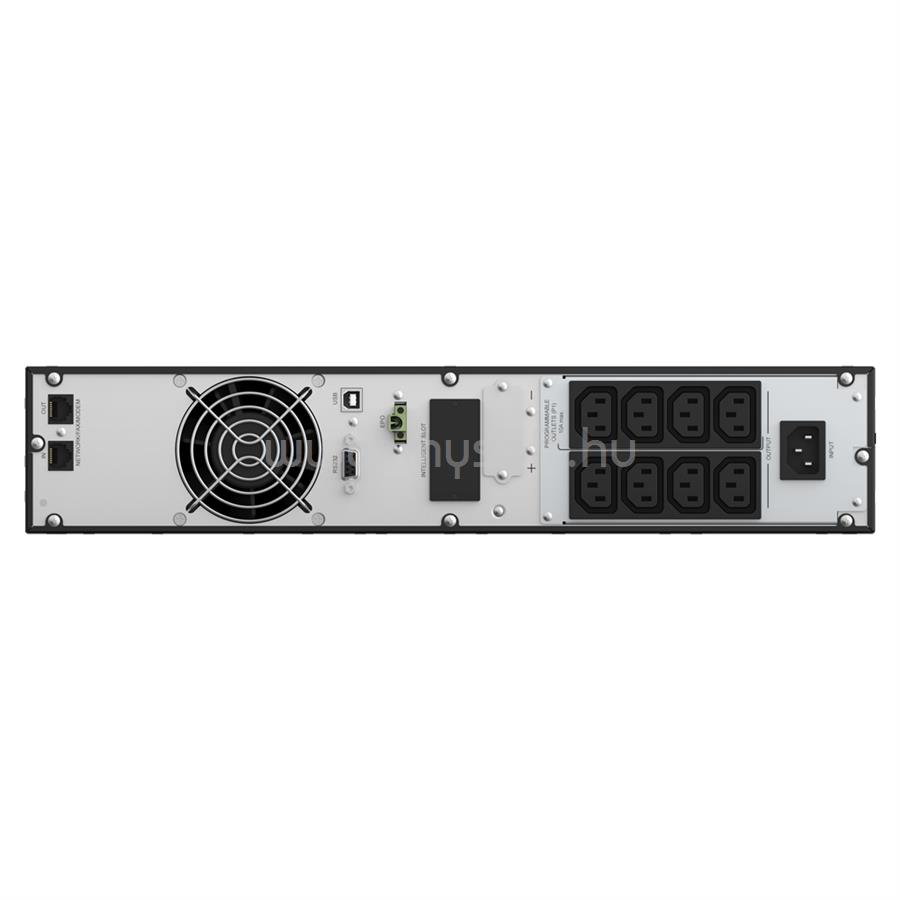

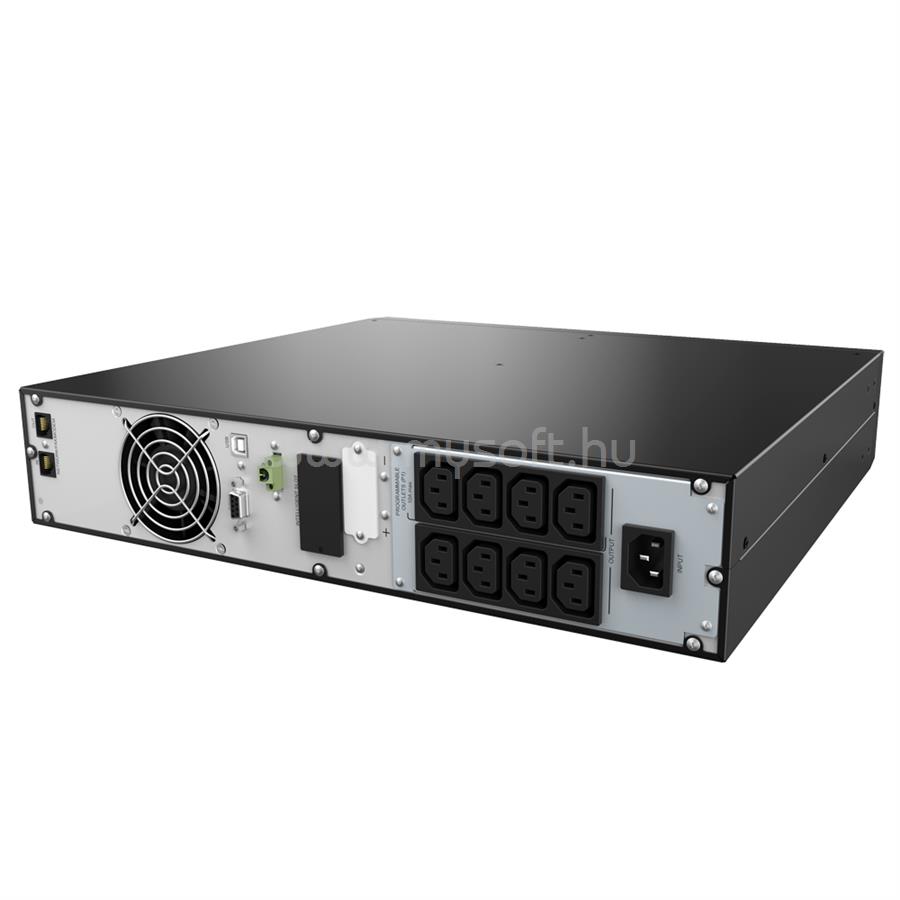

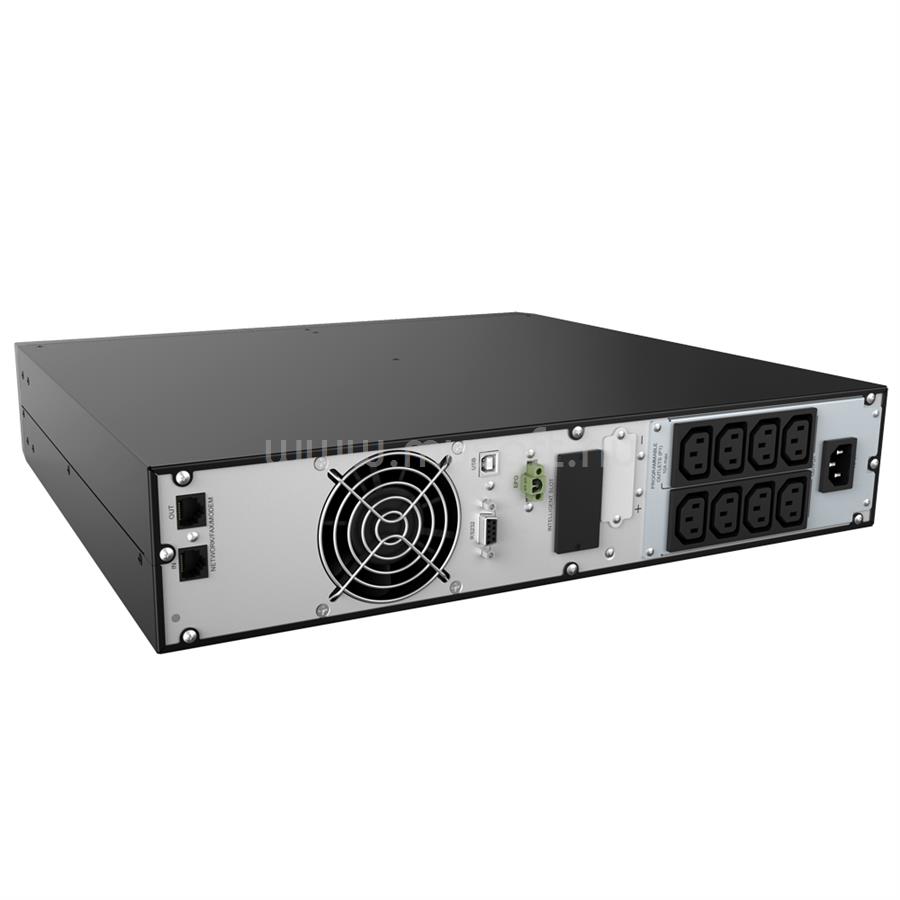

• Outlets type

• Input
• 1 x IEC-320 C14
• Output
• 8 x IEC C13 (4 x Programmable power management outlets)

• Battery

• Battery Type & Number
• 3 x CSB HRL 1234W VRLA battery (included)
• Function
• Hot-swappable
• Battery Compatibility
• nJoy GP09122F
• Charging Current (Max.)
• Default: 2A, Max: 12A (adjustable)
• Charging Voltage
• 41.1 VDC +/-1%
• Typical Recharge Time
• 3 hours recover to 95% capacity for internal battery@ 2A charging current
• Running time on battery (minutes)
• 25% Load - 31 min
• 50% Load - 13 min
• 75% Load - 8 min
• 100% Load - 4 min

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
