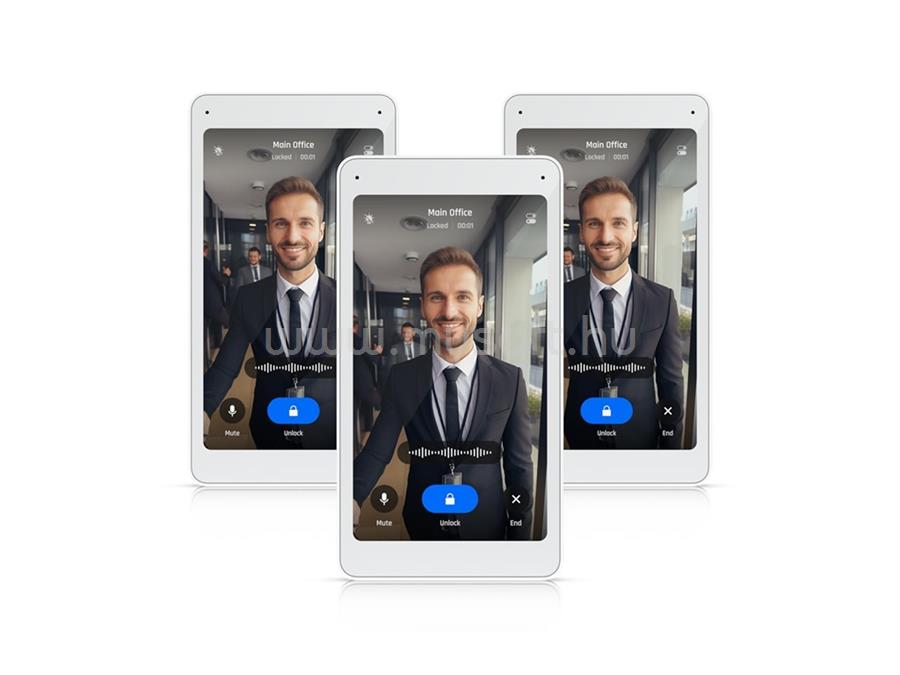

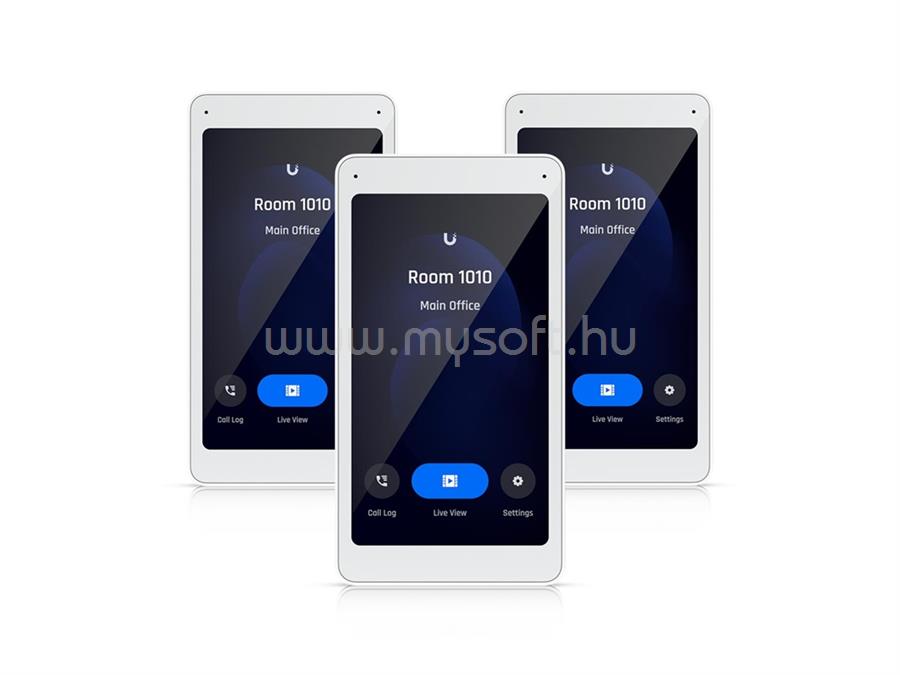

UBIQUITI UA-INTERCOM-VIEWER UNIFI ACCESS ÉRINTŐKÉPERNYŐS VIDEOTELEFON (3DB)

• Compatibility

• UA-Intercom
• UA-G3-Pro
• UA-G2-Pro
• UVC-G6-Entry
• UVC-G6-Pro-Entry

• Overview

• Dimensions
• 135 x 72 x 31.8 mm (5.3 x 2.8 x 1.3")
• Mobile Unlock
• Yes
• NDAA Compliant
• Yes
• UL 294 Level
• Destructive attack: Level I
• Line security: Level I
• Endurance: Level I
• Standby power: Level I

• Mechanical

• Weight
• 168 g (5.9 oz)
• Enclosure Material
• Glass, polycarbonate
• Mount Material
• Aluminum alloy
• Mounting
• Wall (Included)
• Gang box mount (Optional)

• Hardware

• Indoor and Outdoor Use
• Indoor only
• Networking Interface
• (1) 10/100 Mbps RJ45 port
• Connectivity
• Ethernet
• Power Method
• PoE
• UL 294 Power-limited Class 2 PSU
• UL 60950-1/62368-1 LPS/PS2 PSU
• Max. Power Consumption
• 5W
• Supported Voltage Range
• 44-57V DC
• Display
• Size
• 127 mm (5") diagonal
• Luminance
• 300 nits (Typical)
• Screen Orientation
• Portrait
• Resolution
• 1280 x 720 px
• Microphone
• Yes
• Speaker
• Yes
• Buttons
• (1) Factory reset
• PoE Cabling Requirements
• Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
• The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm2 ) for patch cords; 24 AWG (0.21 mm2 ) for horizontal or riser cable.
• UL 294 Statement
• Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
• The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
• CAN/ULC-60839-11-1 Grade
• Grade assignment: I
• Certifications
• CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• Document number, and issue date and/or revision level
• UA-Intercom-Viewer, V01
• Ambient Operating Temperature
• 0 to 40° C
• (32 to 104° F)
• Ambient Operating Humidity
• 5 to 95% noncondensing

• Software

• Management Application
• Access
• Software Information
• The software version can be checked at https://unifi.ui.com

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
