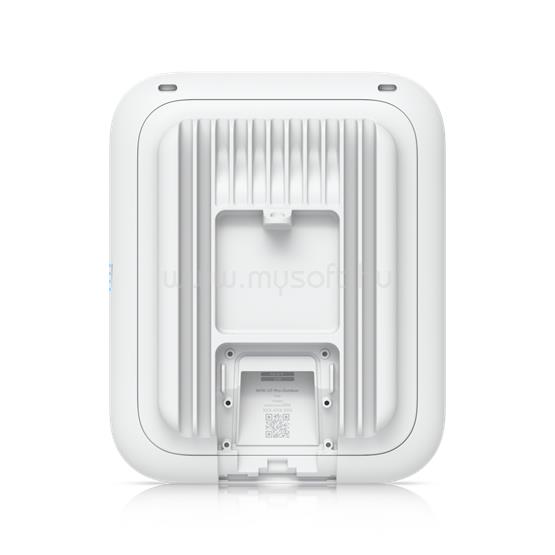

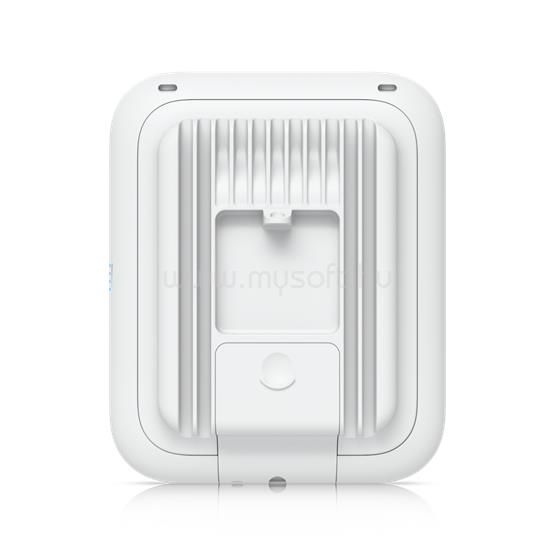

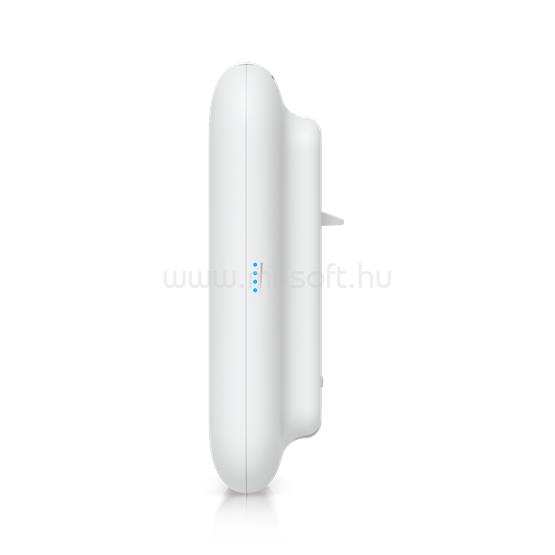

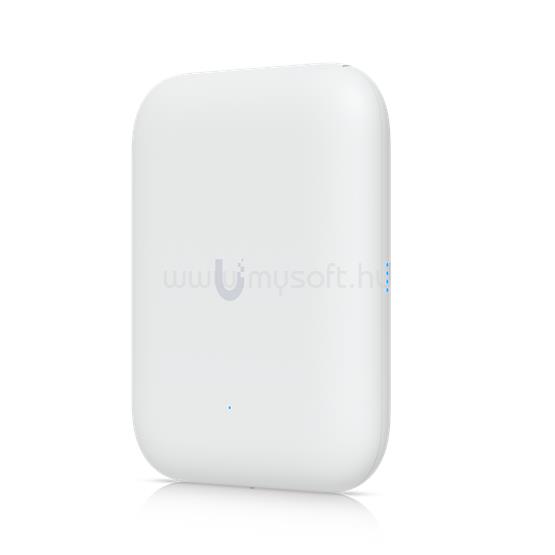

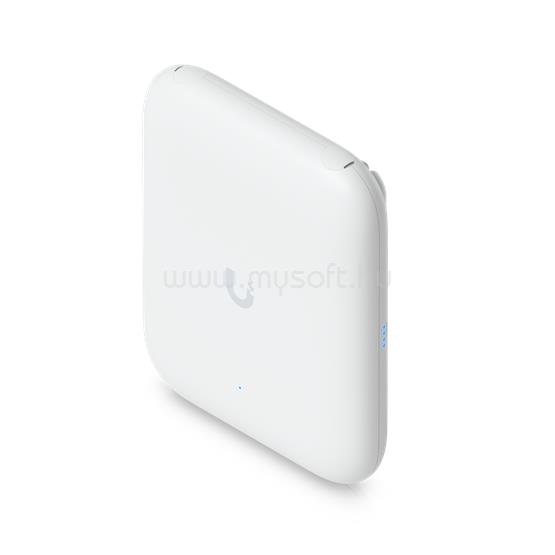

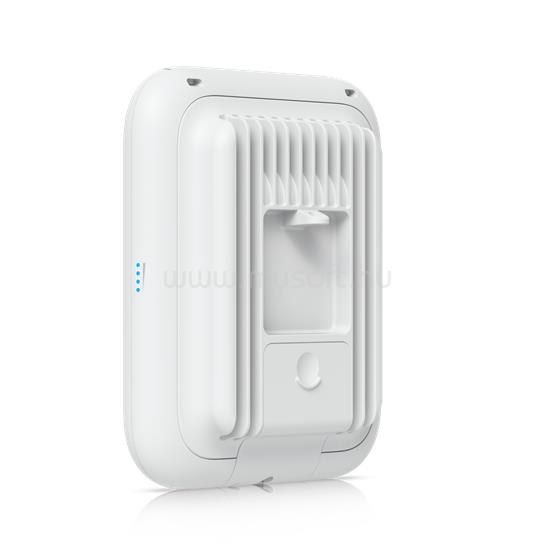

UBIQUITI UNIFI U7 PRO OUTDOOR KÜLTÉRI ACCESS POINT, IP67, 802.11BE, 2.5 GBE, (WIFI 7, TÁP NÉLKÜL)

• Overview

• Dimensions
• Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6")
• With mount: 170 x 208 x 121.8 mm
• (6.7 x 8.2 x 4.8")
• WiFi Standard
• WiFi 7
• Spatial Streams
• 6
• Coverage Area
• 465 m2 (5,000 ft2)
• Max. Client Count
• 300+
• Uplink
• 2.5 GbE
• Mounting
• Wall, Pole (Mounts Included)
• Weatherproofing
• IPX6

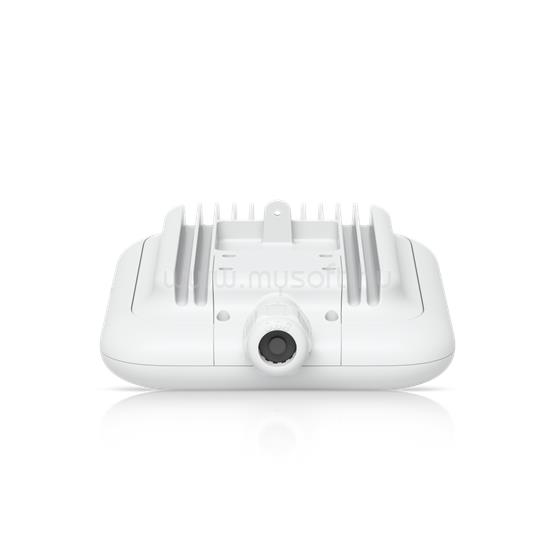

• IP67 (With cable-gland door kit)
• Power Method
• PoE+

• Performance

• MIMO
• 5 GHz
• 4 x 4 (DL/UL MU-MIMO)
• 2.4 GHz
• 2 x 2 (DL/UL MU-MIMO)
• Max. Data Rate
• 5 GHz
• 8.6 Gbps (BW240)
• 2.4 GHz
• 688 Mbps (BW40)
• Antenna Gain
• 5 GHz
• Directional internal: 11 dBi, 90° x 45°

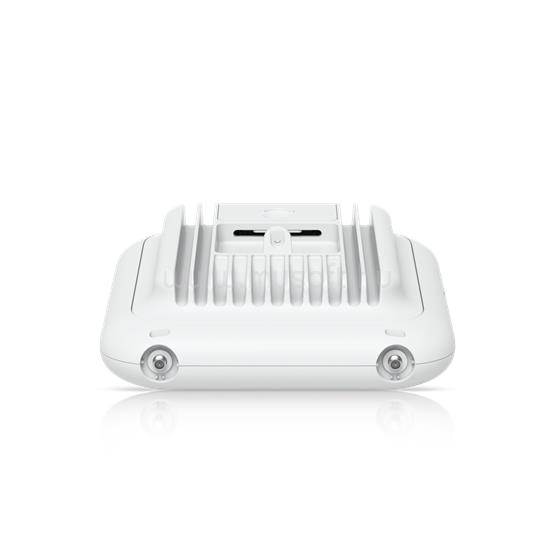

• External omni: 8 dBi, 360° x 15°
• 2.4 GHz
• Directional internal: 8 dBi, 90° x 90°
• External omni: 6 dBi, 360° x 15°
• Max. TX Power
• 5 GHz
• 29 dBm
• 2.4 GHz
• 23 dBm
• Max. BSSIDs
• 8 per Radio
• Supported Data Rates
• 802.11be (WiFi 7)
• 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
• 802.11ax (WiFi 6)
• 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
• 802.11ac (WiFi 5)
• 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
• 802.11n
• 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

• Features

• Wireless Meshing
• Band Steering
• 802.11v BSS Transition Management
• 802.11r Fast Roaming
• 802.11k Radio Resource Management (RRM)
• Advanced Radio Management
• Passpoint (Hotspot 2.0)
• Captive Hotspot Portal
• Custom Branding Landing Page
• Voucher Authentication
• Payment-Based Authentication
• External Portal Server Support
• Password Authentication
• Guest Network Isolation
• Private Pre-Shared Key (PPSK)
• WiFi Speed Limiting
• Client Device Isolation
• WiFi Schedules
• RADIUS over TLS (RadSec)
• Dynamic RADIUS-assigned VLAN

• Hardware

• Max. Power Consumption
• 21W
• Supported Voltage Range
• 42.5-57V DC
• Networking Interface

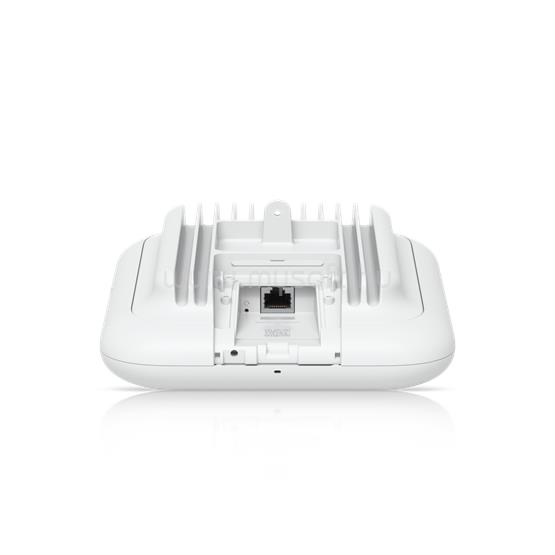

• (1) 1/2.5 GbE RJ45 port
• Weight
• Device: 1.2 kg (2.6 lb)
• With mount: 1.33 kg (2.9 lb)
• Wind Loading
• 74.6 N at 200 km/h (16.8 lbf at 125 mph)
• Pole Mount Diameter
• 1-2.5" (25-63.5 mm)
• Management
• Ethernet
• Enclosure Material
• UV-stabilized polycarbonate, aluminum alloy
• Mount Material
• UV-stabilized polycarbonate
• LEDs
• System
• (1) Power: White/Blue
• (4) Mesh signal: Blue
• NDAA Compliant
• Yes
• Certifications
• CE
• Ambient Operating Temperature
• -30 to 60° C (-22 to 140° F)
• Ambient Operating Humidity
• 5 to 95% noncondensing

• Software

• Application Requirements
• UniFi Network
• Version 9.0.114 and later
• Mobile App
• iOS version 10.20.2 and later
• Android version 10.21.7 and later

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
