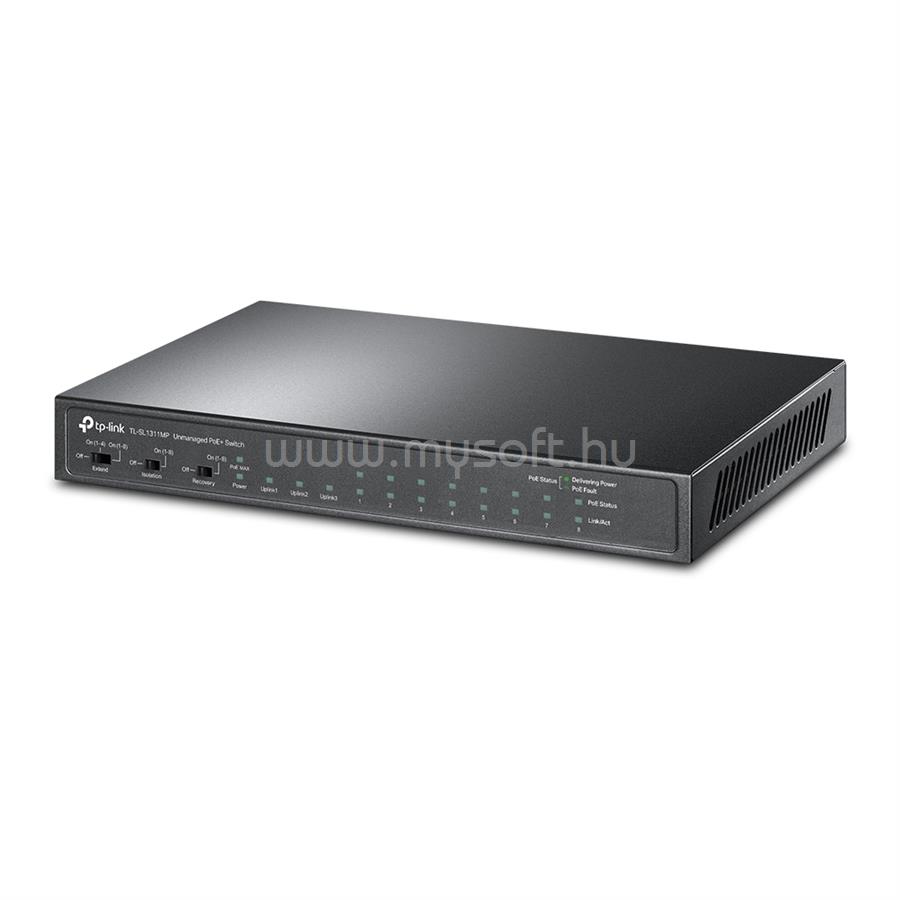

TP-LINK TL-SL1311MP SWITCH 8X100MBPS (8XPOE+) + 2X1000MBPS + GIGABIT SFP

• HARDWARE FEATURES

• Interface

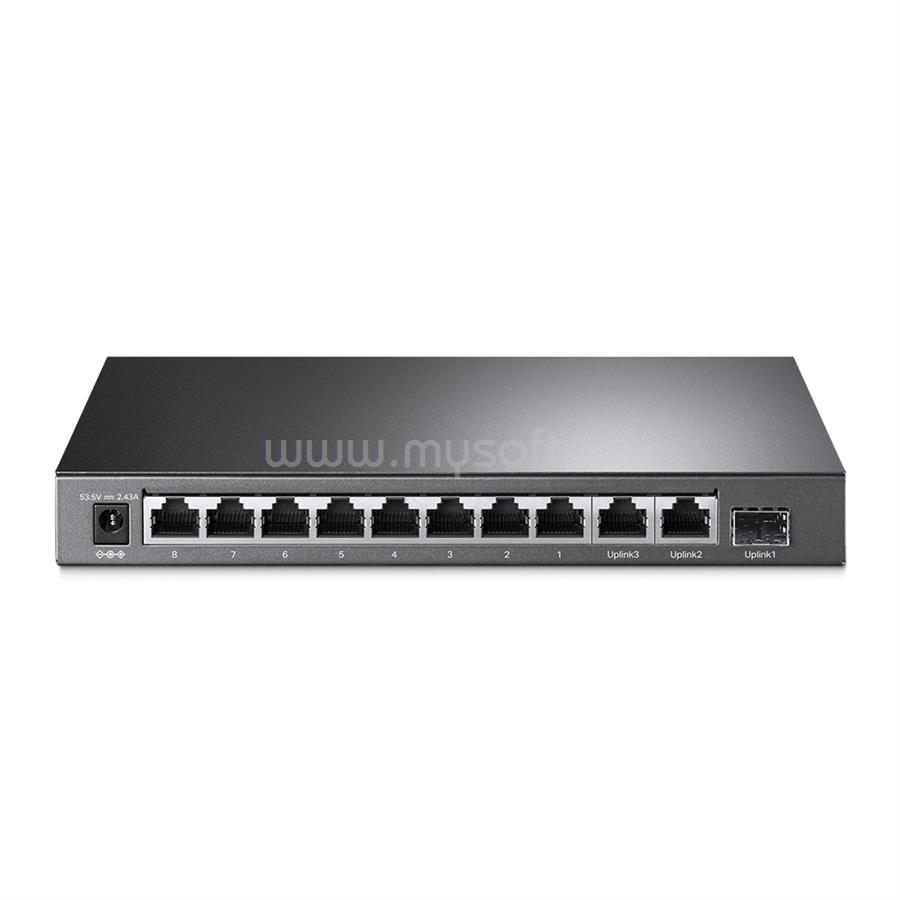

• 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
• AUTO Negotiation
• AUTO MDI/MDIX
• Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100 Ohm STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100 Ohm STP (maximum 100m)
• Fan Quantity
• Fanless
• Physical Security Lock
• Yes
• External Power Supply
• External Power Adapter (Output: 53.5VDC / 2.43A)
• Packet Forwarding Rate
• 5.6544 Mpps
• PoE Ports (RJ45)
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1-8
• Power Supply: 124 W
• Mac Address Table
• 2K
• Jumbo Frame
• 16 KB
• Switching Capacity
• 7.6 Gbps
• Dimensions ( W x D x H )
• 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
• Max Power Consumption
• 5.95 W (220/50 Hz. no PD connected)
• 140.92 W (220/50 Hz. with 124 W PD connected)
• Max Heat Dissipation
• 20.29 BTU/h (no PD connected)
• 480.54 BTU/h (220/50 Hz. with 124 W PD connected)

• SOFTWARE FEATURES

• Transmission Method
• Store-And-Forward
• Advanced Functions
• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1-4 and Ports 1-8, Up to 250 m PoE power supply and data transmission)
• Isolation Mode Button (Ports 1-8)
• PoE Auto Recovery Button (Ports 1-8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

• OTHERS

• Package Contents
• TL-SL1311MP
• Power Adapter
• Installation Guide
• Environment
• Operating Temperature: 0-40 °C (32-104 °F)
• Storage Temperature: -40-70 °C (-40-158 °F)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing

Garancia fogyasztók részére

• 2 év kötelező jótállás + 3 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 5 év gyártó által biztosított szervizgarancia
