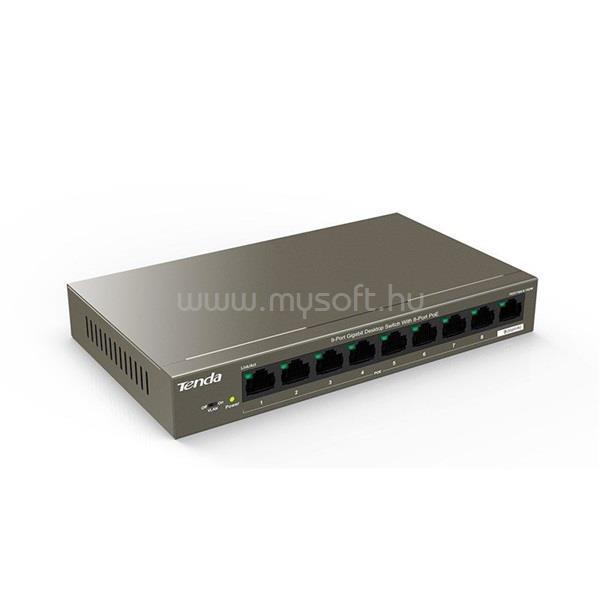

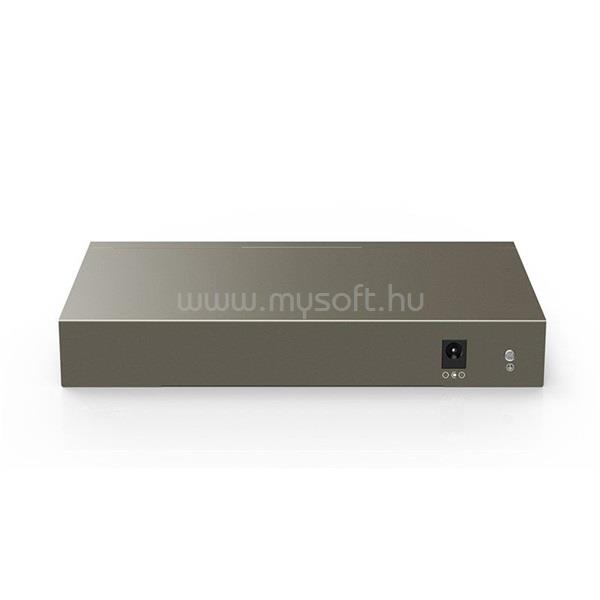

TENDA TEG1109P-8-102W 9PORT GBE LAN POE (102W) SWITCH

• Specification

• Network standards
• IEEE 802.3? IEEE 802.3u?IEEE 802.3ab?IEEE 802.3x? IEEE 802.3af?IEEE 802.3at
• LED Indicator
• 9* Link/Ack LED indicators
• 1 * Power LED indicator
• Interfaces
• 8*10/100/1000 Base-T Ethernet Ports(Data/Power)
• 1*10/100/1000 Base-T Ethernet Ports(Data)
• Transmission media
• Recommended: CAT5/5e UTP or better
• Dimension
• 177.5mmx104.0mmx26.0mm
• Level of protection
• Lightning protection for ports: 6kV
• Lightning protection for power: 6kV
• ESD:
• Air discharge: ?10kV
• Contact discharge: ?8kV
• Forwarding mode
• Store-and-forward
• Switch capacity
• 18 Gbps
• Packet forwarding rate
• 13.4Mpps
• Buffer
• 2M
• MAC address table
• 16K
• PoE budget
• Single port: AF: 15.4W, AT: 30W
• Whole device: 92W
• Power consumption
• /
• Input voltage
• 100-240V AC 50/60Hz
• 51V /2.0A DC(Power Adapter Output )
• Mounting
• Desktop mounting: support
• Wall mounting: support
• Rack mounting:non-support
• Environment
• Operating Temperature: 0?~45?
• Storage Temperature: -40?~70?
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
• Certification
• FCC?CE?RoHS
• Funtions
• Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
• VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 2 év gyártó által biztosított szervizgarancia
