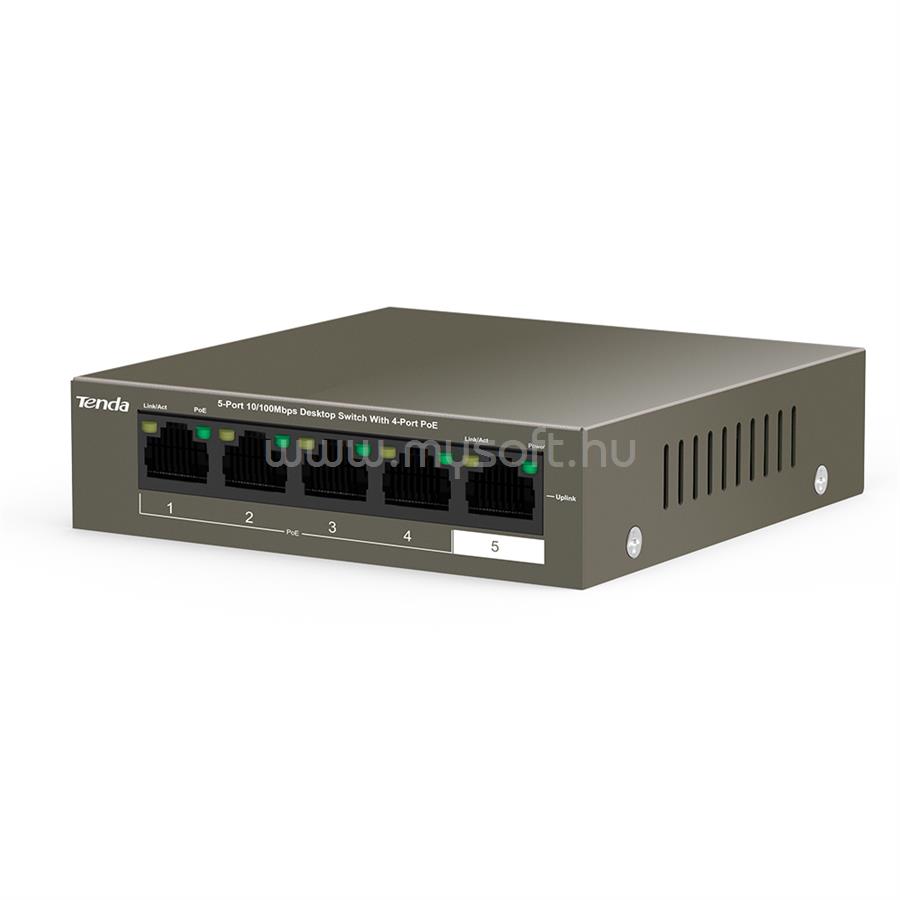

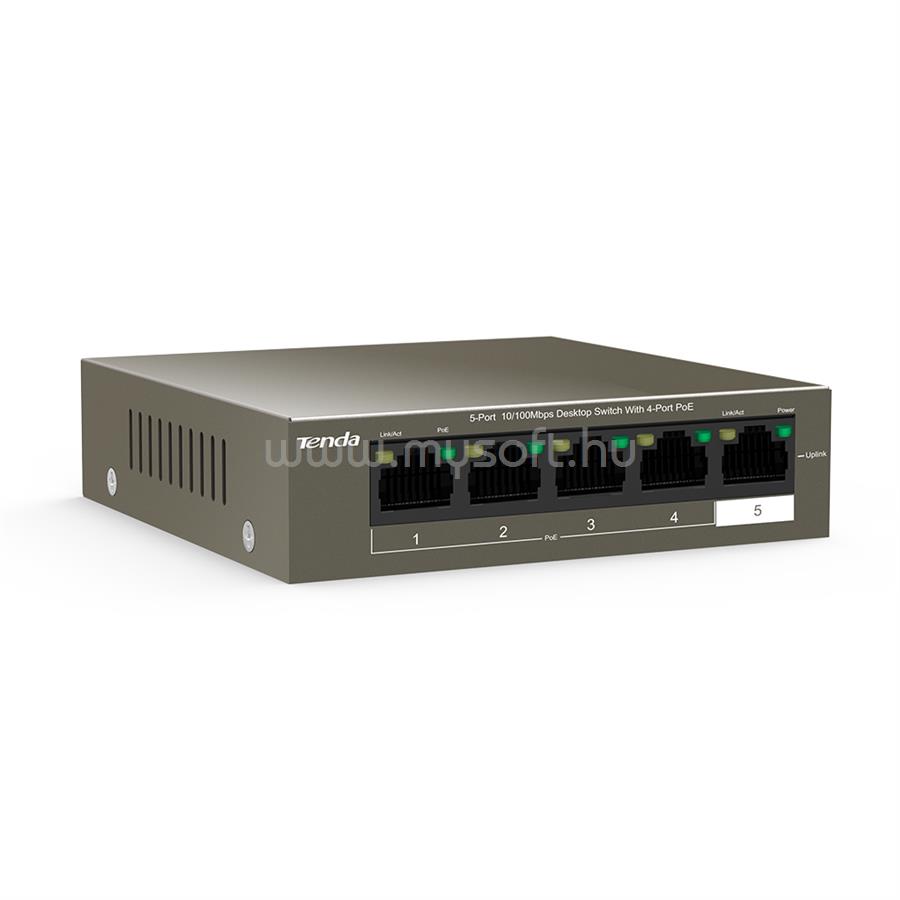

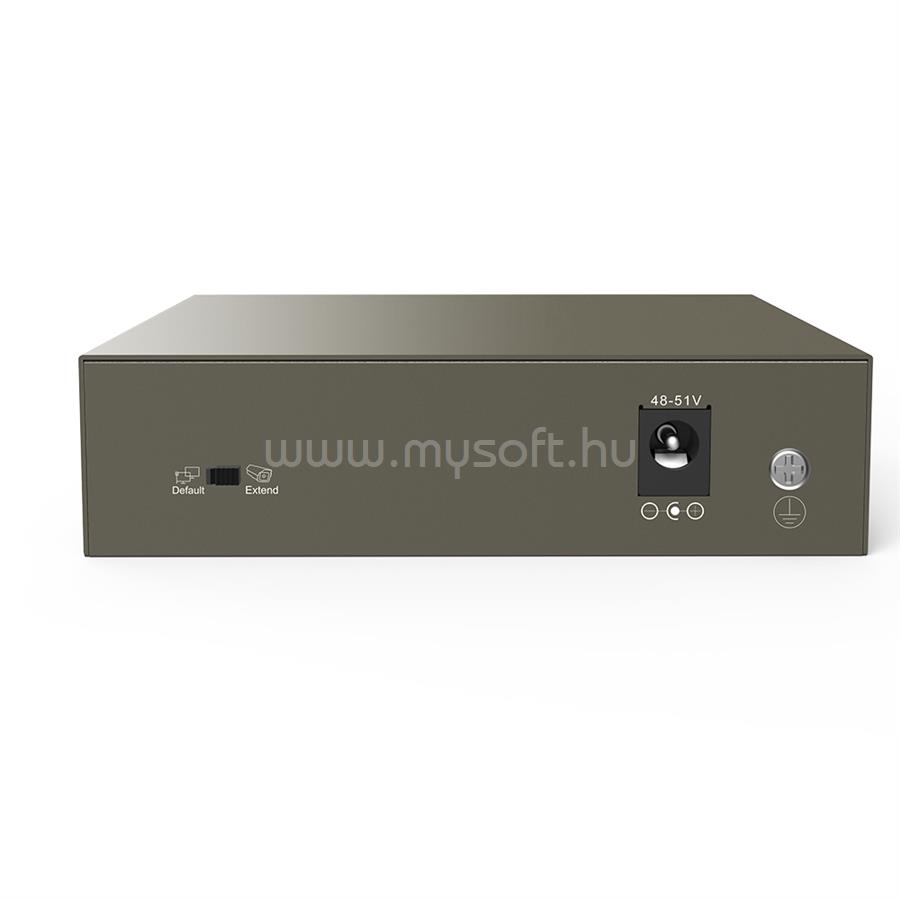

TENDA TEF1105P-4-38W SWITCH POE (5X100MBPS; 4 AF/AT POE+ PORT; 35W POE)

• Specification

• Network standards
• IEEE 802.3? IEEE 802.3u?IEEE 802.3x? IEEE 802.3af
• LED Indicator
• 5* Link/Ack LED indicators
• 1 * Power LED indicator
• Interfaces
• 4*10/100 Base-TX Ethernet Ports(Data/Power)
• 1*10/100 Base-TX Ethernet Port(Data)
• Transmission media
• Recommended: CAT5/5e UTP or better
• Dimension
• 100.0mmx100.0mmx26.0mm
• Level of protection
• Lightning protection for ports: 6kV
• Lightning protection for power: 6kV
• ESD:
• Air discharge: +/-10kV
• Contact discharge: +/-8kV
• Forwarding mode
• Store-and-forward
• Switch capacity
• 1Gbps
• Packet forwarding rate
• 0.74Mpps
• Buffer
• 448K
• MAC address table
• 1K
• PoE budget
• Single port: AF: 15.4W, AT: 30W
• Whole device: 35W
• Power consumption
• /
• Input voltage
• 100-240V AC 50/60Hz
• 48V /0.8A DC(Power Adapter Output)
• Mounting
• Desktop mounting: support
• Wall mounting: support
• Rack mounting:non-support
• Environment
• Operating Temperature: 0?~45?
• Storage Temperature: -40?~70?
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
• Funtions
• Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
• Extend Mode: If Extend mode is enabled, Port 1-4 will be isolated respectively (10Mbps auto-negotiation).And the delivery distance of powering and network data is up to 250m (10Mbps).
