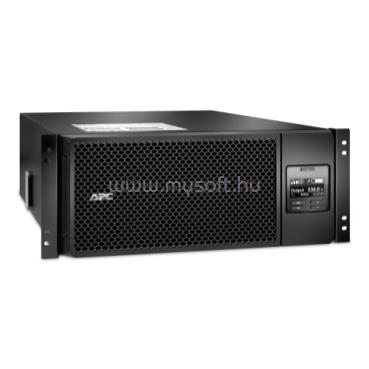

APC SRT6KRMXLI SRT 6000VA RM 230V SMART SZÜNETMENTES TÁPEGYSÉG

• Main

• Run time for load 6000W
• Min-max: 600-6000 W
• 2min 28s
• Max. Capacity Used
• 100 %
• Main Input Voltage
• 230 V
• Product or component type
• Uninterruptible power supply (UPS)
• Other Input Voltage
• 220 V
• 240 V
• Main Output Voltage
• 230 V
• Other Output Voltage
• 220 V
• 240 V
• Rated power in W
• 6000 W
• Rated power in VA
• 6000 VA
• output connection type
• 6 IEC 60320 C13
• 2 IEC Jumpers
• 4 IEC 60320 C19
• Output connector type
• Hard wire 3-wire (H N + E) 1
• Number of rack unit
• 4U
• Provided equipment
• CD with software
• Installation guide
• Rack mounting hardware
• Rack mounting brackets
• Rack mounting support rails
• Temperature probe
• USB cable
• Warranty card
• Web/SNMP management card
• Range of product
• Smart-UPS On-Line

• Batteries & Runtime

• Battery type
• Lead-acid battery
• Number of battery filled slots
• 0
• Battery recharge time
• 1.5 h
• Number of battery replacement quantity
• 1
• Battery voltage
• 192 V
• Battery charger power
• 597 W rated
• Battery life
• 3.5 year(s)
• Replacement battery
• APCRBC140
• Extended runtime
• 1

• General

• UPS type
• Double conversion online
• product web sub-family
• High density
• Number of power module free slots
• 0
• Number of power module filled slots
• 0
• Redundant
• No

• Physical

• Colour
• Black
• Height
• 17.4 cm
• Width
• 43.2 cm
• Depth
• 71.94 cm
• Net weight
• 60 kg
• Mounting location
• Front
• Mounting preference
• Lower
• Mounting mode
• Rack-mounted
• Two post mountable
• 0
• USB compatible
• Yes
• Mounting position
• Horizontal

• Input

• Network frequency
• 40...70 Hz auto-sensing
• Number of input connectors
• 1 hard wire 3-wire (1P + N + E)
• Input voltage limits
• 100...275 V adjustable (half load)

• Output

• Maximum configurable power in VA
• 6000 VA
• Maximum configurable power in W
• 6000 W
• Output frequency
• 50/60 Hz +/- 3 Hz sync to mains
• Wave type
• Sine wave
• Harmonic distortion
• Less than 2 %
• Crest factor
• 3 : 1
• Bypass type
• Internal bypass (automatic and manual)

• Conformance

• Product certifications
• CE
• EAC
• IRAM
• RCM
• VDE
• Marking
• CE Mark
• Standards
• EN/IEC 62040-1:2019/A11:2021
• EN/IEC 62040-2:2006/AC:2006
• EN/IEC 62040-2:2018

• Environmental

• Ambient air temperature for operation
• 0.40 °C
• Relative humidity
• 0.95 % non-condensing
• Operating altitude
• 0...10000 ft
• Ambient air temperature for storage
• -15.45 °C
• Storage Relative Humidity
• 0.95 % non-condensing
• Storage altitude
• 0.0000000000.15240.0000000000 m
• Acoustic level
• 55 dBA
• Heat dissipation
• 1300 Btu/h
• IP degree of protection
• IP20

• Communications & Management

• Free slots
• 1
• Preinstalled device
• Network management card 3 with environmental monitoring
• Alarm
• Audible and visible alarms : prioritized by severity
• Emergency power off
• Yes

• Surge Protection and Filtering

• Surge energy rate
• 480 J

Garancia fogyasztók részére

• 3 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
