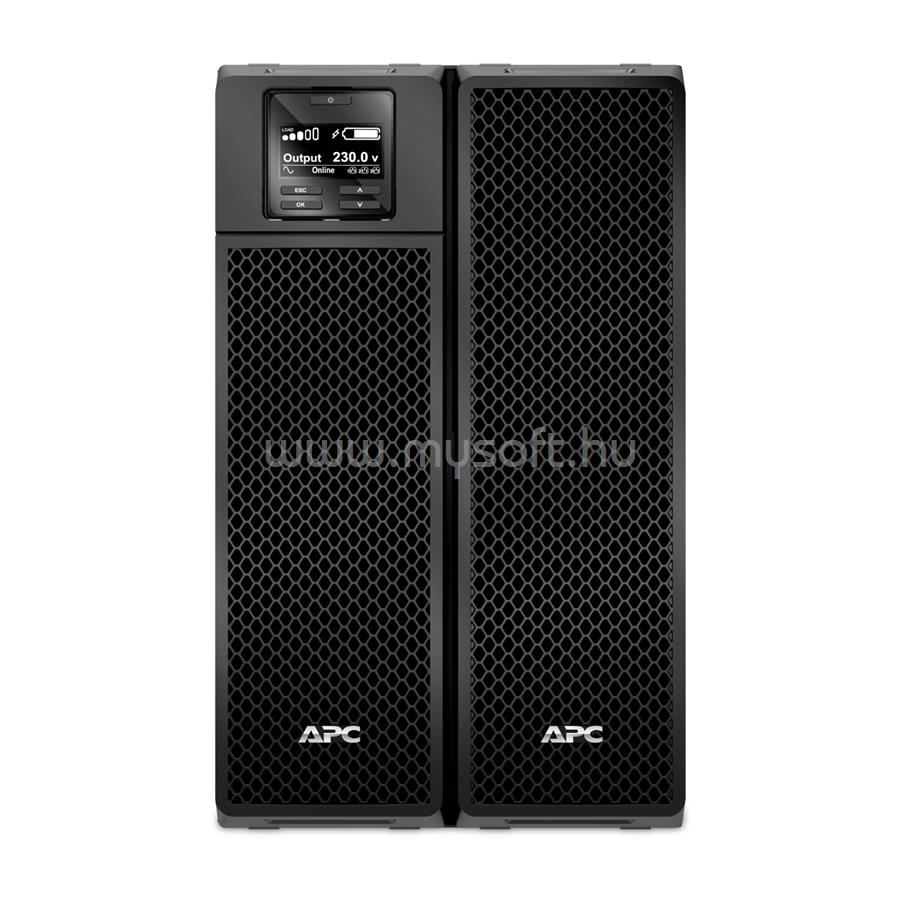

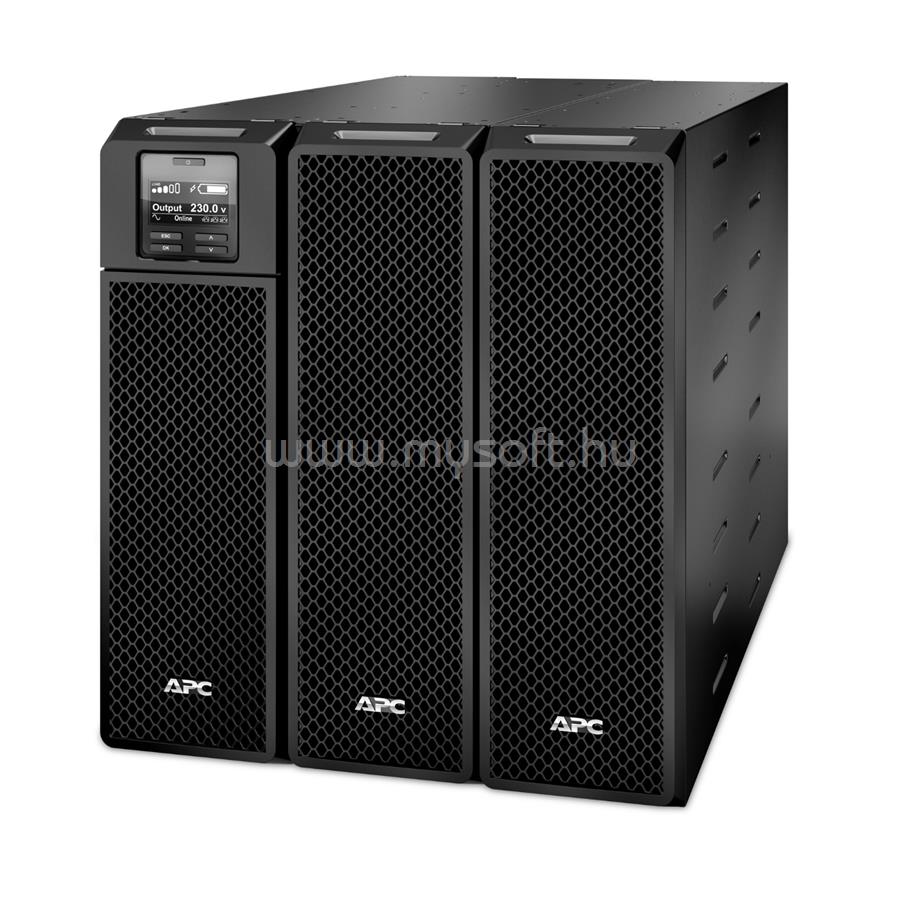

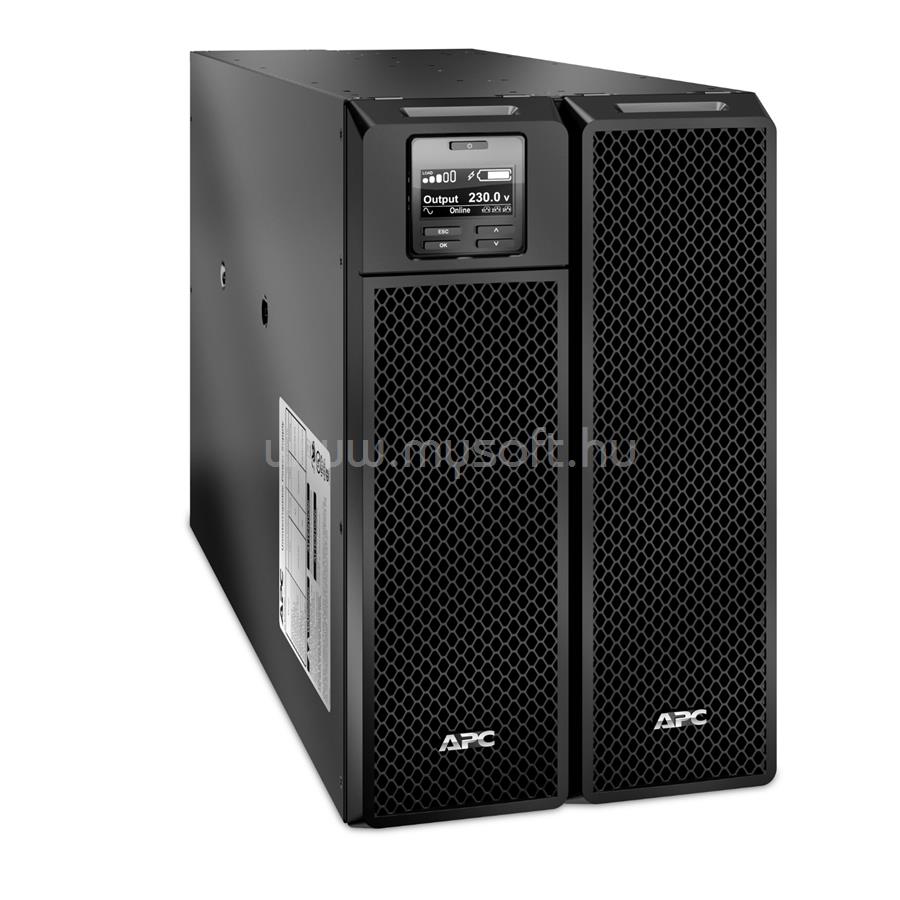

APC UPS 10000VA C13/C19/HARDWIRE SRT ONLINE KETTŐS KONVERZIÓ SZÜNETMENTES TÁPEGYSÉG

• Overview

• Presentation
• High density, double-conversion on-line power protection with scalable runtime.
• Lead time
• Usually in Stock

• Main

• Max. Capacity Used
• 100 %
• Main Input Voltage
• 230 V
• 400 V 3 phases
• Other Input Voltage
• 220 V
• 240 V
• 380 V
• 415 V
• Main Output Voltage
• 230 V
• Other Output Voltage
• 220 V
• 240 V
• rated power in W
• 10000 W
• rated power in VA
• 10000 VA

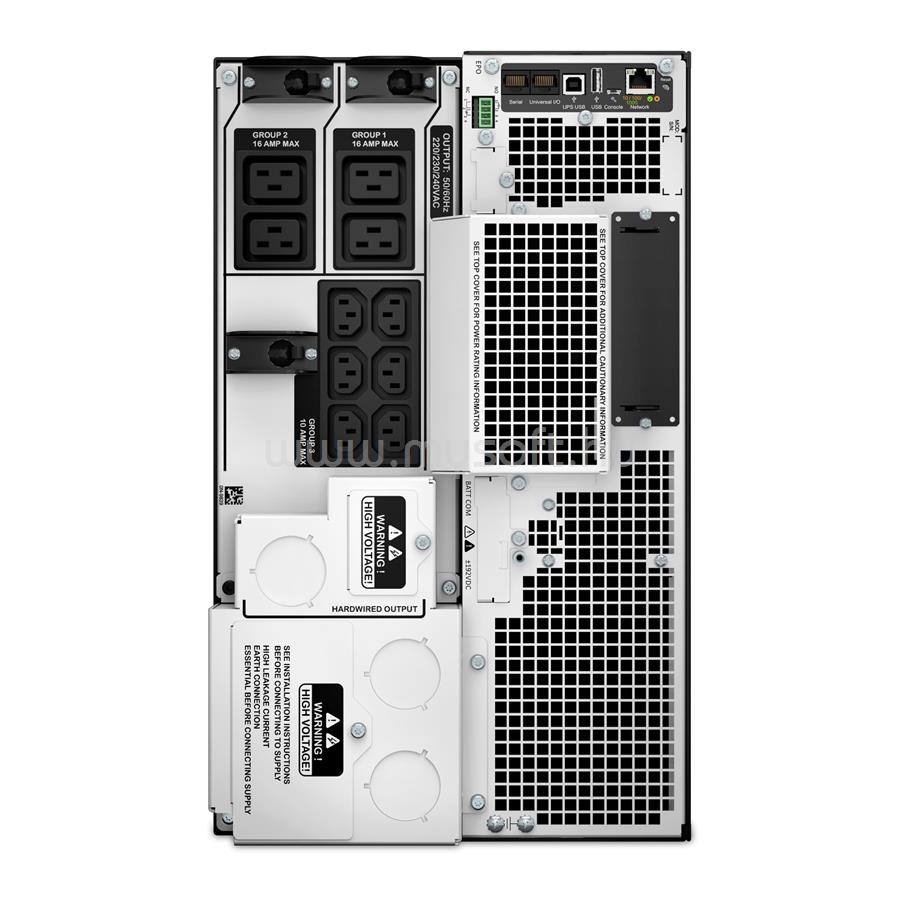

• nb of power socket outlets
• 6 IEC 60320 C13
• 3 IEC Jumpers
• 4 IEC 60320 C19
• output connector type
• Hard wire 3-wire (H N + E) 1
• battery type
• Lead-acid battery
• provided equipment
• CD with software
• Documentation CD
• Installation guide
• Temperature probe
• USB cable
• Warranty card
• Web/SNMP management card

• General

• product web sub-family
• High density
• Number of power module free slots
• 0
• Number of power module filled slots
• 0
• redundant
• No

• Physical

• colour
• Black
• height
• 43.2 cm
• width
• 26.3 cm
• depth
• 71.5 cm
• net weight
• 111.82 kg
• mounting location
• Front
• mounting preference
• No preference
• mounting mode
• Rack-mounted with kit
• two post mountable
• 0
• USB compatible
• Yes

• Input

• network frequency
• 40...70 Hz auto-sensing
• number of input connectors
• 1 hard wire 3-wire (1P + N + E)
• 1 hard wire 5-wire (3P + N + E)
• input voltage limits
• 100...275 V adjustable (half load)
• 173...476 V adjustable (half load)

• Output

• Maximum configurable power in W
• 10000 W
• harmonic distortion
• Less than 2 %
• output frequency
• 50/60 Hz +/- 3 Hz sync to mains
• crest factor
• 3 : 1
• UPS type
• Double conversion online
• Wave type
• Sine wave
• bypass type
• Internal bypass (automatic and manual)
• Maximum configurable power in VA
• 10000 VA

• Conformance

• product certifications
• CE
• EAC
• IRAM
• RCM
• VDE
• marking
• CE Mark
• standards
• EN/IEC 62040-1
• EN/IEC 62040-2

• Environmental

• ambient air temperature for operation
• 0.40 °C
• relative humidity
• 0.95 %
• operating altitude
• 0...10000 ft
• ambient air temperature for storage
• -15.45 °C
• storage Relative Humidity
• 0.95 % Non-condensing
• storage altitude
• 0.00.15240.00 m
• acoustic level
• 55 dBA
• heat dissipation
• 1947 Btu/h
• IP degree of protection
• IP20

• Batteries & Runtime

• number of battery filled slots
• 0
• Battery recharge time
• 1.5 h
• number of battery replacement quantity
• 2
• battery voltage
• +/- 192 V (split battery referenced to neutral)
• battery charger power
• 1195 W rated
• Battery power in VAH
• 1805 VAh runtime
• battery life
• 3.5 year(s)
• battery option
• SRT192BP2 1 3610 VAh
• SRT192BP2 2 5415 VAh
• SRT192BP2 3 7220 VAh
• SRT192BP2 4 9025 VAh
• SRT192BP2 5 10830 VAh
• SRT192BP2 6 12635 VAh
• SRT192BP2 8 16245 VAh
• SRT192BP2 10 19855 VAh
• extended runtime
• 1

• Communications & Management

• free slots
• 1
• control panel
• Multifunction LCD status and control console
• alarm
• Audible and visible alarms prioritized by severity
• Emergency power off
• Yes

• Surge Protection and Filtering

• Surge energy rate
• 480 J

• Packing Units

• Package 1 Weight
• 126.82 kg
• Package 1 Height
• 46.1 cm
• Package 1 width
• 60 cm
• Package 1 Length
• 100 cm

Garancia fogyasztók részére

• 3 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
