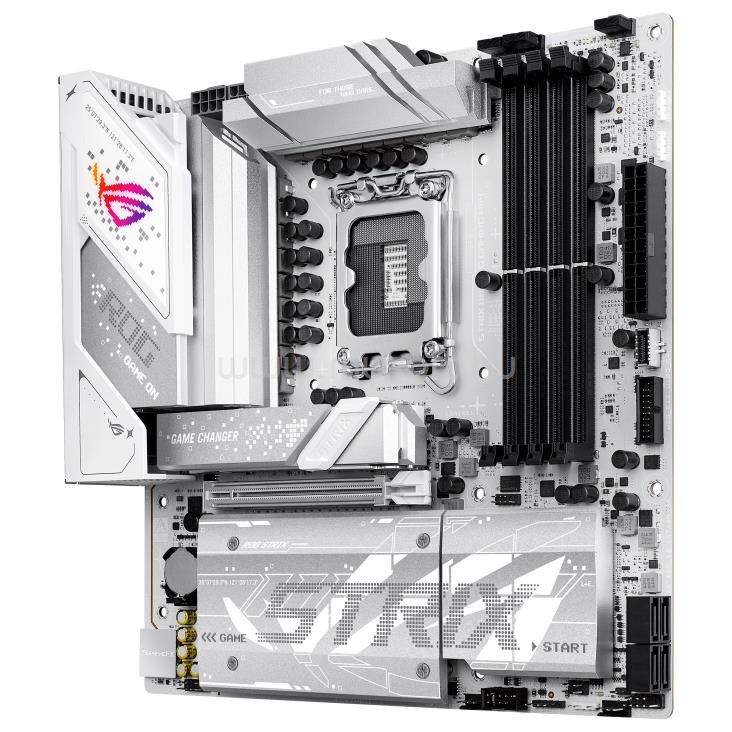

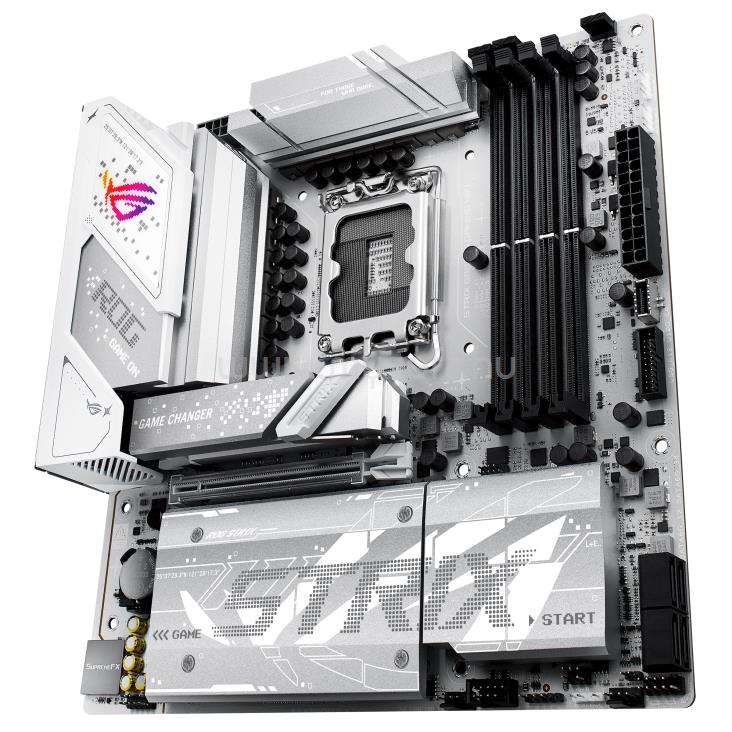

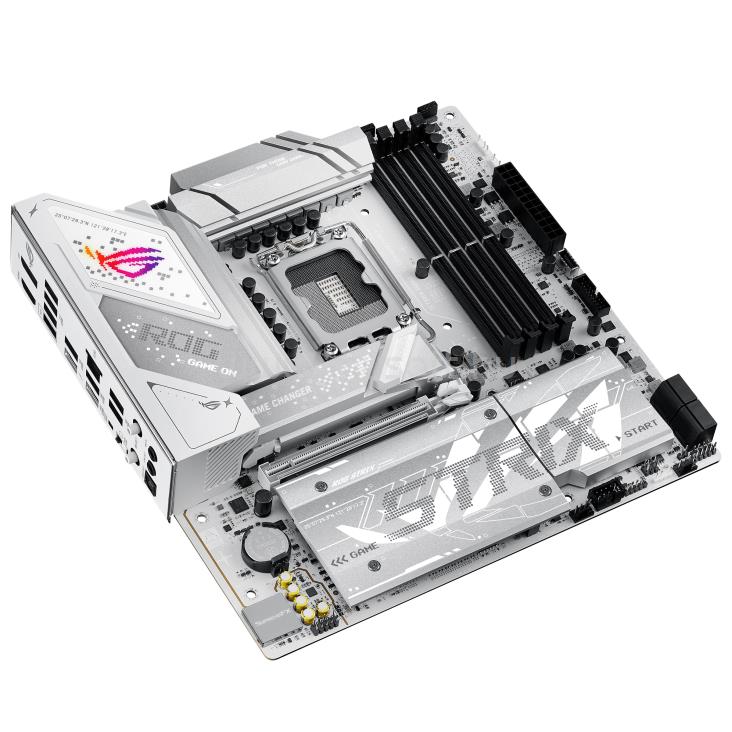

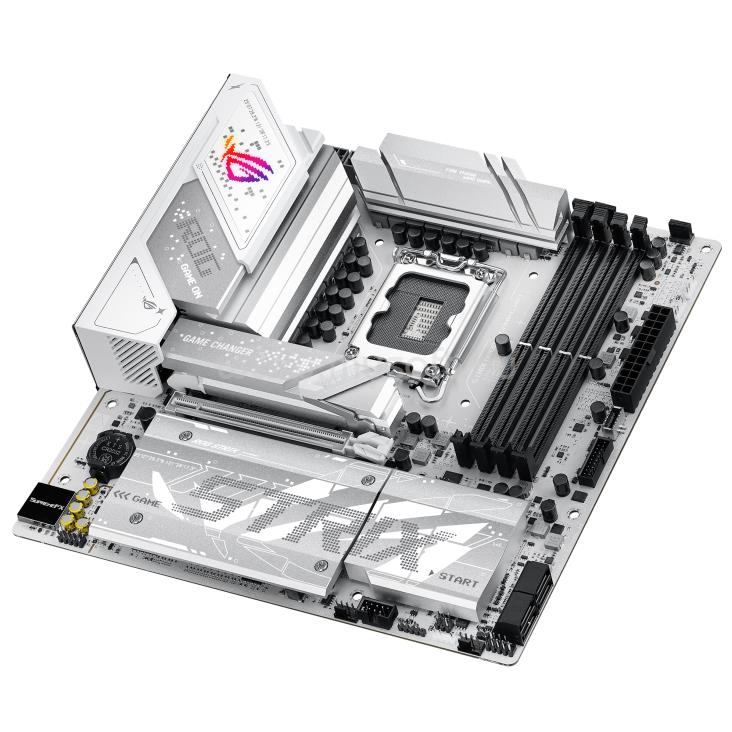

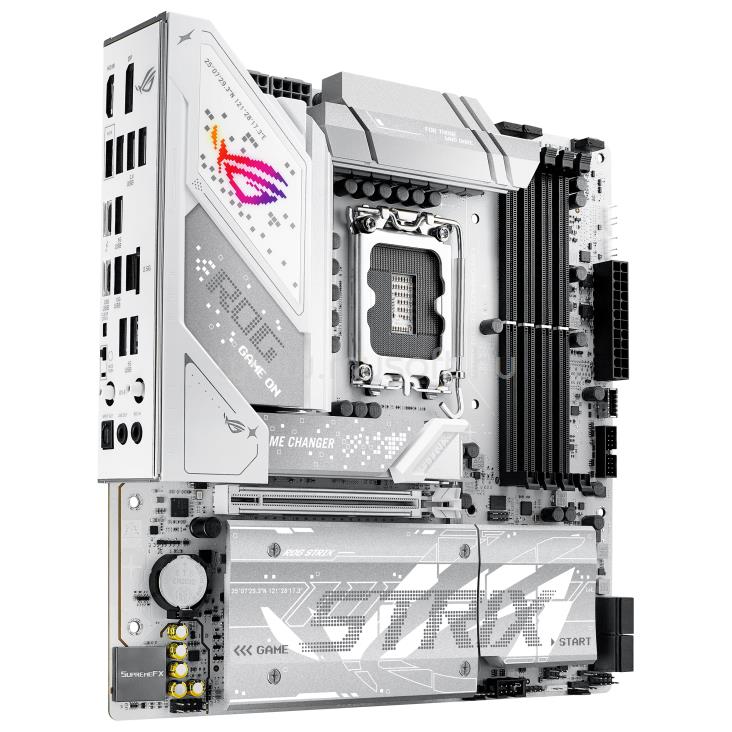

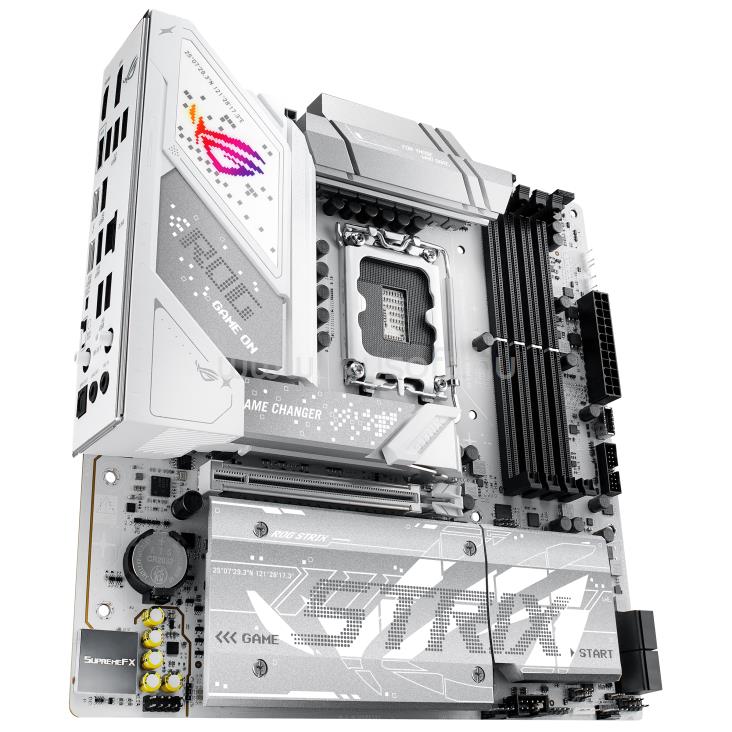

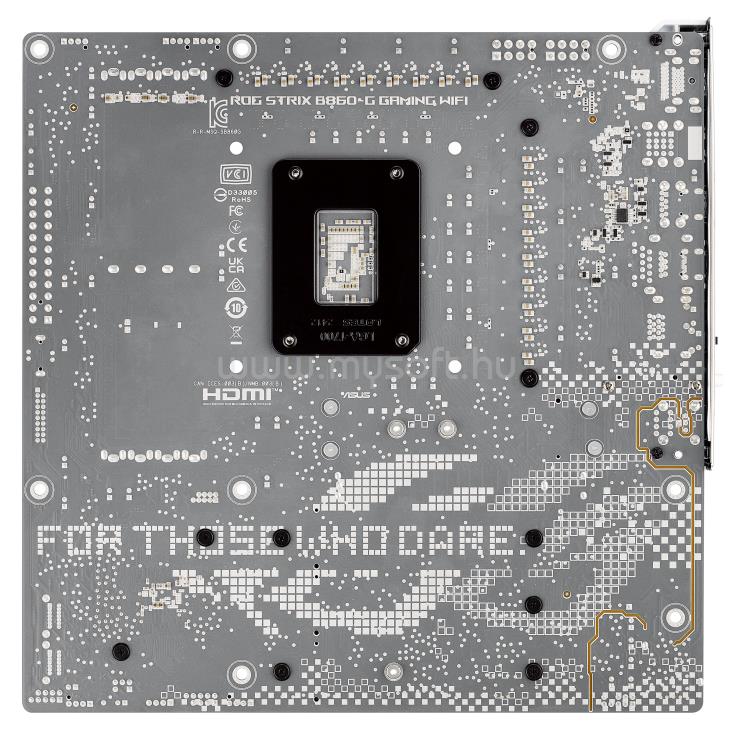

ASUS ALAPLAP ROG STRIX B860-G GAMING WIFI (LGA1851, MATX)

• CPU

• Support Intel© Core Ultra Processors (Series 2)*
• Supports Intel© Turbo Boost Technology 2.0 and Intel© Turbo Boost Max Technology 3.0

• Chipset

• Intel© B860 Chipset

• Memory

• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to 9066+MT/s (OC), Non-ECC Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
• Dual channel memory architecture
• DIMM Fit
• Supports Intel© Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile III(AEMPIII)
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
• ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

• Graphics

• 1 x DisplayPort**
• 1 x HDMI™ port***
• 1 x Intel© Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs****
• * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI 2.1.
• ****Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.
• ***** VGA resolution support depends on processors' or graphic cards' resolution.

• Expansion Slots

• Intel© Core Ultra Processors (Series 2)
• 1 x PCIe 5.0 x16 slot

• Storage

• Total supports 4 x M.2 slots and 4 x SATA
• 6Gb/s ports
• Intel© Core Ultra Processors (Series 2)
• M.2_1 slot (Key M), type 2242/2260/2280
• (supports PCIe 5.0 x4 mode)
• Intel© B860 Chipset
• M.2_2 slot (Key M), type 2280 (supports
• PCIe 4.0 x4 mode)
• M.2_3 slot (Key M), type 2280
• (supports PCIe 4.0 x4 mode)
• M.2_4 slot (Key M), type 2230/2280 (supports
• PCIe 4.0 x4 mode)**
• 4 x SATA 6Gb/s ports
• * Intel© Rapid Storage Technology supports
• SATA RAID 0/1/5/10.

• Ethernet

• 1 x Intel© 2.5Gb Ethernet
• ASUS LANGuard

• Wireless & Bluetooth

• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band**
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth© v5.4***
• *Wi-Fi features may vary depending on the operating system
• For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
• For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
• ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
• *** The Bluetooth© version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

• Rear USB (Total 10 ports)
• 1 x Thunderbolt™ 4 port (1 x USB Type-C©)
• 1 x USB 20Gbps ports (1 x USB Type-C©)
• 1 x USB 10Gbps ports (1 x Type-A)
• 3 x USB 5Gbps ports (3 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 6 ports)
• 1 x USB 10Gbps connector (supports USB
• Type-C©)
• 1 x USB 5Gbps header supports 2 additional
• USB 5Gbps ports
• 2 x USB 2.0 header supports 3 additional
• USB 2.0 ports
• * USB Type-C© power delivery output: max.
• 5V/3A

• Audio

• Realtek ALC1220P 7.1 Surround Sound
• High Definition Audio CODEC*
• Impedance sense for front and rear headphone outputs
• Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• Supports up to 32-Bit/192 kHz
• playback*
• Audio Features
• SupremeFX Shielding Technology
• Savitech SV3H712 AMP
• Rear optical S/PDIF out port
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio cover
• * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
• ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

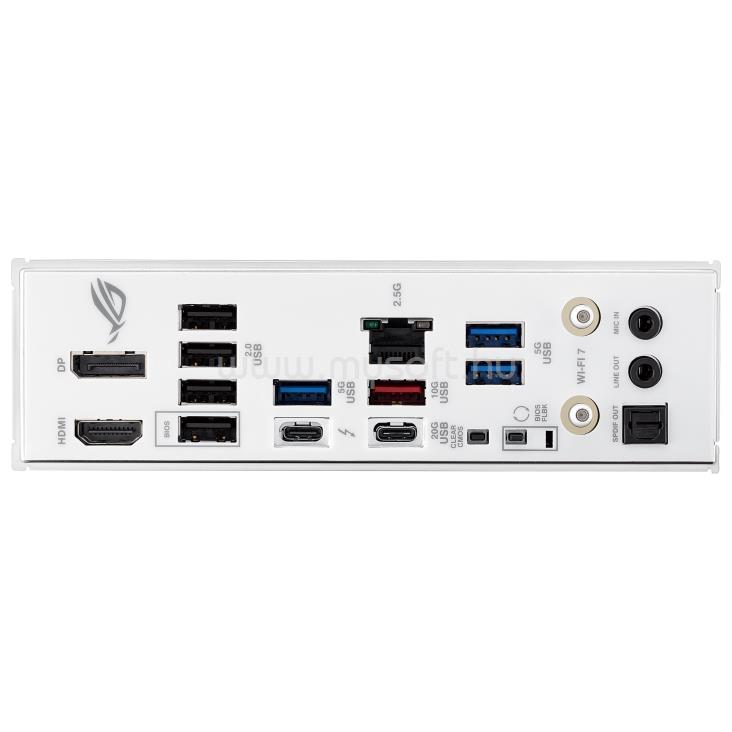

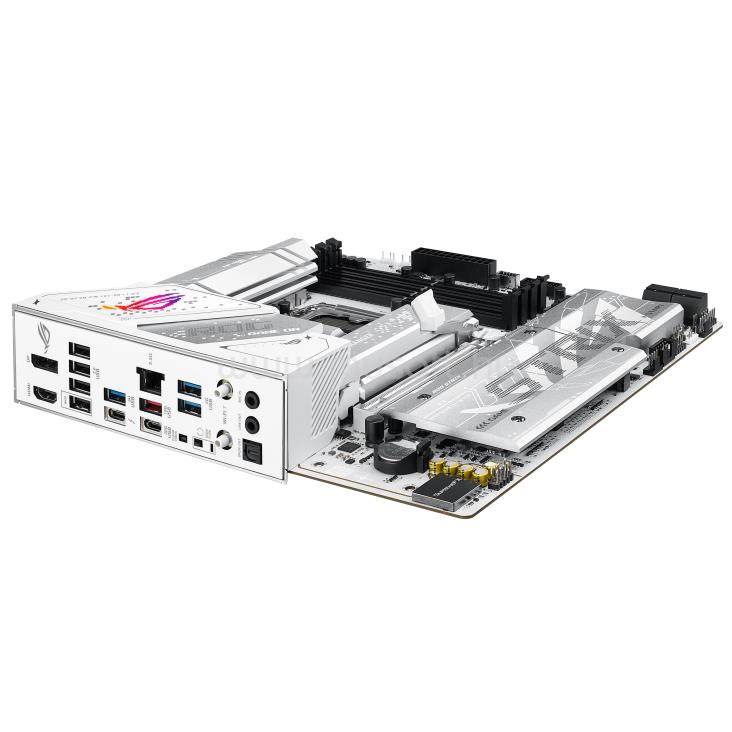

• Back Panel I/O Ports

• 1 x Thunderbolt™ 4 USB Type-C© port(s)
• 1 x USB 20Gbps port(s) (1 x USB Type-C© with DP Alt mode)
• 1 x USB 10Gbps port(s) (1 x Type-A)
• 3 x USB 5Gbps port(s) (3 x Type-A)
• 4 x USB 2.0 port(s) (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI™ port
• 1 x Wi-Fi module1 x Intel© 2.5Gb Ethernet port
• 2 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x BIOS FlashBack™ button
• 1 x Clear CMOS button

• Internal I/O Connectors

• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 2 x 4-pin Chassis Fan headers
• Power Related
• 1 x 24-pin Main Power connector
• 2 x 8-pin +12V CPU Power connector
• Storage Related
• 4 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 10Gbps connector (supports USB Type-C© )
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 header supports 3 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen2 header(s)
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x 10-1 pin Front System Panel header
• 1 x Thermal Sensor header

• Special Features

• Extreme Engine Digi+
• 5K Black metallic capacitors
• ASUS Q-Design
• M.2 Q-Latch
• M.2 Q-Release
• M.2 Q-Slide
• PCIe Slot Q-Release Slim (with PCIe SafeSlot)
• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA
• [white], Boot Device [yellow green])
• Q-Slot
• ASUS Thermal Solution
• M.2 heatsink backplate
• M.2 heatsink
• VRM heatsink design
• ASUS EZ DIY
• BIOS FlashBack button
• BIOS FlashBack LED
• Clear CMOS button
• CPU Socket lever protector
• ProCool
• Pre-mounted I/O shield
• SafeSlot
• SafeDIMM
• Aura Sync
• Addressable Gen2 headers

• Software Features

• ROG Exclusive Software
• ROG CPU-Z
• Dolby Atmos
• ASUS Exclusive Software
• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 4
• GameFirst
• Power Saving
• AIDA64 Extreme (60 days free trial)
• HWiNFO
• ASUS AI Advisor
• ASUS DriverHub
• ASUS GlideX
• TurboV Core
• Adobe Creative Cloud 30 Days Free Trial)
• Norton 360 for Gamers (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• AI Overclocking Guide
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey
• NPU Boost

• BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, UEFI PXE

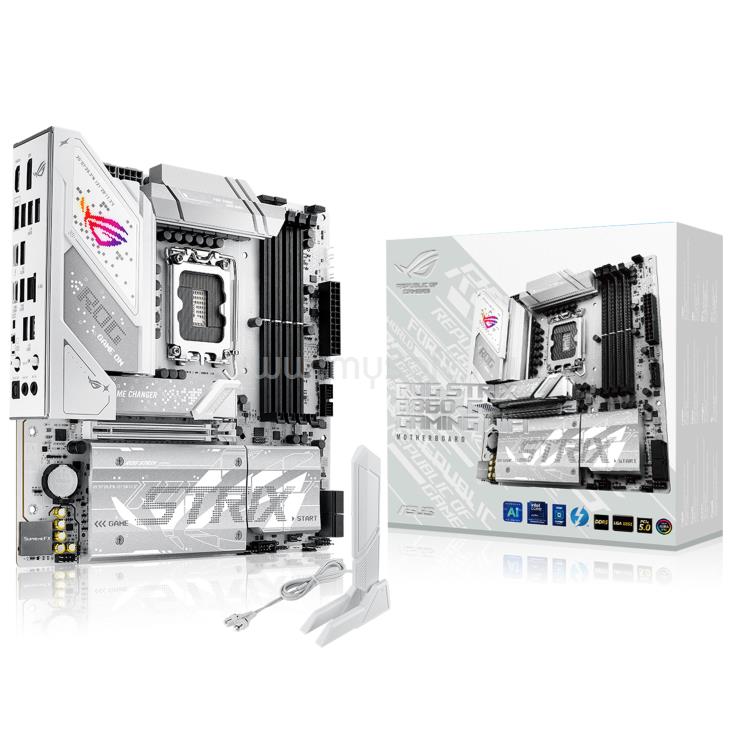

• Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch
• 1 x M.2 Q-Slide
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 3 x M.2 rubbers
• 1 x M.2 backplate rubber package(s)
• Documentation
• 1 x Quick start guide

• Operating System

• Windows 11 (22H2 & later)

• Form Factor

• micro-ATX Form Factor
• 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
