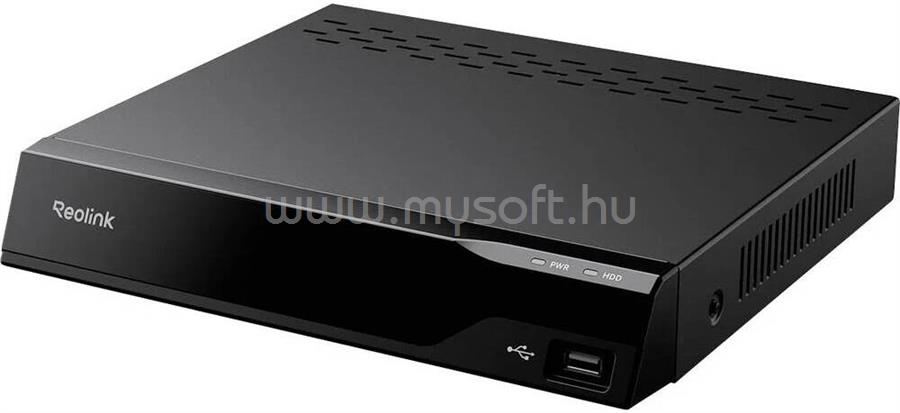

REOLINK RP-PN8-NHD 12 CSATORNA/H265/1X SATA HDD MAX 16TB ÉS 1X ESATA MAX16TB/8X POE HÁLÓZATI RÖGZÍTŐ(NVR)

• Video/Audio Input

• IP Video Input
• Up to 12 IP Cameras (Max.8 wired cameras)
• Up to 16 MP resolution
• Audio Input
• Cameras with built-in MIC
• Incoming Bandwidth
• 240Mbps
• Outgoing Bandwidth
• 240Mbps

• Video/Audio Output

• Video Output
• 1 HDMI, 1 VGA
• Display Resolution
• HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
• VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
• Audio Output
• 1 audio out channel, RCA

• Decoding

• Video Compression
• H.265 / H.264
• Live View/Playback Resolution
• 7680X2160, 4608X1728, 4512X2512, 4096X3072, 3840X2160, 2560X2560, 2560X1920, 2560X1440, 2048X1536, 2304X1296,1080P,720P

• Recording

• Synchronous Playback
• 1-4 channels (Supports only 1-channel playback if you view it in 8MP or higher resolution)

• HDD

• SATA
• 1 x SATA interface (1 x 2TB HDD included)
• External HDD
• 1 eSATA interface for HDD
• Capacity
• Up to 32TB (up to 16TB capacity for each HDD)

• External Interface

• USB Interface
• 2 x USB 2.0
• Network Interface
• 8 x RJ-45, 10/100 Mbps self-adaptive PoE Ethernet interface (for IP cameras)
• 1 x RJ-45, 10/100/1000 Mbps self-adaptive (for LAN/WAN)
• Alarm In/Out
• N/A

• PoE

• Max. Power Per Port
• 25W
• Supported Standard
• IEEE 802.3 af/at

• Network

• Network Protocols
• HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP,FTP
• Browsers Supported
• Edge, Firefox, Chrome, Safari
• OS Supported
• PC: Windows, Mac OS; Smart phone: iOS, Android
• Max. User Access
• 20 Users (1 admin account & 19 user accounts);
• supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams)

• Other Features

• AI Video Search
• Yes (need to be supported on cameras as well)
• Person & Object Detection
• Person, Vehicle, Non-motorized vehicle, Animal and Package (need to be supported on cameras as well)
• Perimeter Protection
• Line Crossing Alert, Zone Intrusion Alert, Zone Loitering Alert (need to be supported on cameras as well)
• Smart Event Detection
• Object Removal (beta) , Forgotten Object (beta) (need cameras support)
• Heat Map
• Yes

• General

• Power Supply
• DC 52V/2.3A
• Power Consumption
• <10W (without HDD & PoE)
• Working Environment
• Temperature: -10°C ~ + 45°C (14°F ~ 113°F);
• Humidity: 10% ~ 90%
• Dimensions
• 255mmx50mmx211mm
• Weight
• 1.4kg(without HDD) 1.8kg(with HDD)

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 2 év gyártó által biztosított szervizgarancia
