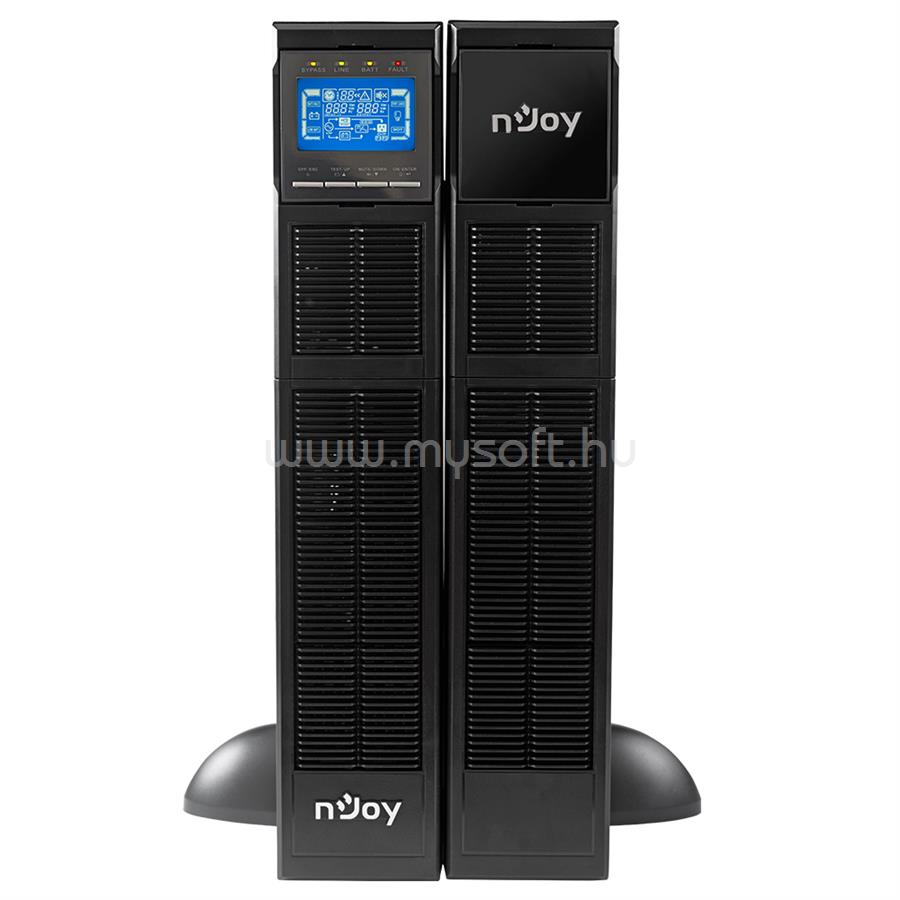

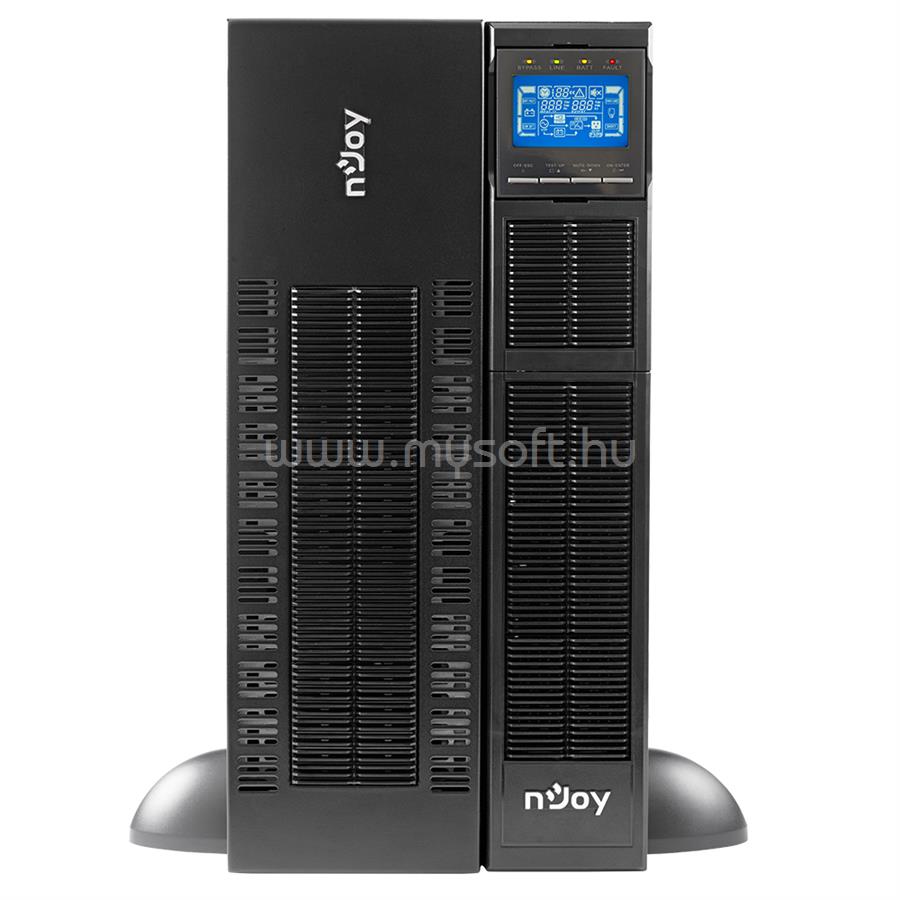

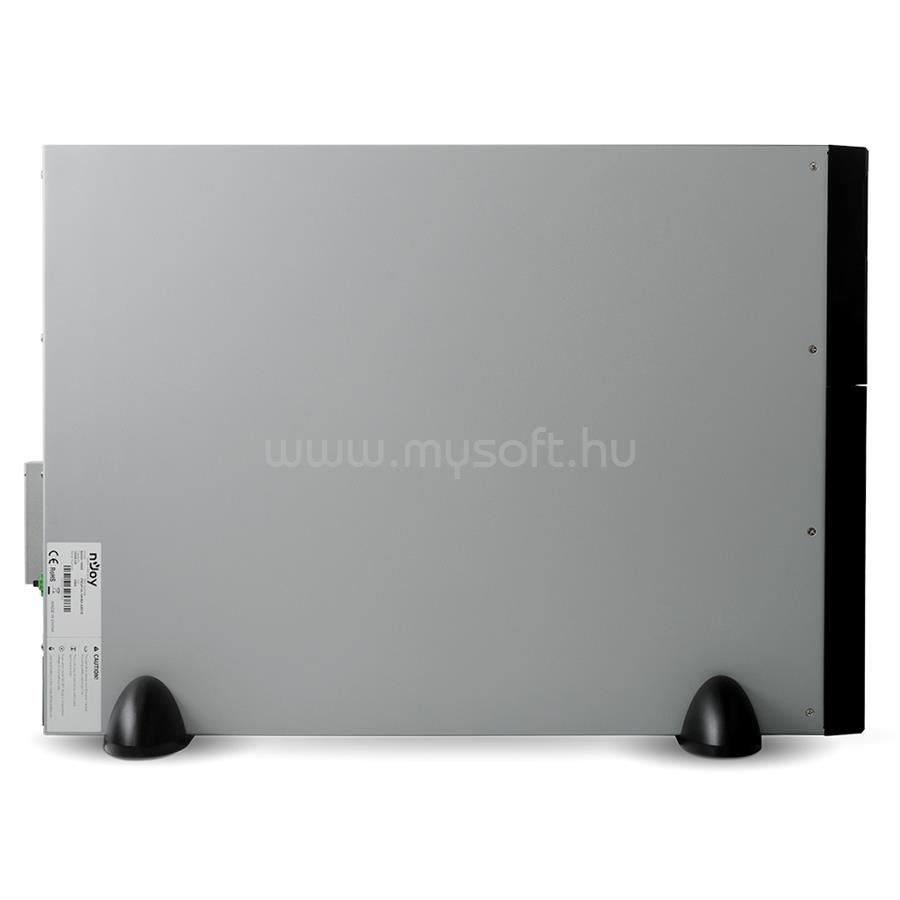

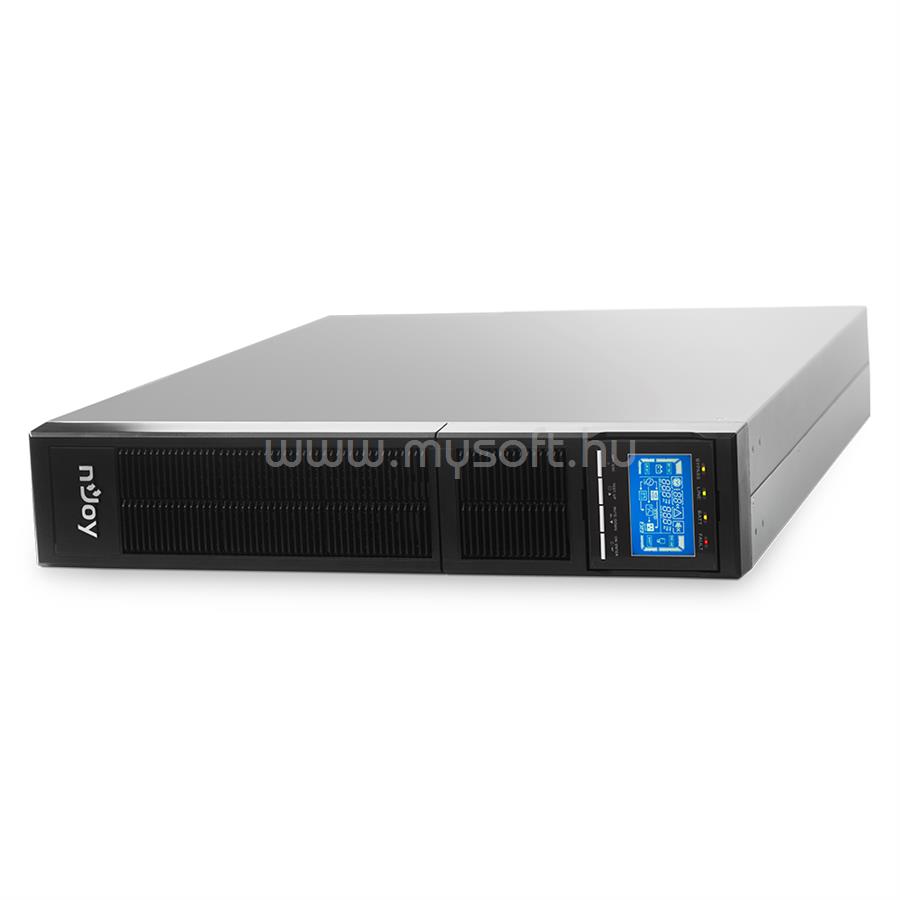

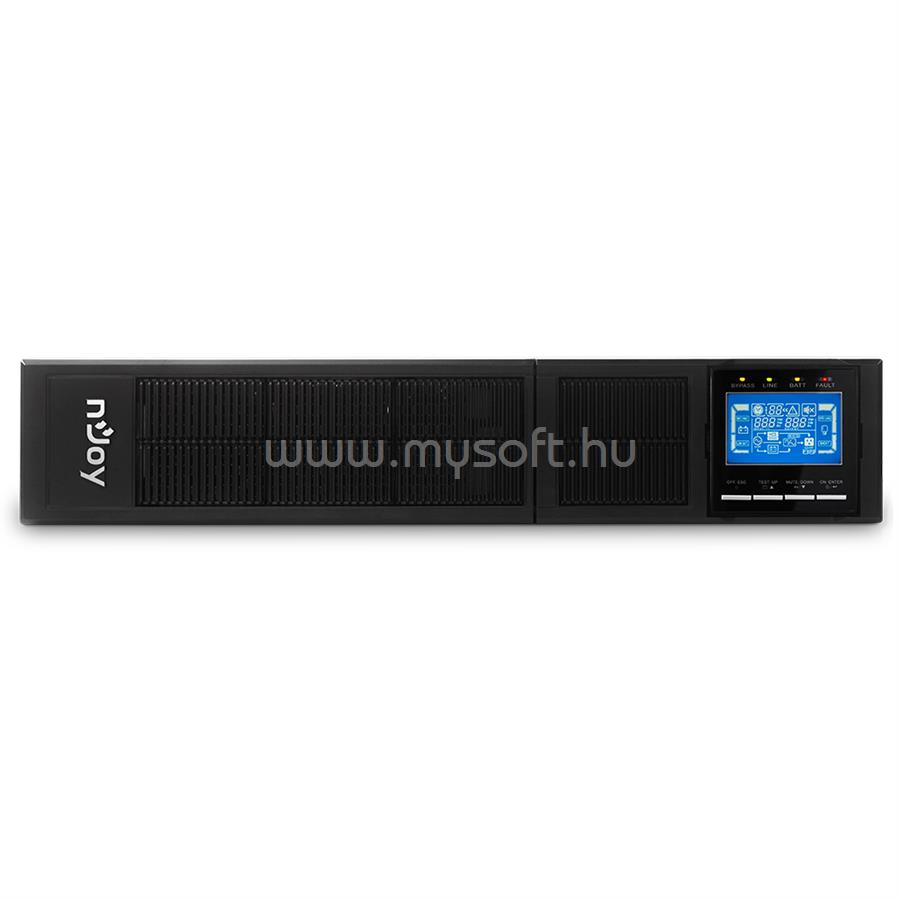

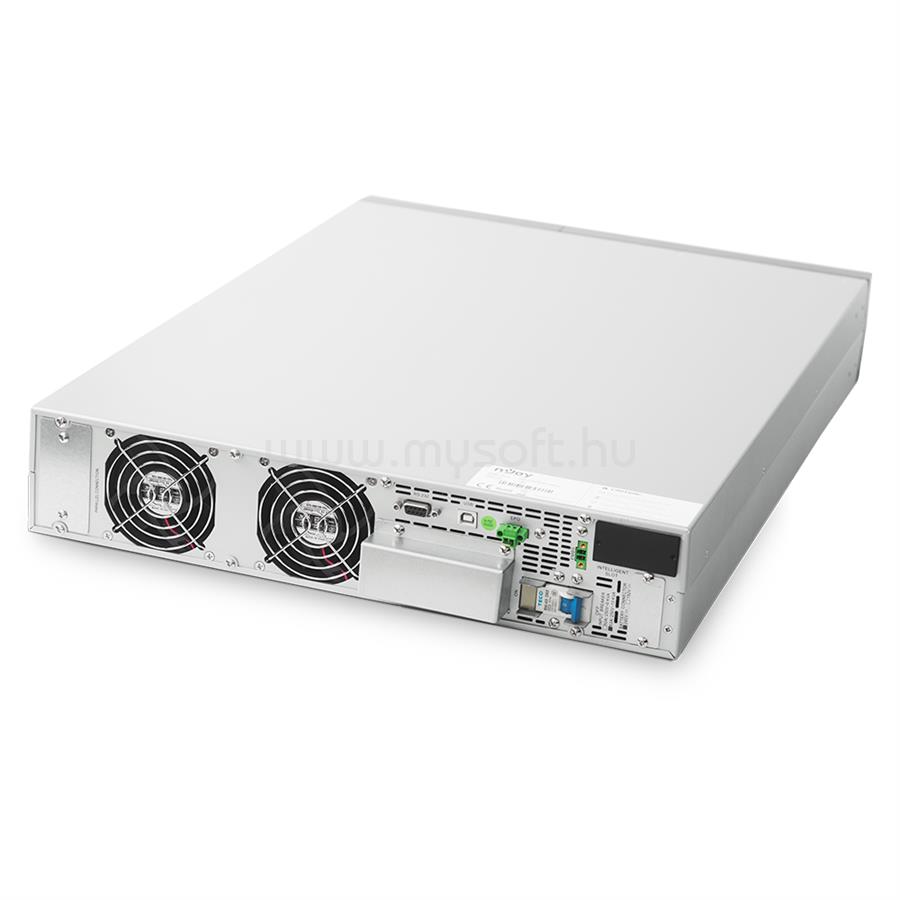

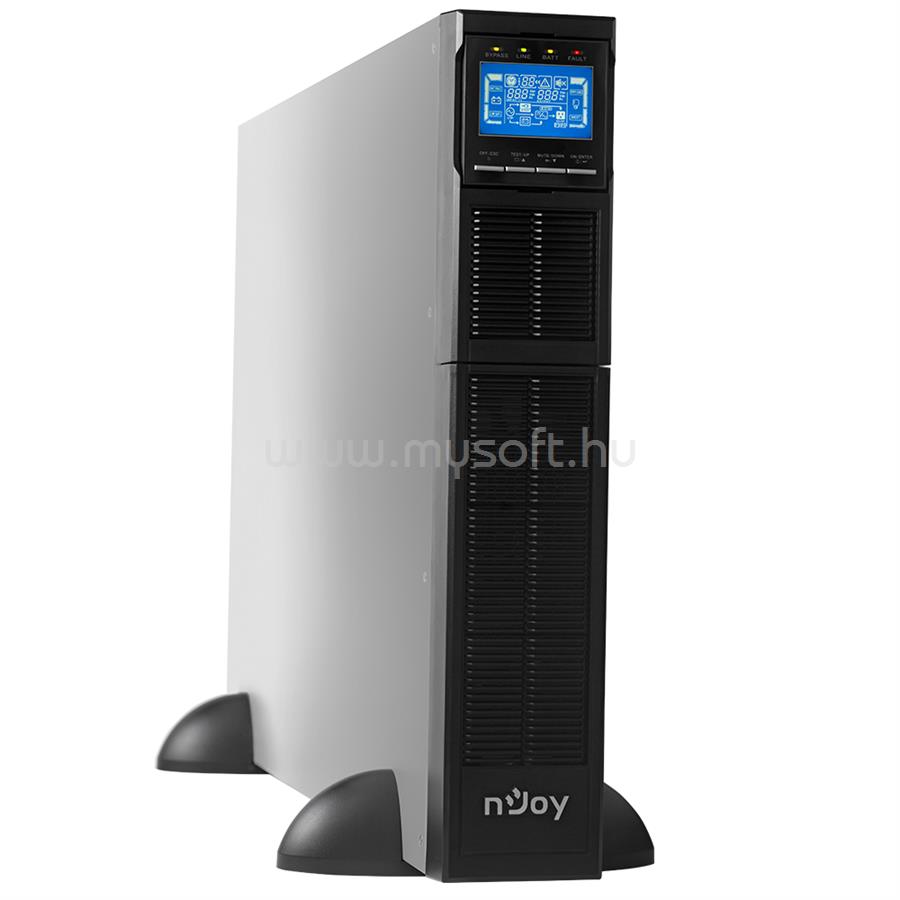

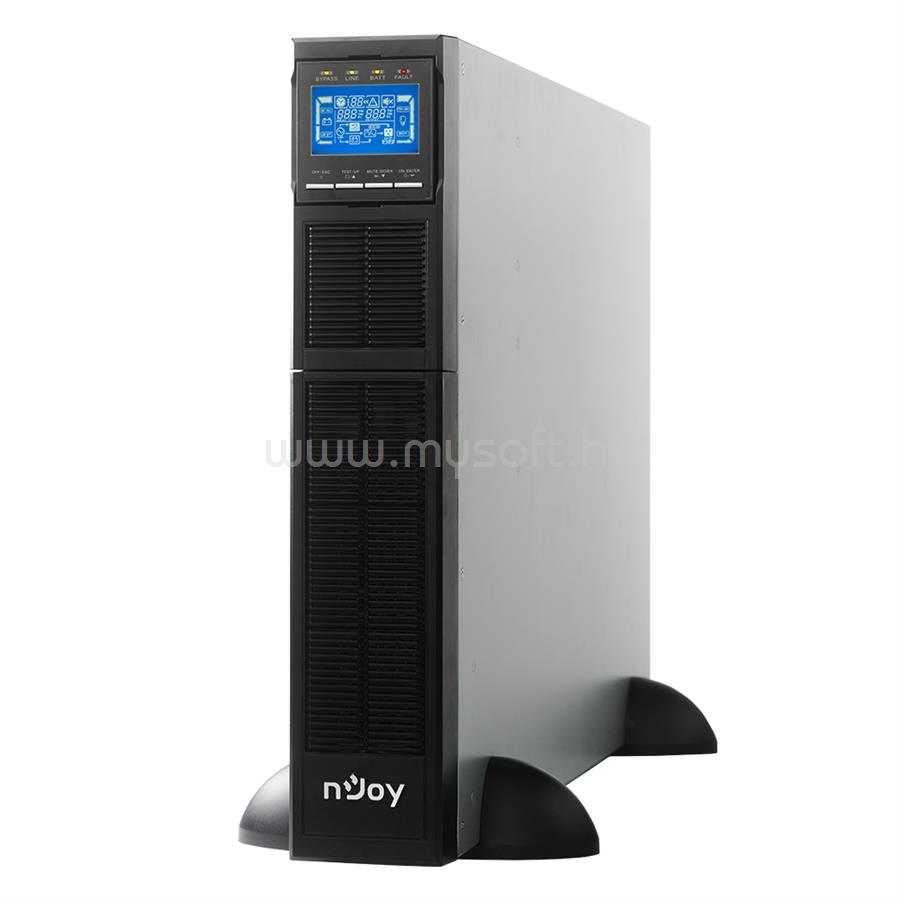

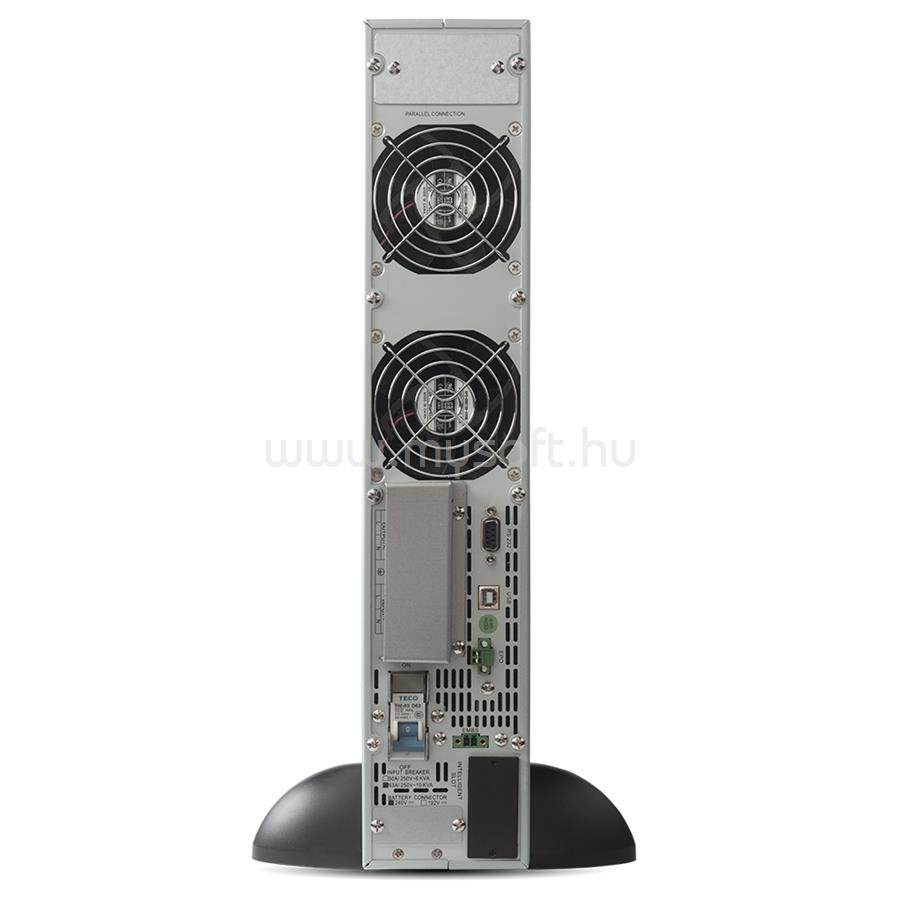

NJOY 10000VA - BALDER 10000 SZÜNETMENTES TÁPEGYSÉG (ONLINE, RS232, USB, SZOFTVER, LCD KIJELZŐ, 3U RACK)

• Capacity
• 10000 VA / 10000 W
• Type
• On-line

• Input

• Outlets type
• Terminal Block Wiring
• Nominal Voltage
• 230V
• Accepted Voltage Range
• 110 ~ 300 VAC at 0~60% Load
• 140 ~ 300 VAC at 60~80% Load
• 176 ~ 300 VAC at 80~100% Load
• Nominal Frequency
• 50 Hz / 60 Hz (Auto Sensing)
• Frequency Range
• 46 ~ 54 Hz
• Power Factor
• > 0.99 at nominal voltage (100% load)
• Total Harmonic Distortion (THDi)
• <4% @100% Load
• <6% @50% Load
• Phase
• Single phase with ground

• Output

• Outlets type
• Terminal Block Wiring
• Nominal Voltage
• 208/220/230/240 VAC
• AC Voltage Regulation
• +/- 1% (Batt. Mode)
• Frequency Range (Synchronized Range)
• 46~54 Hz at 50 Hz
• Frequency Range (Batt. Mode)
• 50 Hz +/- 0.1 Hz
• Current Crest Ratio
• 3:1 (max.)
• Total Harmonic Distortion (THDi)
• < 1 % THD (Linear Load)
• < 4 % THD (Non-linear Load)
• Waveform (Batt. Mode)
• Pure Sinewave

• Transfer Time

• AC Mode to Batt. Mode
• Zero
• Inverter to Bypass
• Zero

• Efficiency

• AC Mode
• > 94 % at full charged battery
• To Battery Mode
• > 91 % at full charged battery
• ECO Mode
• > 96 % at full charged battery

• Overload

• AC Mode
• 100%~110%: 10min; 110%~130%: 1min; >130% : 1sec
• Battery Mode
• 100%~110%: 30sec; 110%~130%: 10sec; >130% : 1sec

• Indicators type

• LCD Display
• UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
• LED indicators
• Bypass, Line, Battery, Fault
• Alarm
• Battery mode, Low battery, Overload, Fault

• Battery

• Internal batteries
• Not supported
• External batteries
• 12V lead acid, N pcs x 1 string / cabinet, N=16~20
• Compatible battery cabinets
• Balder 2U Battery pack & Balder 3U battery pack
• Charging Current
• 1.0 - 4.0 A (adjustable)
• Charging Voltage
• 13.65VDC*N; N=16~20 (adjustable, based on battery number per string)
• Default Charging Voltage
• N=20 (273VDC)

• Running time on battery

• With one 3U Battery Pack (20 x GP09122F batteries, BTVACIUOCTA2FCN01B)
• 5 min for ~ 5.800W load
• 10 min for ~ 4.200W load
• 15 min for ~ 3.100W load
