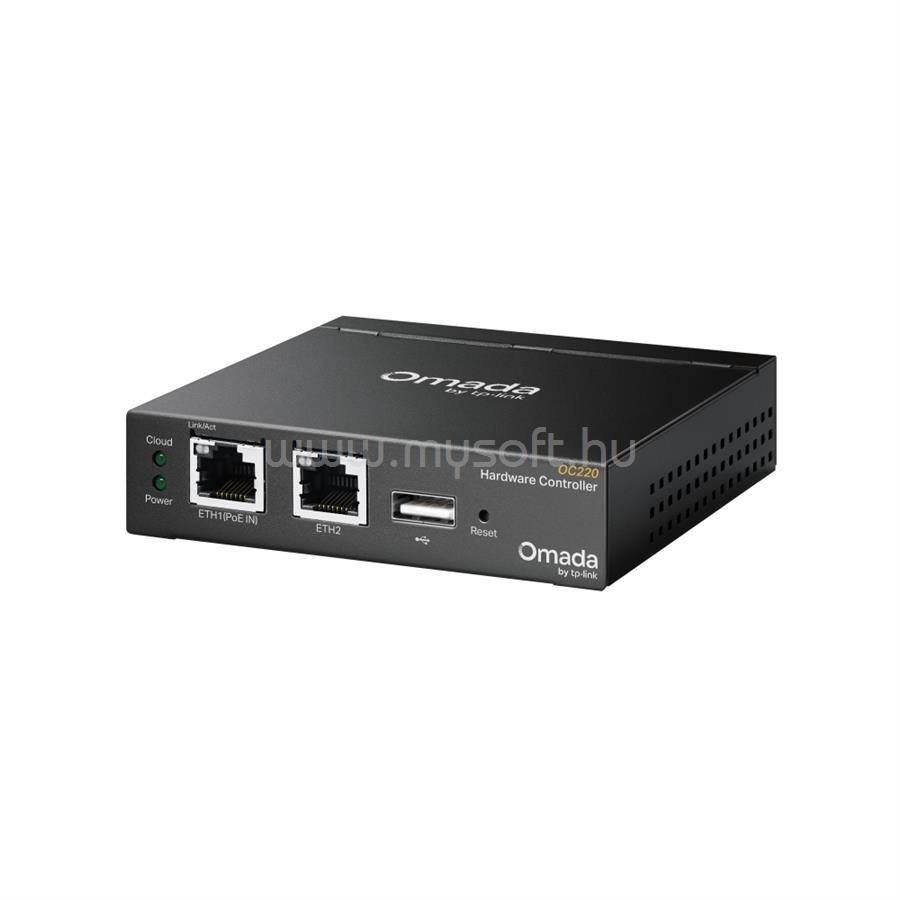

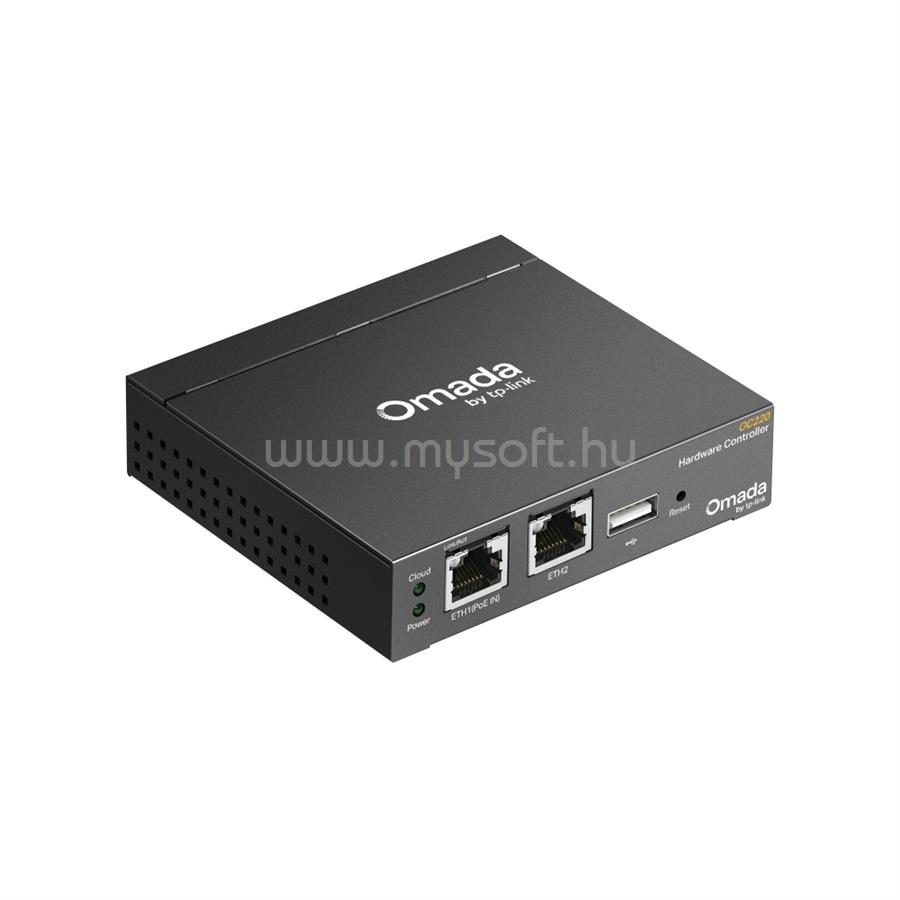

TP-LINK OC220 OMADA CLOUD CONTROLLER

• HARDWARE FEATURES

• Interface
• 2× Gigabit Ethernet Port
• 1× USB 2.0 Port
• 1× Micro USB Port
• Power Supply
• 802.3af PoE
• Micro USB(DC 5V/Minimum 1A)
• Dimensions ( W x D x H )
• 3.9×3.9×1.0 in (100×98×25 mm)

• Management Features

• Omada App
• Yes
• Centralized Management
• 100 Omada access points
• 10 Omada gateways
• A maximum of 20 Omada switches*
• A maximum of 2 certain DeltaStream GPON OLTs*
• Note: Please refer to www.omadanetworks.com/en/business-networking/all-omada/ to find all the Omada device models supported by OC220
• *The number of supported Omada switches decreases by 5 for each DeltaStream GPON OLT added. The DeltaStream GPON OLTs supported by the controller are DS-P7001-04 and DS-P7001-08.
• Cloud Access
• Yes
• L3 Management
• Yes
• Multi-site Management
• Yes
• Management Features
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

• OTHERS

• Certification
• CE, FCC, RoHS
• Package Content
• Omada Hardware Controller OC220
• Quick Installation Guide
• RJ45 Ethernet Cable
• System Requirements
• Windows 7/8/10/11, Vista™, XP or MAC© OS, NetWare©, UNIX© or Linux
• Environment
• Operating Temperature: -5-50 ? (23-122 ?)
• Storage Temperature: -40-70 ? (-40-158 ?)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing

Garancia fogyasztók részére

• 2 év kötelező jótállás + 3 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 5 év gyártó által biztosított szervizgarancia
