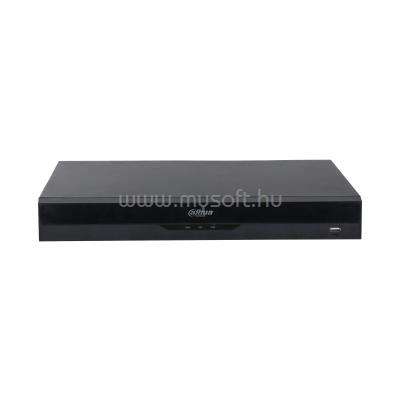

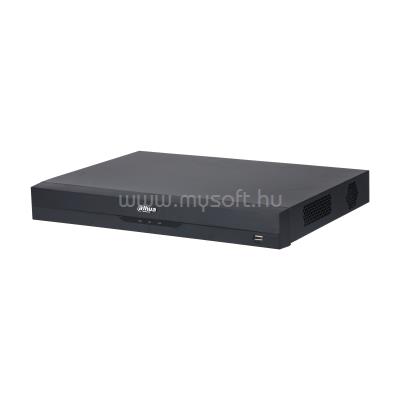

DAHUA NVR5216-EI NVR RÖGZÍTŐ (16 CSATORNA, H265+, 32MP, 384MBPS, HDMI+VGA, 2XUSB, 2X SATA, AI)

• System

• Main Processor
• Industrial-grade processor
• Operating System
• Embedded Linux
• Operating Interface
• Web, Local GUI

• AI

• AI by Recorder
• Face detection; face recognition; perimeter protection; SMD Plus
• AI by Camera
• Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
• AcuPick AI by Camera + Recorder
• Max. 16-channel, 1 combined event per channel/s

• Perimeter Protection

• Perimeter Performance AI by Recorder (Number of Channels)
• 4 channels, 10 IVS rules for each channel
• Perimeter Performance of AI by Camera (Number of Channels)
• All channels (16 targets/s)

• Face Detection

• Face Attributes
• Gender; age group; glasses; expressions; face mask; beard
• Face Detection Performance of AI by Recorder (Number of Channels)
• 2 channels (up to 12 face images/s each channel)
• Face Detection Performance of AI by Camera (Number of Channels)
• 16 channels

• Face Recognition

• Face Database Capacity
• Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
• Face Recognition Performance of AI by Recorder (Number of Channels)
• 1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s
• 2. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s
• Face Recognition Performance of AI by Camera (Number of Channels)
• 16 channels

• SMD Plus

• SMD Plus by Recorder
• 8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change
• SMD Plus by Camera
• All channels (32 targets/s)

• Video Metadata

• Metadata Performance of AI by Camera (Number of Channels)
• 8 channels
• Human Attributes
• Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella
• Motor Vehicle Attributes
• License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location.
• Non-motor Vehicle Attributes
• Vehicle model, vehicle color, number of persons, helmet.

• Vehicle License Plate Comparison

• ANPR by Camera (Number of Channels)
• All channels (8 targets/s)
• License Plate Database Capacity
• 1. Create up to 20,000 plate numbers.
• 2. Blocklist and allowlist

• Audio and Video

• Access Channel
• 16 channels
• Network Bandwidth
• AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing
• AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
• Resolution
• 32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF
• Decoding Capability
• AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel 6 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps
• AI enabled: 1-channel 32 MP@25 fps; 1-channel 24 MP@25 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 6-channel 8 MP@30 fps; 8-channel 6 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps
• Video Output
• 1 VGA, 1 HDMI
• VGA:1920 × 1080, 1280 × 1024, 1280 × 720
• HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
• Heterogeneous video source output for HDMI and VGA
• Multi-screen Display
• Main screen: 1/4/8/9/16
• Sub screen: 1/4/8/9/16
• Third-party Camera Access
• ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha

• Compression Standard

• Video Compression
• Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
• Audio Compression
• G.711a; G.711u; PCM; G726

• Network

• Network Protocol
• HTTP; HTTPS; TCP/IP; IPv4; UDP; NTP; DHCP; DNS; SMTP; UPnP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI
• Mobile Phone Access
• iOS; Android
• Interoperability
• ONVIF 23.12(Profile T; Profile S; Profile G); CGI; SDK
• Browser
• Chrome; IE; Safari; Edge; Firefox

• Recording Playback

• Multi-channel Playback
• Up to 16 channels
• Record Mode
• General, motion detection; intelligent; alarm; POS
• Backup Method
• USB device and network
• Playback Mode
• Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

• Storage

• Disk Group
• Yes

• Alarm

• General Alarm
• Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm; thermal alarm
• Anomaly Alarm
• Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception
• Intelligent Alarm
• Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
• Alarm Linkage
• Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email

• Port

• Audio Input
• 1-channel RCA
• Audio Output
• 1-channel RCA
• Alarm Input
• 4 channels
• Alarm Output
• 2 channels
• Disk Interface
• 2 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature.
• RS-232
• 1
• RS-485
• 1
• USB
• 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
• HDMI
• 1
• VGA
• 1
• Network Port
• 1 (10/100/1000 Mbps Ethernet port, RJ-45)

• General

• Power Supply
• 12 VDC, 4 A
• Power Consumption
• Total output of NVR is ? 10 W (without HDD)
• Net Weight
• 1.57 kg (3.46 lb)
• Gross Weight
• 2.73 kg (6.02 lb)
• Product Dimensions
• 375.0 mm × 284.4 mm x 56.0mm (14.76" × 11.20" × 2.20") (W × D × H)
• Packaging Dimensions
• 433.0 mm × 141.0 mm × 366.0 mm (17.04" × 5.55" × 14.41") (W × D × H)
• Operating Temperature
• -10 °C to +55 °C (14 °F to +131 °F)
• Storage Temperature
• -20 °C to +60 °C (-4 °F to +140 °F)
• Operating Humidity
• 10%-93% (RH), non-condensing
• Installation
• Rack or desktop
• Certifications
• FCC: 47 CFR FCC Part15, SubpartB, Class A
• CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
• CE-LVD: EN 62368-1:2014
