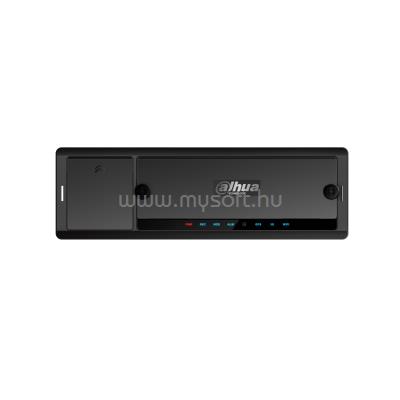

DAHUA MNVR4104-GFWI NVR MOBIL RÖGZÍTŐ (1X SATA)

• Video and Audio

• IP Camera Input
• 4-ch connected via PoE interfaces
• Total output power: 36 W
• Max. output power of a single port: 25.4 W
• Video Compression
• H.265/smart H.265/H.264/smart H.264
• Encoding Capacity
• 1080P/720P/960H/D1/CIF
• Dual-stream
• Support (up to D1 encoding for sub stream)
• Video Frame Rate
• PAL: 1 to 25 fps;
• NTSC: 1 to 30 fps
• Video Output
• 1-ch CVBS; 1-ch VGA; 1-ch HDMI
• Output resolution: 800×600/1280×1024
• Display Display
• 1/4
• Audio Compression
• G.711A/G.711U/PCM

• Network

• Band
• LTE-FDD:
• B1/3/5/7/8/20
• LTE-TDD: B38/40/41
• WCDMA: B1/5/8
• GSM/EDGE: B3/8
• Tx Power
• Frequency Bands
• GSM850/EGSM900
• DCS1800/PCS1900
• WCDMA bands
• LTE bands
• Wi-Fi Frequency
• 2.4 GHz
• Wi-Fi Protocol
• 802.11 b/g/n
• Interoperability
• ONVIF (Profile S/Profile G/Profile T)

• AI

• DSM
• Supports drowsy driving, distracted driving, calling, no driver, wearing IR blocking sunglasses, smoking, lens tampering and unbelted alarms.
• Face Recognition
• Supports face attribute detection and face comparison.
• ANPR
• Supports recognition of license plate, vehicle color and vehicle brand.

• Recording Playback

• Recording Priority
• Manual recording > alarm recording > motion detection recording > Timed recording
• Recording Playback
• 1/4 channels
• Backup
• HDD/SSD, USB flash drive and network backup

• Storage

• HDD/SSD
• 1 × 2.5-inch HDD/SSD (SATA), up to 2 TB
• Heat Dissipation
• Built-in fan cooling
• SD card
• 1 (up to 256 GB)

• Alarm

• General Alarm
• Motion detection, video loss, video tampering, local alarm, camera offline
• Abnormal Alarm
• No HDD, HDD error, insufficient capacity, illegal login, battery low voltage, high temperature, rollover, collision, over speed, low speed, rapid turn, rapid speedup, sharp brake, network security exception, ACC off
• Alarm Linkage
• Log, record, snapshot, tour, buzzer, email, alarm output

• Sensor

• Gyroscope
• Supports event detection and alarm such as rollover, collision, rapid speedup/slowdown/turn.

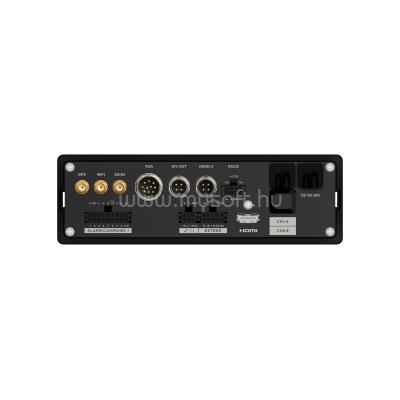

• External Port

• Alarm Input
• 9 channels (Alarm 1-8 are local alarm input, Alarm 9 is
• pulse input)
• Alarm Output
• 2 channels (1 relay out, 1 controllable 12VDC 0.5A out)
• Audio Talk
• Support
• RS-232
• 4
• RS-485
• 2
• CAN
• 1
• USB
• Front panel: 2 × USB 2.0
• Rear panel: 1 × USB 2.0 from EXTEND port
• Network Interface
• 1 × 10M/100M RJ45
• Satellite Positioning
• GPS/GLONASS

• General

• Power Supply
• 6-36 VDC
• Power Consumption
• 11.1 W (without peripheral )
• Low power consumption: < 0.1W
• Gross Weight
• 2.93 kg (6.50 lb) (with packages)
• Product Dimensions
• 180 mm × 190 mm × 50 mm (7.0" × 8.7" × 2.0")
• Packaging Dimensions
• 308 mm × 293 mm × 123 mm (12.1" × 11.5" ×4.8")
• Operating Temperature
• -30 °C to +70°C (-22 °F to +158 °F)
• Operating Humidity
• 10% - 90%
• Operating Altitude
• 5000 m
• Installation
• Embedded or bracket installation
• Certifications
• CE/FCC/E-mark/EN50155
