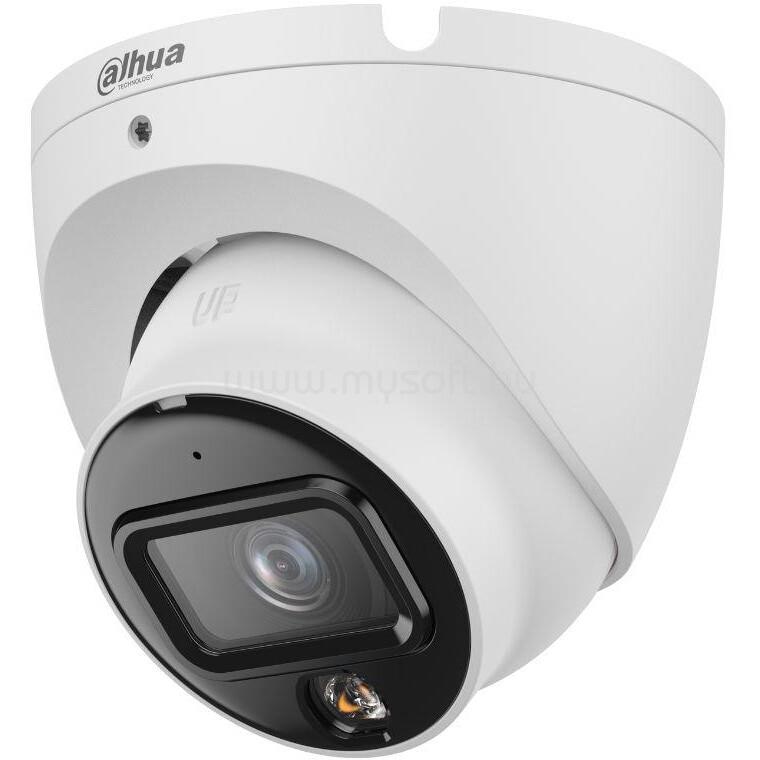

DAHUA IPC-HDW1639T-A-IL-0280B-S6 6MP, ENTRY, FIX 2,8MM, IR/LÁTHATÓFÉNY 30M, FULLCOLOR, HIBRID MEGVILÁGÍTÁSÚ IP TURRET KAMERA

• Camera

• Image Sensor
• 1/2.7" CMOS
• Max. Resolution
• 3200 (H) × 1800 (V)
• ROM
• 128 MB
• RAM
• 256 MB
• Scanning System
• Progressive
• Electronic Shutter Speed
• Auto/Manual 1/3 s-1/100,000 s
• Min. Illumination
• 0.007 lux@F1.6 (Color, 30 IRE);
• 0.0007 lux@F1.6 (B/W, 30 IRE);
• 0 lux (Illuminator on)
• S/N Ratio
• >56 dB
• Illumination Distance
• Up to 30 m (98.43 ft) (IR)
• Up to 30 m (98.43 ft) (Warm light)
• Illuminator On/Off Control
• Auto;Manual
• Illuminator Number
• 1 (Multi-core (IR + warm) light)
• Angle Adjustment
• Pan: 0°-360°;
• Tilt: 0°-78°;
• Rotation: 0°-360°

• Lens

• Lens Type
• Fixed-focal
• Lens Mount
• M12
• Focal Length
• 2.8 mm; 3.6 mm
• Max. Aperture
• F1.6
• Field of View
• 2.8 mm: H: 110°; V: 58°; D: 132°
• Iris Control
• Fixed
• Close Focus Distance
• 2.8 mm: 1.1 m (3.61 ft)
• DORI Distance
• Lens
• 2.8 mm
• Detect
• 63.6 m
• ( 208.66 ft)
• Observe
• 25.4 m
• ( 93.33 ft)
• Recognize
• 12.7 m
• ( 41.67 ft)
• Identify
• 6.4m
• ( 21.00 ft)
• DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

• Intelligence

• Human Detection
• Support the classification and accurate detection of human
• Smart Search
• Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

• Video

• Video Compression
• H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
• Smart Codec
• Smart H.265+; Smart H.264+
• Video Frame Rate
• Main stream: 3200 × 1800@(1-20 fps)/2688 × 1520@(1-25/30 fps)
• sub stream: 704 × 576@(1-25 fps)/704 × 480@(1-30 fps)
• *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
• Stream Capability
• 2 streams
• Resolution
• 6M (3200 × 1800); 4M (2880 × 1620/2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bit Rate Control
• VBR;CBR
• Video Bit Rate
• H.264: 32 kbps-8192 kbps;
• H.265: 12 kbps-8192 kbps
• Day/Night
• Auto(ICR)/Color/B/W
• BLC
• Yes
• HLC
• Yes
• WDR
• DWDR
• White Balance
• Auto; natural; street lamp; outdoor; manual; regional custom
• Gain Control
• Auto/Manual
• Noise Reduction
• 3D NR
• Motion Detection
• OFF/ON (4 areas, rectangular)
• Region of Interest (RoI)
• Yes (4 areas)
• Smart Illumination
• Yes
• Smart Dual Light
• Yes
• Image Rotation
• 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
• Mirror
• Yes
• Privacy Masking
• 4 areas

• Audio

• Built-in MIC
• Yes, built-in Mic
• Audio Compression
• G.711a; G.711Mu; PCM; G.726

• Alarm

• Alarm Event
• Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception

• Network

• Network Port
• RJ-45 (10/100 Base-T)
• SDK and API
• Yes
• Network Protocol
• IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
• Interoperability
• ONVIF (Profile S & Profile T); CGI
• User/Host
• 20 (Total bandwidth: 48 M)
• Storage
• FTP
• Browser
• IE; Chrome; Firefox
• Management Software
• Smart PSS Lite; DSS; DMSS; DoLynk Care
• Mobile Client
• iOS;Android
• Cyber Security
• Video encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;Generation and importing of X.509 certification;HTTPS;Trusted boot;Trusted execution;Trusted upgrade

• Power

• Power Supply
• 12 VDC/PoE (802.3af)
• Power Consumption
• Basic: 2 W (12 VDC), 2.9 W (PoE);
• Max. : 4 W (12 VDC); 5.3 W (PoE) (H.265 + intelligence on+ DWDR + illuminator intensity)

• Environment

• Operating Temperature
• -40 °C to +60 °C (-40 °F to +140 °F)
• Operating Humidity
• <95%(RH), non-condensing
• Storage Temperature
• -40 °C to +60 °C (-40 °F to +140 °F)
• Storage Humidity
• <95%(RH), non-condensing
• Protection
• IP67

• Structure

• Casing Material
• Metal
• Product Dimensions
• 85.6 mm × ?94.0 mm (3.37" × ?3.7")
• Net Weight
• 0.34 kg (0.75 lb)
• Gross Weight
• 0.45 kg (0.99 lb)
