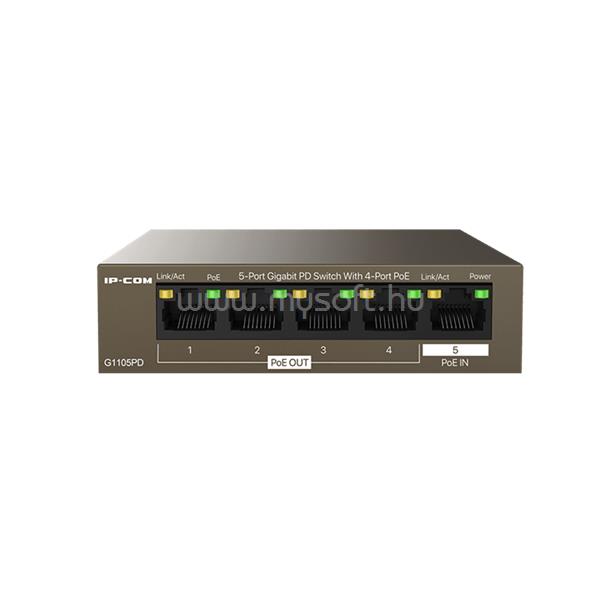

IP-COM G1105PD SWITCH POE (5X1GBPS; 4 AF/AT POE+ PORT; 30W)

IP-COM G1105PD Switch PoE (5x1Gbps; 4 af/at PoE+ port; 30W)

Hálózat > Switch > Nem menedzselhető > Asztali

nem elérhető


  • mysoft azonosító
    0-2963814
Adatlap frissítve: 2026. 03. 31. 11:40:10



cib
GLS
  • Hardware specifications

  • Network standards
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
  • Transmission media
  • 10Base-T: CAT3 UTP or better
  • 100Base-TX: CAT5 UTP or better
  • 1000Base-T: CAT5e UTP or better
  • Dimensions
  • 100 mm x 100 mm x 26 mm(L x W x H)
  • Product material
  • Metal
  • Fan
  • Fanless
  • LED indicators
  • 1 x Power LED indicator
  • 4 x PoE LED indicator
  • 5 x Link/Act LED indicator
  • Service port description

  • Fixed ports
  • 5 x 10/100/1000 Mbps auto-negotiation RJ45 ports (supporting Auto MDI/MDIX)
  • PoE out
  • PoE standard:IEEE 802.3af
  • PoE power cable core:8 cores: voltage of cores 1, 2, 4, 5 is +, and cores 3, 6, 7, 8 is -
  • PoE port:1 - 4
  • Maximum output power of a single port:15.4 W
  • Maximum output power of the switch:22 W
  • PoE in
  • PoE in standard:IEEE802.3af, IEEE802.3at
  • PoE in port:5
  • PoE input:50 - 57V DC, 0.6A
  • Protection
  • Port lightning protection: 6 kV
  • Power lightning protection: No
  • Electrostatic protection:
  • - Air discharge: +/-8 kV
  • - Contact discharge: +/-6 kV
  • Performance

  • Forwarding mode
  • Store-and-forward
  • Switching capacity
  • 10 Gbps
  • Packet forwarding rate
  • 10 Mbps: 14880 pps
  • 100 Mbps: 148800 pps
  • 1000 Mbps: 1488000 pps
  • Buffer
  • 1 Mb
  • MAC address table
  • 2 K
  • Jumbo frame
  • 9 K
  • Installation method
  • Desktop mounting: Support
  • Wall mounting: Not support
  • Rack mounting: Not support
  • Environment
  • Operating temperature: 0°C - 45°C
  • Storage temperature: -40°C - 70°C
  • Operating humidity: (10% - 90%), non-condensing
  • Storage humidity: (5% - 90%), non-condensing
  • Certificates
  • CQC, FCC, CE, RoHS
  • Software specifications

  • Protocol
  • CDMA/CD
  • MAC address learning
  • Auto-learning, auto-updating
  • Function
  • No
