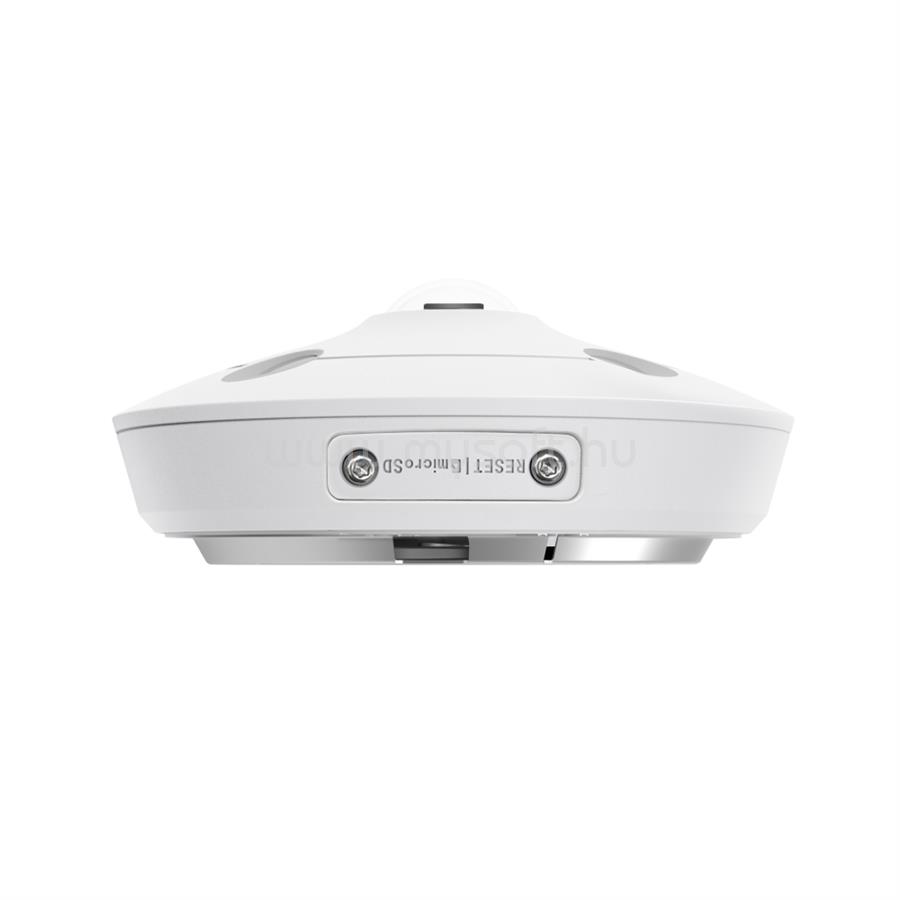

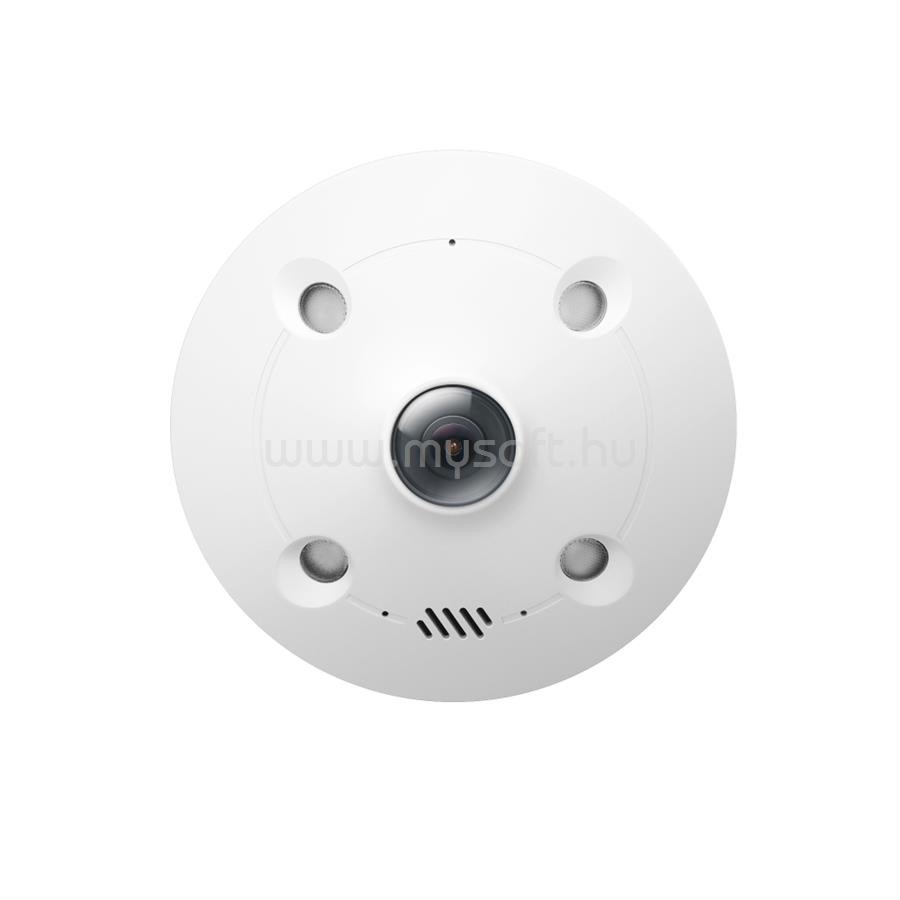

TP-LINK INSIGHT S655I IP KAMERA KÜLTÉRI/BELTÉRI SZÍNES ÉJJELLÁTÓ 5 MEGAPIXEL IR FISHEYE PTZ

TP-LINK INSIGHT S655I IP kamera kültéri/beltéri színes éjjellátó 5 Megapixel IR Fisheye PTZ

163 990 Ft 129 126 Ft + ÁFA

Biztonságtechnika > IP kamera

raktáron

  • HA MOST MEGRENDELED
  • Házhoz, csomagpontra, csomagautomatába szállítjuk
    CSÜTÖRTÖKRE (2025-06-12) (NORMÁL)
    SZERDÁRA (2025-06-11) (EXPRESSZ)
  • Ügyfélszolgálatunkon átveheted
    CSÜTÖRTÖKÖN (2025-06-12) 9:30 - 16:30 (NORMÁL)
    SZERDÁN (2025-06-11) 16:00 - 16:30 (EXPRESSZ)


  • mysoft azonosító
    15-3660391
Adatlap frissítve: 2025. 06. 10. 0:49:18



cib
GLS
  • Kamera

  • Képérzékelő
  • 1/2.7" Progressive Scan CMOS
  • Shutter Speed
  • 1/3 to 1/10000 s
  • Slow Shutter
  • Yes
  • Min. szükséges megvilágítás
  • Color: 0.01 Lux; 0 Lux with IR light
  • Day/Night Mechanism
  • IR Cut Filter
  • Day/Night Switch
  • Unified/ Scheduled/ Auto
  • LENS

  • Type
  • Fixed Focal Lens
  • Focal Length
  • 1.44 mm
  • Aperture
  • F2.0
  • FOV
  • Horizontal FOV: 180°, Vertical FOV: 180°, Diagonal FOV:180°
  • Lens Mount
  • M12*P0.5
  • DORI Distance
  • Detect: 28.8 m (94 ft)
  • Observe:12 m (39 ft)
  • Recognize: 5.7 m (19 ft)
  • Identify: 2.8 m (9 ft)
  • Fisheye Display

  • Installation
  • Ceiling Mount; Wall Mount; Pendant Mount§
  • Display Mode
  • Ceiling Mount:
  • Fisheye, AR Dewarp, 180 Panorama, 360 Panorama
  • Cylinder, 2PTZ, 4PTZ, Fisheye + 8PTZ, Fisheye + 3PTZ, 360 Panorama + 8PTZ, 360 Panorama + 6PTZ, 360 Panorama + PTZ
  • Wall Mount:
  • Fisheye, 360 Panoramic Unwrap, 360 Panoramic Unwrap+3PTZ, 360 Panoramic Unwrap+8PTZ, 4PTZ, Fisheye + 3PTZ, Fisheye + 8PTZ
  • Angle Adjustment (Manual)

  • Range
  • N/A
  • ILLUMINATOR

  • IR LED
  • Quantity: 4
  • Range: 30m
  • Wavelength: 850nm
  • White LED
  • N/A
  • Illuminator On/Off Control
  • Auto/Scheduled/Always on/Always off
  • VIDEO

  • Max. Resolution
  • 2560 × 1920
  • Main Stream
  • Frame Rate:
  • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  • Resolution:
  • 2560 × 1920, 2256 × 1696, 2048 × 1536, 1280 × 960
  • Note:
  • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
  • If WDR is on, the frame rate only supports up to 15fps.
  • Sub-Stream
  • Frame Rate:
  • 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  • 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
  • Resolution:
  • 640 × 480, 320 × 240
  • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
  • If WDR is on, the frame rate only supports up to 15fps.
  • Bit Rate Control
  • CBR, VBR
  • Video Compression
  • Main Stream: H.265+/H.265/H.264+/H.264
  • Sub-Stream: H.265/H.264
  • H.264 Type
  • High Profile
  • H.264+
  • Main Stream Supported
  • H.265 Type
  • Main Profile
  • H.265+
  • Main Stream Supported
  • Video Bit Rate
  • Main Stream: 256 Kbps to 6 Mbps
  • Sub-Stream: 64 Kbps to 512 Kbps
  • Image

  • Image Settings
  • Brightness
  • Contrast
  • Saturation
  • Sharpness
  • Exposure
  • WDR,
  • White Balance
  • Prevent Overexposure to Infrared Light
  • HLC Adjustable by Client Software
  • Image Enhancement
  • BLC/3D DNR/HLC/SmartIR
  • Wide Dynamic Range
  • 120dB
  • SNR
  • > 52 dB
  • Image Parameters Switch
  • Yes
  • Privacy Mask
  • Up to 4 Masks
  • ROI
  • 1 Region
  • OSD Setting
  • Yes
  • Hang

  • Hangkommunikáció
  • Two-Way Audio
  • Hangbemenet
  • Yes
  • Hangkimenet
  • Yes
  • Hangtömörítés
  • Yes
  • Audio Sampling Rate
  • 8KHz
  • Environment Noise Filtering
  • Yes
  • Audio Bit Rate
  • 64 Kbps(G.711 alaw)
  • Hálózat

  • Szabvány
  • TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
  • ONVIF
  • Yes
  • API
  • Open Network Video Interface (Profile S/T/G)
  • Simultaneous Live View
  • 3 Main Streams & 3 Sub-Streams
  • Client
  • Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
  • Web Browser
  • Google Chrome© 57 and above
  • Firefox© 52 and above
  • Safari© 11 and above
  • Microsoft© Edge 91 and above
  • Cloud
  • Yes
  • Biztonság
  • Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
  • Figyelmeztetési és eseménykezelési vezérlés

  • Smart Event
  • Intrusion Detection
  • Line-Crossing Detection
  • Region Entering Detection
  • Region Exiting Detection
  • Abnormal Sound Detection
  • Basic Event
  • Motion Detection
  • Video Tampering Detection
  • Exception ( Illegal Login)
  • Alarm Linkage
  • Memory Card Video Recording
  • Message Push
  • Audible Warning
  • Linkage Method
  • N/A
  • Output Notification
  • Message Push
  • Email Alarm
  • Upload Capture to FTP
  • Fizikai kezelőfelület

  • Hálózati csatlakozás
  • 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
  • Alarm
  • N/A
  • Reset Button
  • Yes
  • Power
  • DC Power Port
  • On-board Storage
  • Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB§
  • Built-in Microphone
  • Yes; Records Anything Going on within a 15-ft Radius of the Camera
  • Built-in Speaker
  • Yes
  • Audio
  • N/A
  • Általános

  • Operating Temperature
  • -30-60 °C
  • Storage Temperature
  • -40-60 °C
  • Operating Humidity
  • 95% or Less (Non-Condensing)
  • Storage Humidity
  • 95% or Less (Non-Condensing)
  • Csomagolás tartalma
  • VIGI Network Camera
  • Quick Start Guide
  • Waterproof Cable Attachments
  • Mounting Accessories
  • Material
  • Metal
  • Net Weight
  • 0.44 Kg ( without Mounting Accessories)
  • 0.48 Kg ( with Mounting Accessories)
  • Power Supply
  • 12V DC +/- 5%, Max. 11.76 W, 5.5mm Coaxial Power Plug
  • PoE: 802.3af/at, class 0, Max. 12.14W
  • Protection
  • IP67 Weatherproof, IK10 Vandal Proof
  • Product Dimensions (L x W x H)
  • 5.2 × 5.2 × 2.2 in (132 × 132 × 56mm)
  • Certifications
  • CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF
Garancia fogyasztók részére
  • 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia
Garancia nem fogyasztók részére
  • 3 év gyártó által biztosított szervizgarancia
