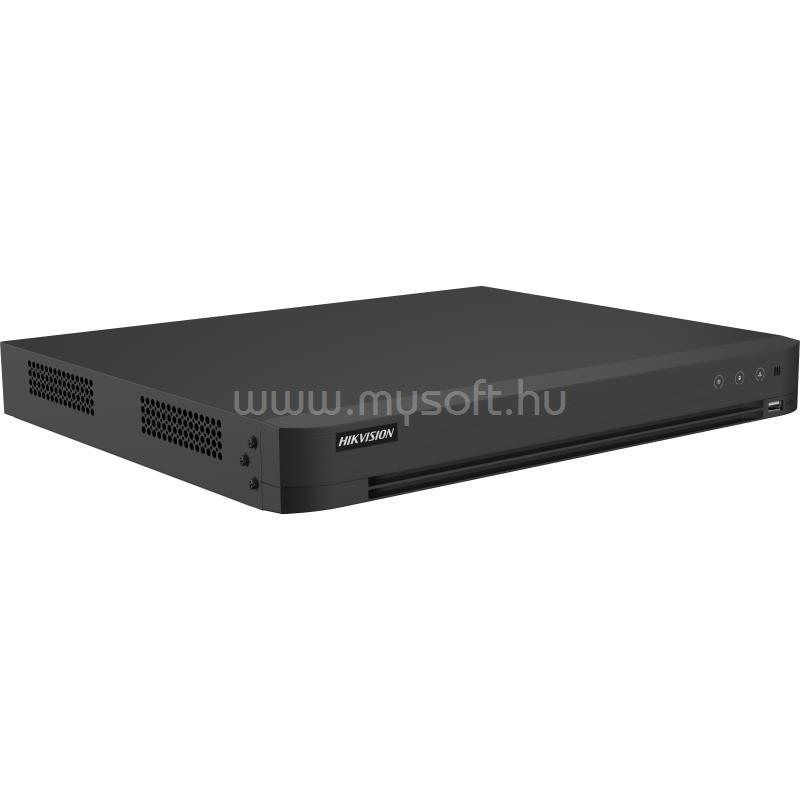

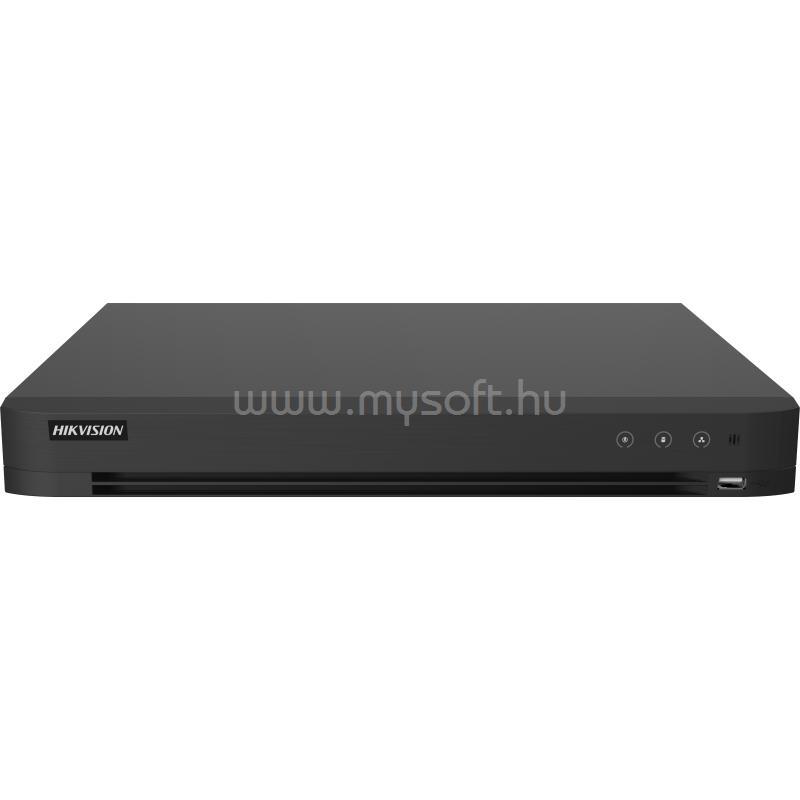

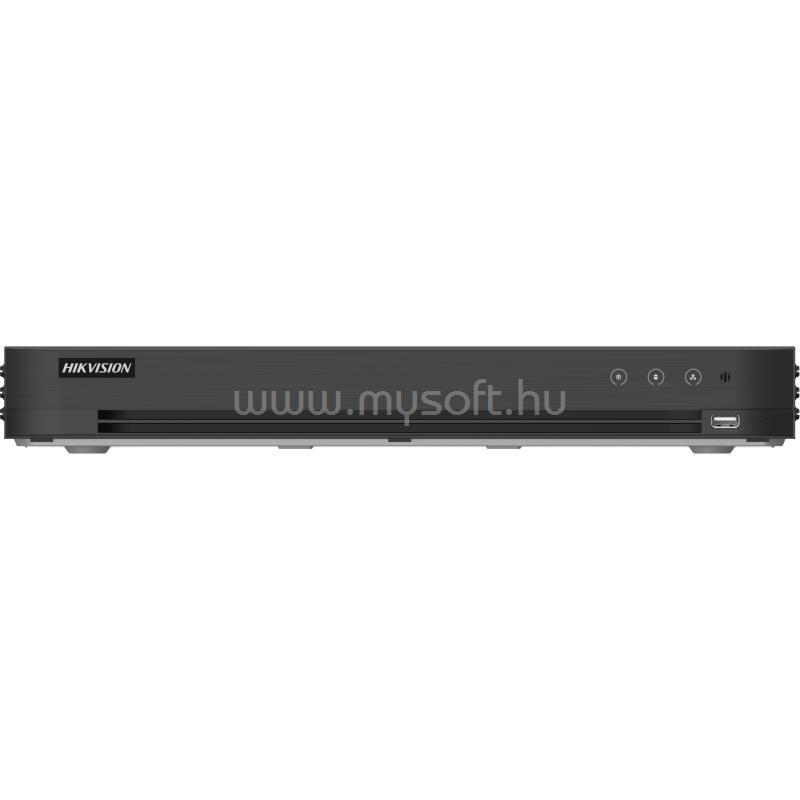

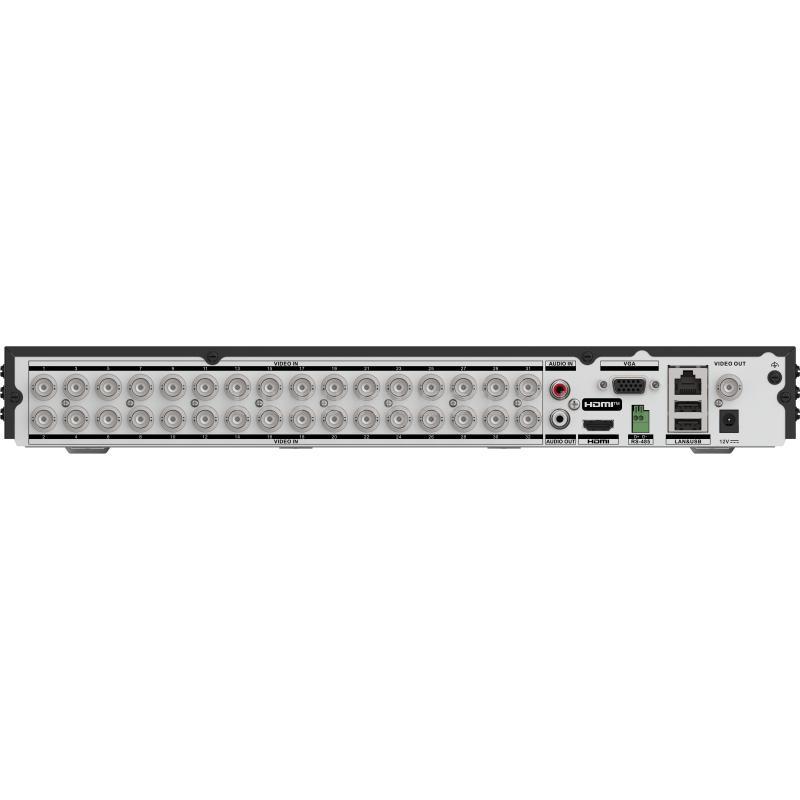

HIKVISION IDS-7232HQHI-M2/XT DVR RÖGZÍTŐ (2X SATA)

• Facial Recognition

• Face Picture Library
• Up to 16 face picture libraries ;
• HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
• Face Picture Comparison (Captured from Camera)
• 4-ch face picture comparison alarm (HD analog camera)

• Motion Detection 2.0

• Human/Vehicle Analysis
• Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
• it can classify human and vehicle, and extremely reduce false alarms caused by objects
• like leaves and lights;
• Quick search by object or event type is supported;

• Perimeter Protection

• Human/Vehicle Analysis
• Up to 8-ch (advanced model)

• Facial Detection

• Facial Detection and Capture
• Face picture detection, face picture search;
• 4-ch face picture capture

• Video and Audio

• IP Video Input
• 8-ch (up to 40-ch), each up to 6 MP resolution,
• Analog Video Input
• 32-ch
• BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
• HDMI Output
• 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output
• 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• HDMI/VGA simultaneous output
• CVBS Input
• PAL/NTSC
• CVBS Output
• 1-ch, BNC (1.0 Vp-p, 75 ?),
• resolution: PAL: 704 × 576, NTSC: 704 × 480
• Synchronous playback
• 16-ch
• HDTVI Input
• 3K(2960 x 1665)@25/20fps, 3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• AHD Input
• 5 MP(2560 × 1944)@20fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• HDCVI Input
• 3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• Audio Output
• 1-ch, RCA (Linear, 1 K?)
• Audio Input
• 1-ch, RCA (2.0 Vp-p, 1 K?),32-ch via coaxial cable
• Two-Way Audio
• 1-ch, RCA (2.0 Vp-p, 1 K?) (using the audio input)

• Recording

• Video Compression
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution
• When 1080p Lite mode is not enabled:
• 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
• When 1080p Lite mode is enabled:
• 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
• Frame Rate
• Main stream:
• When 1080p Lite mode not enabled:
• For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
• For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps
• For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
• For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• When 1080p Lite mode enabled:
• 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
• Sub-stream:
• WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
• Video Bitrate
• 32 Kbps to 10 Mbps
• Dual-stream
• Support main stream or sub stream
• Stream Type
• Video, Video & Audio
• Audio Compression
• G.711u
• Audio Bitrate
• 64 Kbps

• Decoding

• Decoding Capability
• up to 24-ch 1080P@30fps

• Network

• Total Bandwidth
• 256Mbps
• Network Protocol
• TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
• Remote Connection
• 128
• Network Interface
• 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

• Auxiliary Interface

• SATA
• 2 SATA interfaces
• Capacity
• Up to 12 TB capacity for each disk
• Serial Interface
• RS-485 (half-duplex)
• USB Interface
• Front panel: 1 × USB 2.0
• Rear panel: 2 × USB 3.0
• Alarm In/Out
• N/A (optional to support)

• General

• Power Supply
• 12 VDC, 5 A
• Consumption
• < 60 W
• Working Temperature
• -10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity
• 10% to 90%
• Dimension (W × D × H)
• 384 × 313 × 52 mm (15.1 × 12.3 × 2.0 inch)
• Weight
• < 2.1 kg (4.6 lb)
