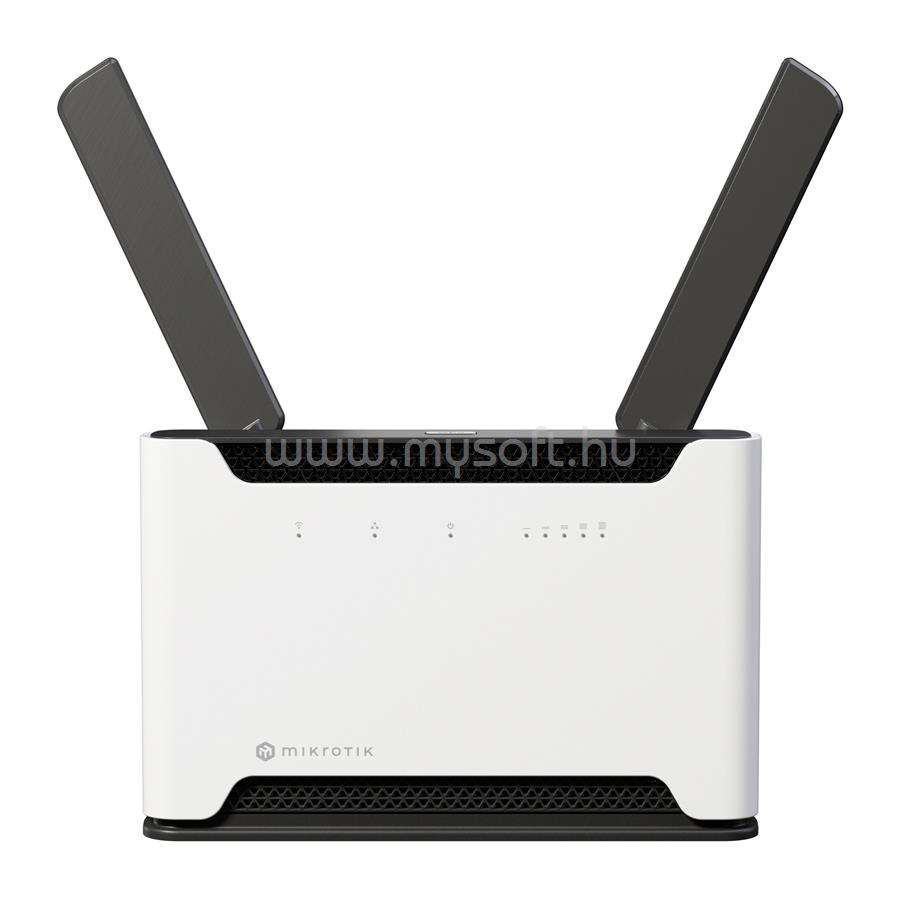

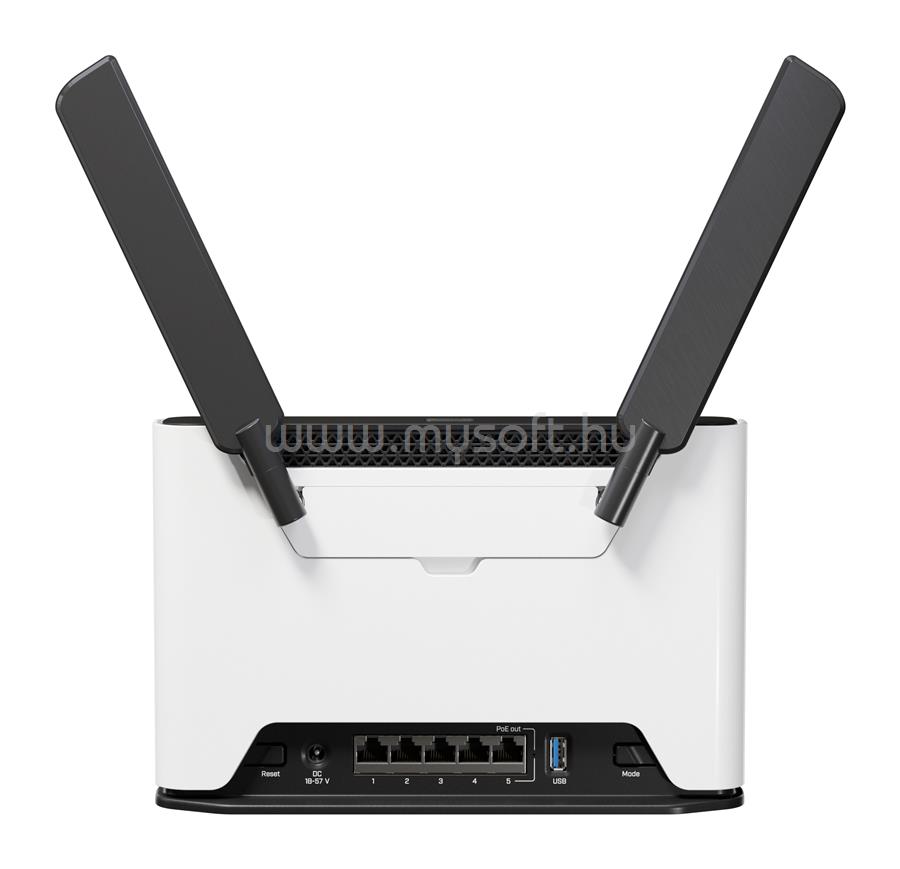

MIKROTIK CHATEAU PRO AX, 802.11AX, 5X GIGABIT RJ45, 4X4 MIMO ANTENNA ACCESS POINT

• Specifications

• Architecture
• ARM 64bit
• CPU
• IPQ-8072A
• CPU core count
• 4
• CPU nominal frequency
• 2208 MHz
• Switch chip model
• IPQ-8072
• RouterOS license
• 6
• Operating System
• RouterOS v7
• Size of RAM
• 1 GB
• Storage size
• 128 MB
• Storage type
• NAND
• MTBF
• Approximately 200'000 hours at 25C
• Tested ambient temperature
• -40°C to 70°C

• Wireless capabilities

• Wireless 2.4 GHz Max data rate
• 1148 Mbit/s
• Wireless 2.4 GHz number of chains
• 4
• Wireless 2.4 GHz standards
• 802.11b/g/n/ax
• Antenna gain dBi for 2.4 GHz
• 5
• Wireless 2.4 GHz chip model
• QCN-5024
• Wireless 2.4 GHz generation
• Wi-Fi 6
• Wireless 5 GHz Max data rate
• 2400 Mbit/s
• Wireless 5 GHz number of chains
• 4
• Wireless 5 GHz standards
• 802.11a/n/ac/ax
• Antenna gain dBi for 5 GHz
• 6
• Wireless 5 GHz chip model
• QCN-5054
• Wireless 5 GHz generation
• Wi-Fi 6
• WiFi speed
• AX3600

• Ethernet

• 10/100/1000 Ethernet ports
• 5
• Number of 1G Ethernet ports with PoE-out
• 1

• Peripherals

• Number of USB ports
• 1
• USB Power Reset
• Yes
• USB slot type
• USB 3.0 type A
• Max USB current (A)
• 1.5

• Powering

• Number of DC inputs
• 1 (DC jack)
• DC jack input Voltage
• 18-57 V
• Max power consumption
• 55 W
• Max power consumption without attachments
• 18 W
• Cooling type
• Passive

• PoE-out

• PoE-out ports
• Ether5
• PoE out
• Passive PoE up to 57V
• Max out per port output (input 18-30 V)
• 600 mA
• Max out per port output (input 30-57 V)
• 500 mA
• Max total out (A)
• 0.600 A
• Total output current
• 0.600
• Total output power
• 22.8

• Certification & Approvals

• Certification
• CE, FCC, IC, EAC, ROHS
• IP
• 20

• Other

• CPU temperature monitor
• Yes
• PCB temperature monitor
• Yes
• Voltage Monitor
• Yes
• Mode button
• Yes
