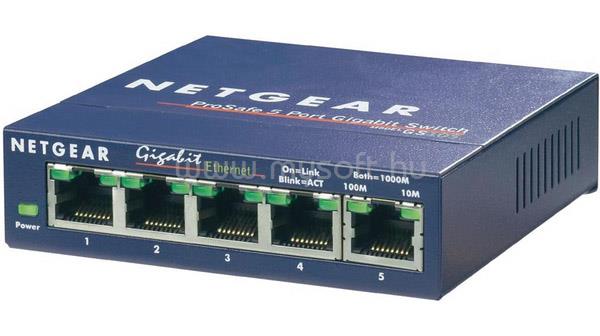

NETGEAR 5 PORT GIGABIT ETHERNET SWITCH 10/100/1000 MBPS

• Network Ports

• 5 auto-speed sensing UTP ports

• Forwarding Mode

• Store-and-Forward
• 256K On-Chip Packet Buffering

• Performance

• Bandwidth
• 10 Gbps (non-blocking)
• Forward Rate (10 Mbps port)
• 14,800 packets/sec
• Forward Rate (100 Mbps port)
• 148,000 packets/sec
• Forward Rate (1000 Mbps port)
• 1,480,000 packets/sec
• Network Latency (100 to 100 Mbps)
• 20 ?s (max)
• Network Latency (1000 to 1000 Mbps)
• 10 ?s (max)
• Queue Buffer Memory
• 12 kbytes per port
• MAC address database
• 8,000
• Mean Time Between Failure (MTBF)
• 87,600 hours (~10 years)

• Status LEDs

• Power, Collision, Activity, and Duplex indicators for each port, Link and Speed indicators built into each RJ-45 port

• AC Power

• 14.4 W
• 12VAC, 1.2A

• Physical Specifications

• Dimensions (w x d x h)
• 158 x 105 x 25 mm (6.22 x 4.13 x .98 in.)
• Weight
• 0.49 kg (1.08 lb)

• Environmental Specifications

• Operating Temperature
• 0 to 40o C (32 to 104o F)
• Operating Humidity
• 10 to 90% noncondensing

• Storage Specifications

• 20 to 70° C (-4 to 158o F)
• 10 to 95% Relative Humidity

• Standards Compliance

• IEEE 802.3i 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3z 1000BASE-T Gigabit Ethernet
• Windows©, MAC OS, NetWare©, Linux©

• Safety Agency Approvals

• UL (UL 60950), CUL, C-Tick, CE Mark, TUV licensed (EN 60950)

• Emissions

• FCC Class A and VCCI Class A, CE Class A, MIC

• System Requirements

• UTP Category 5 cables or better
• Network card for each PC or server (e.g. GA302T)

• Package Contents

• 5-port 10/100/1000 Mbps Gigabit Ethernet Switch GS105
• Wall-mount kit
• Power adapter
• Installation guide
• Warranty & Support information card
