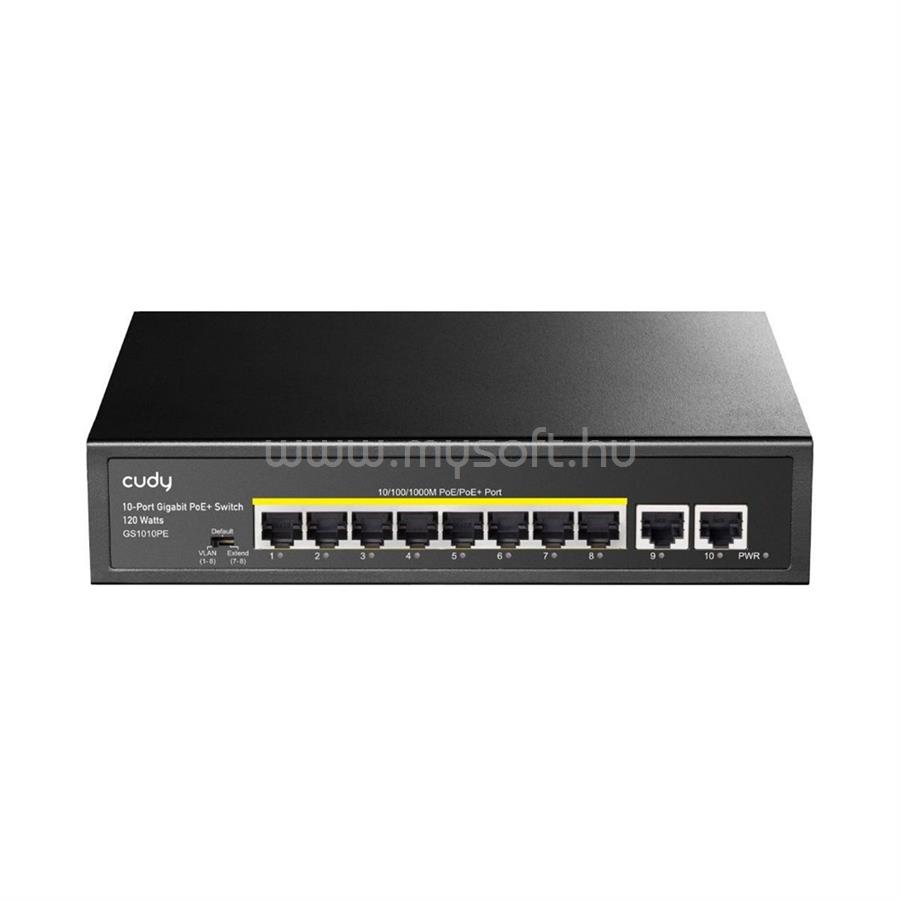

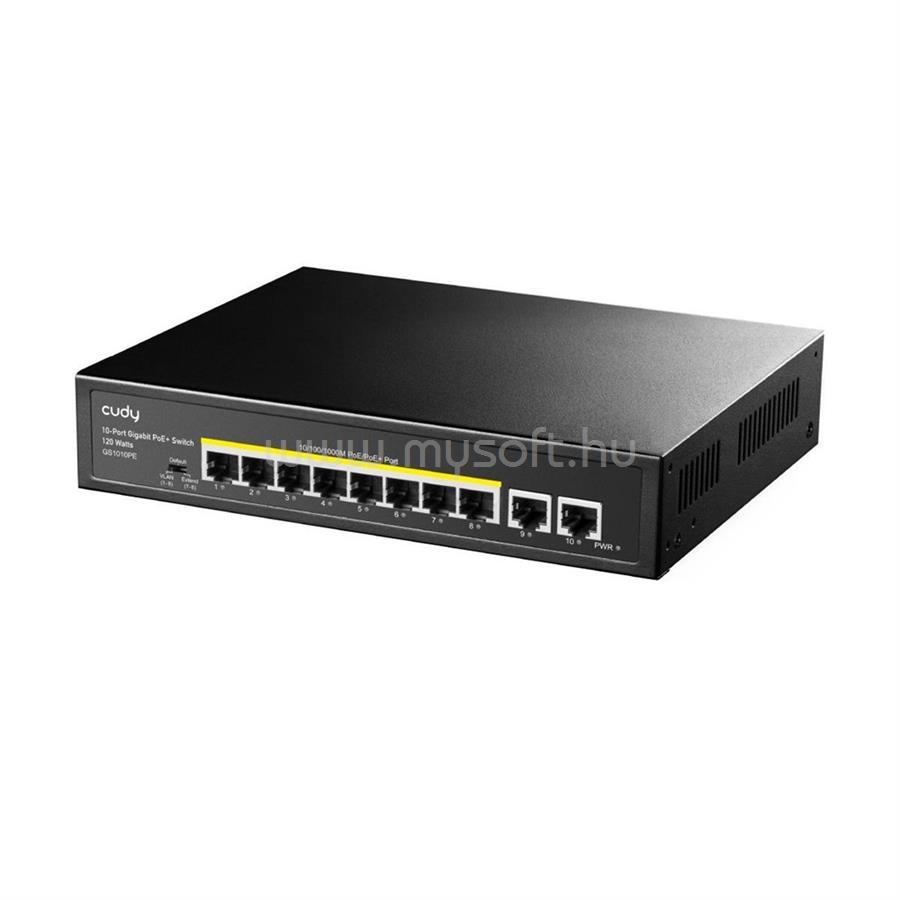

CUDY GS1010PE SWITCH 8X1000MBPS (8XPOE+) + 2X1000MBPS UPLINK, FÉMHÁZAS ASZTALI/RACKES

• Interfaces

• Gigabit RJ45 Ports
• 10
• Gigabit RJ45 PoE Ports
• #1~#8
• Max Power on a Single PoE Port
• 30W
• PoE Port Notes
• The PoE ports comply with IEEE 802.3at/af standards.
• Shielded RJ45 Port
• True
• Extend Mode Ports
• #7~#8
• VLAN Mode Ports
• #1~#8
• LED
• Power
• Link/ACT of Each Ethernet Port
• Power Input
• AC Inlet
• Physical Buttons
• VLAN/Default/Extend DIP Switch
• Physical Buttons Note
• The PoE Watchdog is on under the Extend mode and will attempt to reboot the plugged-in but inactive client.

• Performance

• Copper Speed and Distance
• Cat. 3 or higher cable: 100 meters at 10 Mbps
• Cat. 5 or higher cable: 100 meters at 100 Mbps
• Cat. 5e or higher cable: 100 meters at Gigabit
• Cat. 5e or higher cable: 250 meters at 10 Mbps
• Copper Speed and Distance Note
• 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
• MAC Address Table
• 2048
• Max Switching Capacity
• 20 Gbps
• Max Forwarding Rate
• 14.88 Mpps
• Packet Buffer
• 2 Mbit

• Power

• Power Methods
• AC
• AC
• 100-240V~, 50/60Hz
• Power Supply
• 120W
• Max Power Excluding PoE
• 10W

• Switching

• 802.3 Protocols
• 802.3i 10BASE-T
• 802.3u 100BASE-TX
• 802.3ab 1000BASE-T
• 802.3x Flow Control
• 802.3af PoE
• 802.3at PoE

• Reliability

• Grounding Methods
• Three-Prong Plug
• Environment
• Operating Temperature: 0~40 ? (32~104 ?)
• Storage Temperature: -40~70? (-40~158 ?)
• Operating Humidity: 10~90% non-condensing
• Storage Humidity: 10~95% non-condensing

• Mechanical

• Dimension
• 220×163×40 mm
• 8.66×6.42×1.57 inches
• Product Weight
• 785 g (27.69 oz.)
• Casing Material
• Metal
• Installation
• Desktop
• Rackmount via Brackets (Brackets not included in the box)

• Package Content

• GS1010PE
• Power Cord
• Installation Guide
