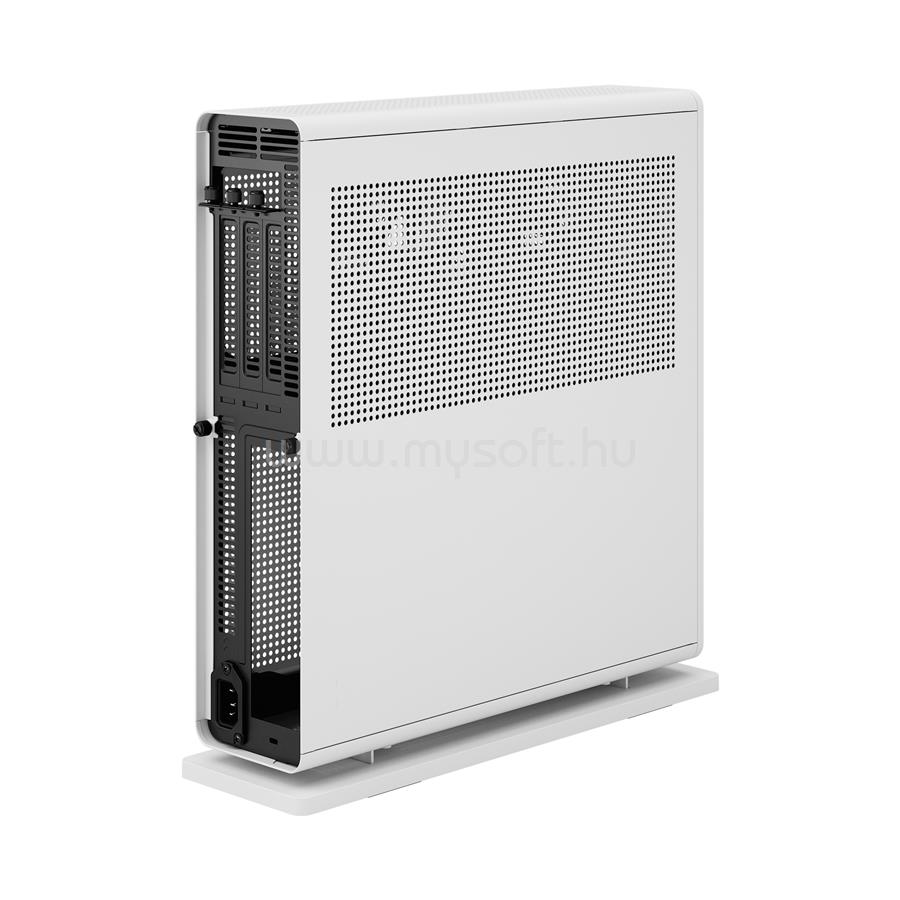

FRACTAL DESIGN RIDGE FEHÉR (TÁP NÉLKÜLI) MINI-ITX HÁZ

• Specifications

• Dedicated 2.5" drive mounts
• 4x included, 4x positions total
• Expansion slots
• 3-slot
• Front interface
• 1x USB 3.2 Gen 2x2 Type-C (20 Gbps), 2x USB 3.0, 1x Combo jack - Audio/Microphone, power button, power LED
• Total fan mounts
• 2x 120/140 mm and 3x 80 mm
• Side fan
• 2x 120/140 mm (2x PWM Aspect fan 140 mm included)
• Top fan
• 3x 80 mm (not included)
• Cable routing space
• 13,8 mm (behind PSU)
• Tool-less slide with thumbscrew lock
• Side panels
• Captive thumbscrews
• Side panels
• Left side panel
• Steel
• Right side panel
• Steel

• Compatibility

• Motherboard compatibility
• Mini ITX
• Power supply type
• SFX, SFX-L
• Side radiator
• 120 mm when ?175mm long GPUs are installed (280 mm without GPU)
• PSU max length
• SFX-L
• GPU max length
• 325 mm with SSD installed. 335 mm without SSD installed.
• GPU max height
• 125 mm with top fan(s) installed, 137 mm without top fans
• GPU max thickness
• 57 mm with 2x 140 mm fans installed, 82 mm without side fans
• CPU cooler max height
• 70 mm
• SFF-Ready Enthusiast GeForce Cards
• Yes
• *Note
• If you wish to use the Ridge PCIe 4.0 riser card together with a PCIe 5.0 compatible motherboard and graphics card, make sure you first set the PCIe Slot Configuration in your motherboard BIOS or UEFI to PCIe Gen4 for best system stability.

• Dimensions

• Case dimensions
• Vertical: 374 x 110 x 395 mm, Horizontal: 360 x 375 x 115 mm
• Case dimensions w/o feet/protrusions/screws
• 355 x 95 x 375 mm
• Net weight
• 4.3 kg
• Package dimensions (LxWxH)
• 426 x 167 x 431 mm
• Gross weight
• 5.5 kg
• Volume
• 12.6 liter

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
