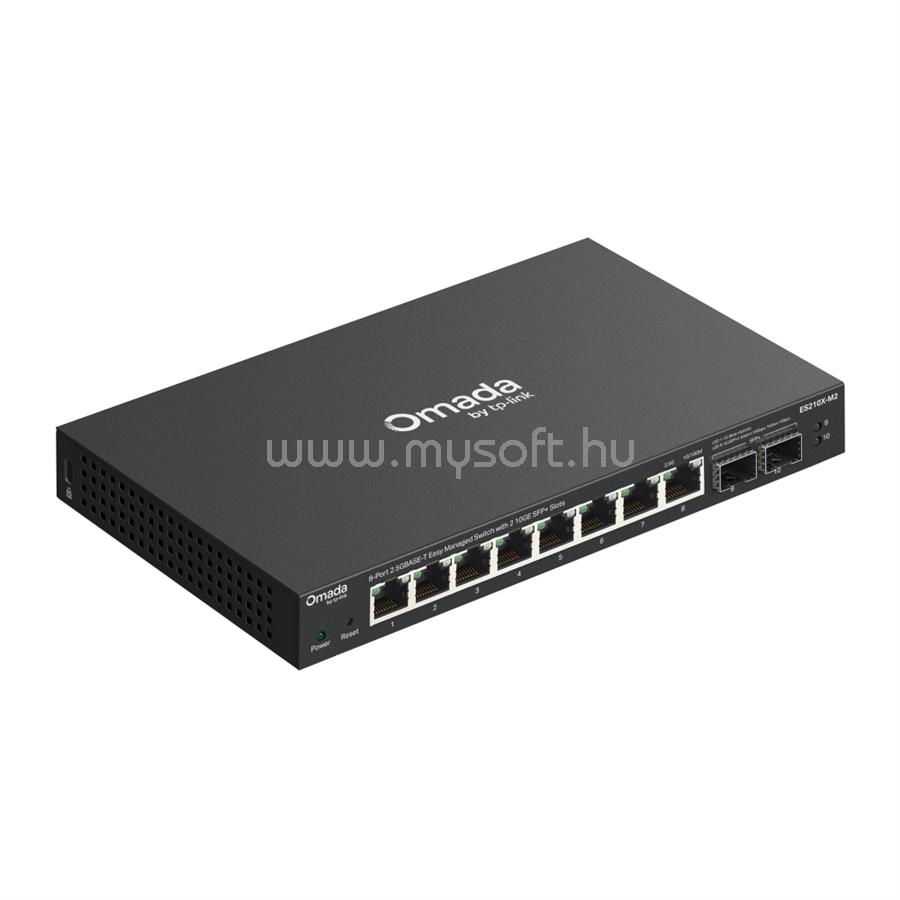

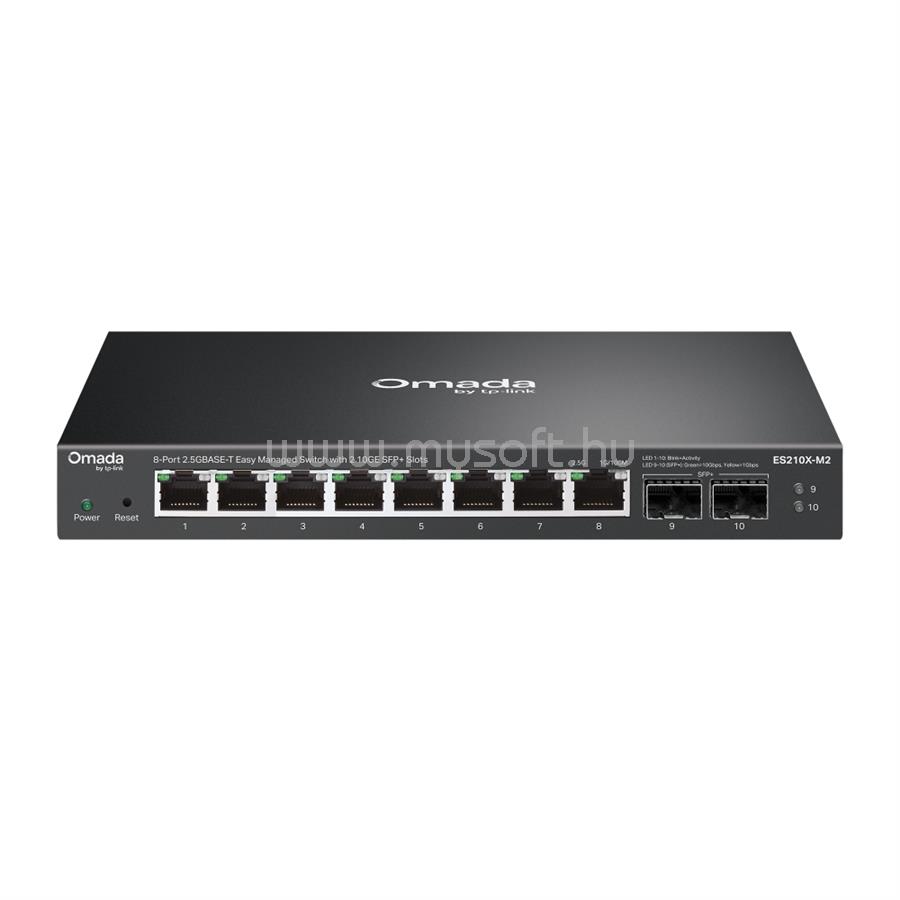

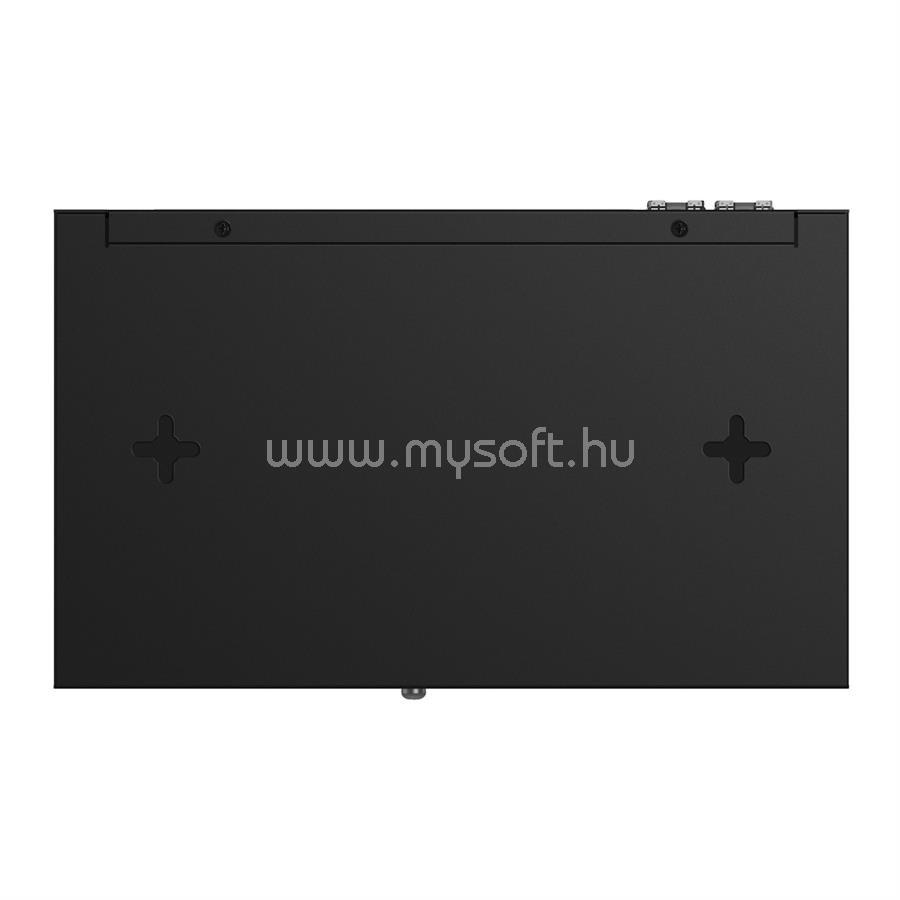

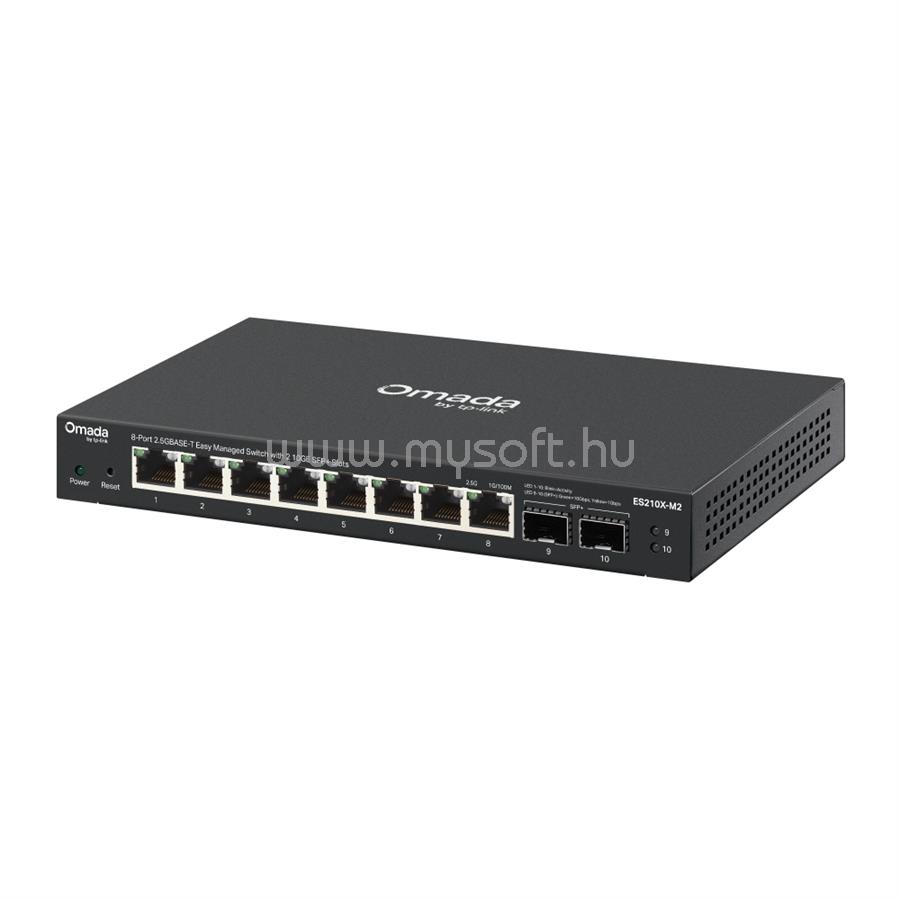

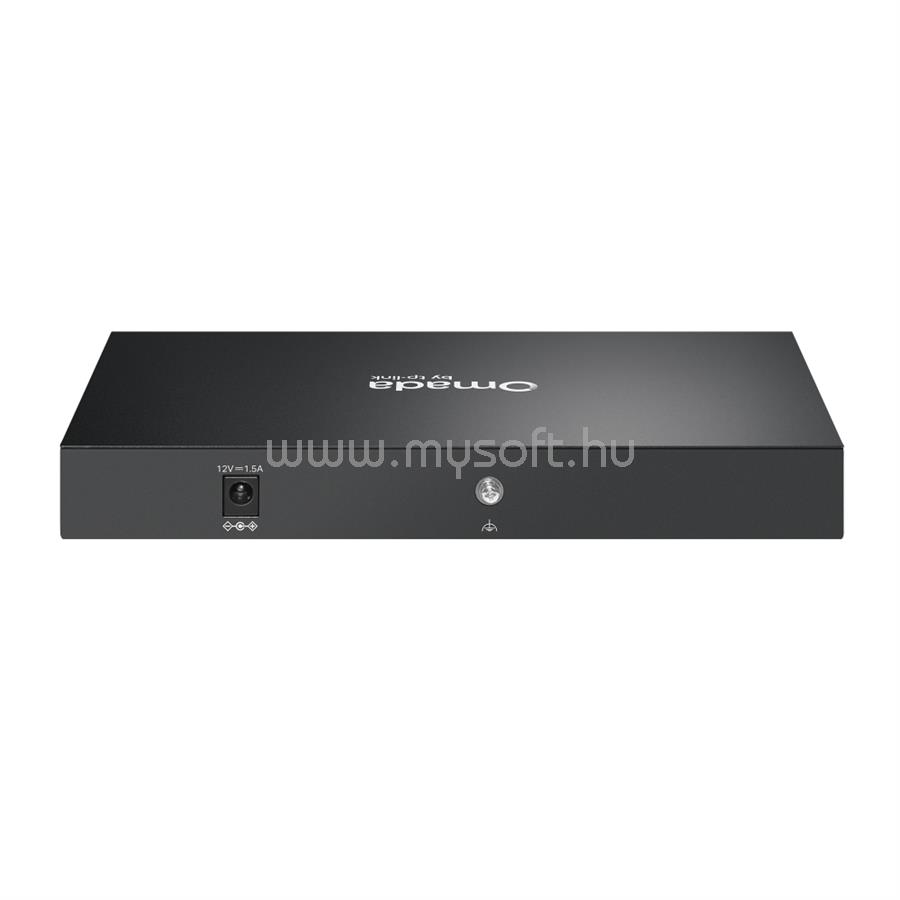

TP-LINK ES210X-M2 MENEDZSELHETŐ SWITCH (OMADA; 8X 2,5GBPS; 2X 10GBPS SFP+ PORT)

• HARDWARE FEATURES

• Interface
• . 8× 2.5 Gbps RJ45 Ports
  . 2× 10 Gbps SFP+ Slots
  . Auto-Negotiation/Auto MDI/MDIX
• Fan Quantity
• Fanless
• Installation
• . Desktop
  . Wall Mount
• Physical Security Lock
• ?
• Power Supply
• DC Power Adapter (Output: 12 VDC / 1.5 A)
• Dimensions ( W x D x H )
• 8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm)
• Surge Protection
• ?6 kV

• PERFORMANCE

• Switching Capacity
• 80 Gbps
• Packet Forwarding Rate
• 59.52 Mpps
• MAC Address Table
• 16K
• Packet Buffer Memory
• 640 KB
• Jumbo Frame
• 10 KB

• SOFTWARE FEATURES

• Quality of Service
• . Port-based/802.1p/DSCP QoS
  . 8 Priority Queues
  . Priority Schedule Mode
  - WRR (Weighted Round Robin)
  . Queue Weight Config
  . Bandwidth Control
  - Port-Based Rating Limit
  . Storm Control
  - Multiple Control Modes (kbps/pps)
  - Broadcast/Multicast/Unknown-Unicast Control?
• L2 Features
• . Static Link Aggregation
  . Loop Prevention / Loopback Detection
  . Flow Control
  - 802.3x Flow Control
  . Mirroring
  - Port Mirroring
  - One-to-One
  - Many-to-One
  - Ingress/Egress/Both
  . Port Statistics
  - Port Mirror Status
  - Traffic Statistics
  . 802.1ab LLDP
• L2 Multicast
• . IGMP Snooping
  - IGMP v1/v2/v3 Snooping
  - Fast Leave
• VLAN
• . MTU VLAN
  . Port-Based VLAN
  . 802.1Q Tag VLAN
  - Max 32 VLAN Groups
  - 4K VID
• Transmission Method
• Store-And-Forward

• MANAGEMENT FEATURES

• Omada App
• Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management
• . Omada Cloud-Based Controller
  . Omada Hardware Controller
  . Omada Software Controller
• Cloud Access
• Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning
• Yes. Requires the use of Omada Cloud-Based Controller
• Management Features
• . Web-based GUI
  . DHCP Client
  . Cable Diagnostics
  . Automatic Device Discovery?
  . Batch Configuration?
  . Batch Firmware Upgrading?
  . Unified Configuration?

• OTHERS

• Certification
• FCC, CE, RoHS
• Package Content
• . ES210X-M2
  . Power Adapter
  . Rubber Feet
  . Installation Guide
• Environment
• . Operating Temperature: -5?~40? (23?~104?)
  . Storage Temperature: -40?~70? (-40?~158?)
  . Operating Humidity: 10%~90% non-condensing
  . Storage Humidity: 5%~90% non-condensing

Garancia fogyasztók részére

• 2 év kötelező jótállás + 3 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 5 év gyártó által biztosított szervizgarancia
