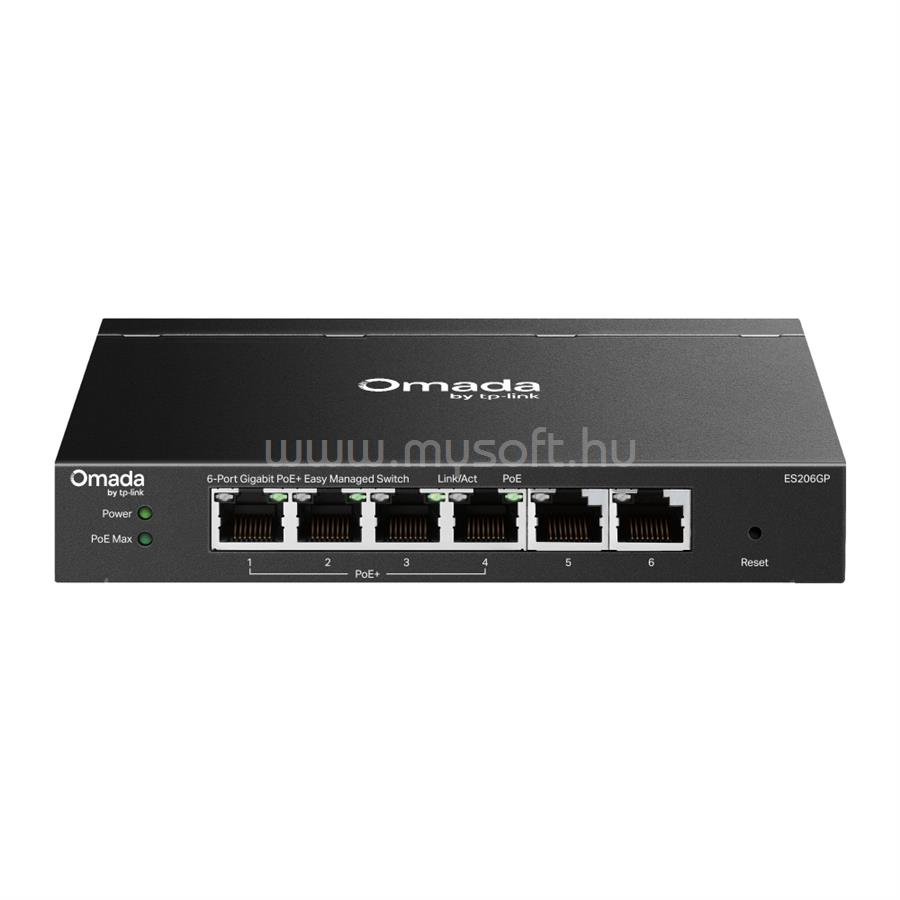

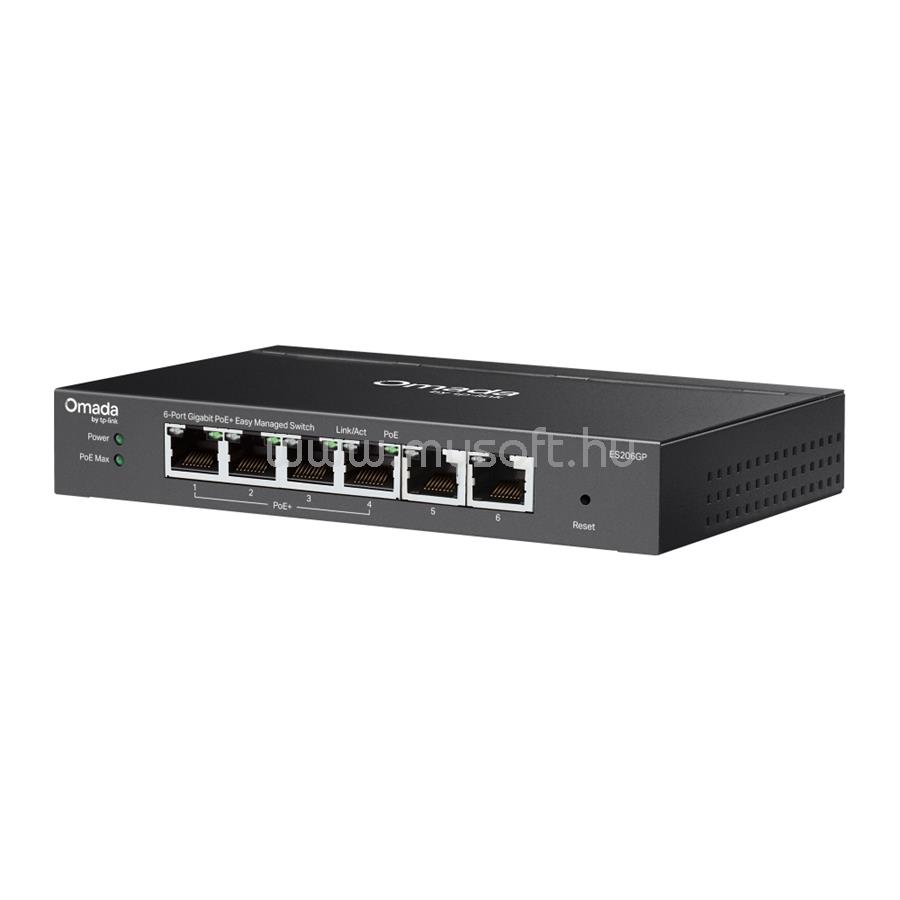

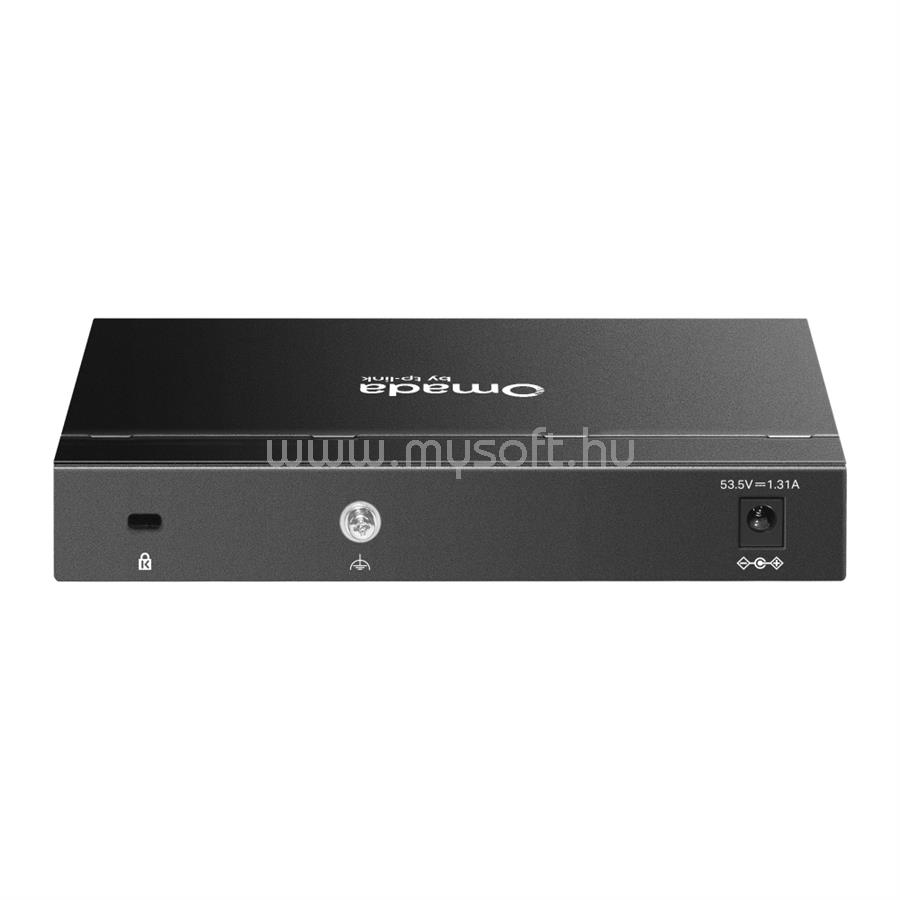

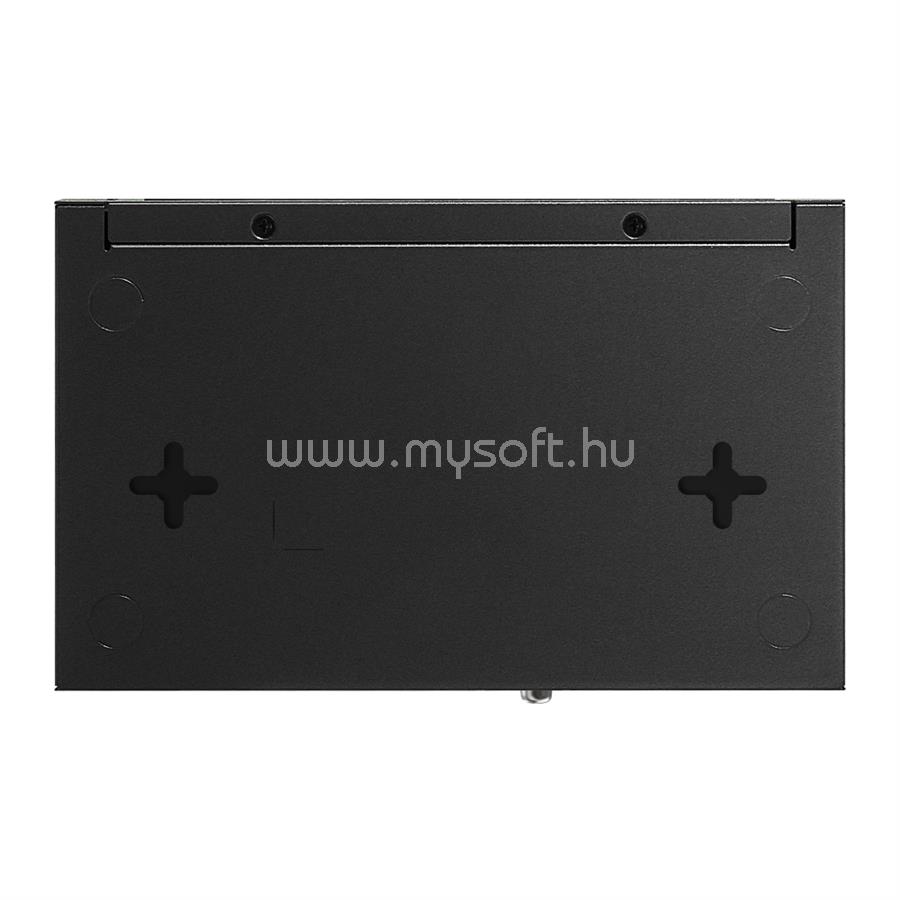

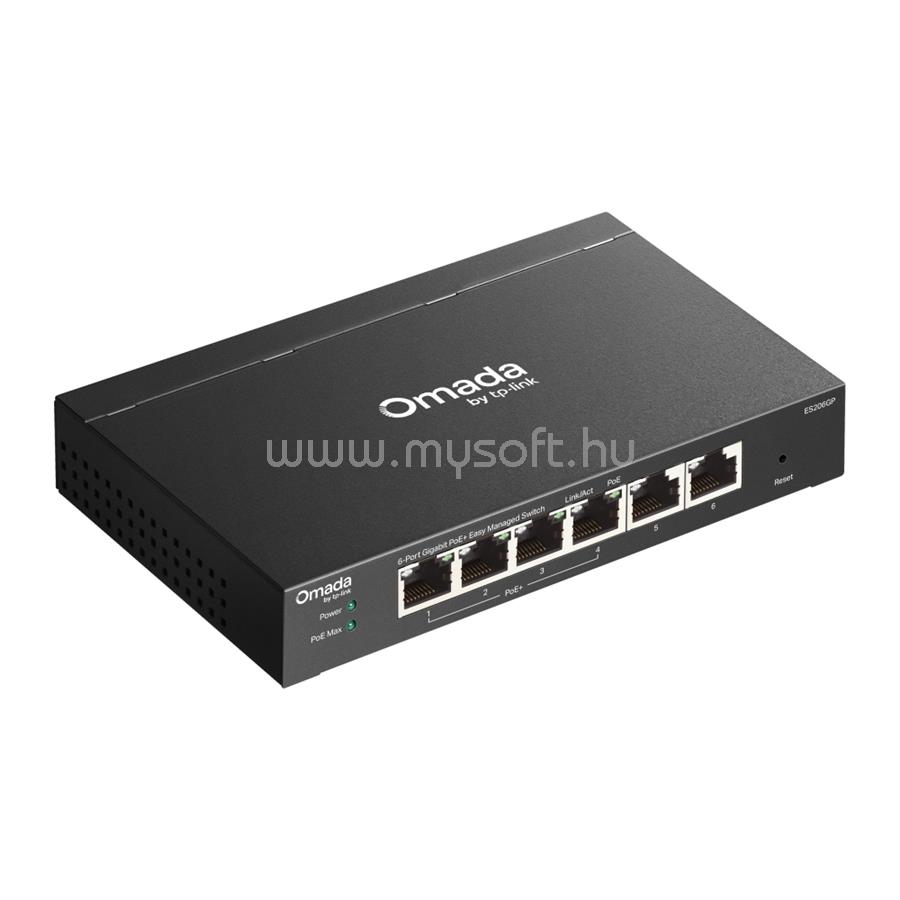

TP-LINK ES206GP SWITCH MENEDZSELHETŐ POE (OMADA; 6X 1GBPS; 4X AF/AT POE+ PORT; 65W)

• HARDWARE FEATURES

• Interface
• . 6× 10/100/1000Mbps RJ45 ports (4× 802.3af/at-compliant PoE+)
  . Auto-Negotiation/Auto MDI/MDIX
• Fan Quantity
• Fanless
• Installation
• . Desktop
  . Wall Mount
• Physical Security Lock
• Yes
• Power Supply
• AC/DC Adapter (Input: 100-240V AC; Output: 53.5V DC/1.31A)
• PoE Ports (RJ45)
• . Standard: 802.3af/at PoE+ compliant
  . PoE Ports: 4 ports
  . PoE Budget: 65W available for all PoE+ ports, 30W max per port
  . Fast PoE & Perpetual PoE
  . PoE Auto Recovery?
  . Up to 250m PoE transmission distance**
• Dimensions ( W x D x H )
• 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
• Surge Protection
• ?6kV

• PERFORMANCE

• Packet Buffer Memory
• 4 Mbit
• Jumbo Frame
• 15 KB
• Switching Capacity
• 12 Gbps
• Packet Forwarding Rate
• 8.93 Mpps
• MAC Address Table
• 8K

• SOFTWARE FEATURES

• Quality of Service
• . Port-based/802.1p/DSCP QoS
  . 8 Priority Queues
  . Priority Schedule Mode
  - WRR (Weighted Round Robin)
  . Queue Weight Config
  . Bandwidth Control
  - Port-Based Rating Limit
  . Storm Control
  - Multiple Control Modes (kbps/pps)
  - Broadcast/Multicast/Unknown-Unicast Control?
• L2 Features
• . Link Aggregation
  - Static Link Aggregation
  - Up to 2 aggregation groups and up to 4 ports per group
  . Loopback Detection
  . Flow Control
  - 802.3x Flow Control
  . Mirroring
  - Port Mirroring
  - One-to-One
  - Many-to-One
  - Ingress/Egress/Both
  . Port Statistics
  - Port Mirror Status
  - Traffic Statistics
  . 802.1ab LLDP
• L2 Multicast
• . IGMP Snooping
  - IGMP v1/v2/v3 Snooping
  - Fast Leave
• VLAN
• . 802.1Q Tag VLAN
  - Max 32 VLAN Groups
  - 4K VID
• Transmission Method
• Store-And-Forward

• Management Features

• Omada App
• Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management
• . Omada Cloud-Based Controller (Requires built-in version 6.1.0 or later)
  . Omada Hardware Controller (Requires built-in version 6.1.0 or later)
  . Omada Software Controller (Requires built-in version 6.1.0 or later)
• Cloud Access
• Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning
• Yes. Requires the use of Omada Cloud-Based Controller
• Management Features
• . Web-based GUI
  . DHCP Client
  . Cable Diagnostics
  . ONVIF***
  . Automatic Device Discovery?
  . Batch Configuration?
  . Batch Firmware Upgrading?
  . Unified Configuration?

• OTHERS

• Certification
• FCC, CE, RoHS
• Package Content
• . ES206GP
  . Power Adapter
  . Power Cord
  . Mounting Feet
  . Installation Guide
• Environment
• . Operating Temperature: -5?~40? (23?~104?)
  . Storage Temperature: -40?~70? (-40?~158?)
  . Operating Humidity: 10%~90% non-condensing
  . Storage Humidity: 5%~90% non-condensing
