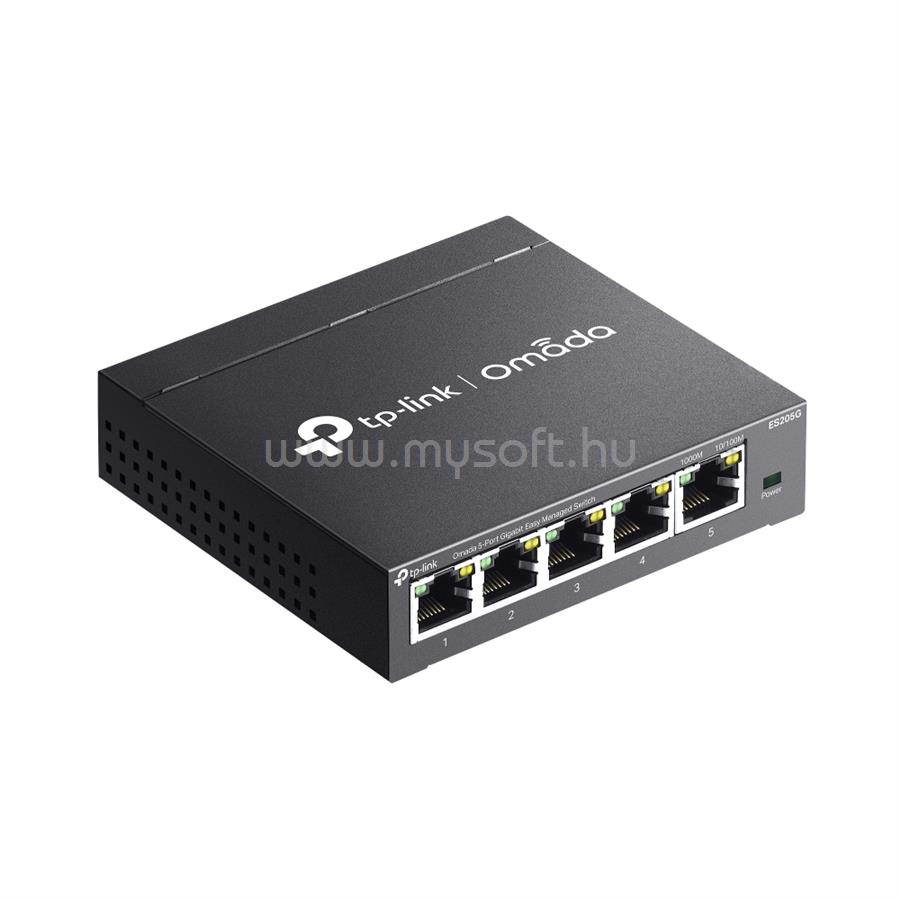

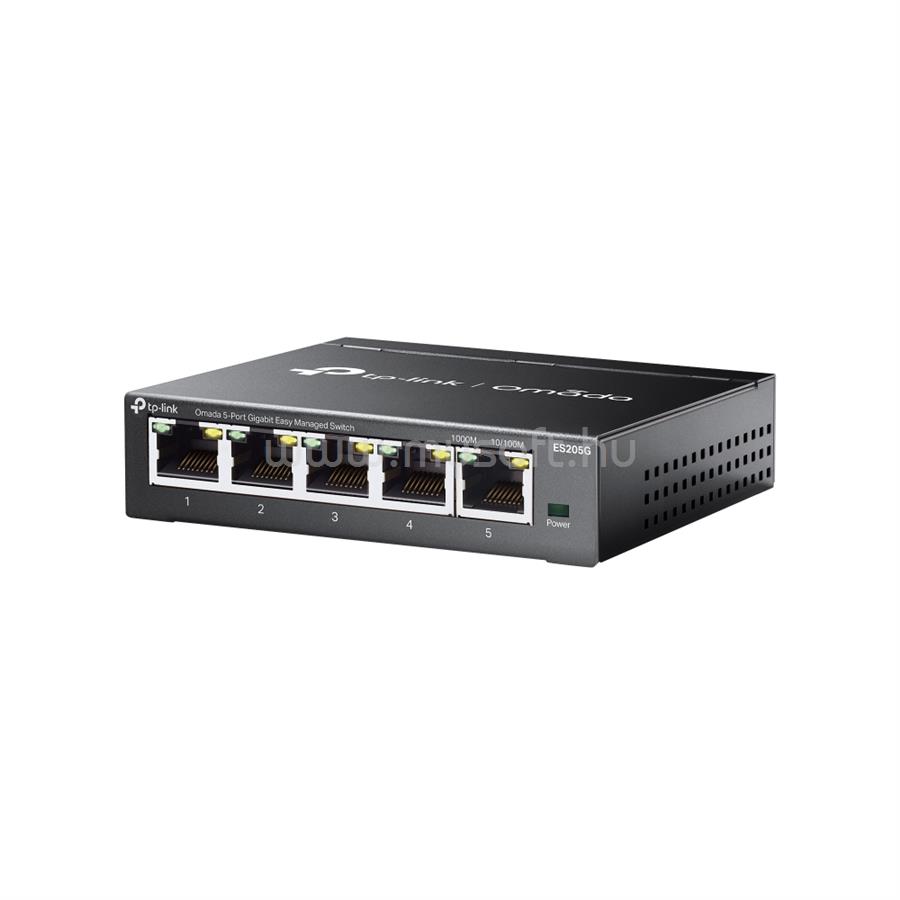

TP-LINK ES205G SWITCH 5X1000MBPS FÉMHÁZAS EASY SMART (OMADA)

• HARDWARE FEATURES

• Interface
• 5× 10/100/1000 Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX
• Fan Quantity
• Fanless
• Installation
• Desktop

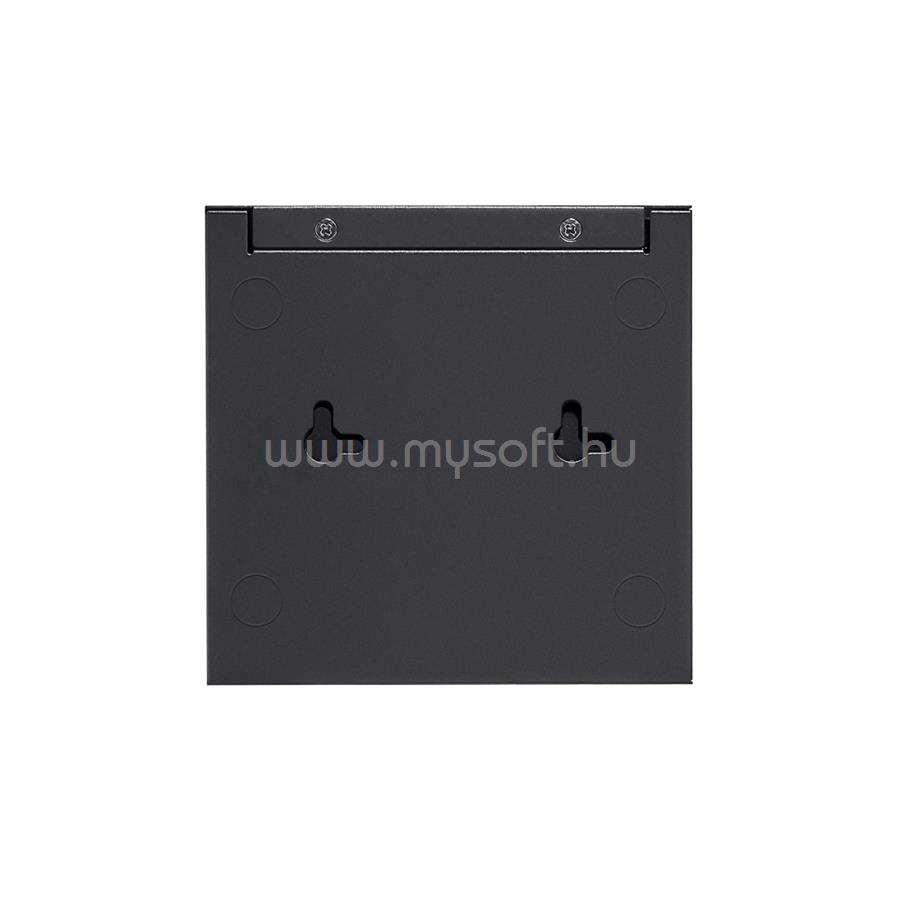

• Wall Mount
• Physical Security Lock
• Yes

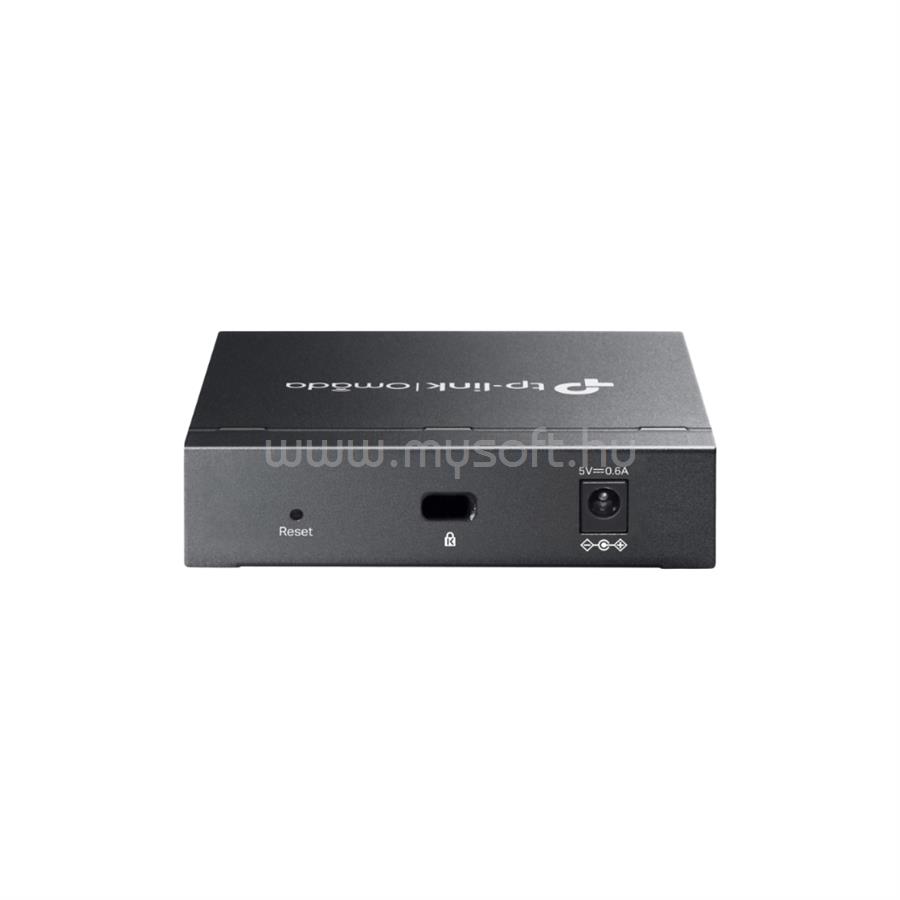

• Power Supply
• External DC Power Adapter (Output: 5 VDC/ 0.6 A)
• Dimensions ( W x D x H )
• 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)
• Surge Protection
• +/-6kV

• PERFORMANCE

• Switching Capacity
• 10 Gbps
• Packet Forwarding Rate
• 7.4 Mpps
• MAC Address Table
• 8 K
• Packet Buffer Memory
• 4 Mbits
• Jumbo Frame
• 15 KB

• SOFTWARE FEATURES

• Quality of Service
• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
• WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
• Port-Based Rating Limit
• Storm Control
• Multiple Control Modes (kbps/pps)
• Broadcast/Multicast/Unknown-Unicast Control?
• L2 Features
• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
• 802.3x Flow Control
• Mirroring
• Port Mirroring
• One-to-One
• Many-to-One
• Ingress/Egress/Both
• Port Statistics
• Port Mirror Status
• Traffic Statistics
• 802.1ab LLDP
• L2 Multicast
• IGMP Snooping
• IGMP v1/v2/v3 Snooping
• Fast Leave
• VLAN
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
• Max 32 VLAN Groups
• 4K VID
• Transmission Method
• Store-And-Forward

• Management Features

• Omada App
• Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
• Cloud Access
• Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning
• Yes. Requires the use of Omada Cloud-Based Controller
• Management Features
• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Unified Configuration

• OTHERS

• Certification
• FCC, CE, RoHS
• Package Content
• ES205G
• Power Adapter
• Installation Guide
• Rubber Feet
• Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Garancia fogyasztók részére

• 2 év kötelező jótállás + 3 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 5 év gyártó által biztosított szervizgarancia
