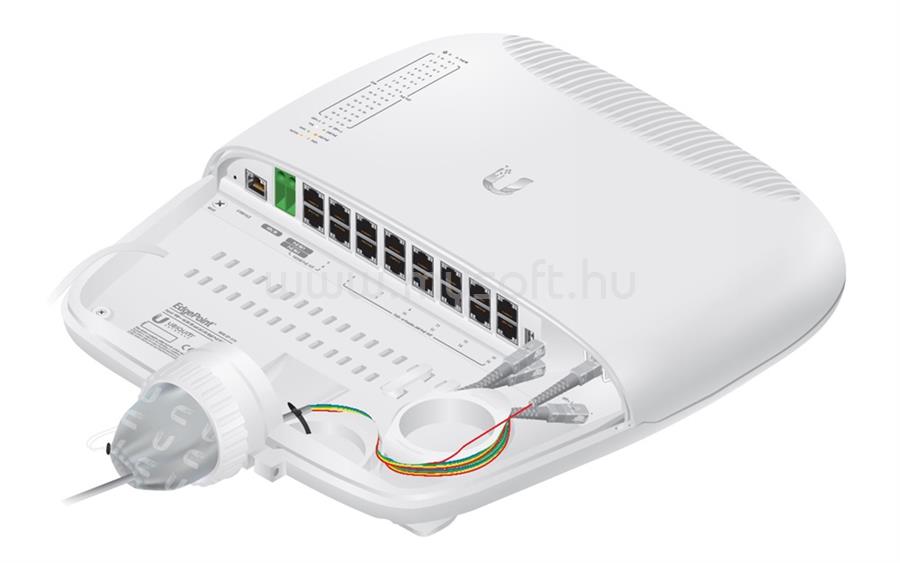

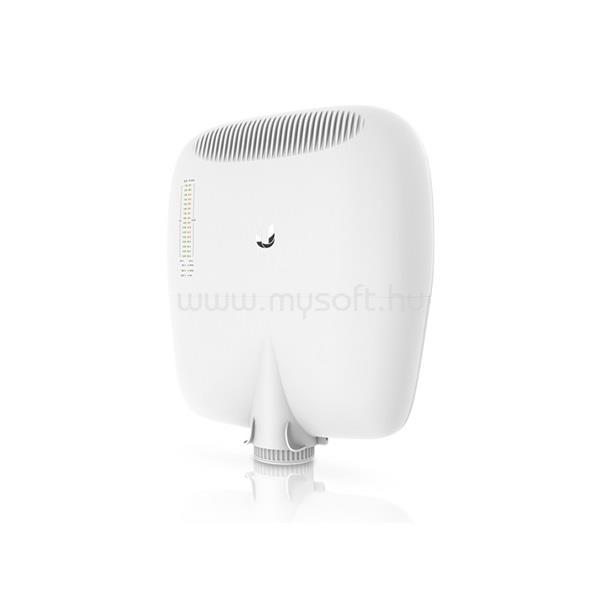

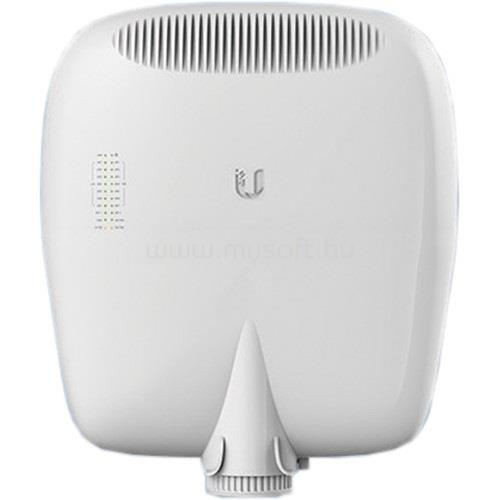

UBIQUITI EDGEPOINT 16PORT GBE LAN, 2XSFP+ PORT SWITCH

• Mechanical

• Dimensions
• Without wall-mount: 326.6 x 382.7 x 88.8 mm (12.9 x 15.1 x 3.5")
• With wall-mount: 326.6 x 382.7 x 105.5 mm (12.9 x 15.1 x 4.2")
• Weight
• Without wall-mount: 3.4 kg (7.5 lb)
• With wall-mount: 3.8 kg (8.4 lb)
• Enclosure material
• Diecast aluminum alloy, UV-resistant polycarbonate
• Mount
• Pole/wall mount
• Wind loading
• 153 N at 200 km/h (34 lbf at 125 mph)
• Wind survivability
• 200 km/h (125 mph)

• Hardware

• Networking interface
• (1) RJ45 serial port
• (16) 10/100/1000 RJ45 ports
• (2) 1/10 Gbps SFP+ ports
• Power method*
• (1) DC terminal block
• 54V DC, 6A input
• *Self-correcting polarity protection on DC terminal block only, diode red protection on all power inputs.
• Power supply
• Min. 54V / 0.8A (Excludes PoE output)
• Passive PoE input*
• (2) 54V / 1.5A, 4-pair (+1, 2, 4, 5; - 3, 6, 7, 8) passive PoE, ports 1 and 2
• *Do NOT configure port 1 or 2 in PoE output mode if you are using PoE input power sources.
• Passive PoE output
• (4) 54V or 24V /1.4A, 4-pair (+1, 2, 4, 5; - 3, 6, 7, 8) passive PoE, ports 1 to 4
• (12) PoE/PoE+ or 24V/0.7A, 2-pair (+ 4, 5; - 7, 8) passive PoE, ports 5 to 16
• Power monitoring
• (1) DC terminal block, input power
• (2) RJ45, ports 1 and 2, PoE input or output power
• (14) RJ45, ports 3 to 16, PoE output power
• Supported voltage range
• 42-56V DC (-48V is NOT supported)
• Max. power consumption
• 40W (Excludes PoE output)
• Button
• Factory reset
• LEDs
• System: power
• RJ45 ports: speed/link/activity, PoE
• SFP ports: speed/link/activity
• Ambient operating temperature
• -40 to 65° C (-40 to 149° F)
• Ambient operating humidity
• 10 to 90% noncondensing
• Certifications
• CE, FCC, IC
