EATON UPS 1600VA C14/SCHUKO ELLIPSE PRO VONALI-INTERAKTÍV SZÜNETMENTES TÁPEGYSÉG

• GENERAL SPECIFICATIONS

• PRODUCT LENGTH/DEPTH
• 390 mm
• PRODUCT HEIGHT
• 275 mm
• PRODUCT WIDTH
• 82 mm
• PRODUCT WEIGHT
• 11.3 kg

• PRODUCT SPECIFICATIONS

• SECONDARY FREQUENCY - MAX
• 60 Hz
• WATTAGE
• 1000 W
• OUTPUT POWER FACTOR
• 0.6
• FORM FACTOR
• Tower
• INCLUDES NETWORK CARD
• No
• INPUT CONNECTION
• C14
• INPUT VOLTAGE - MIN
• 150 V
• OUTPUT VOLTAGE - MAX
• 284 V
• SECONDARY FREQUENCY - MIN
• 50 Hz
• SOFTWARE COMPATIBILITY
• Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
• BATTERY REPLACEMENT
• User replaceable
• BATTERY TYPE
• Sealed, lead-acid
• EFFICIENCY
• 97
• NUMBER OF OUTPUTS HARDWIRED
• 0
• SPECIAL FEATURES
• Convenient extra-flat design for easy installation in any office environment
• Automatic Voltage Regulation (AVR)
• High performance surge-protection device compliant with IEC 61643-11 standard
• Data line protection to ensure that the internet line (including xDSL) is protected against surges

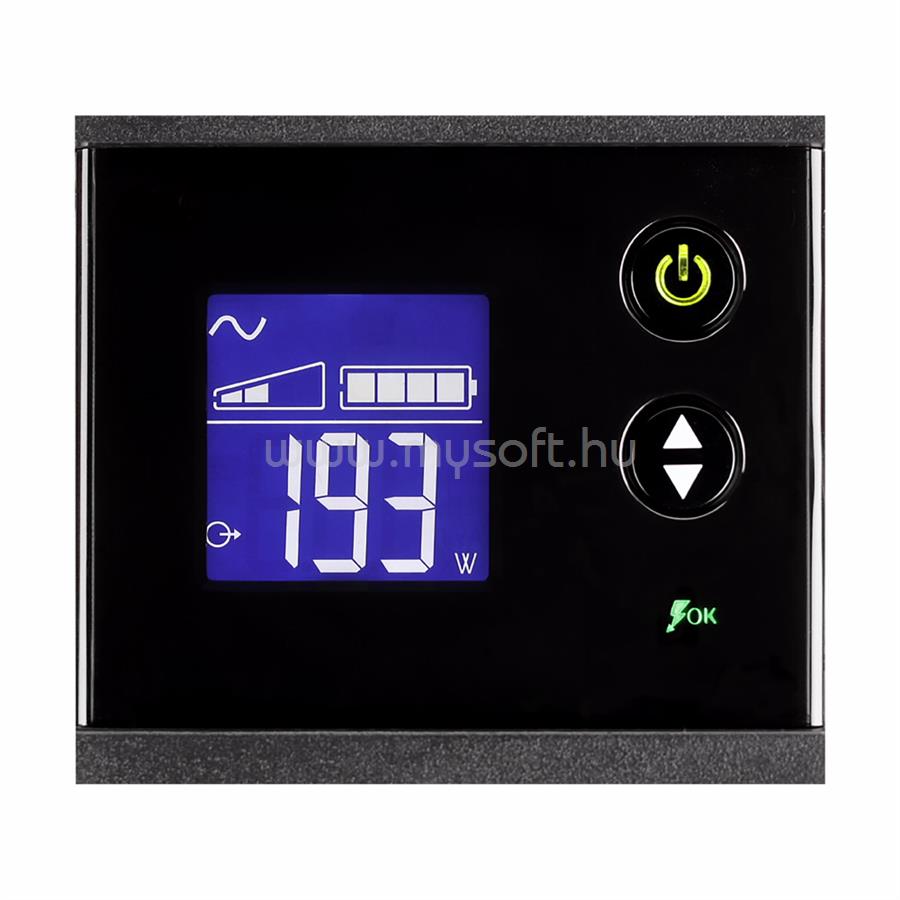

• LCD display for real-time status and measurements
• 8 outlets to connect your PC + peripherals

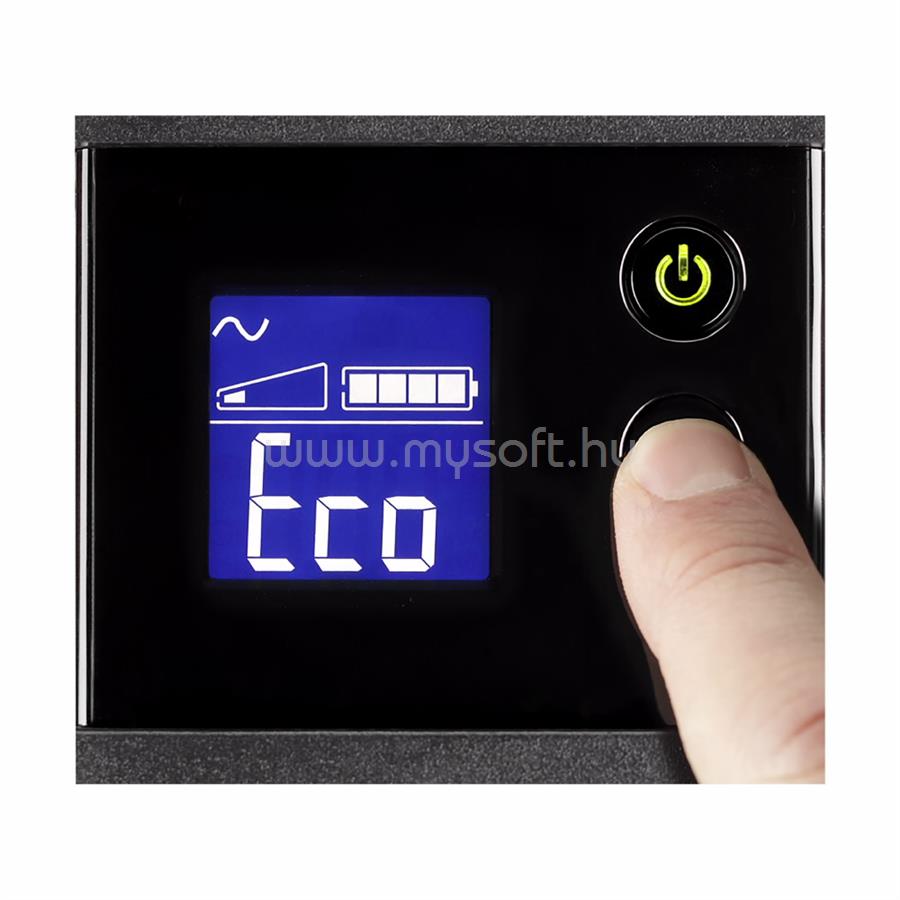

• EcoControl function helps you save up to 20 % energy compared to previous generation UPSs
• HID-compliant USB port (cable supplied), for automatic integration with major operating systems (Windows/Mac OS/Linux)

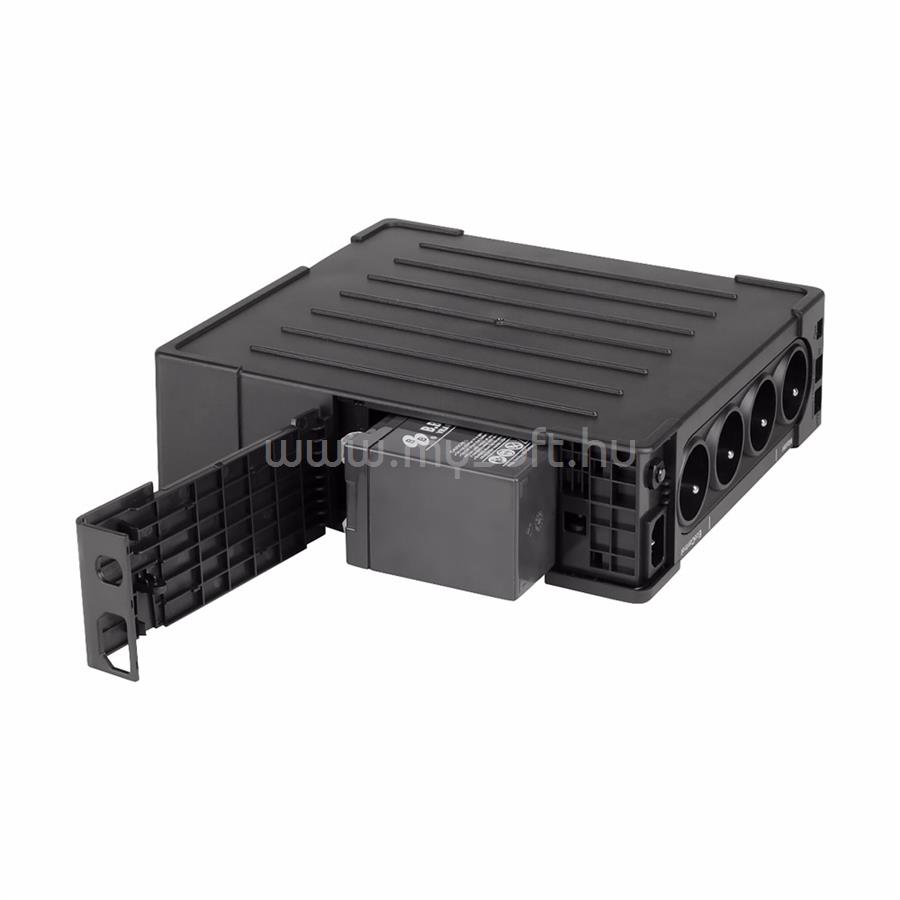

• Easy to replace battery helps to extend UPS service life
• CONSTRUCTION TYPE
• Free standing model
• OUTPUT VOLTAGE - MIN
• 176 V
• COLOR
• Black
• EXTENDED BATTERY CAPABILITY
• No
• OUTPUT VOLTAGE RANGE
• 176-284 V
• TOPOLOGY
• Line-interactive
• SURGE PROTECTION
• Yes
• BACK-UP TIME
• 9 min
• INPUT NOMINAL VOLTAGE
• 230V default (220/230/240V)
• INPUT FREQUENCY RANGE
• 46-70 Hz
• INPUT VOLTAGE - MAX
• 285 V
• VOLTAGE TYPE
• AC
• PHASE (OUTPUT)
• 1
• BATTERY MANAGEMENT
• Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
• AUTO SHUTDOWN FUNCTION
• Yes
• NUMBER OF OUTPUTS C13
• 0
• NUMBER OF OUTPUTS C19
• 0
• OPERATING TEMPERATURE - MIN
• 0 °C
• VA RATING
• 1600 VA
• POTENTIAL FREE SWITCH CONTACT
• No
• RECEPTACLE
• (4) Schuko, (4) Schuko surge only
• PHASE (INPUT)
• 1
• PACKAGE CONTENTS
• Input cable
• USB cable
• User manual
• Safety instructions
• NOISE LEVEL
• <27 dB at 1 meter
• FEED TYPE
• 1
• USER INTERFACE
• LCD (UPS status and measurements, configuration of UPS settings)
• BATTERY QUANTITY
• 2
• OPERATING TEMPERATURE - MAX
• 35 °C
• VOLTAGE
• 230V
• TEMPERATURE RANGE
• 0° to 35°C (32° to 95°F)
• ETHERNET INTERFACE
• No
• COMMUNICATION
• USB port (HID compliant)
• RELATIVE HUMIDITY
• 0-85% non-condensing
• OUTPUT APPARENT POWER
• 1600 VA
• RACK MOUNTING KIT
• No
• NUM OF OUTPUTS PC (SCHUKO)
• 8
• OUTPUT FREQUENCY
• 50/60 Hz
• RUNTIME AT FULL LOAD
• 2 min
• TYPE OF INTERFACE
• USB
• PRIMARY FREQUENCY - MIN
• 46 Hz
• BATTERY RATING
• 12 V / 9 Ah
• TYPE
• UPS
• OUTPUT NOMINAL VOLTAGE
• 230V default (220/230/240V)
• EXPANSION SLOTS
• No
• INPUT VOLTAGE RANGE
• 165-285 V (adjustable to 150-285 V)
• NOMINAL FREQUENCY
• 50/60 Hz
• PRIMARY FREQUENCY - MAX
• 70 Hz
• ALTITUDE
• 2000 m

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
