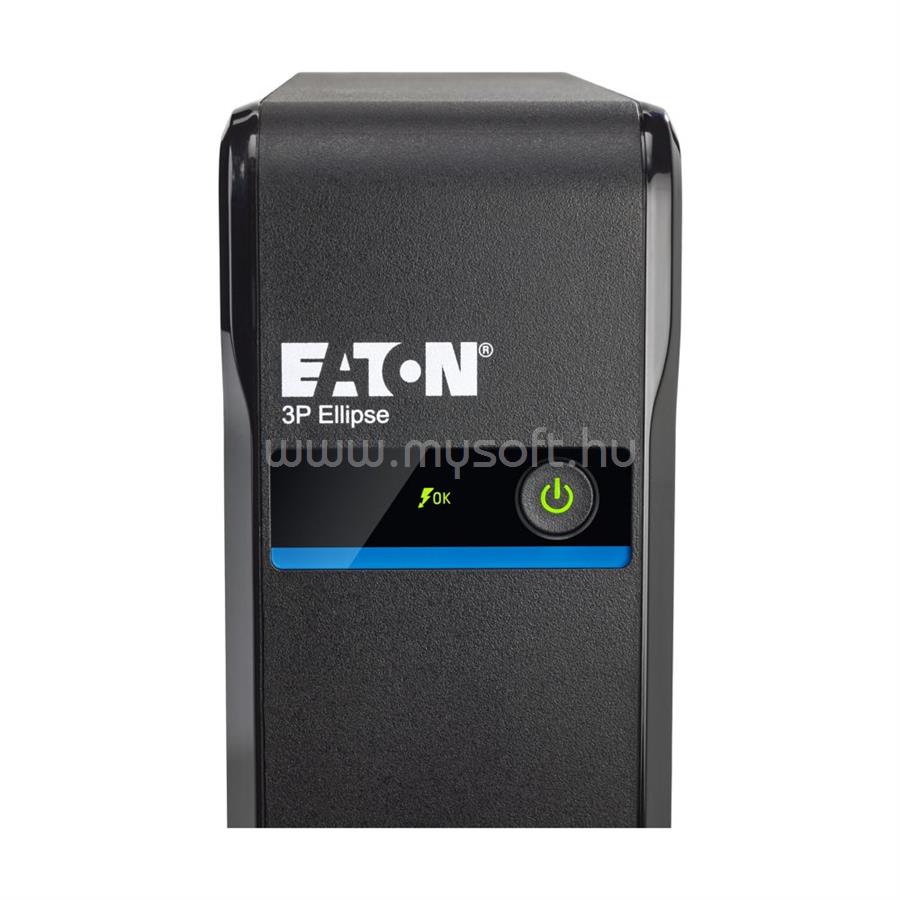

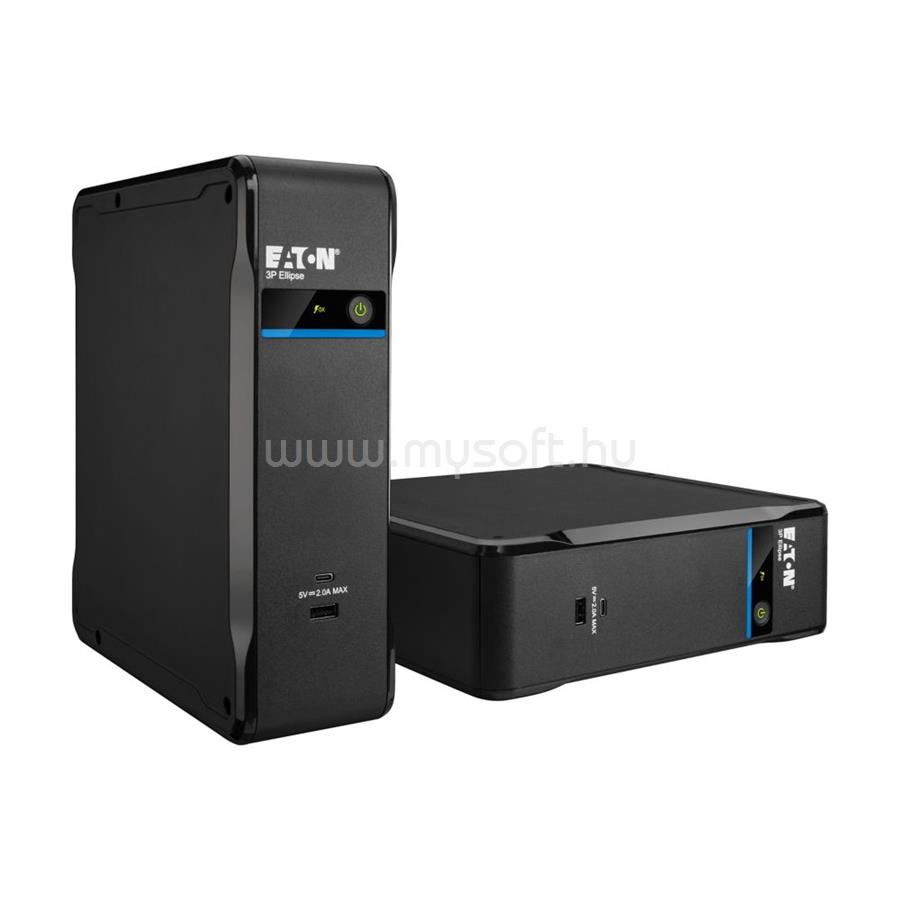

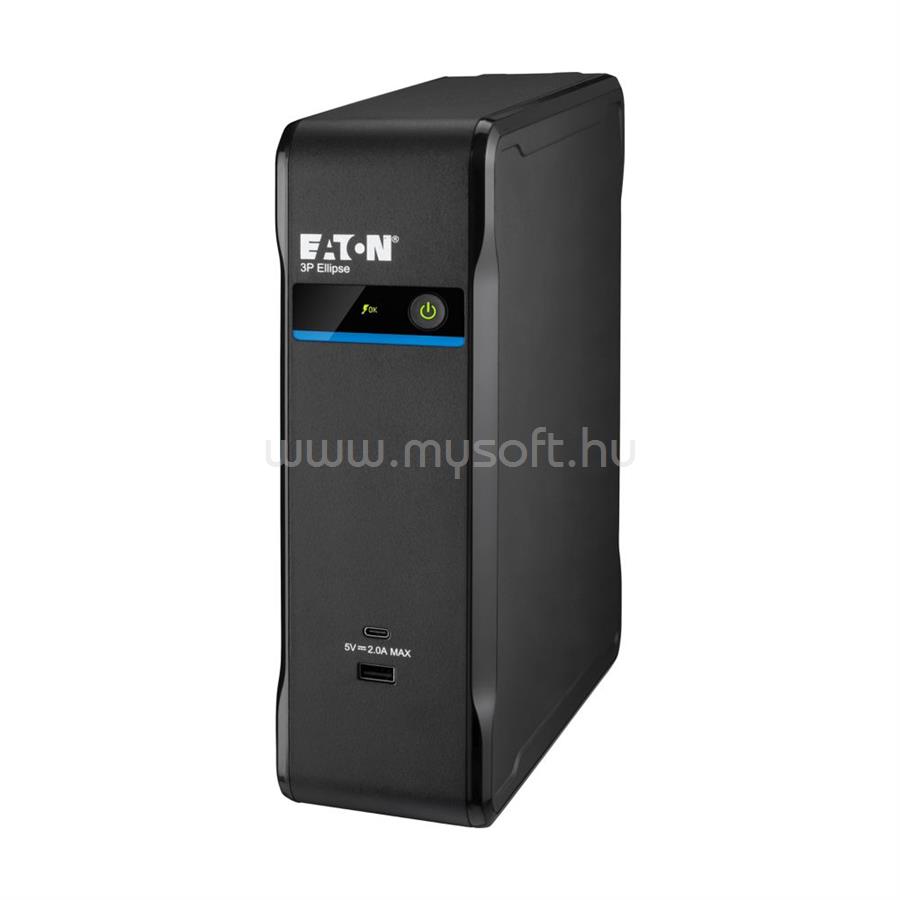

EATON 3P ELLIPSE 900 USB IEC SZÜNETMENTES TÁPEGYSÉG

• General specifications

• Product Length/Depth
• 235 mm
• Product Height
• 263 mm
• Product Width
• 81 mm
• Product Weight
• 4.4 kg

• Battery

• Battery type
• Sealed, lead-acid
• Runtime graph
• View runtime graph
• Battery quantity
• 1

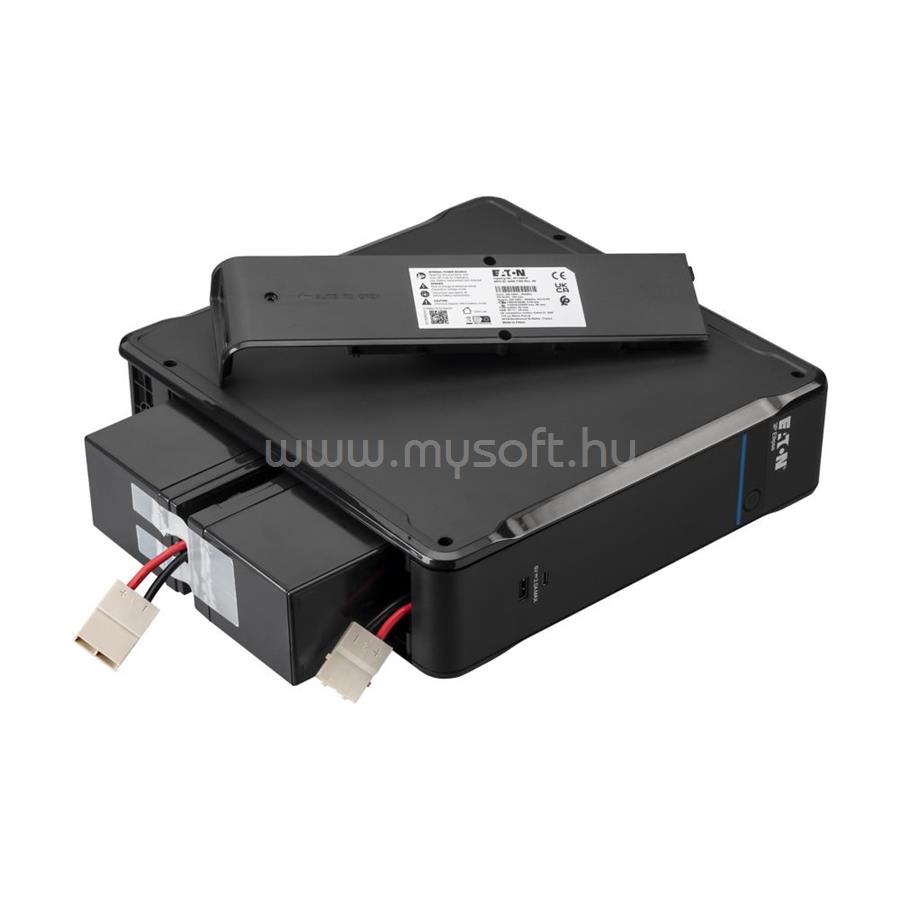

• Battery management
• Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
• Battery rating
• 12 V / 9 Ah
• Extended battery capability
• No

• Electrical output

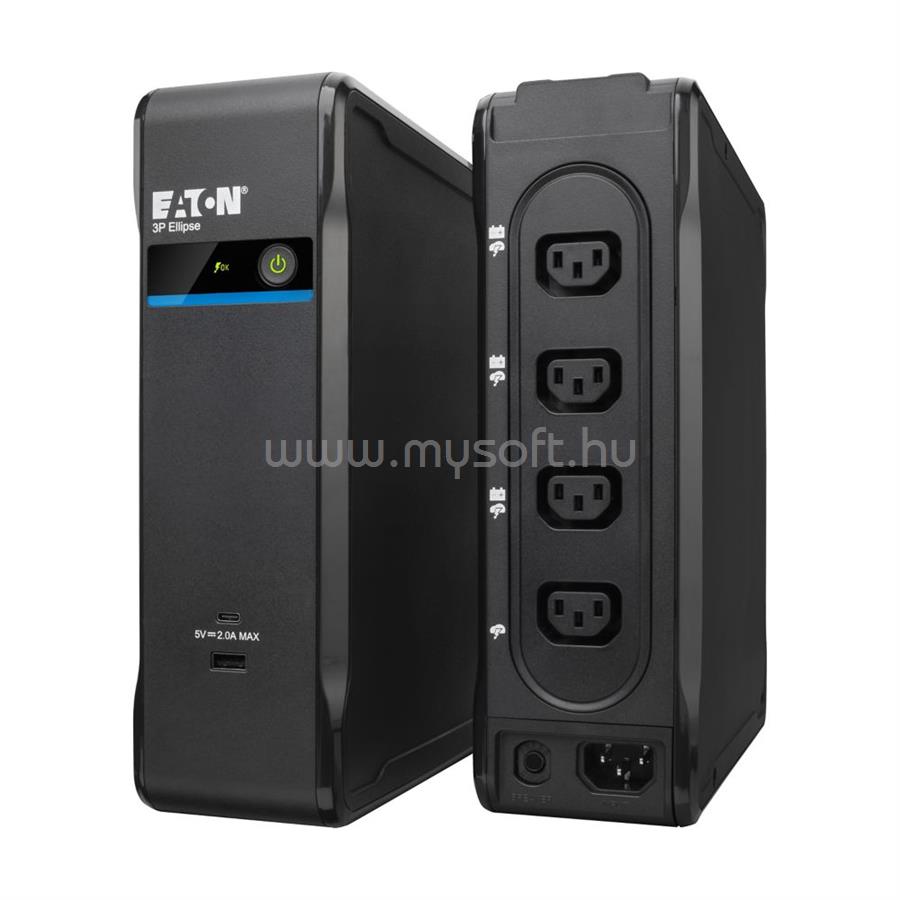

• Receptacle
• (3) C13, (1) C13 surge only
• Voltage
• 230V
• Wattage
• 540W
• Output power factor
• 0.6
• Output voltage range
• 184-264 V (adjustable to 161-284 V)
• Output nominal voltage
• 230V default (220/230/240V)
• Feed type
• 1
• Topology
• Offline
• VA rating
• 900 VA

• Electrical input

• Input connection
• C14
• Input nominal voltage
• 230V default (220/230/240V)
• Nominal frequency
• 50-60 Hz
• Input voltage range
• 184-264 V (adjustable to 161-284 V)
• Input frequency range
• 46-70 Hz

• Communications

• Includes network card
• No
• Communication
• USB port (HID compliant)
• Ethernet interface
• No
• User interface
• LED display
• Potential free switch contact
• No
• Expansion slots
• Yes
• Software compatibility
• Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
• Type of interface
• USB

• Environmental

• Altitude
• 3000 m
• Noise level
• <25 dB at 1 meter
• Temperature range
• 0° to 40°C (32° to 104°F)
• Relative humidity
• 0 - 95 % (non-condensing)

• Additional specifications

• USB interface
• Yes
• Construction type
• Free standing model
• Phase (output)
• 1
• Auto shutdown function
• Yes
• Color
• Black
• Efficiency at max. load
• 97
• Rack mounting kit
• No
• Phase (input)
• 1
• Surge protection
• Yes
• Package contents
• (2) IEC-IEC cables
• USB cable
• Quick start
• Safety instructions

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 2 év gyártó által biztosított szervizgarancia
