EATON 3P ELLIPSE 1700 USB IEC SZÜNETMENTES TÁPEGYSÉG

• General specifications

• Product Length/Depth
• 312 mm
• Product Height
• 305 mm
• Product Width
• 81 mm
• Product Weight
• 7.8 kg

• Product specifications

• Special features
• Convenient extra-flat design for easy installation in any office environment
• High performance surge-protection device compliant with IEC 61643-11 standard
• 8 outlets to connect your PC + peripherals
• 2 USB charging ports
• Card slot for optional Cloud connection
• HID-compliant USB port (cable supplied), for automatic integration with major operating systems (Windows/Mac OS/Linux)

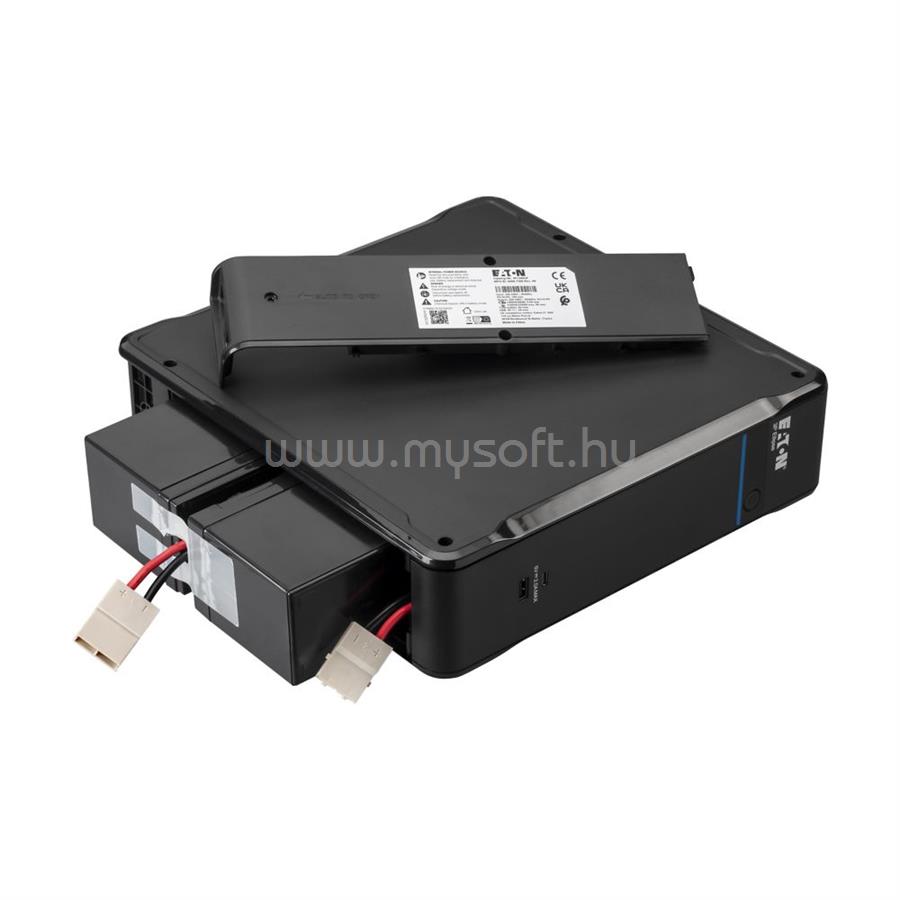

• Easy to replace battery helps to extend UPS service life
• Topology
• Offline
• Form factor
• Tower
• Construction type
• Free standing model
• Color
• Black
• VA rating
• 1700VA
• Wattage
• 1040W
• Rack mounting kit
• No
• Surge protection
• Yes
• Auto shutdown function
• Yes
• Primary frequency - max
• 70 Hz
• Primary frequency - min
• 46 Hz
• Input connection
• C14
• Input nominal voltage
• 230V default (220/230/240V)
• Nominal frequency
• 50-60 Hz
• Input frequency range
• 46-70 Hz

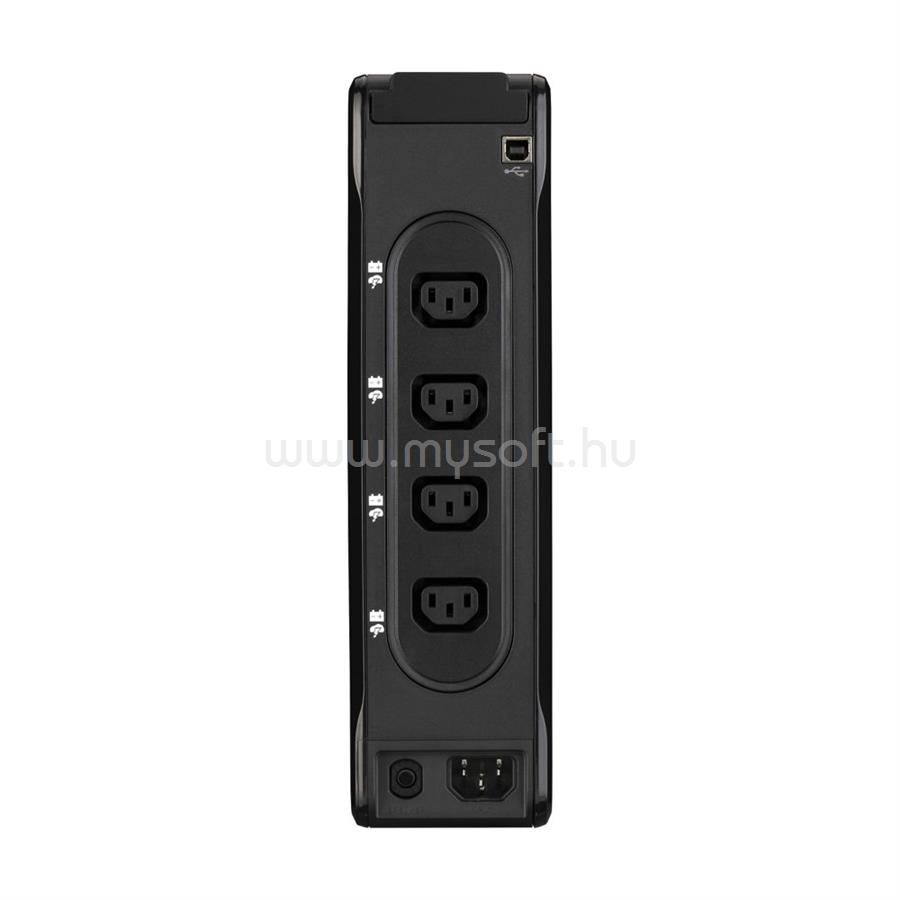

• Receptacle
• (4) C13, (4) C13 surge only
• Number of Outputs C13
• 8
• Voltage
• 230V
• Output nominal voltage
• 230V default (220/230/240V)
• Feed type
• 1
• Voltage type
• AC
• Runtime graph
• View runtime graph
• Battery management
• Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
• Battery rating
• 12 V / 9 Ah
• Battery type
• Sealed, lead-acid
• Extended battery capability
• No
• Runtime at half load
• 10 min
• Communication
• USB port (HID compliant)
• Expansion slots
• Yes
• Ethernet interface
• No
• Includes network card
• No
• Software compatibility
• Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)

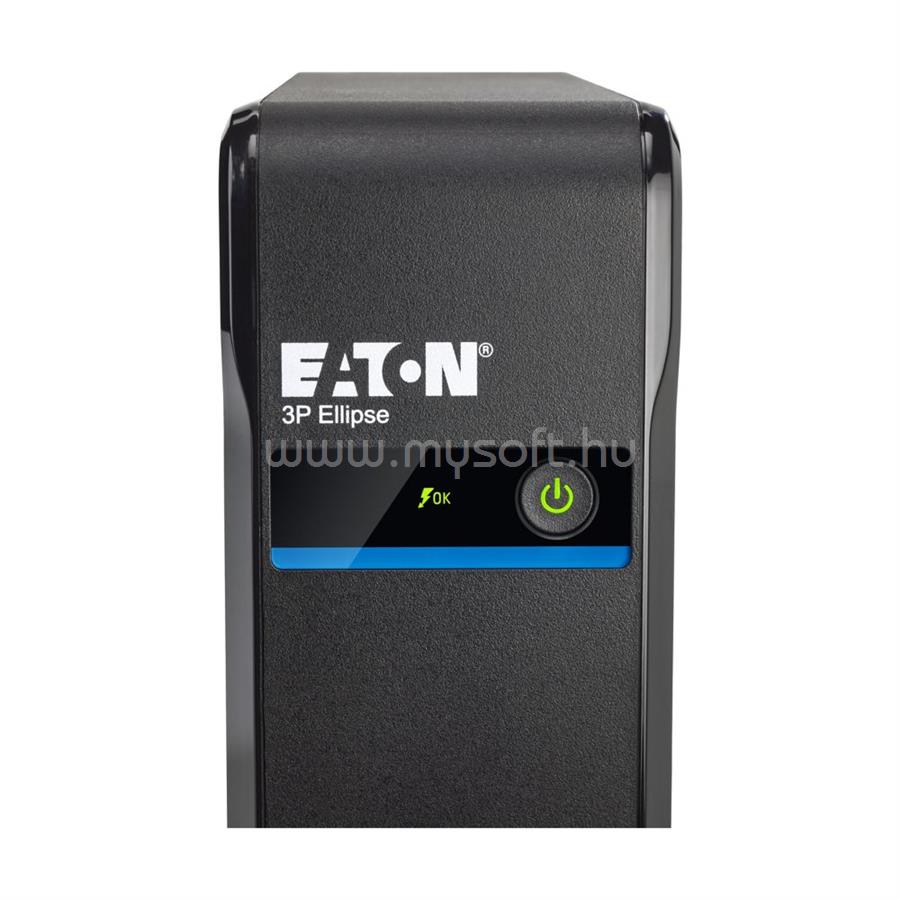

• User interface
• LED display
• Type of interface
• USB
• Potential free switch contact
• No
• Altitude
• 3000 m
• Noise level
• <25 dB at 1 meter
• Relative humidity
• 0 - 95 % (non-condensing)
• Temperature range
• 0° to 40°C (32° to 104°F)
• Operating temperature - max
• 40 °C
• Operating temperature - min
• 0 °C
• Output apparent power
• 1700 VA
• Input voltage - max
• 284 V
• Input voltage - min
• 161 V
• Output voltage - max
• 284 V
• Output voltage - min
• 161 V
• Secondary frequency - max
• 60 Hz
• Secondary frequency - min
• 50 Hz
• Battery quantity
• 2
• Efficiency at max. load
• 97
• Efficiency (eco-mode)
• 97
• Input voltage range
• 184-264 V (adjustable to 161-284 V)
• Output frequency
• 50/60 Hz
• Output power factor
• 0.6
• Output voltage range
• 184-264 V (adjustable to 161-284 V)
• Phase (input)
• 1
• Phase (output)
• 1
• Runtime at full load
• 1,25
• Communication interface
• USB
• Power consumption
• 32.2 W
• USB interface
• Yes
• Package contents
• (2) IEC-IEC cables
• USB cable
• Quick start
• Safety instructions
