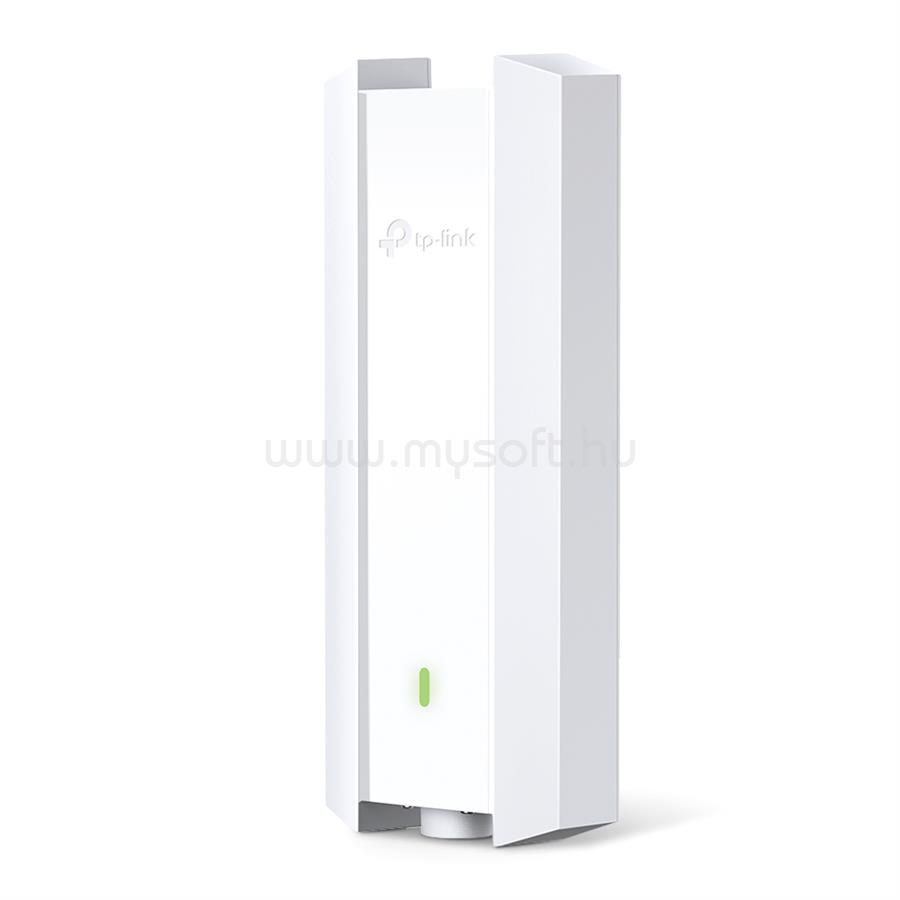

TP-LINK EAP610 AX1800 INDOOR/OUTDOOR WI-FI 6 ACCESS POINT

• HARDWARE FEATURES

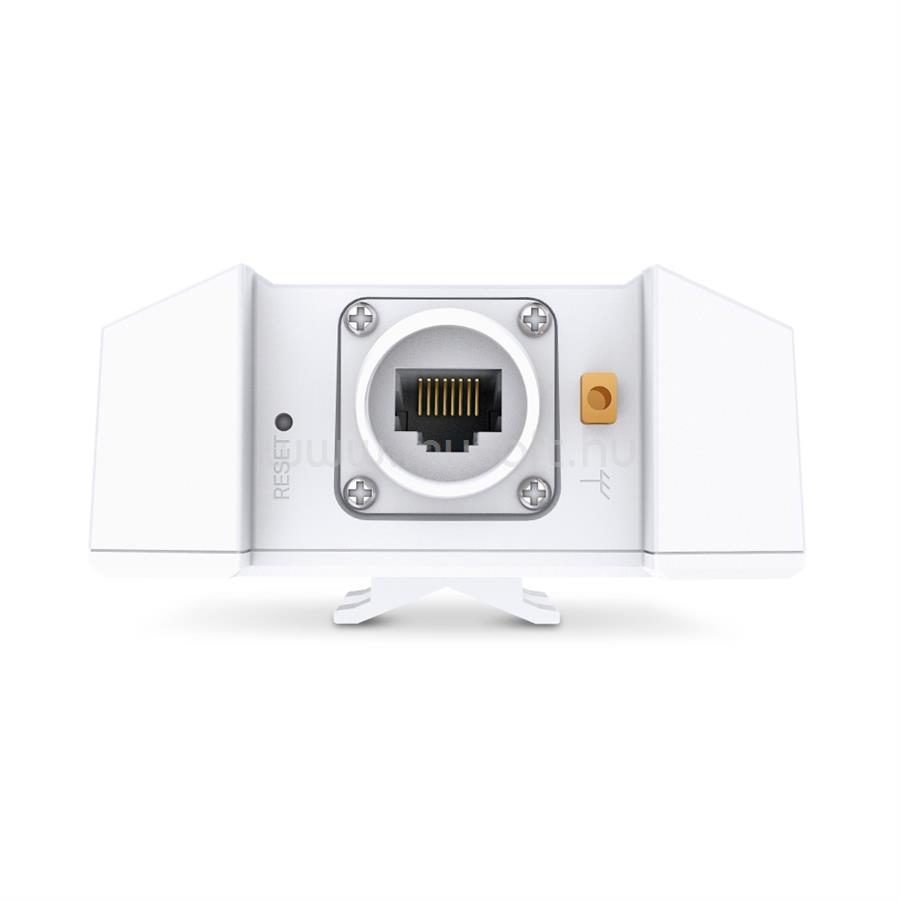

• Interface
• 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
• Button
• Reset
• Power Supply
• 802.3at PoE
• 48V/0.5A Passive PoE (PoE Adapter Included)
• Power Consumption
• EU: 12.5W (802.3at PoE or Passive PoE)
• US: 14.7W (802.3at PoE or Passive PoE)
• Dimensions ( W x D x H )
• 280.4×106.5×56.8 mm (without antenna & mounting kit)
• Antenna
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
• Weatherproof Enclosure
• IP67

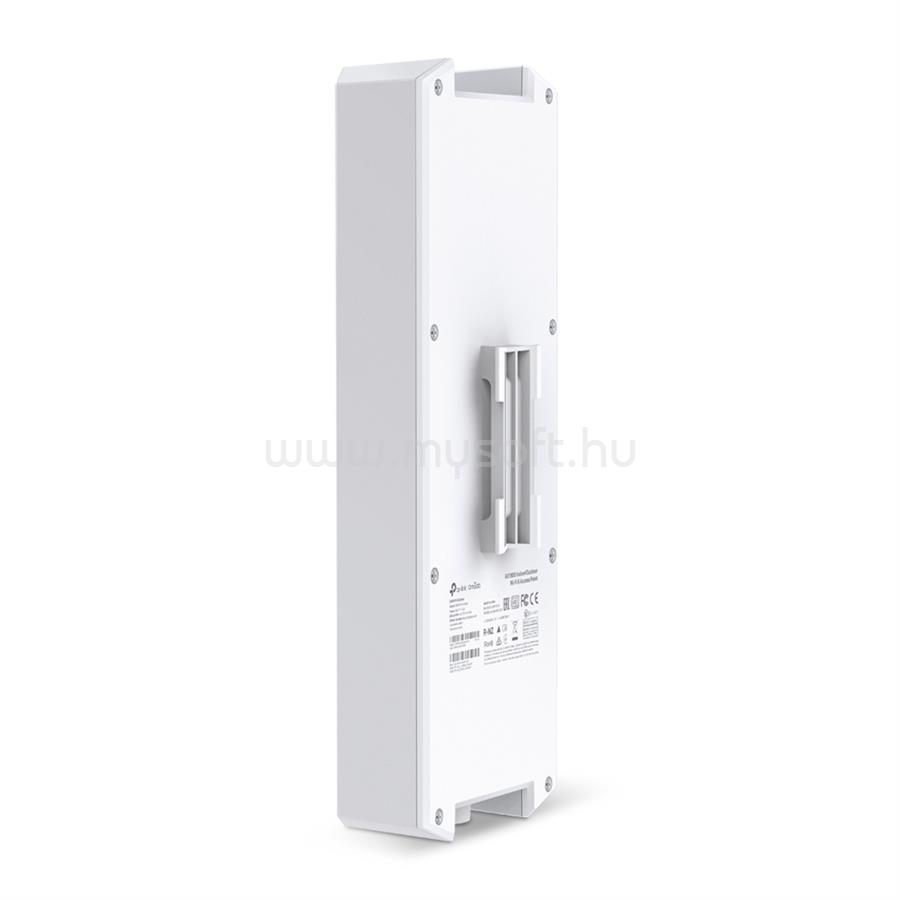

• Mounting
• Pole/Wall Mounting (Kits included)

• WIRELESS FEATURES

• Wireless Standards
• IEEE 802.11ax/ac/n/g/b/a
• Frequency
• 2.4 GHz, 5 GHz
• Signal Rate
• 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
• 802.11ac: 6.5 Mbps to 867 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• Transmit Power
• CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
• FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)
• Wireless Functions
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• MU-MIMO
• Omada Mesh
• Seamless Roaming
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• Wireless Security
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

• MANAGEMENT

• Omada App
• Yes
• Centralized Management
• Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0)
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Cloud Access
• Yes, through
• Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0)
• OC300
• OC200
• Omada Software Controller
• Email Alerts
• Yes
• Management MAC Access Control
• Yes
• SNMP
• v1, v2c
• System Logging Local/Remote Syslog
• Yes
• SSH
• Yes
• Web-based Management
• Yes
• L3 Management
• Yes
• Multi-site Management
• Yes
• Management VLAN
• Yes
• Zero-Touch Provisioning
• Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP610-Outdoor v1.20 and above, while not supported by EAP610-Outdoor v1.0).

• OTHERS

• Package Contents
• Access Point EAP610-Outdoor
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Waterproof Kits
• Waterproof Antenna
• Installation Guide
• System Requirements
• Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
• Environment
• Operating Temperature: -30-70 °C (-22-158 °F)
• Storage Temperature: -40-70 °C (-40-158 °F)
• Operating Humidity: 10-90% RH non-condensing
• Storage Humidity: 5-90% RH non-condensing
