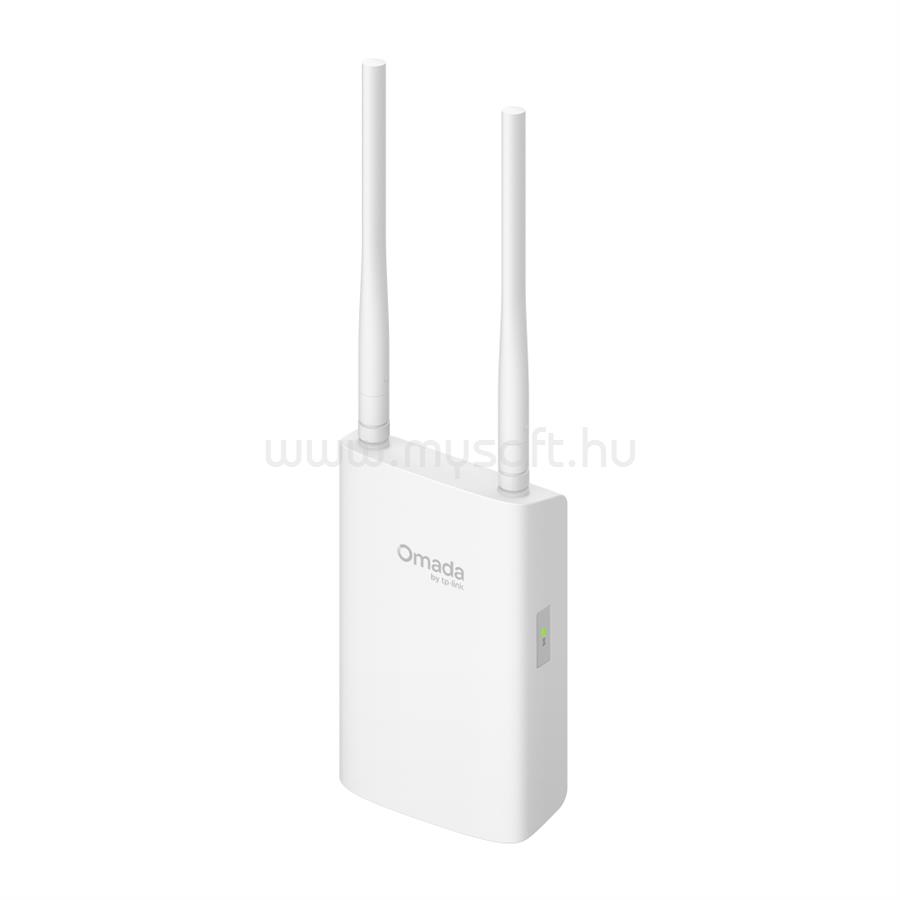

TP-LINK EAP603-OUTDOOR WIRELESS ACCESS POINT DUAL BAND AX1800 KÜLTÉRI/BELTÉRI

• HARDWARE FEATURES

• Interface

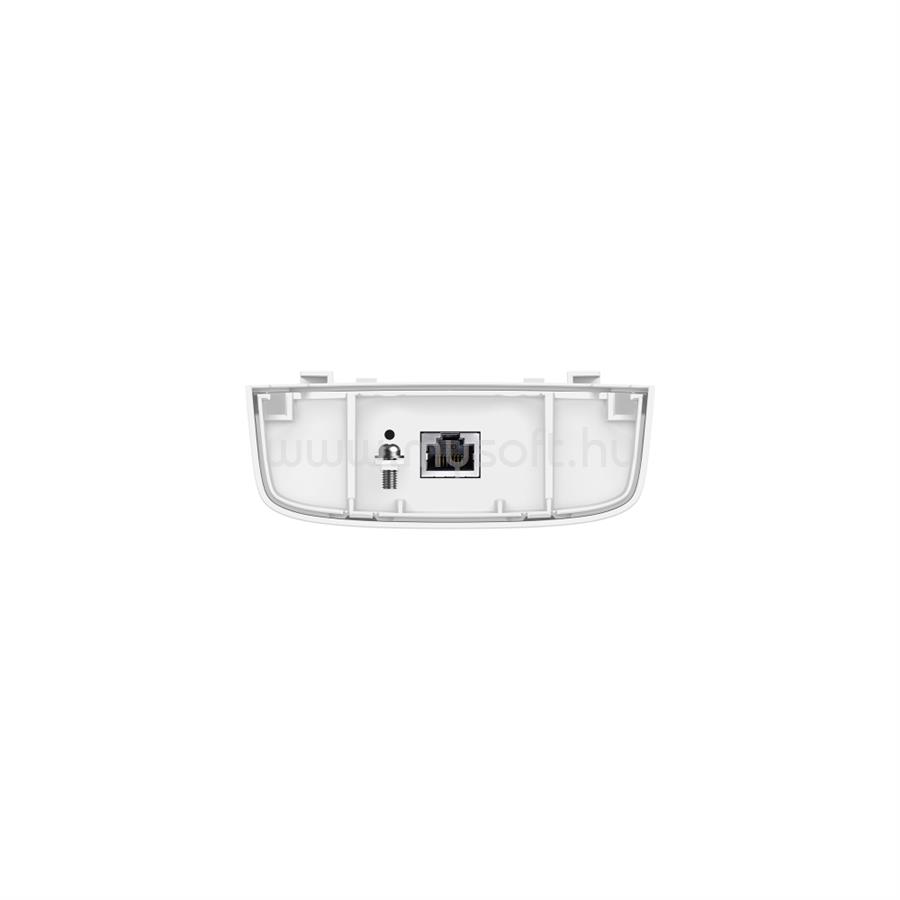

• . 1× 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE in
• . 1× Grounding Terminal
• Button
• 1× Reset button: Press the button for longer than 5 seconds to make the device restore to factory settings.
• Power Supply
• . 802.3at PoE
• . 48V Passive PoE (PoE Adapter Included - For Dry Indoor Use Only)
• Max. Power Consumption
• . 802.3at (PoE+): 15.8w, 2.4GHz radio 2×2, 5GHz radio 2×2, wired link rate can be up to 1 Gbps, etc.
• . Idle mode: 4.8W(PoE)
• Dimensions ( W x D x H )
• . Main Unit: 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in.)
• . Shipping Unit: 324 × 104 × 245 mm (12.76 × 4.09 × 9.65 in.)
• Antenna
• Wi-Fi
• . 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional antennas
• . 5 GHz: 2 × 5 dBi (peak gain), external omnidirectional antennas
• *Note: The gains above are the single-antenna peak gains.
• IoT
• . Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional antennas
• Bluetooth
• Yes
• Weatherproof Enclosure
• IP66 for Wall Mount
• IP65 for Pole Mount
• Mounting
• . Pole Mount (Kits included)
• . Wall Mount (Kits included)

• WIRELESS FEATURES

• Coverage
• . 2.4 GHz: up to 2,150 ft (200 m)
• . 5 GHz: up to 3,200 ft (300 m)
• Wireless Standards
• 5 GHz: IEEE 802.11a/n/ac/ax
• 2.4 GHz: IEEE 802.11b/g/n/ax
• Frequency
• . 5 GHz
• . 2.4 GHz
• Signal Rate
• . 2.4 GHz: up to 573 Mbps
• . 5 GHz: up to 1201 Mbps
• *Note: Country-Specific Restriction Apply
• Wireless Functions
• . Maximum number of BSSIDs: 16 (8 on each band)
• . Maximum number of associated STAs: 250+
• . Guest Network
• . ACS (Automatic Channel Selection)
• . Airtime Fairness
• . Band Steering
• . 802.11 Rate Control
• . Rogue AP Detection
• . URL Filtering
• . WLAN Optimization
• . Lock to AP
• . SSID/Client Rate Limit
• . Load Balance
• . Seamless Roaming (802.11k/v/r, Non-Stick Roaming, Ping-Pong Roaming Suppression, AI Roaming)§
• . Multicast/Broadcast Management (Multicast-to-Unicast Conversion, ARP-to-Unicast Conversation, Multicast Filtering, Multicast/Broadcast Rate Limit)
• . QoS (Quality of Service)
• Wireless Security
• . ACL
• . MAC Filter
• . 802.1X Authentication
• . MAC-Based Authentication
• . WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, Enhanced Open, and None
• . Radius Accounting
• . PPSK without Radius, PPSK with Radius (Generic Radius with bound MAC/EKMS/Generic Radius with unbound MAC)
• . Captive Portal: No Authentication, Simple Password, Hotspot (Voucher / Local User / SMS / RADIUS / Form Auth), RADIUS Server, External LDAP Server, External Portal Server, Pre-Authentication Access, and Authentication-Free Client
• . EAP Types: EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-CHAP, EAP-SIM, EAP-AKA, EAP-GTC, EAP-FAST, EAP-PEAP, EAP-MD5, EAP-MSCHAPv2, PEAPv0, PEAPv1
• Transmission Power
• Maximum transmit power:
• CE (ERIP)
• . 2.4 GHz: 20 dBm
• . 5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 29 dBm in U-NII-2C
• FCC (Conducted Power)
• . 2.4 GHz: 25 dBm
• . 5 GHz: 27 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 27 dBm in U-NII-3
• Minimum transmit power
• CE (ERIP)
• . 2.4 GHz: 7 dBm
• . 5 GHz: 6 dBm in U-NII-1, 6 dBm in U-NII-2A, 6 dBm in U-NII-2C, 6 dBm in U-NII-3
• FCC (Conducted Power)
• . 2.4 GHz: 4 dBm
• . 5 GHz: 4 dBm in U-NII-1, 4 dBm in U-NII-2A, 4 dBm in U-NII-2C, 4dBm in U-NII-3
• Adjustable power increment: 1 dBm
• *Note: MIMO combined power, excluding antenna gains. The actual transmit power depends on local laws and regulations

• Management Features

• Omada App
• Yes
• Restore & Backup
• Yes
• Firmware update via Web
• Yes
• NTP
• Yes
• Centralized Management
• . Omada Hardware Controller
• . Omada Software Controller
• . Omada Central (Cloud-Based)
• . Omada App
• Cloud Access
• Yes. Require the use of an Omada controller.
• Email Alerts
• Yes
• LED ON/OFF Control
• Yes
• Management MAC Access Control
• Yes
• SNMP
• v1, v2c, v3
• SSH
• Yes
• Web-based Management
• Yes

• OTHERS

• Certification
• CE, FCC, RoHS
• Package Content
• . EAP603-Outdoor
• . Passive PoE Adapter
• . Power Cord
• . Installation Guide
• . Mounting Kit
• Environment
• . Operating Temperature: -30 °C-70 °C (-22 °F-158 °F);
• . Storage Temperature: -40 °C-70 °C (-40 °F-158 °F);
• . Operating Humidity: 10%-90% non-condensing;
• . Storage Humidity: 5%-90% non-condensing

Garancia fogyasztók részére

• 2 év kötelező jótállás + 3 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 5 év gyártó által biztosított szervizgarancia
