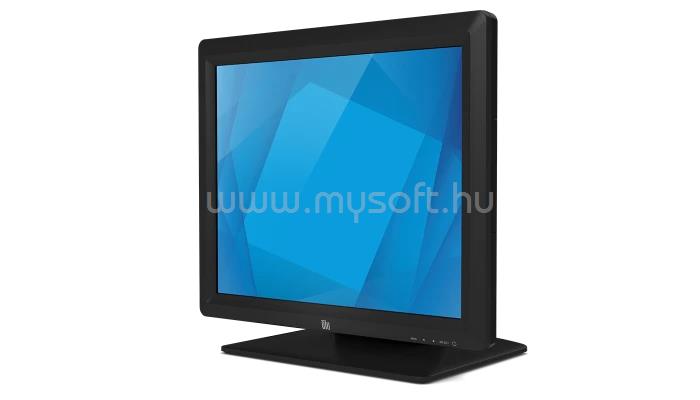

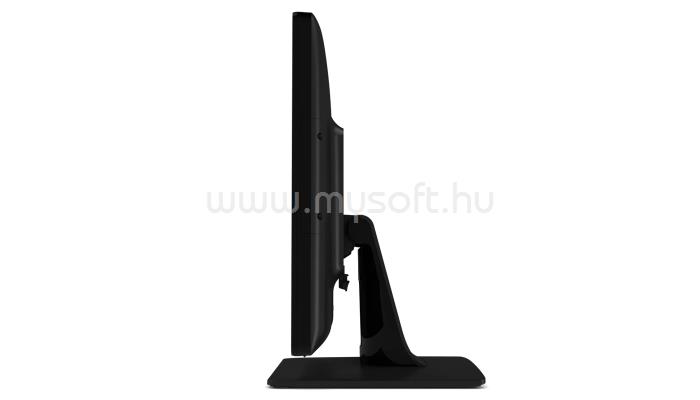

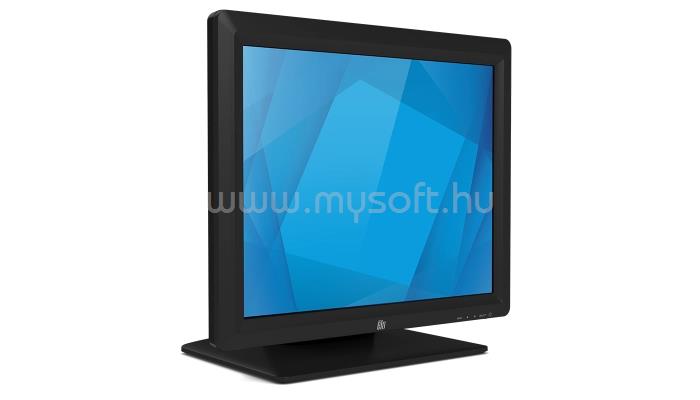

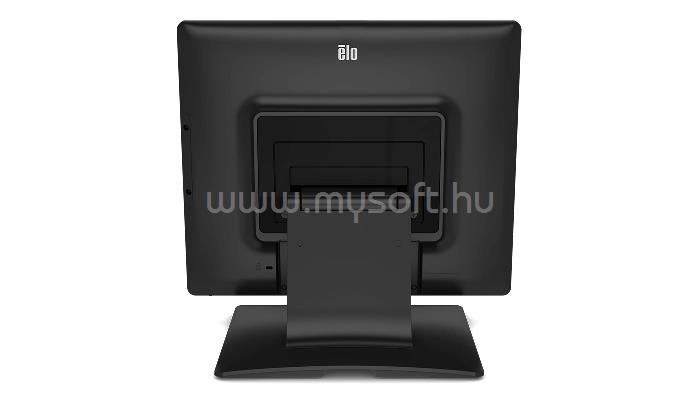

ELO TOUCH 1517L ÉRINTŐKÉPERNYŐS MONITOR

Kijelző

• Képátló: 15"
  Felbontás: 1024x768
  Panel: TFT-LCD
  Képarány: 1024x768

Csatlakozók

• • 1x VGA
  • 0x DVI
  • 0x DisplayPort
  • 1x HDMI
  • TV-tuner

• Specifications

• Enclosure Color
• Black
• Touch Technology & Capacity
• SAW ZB (IntelliTouch© Surface Acoustic Wave) - Single Touch
• Diagonal Size
• 15" diagonal, Active matrix TFT LCD (LED)
• Aspect Ratio
• 4:3
• Active Area
• 11.97" x 8.98" / 304.13 mm x 228.10 mm
• Resolution
• 1024 x 768 @ 60Hz, 75Hz
• Other Supported Resolutions
• 640 x 480 60Hz, 75Hz
• 720 x 400 70Hz
• 800 x 600 56Hz, 60Hz, 75Hz
• 1024 x 768 60Hz, 75Hz
• Viewing Angle
• Horizontal: +/- 80° or 160° total / Vertical: 70°/80° or 150° total
• Number of Colors
• 16.2 million
• Brightness (typical)
• LCD panel: 300 nits
• AccuTouch: 240 nits
• IntelliTouch: 270 nits
• Response Time-total (typical)
• 23 msec
• Contrast Ratio
• 800:1
• Touch Interface
• Serial (RS232) and USB
• On Screen Display
• Accessible through switches along the bottom.
• Controls: Menu, Up, Down, Select, Power
• Settings: Auto Adjust, Brightness, Contrast, H-position, V-position, Clock, Phase, Color Temperature, OSD Timeout, OSD Language, Sharpness, Recall Defaults, Information
• Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
• Lockouts: OSD, Power
• I/O Ports
• VGA
• HDMI
• DC jack
• AC jack
• USB Type B
• RS-232 (DB-9)
• Video
• Analog VGA on Female DB-15 connector
• Digital HDMI on Type A receptacle
• Input Video Horizontal Sync frequency range: 31.5 - 60KHz
• Input Video Vertical Sync (frame rate) frequency range: 56-75Hz
• Power
• Monitor AC input power connector: IEC 60320 C6
• Monitor AC input voltage specifications: 100-240VAC, 50/60Hz.
• Monitor DC input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter)
• Monitor DC input voltage specifications: 12VDC +/- 5%
• Power Consumption (Typical)
• Monitor Only
• ON: 10.5W
• SLEEP: 1.40W
• OFF: 0.3W
• Monitor Dimensions (without Stand)
• Bezel: 14.1" x 1.97" x 12.5" / 358 mm x 50 mm x 319
• Zero Bezel: 14.1" x 1.73" x 12.5" / 358 mm x 44.1 mm x 319 mm
• Monitor Dimensions (with Stand)
• 14.1" x 7.8" x 12.5" / 358 mm x 197 mm x 319 mm
• Shipping Box Dimensions
• 19.2" x 9.1" x 19.1" / 487 mm x 231 mm x 485 mm
• Weight (Unpackaged)
• 9.48 lbs / 4.3 kg
• Weight (Packaged)
• 16.09 lbs / 7.3 kg
• Operating Temperature
• 0°C to 40°C / 32°F to 104°F
• Storage Temperature
• 20°C to 60°C / -4°F to 140°F
• Humidity
• Operating: 20% to 80%
• Storage: 10% to 95%
• MTBF
• 50,000 hours demonstrated
• What's in the Box
• Touch monitor
• Quick Install Guide
• VGA Cable (DB-15 male to DB-15 male)
• Touch USB Cable (USB Type A plug to USB Type B plug)
• Power cable, IEC 60320-C5 to NA/EU plug
• Stand Base assembly
• Filler Plate
• HDMI cable

Garancia fogyasztók részére

• 3 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
