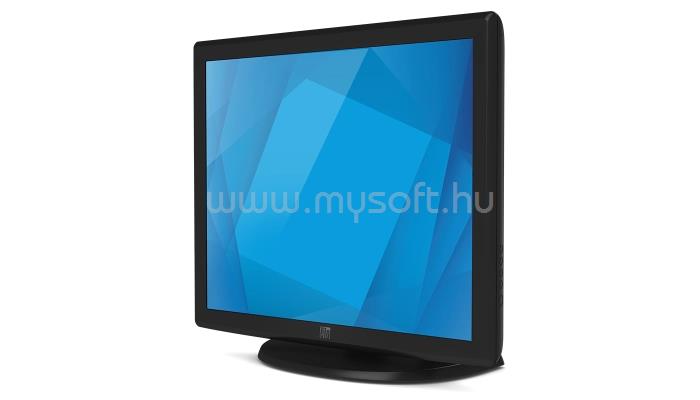

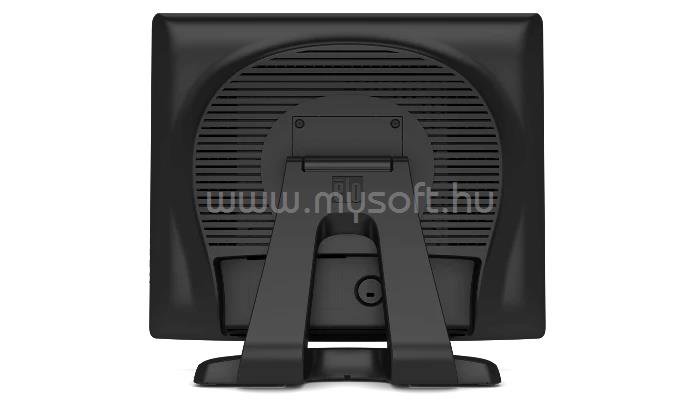

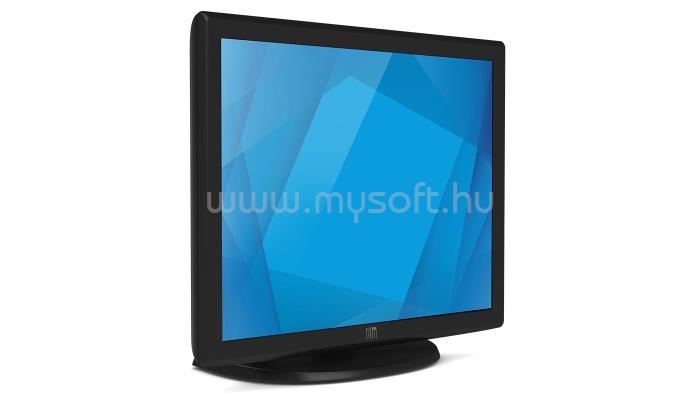

ELO TOUCH 1915L ÉRINTŐKÉPERNYŐS MONITOR

Kijelző

• Képátló: 19"
  Felbontás: 1280x1024
  Panel: TFT-LCD
  Képarány: 5:4

Csatlakozók

• • 1x VGA
  • 0x DVI
  • 0x DisplayPort
  • 0x HDMI
  • TV-tuner

• Specifications

• Enclosure Color
• Dark Gray
• Touch Technology & Capacity
• 5-Wire Resistive (AccuTouch©) - Single-Touch
• Diagonal Size
• 19" diagonal, Active matrix TFT LCD (LED)
• Aspect Ratio
• 5:4
• Active Area
• 14.8" x 11.9" / 376.3mm x 301.1mm
• Resolution
• 1280 x 1024
• Other Supported Resolutions
• 1280 x 1024 at 60 or 75 Hz
• 1152 x 864 at 75 Hz
• 1024 x 768 at 60, 65, 70 or 75 Hz
• 832 x 624 at 75 Hz (Mac)
• 800 x 600 at 56, 60, 72 or 75 Hz
• 720 x 400 at 70 Hz
• 720 x 350 at 70 Hz
• 640 x 480 at 60, 66, 72 or 75 Hz
• Viewing Angle
• Horizontal: +/-85° or 170° total / Vertical: +/-80° or 160° total
• Number of Colors
• 16.7 million
• Brightness (typical)
• LCD panel: 250 nits
• AccuTouch: 200 nits
• IntelliTouch: 225 nits
• Response Time-total (typical)
• 14 msec
• Contrast Ratio
• 1000:1
• Power
• Internal AC, power connector-C6 type
• Input voltage range: 100-240VAC, 50/60Hz
• Monitor input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter, 8.8mm Barrel depth)
• Monitor input power signal specifications: 12VDC +/- 5%
• Video
• VGA (VGA DE-15 (DB-15) Male connecter cable included)
• Input Video Horizontal Sync frequency range: 31.5 - 80KHz
• Input Video Vertical Sync (frame rate) frequency range: 56.3-75Hz
• Power Consumption (Typical)
• Monitor only:
• ON: 12.76W
• SLEEP: 1.33W
• OFF: 0.3W
• I/O Ports
• VGA
• DC jack
• AC jack
• USB Type B
• RS232 (DB-9)
• On Screen Display
• Accessible through switches along the bottom.
• Controls: Menu, Power, Up, Down, Select
• Settings: Auto Adjust, Brightness, Contrast, H-position, V-position, Clock, Phase, Color Temperature, OSD Timeout, OSD Language, Sharpness, Recall Defaults, Information
• Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
• Lockouts: OSD, Power
• Monitor Dimensions (without Stand)
• IT: 14.1" x 16.9" x 2.54" / 359 mm x 429 mm x 64.5 mm
• AT: 14.1" x 16.9" x 2.44" / 359 mm x 429 mm x 62 mm
• Monitor Dimensions (with Stand)
• 15.4" x 16.9" x 8.3" / 390 mm x 429 mm x 212 mm
• Shipping Box Dimensions
• 21.28" x 19.50" x 11.23"/ 540 mm x 495 mm x 285 mm
• Weight (Unpackaged)
• 17.4 lb / 7.9 kg
• Weight (Packaged)
• 25.8 lb / 11.7 kg
• Operating Temperature
• 0°C to 40°C / 32°F to 104°F
• Storage Temperature
• -20°C to 60°C / -4°F to 140°F
• Humidity
• Operating: 20% to 80%; Storage: 10% to 95% (38.7° maximum wet bulb temperature)
• MTBF
• 50,000 hours demonstrated

• What's in the Box

• Touch monitor
• Quick Install Guide
• 3x Tie wraps
• VGA cable
• Touch USB cable
• NA Power cable
• EU Power cable
• EEI Label

Garancia fogyasztók részére

• 3 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
