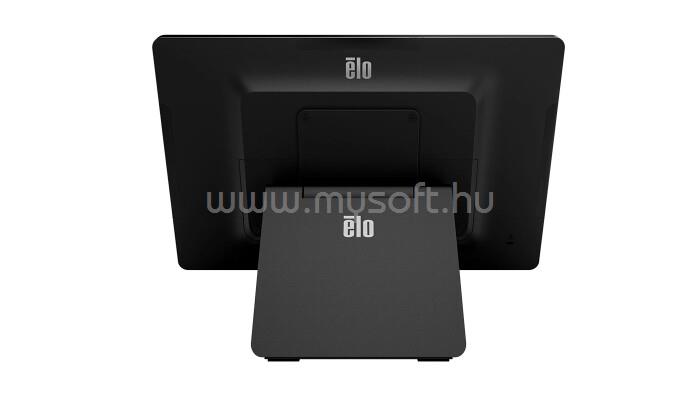

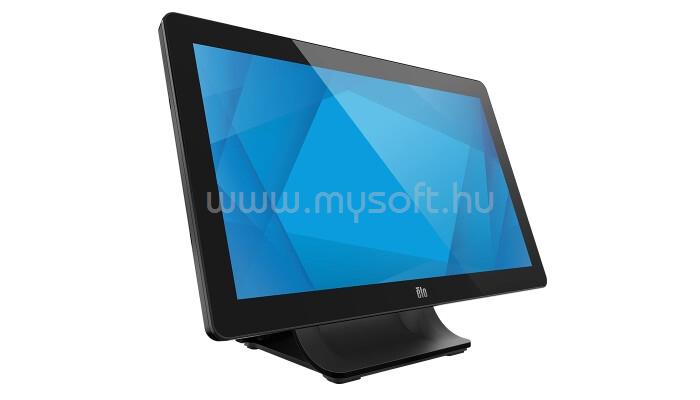

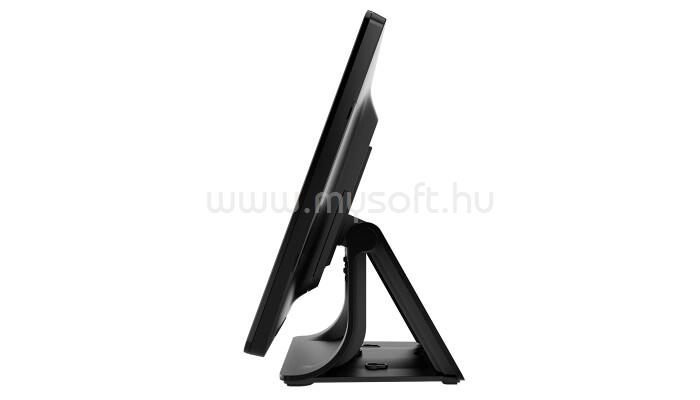

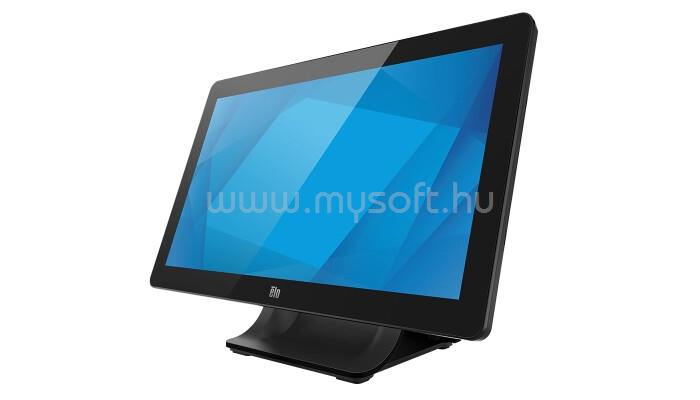

ELO TOUCH 1509L ÉRINTŐKÉPERNYŐS MONITOR

Kijelző

• Képátló: 15.6"
  Felbontás: 1366x768
  Panel: TFT-LCD
  Képarány: 16:9

Csatlakozók

• • 1x VGA
  • 0x DVI
  • 0x DisplayPort
  • 1x HDMI
  • TV-tuner

• Specification

• Touch Technology & Capacity
• PCAP (TouchPro© Projected Capacitive) - 10 Touch
• Diagonal Size
• 15.6'' diagonal, Active matrix TFT LCD (LED)
• Aspect Ratio
• 16:9
• Active Area
• 13.55" x 7.62" / 344.23 mm x 193.55 mm
• Resolution
• 1366 x 768
• Other Supported Resolutions
• 640 x 480 at 60Hz
• 800 x 600 at 60Hz
• 1024 x 768 at 60Hz
• 1280 x 800 at 60, 60RB Hz
• 1280 x 960 at 60Hz
• 1280 x 1024 at 60Hz
• 1360 x 768 at 60Hz
• 1366 x 768 at 60, 60RB Hz
• Viewing Angle
• Horizontal: +/-45° / 90° total
• Vertical: -40°/ +20° / 60° total
• Number of Colors
• 6-bit (262,000)
• Brightness (typical)
• LCD Panel: 250
• PCAP: 225 nits
• Response Time-total (typical)
• 12 msec
• Contrast Ratio
• 500:1
• Touch Interface
• USB
• Power
• External DC Adapter 12V/24W in box
• Monitor input power connector: Coaxial power jack (2.1mm (+/- 0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
• Monitor input voltage range: 12VDC +/- 5%
• Adapter output power connector: DC barrel plug (2.1mm pin inner diameter, 5.5mm barrel outer diameter, 12mm Barrel length)
• Adapter input voltage range: 100-240 VAC
• Input frequency: 50-60 Hz
• Video
• Analog VGA
• HDMI
• Input Video Horizontal Sync frequency range: 31.5 - 82KHz
• Input Video Vertical Sync (frame rate) frequency range: 50 - 75Hz
• Power Consumption (Typical)
• Monitor + AC/DC adapter
• ON: 6.41 W
• SLEEP: 0.84 W
• OFF: 0.21 W
• I/O Ports
• USB Type-B
• VGA (Mini-VGA female connecter)
• HDMI
• 12V D/C input
• On Screen Display
• Accessible through switches along the bottom.
• Controls: Menu, Power, Up, Down, Select
• Settings: Brightness, Contrast, Input Select, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Priority, Information
• Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
• Lockouts: OSD, power
• Monitor Dimensions (with Stand)
• 11.16" x 15.24" x 6.83" / 283.4 mm x 387.1 mm x 173.5 mm
• Shipping Box Dimensions
• 17.72" x 14.25" x 10.24" / 450 mm x 326 mm x 260 mm
• Weight (Unpackaged)
• 5.82 lbs / 2.642 kg
• Weight (Packaged)
• 10.49 lbs / 4.76 kg
• Operating Temperature
• 0°C to 40°C / 32°F to 104°F
• Storage Temperature
• -20°C to 60°C / -4°F to 140°F
• Humidity
• Operating: 20% to 80%; Storage: 10% to 95% (38.7? max wet bulb temperature)
• MTBF
• 50,000 hours demonstrated
• Mounting Options
• VESA 4-hole 75mm and 100mm mounting interface on rear of unit
• Ingress Protection
• IPX1
• Impact Protection
• IK07

• What's in the Box

• 1509L Touchscreen Monitor
• Quick Install Guide
• EEI Label
• Mini-VGA to VGA cable (mini-VGA to DE-15 (DB-15) male)
• USB cable (USB Type A plug to USB Type B plug)
• Power brick (Wall-mount with 6 AC switches)
• 2x cable clamps
• 2x tie wraps Power brick
• 3x screws (M3x8mm) for cable clamps
• 2x screws (M3x12mm) for cable doors

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 2 év gyártó által biztosított szervizgarancia
