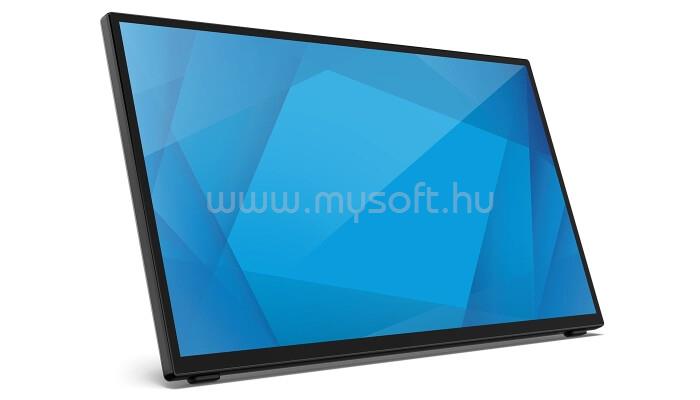

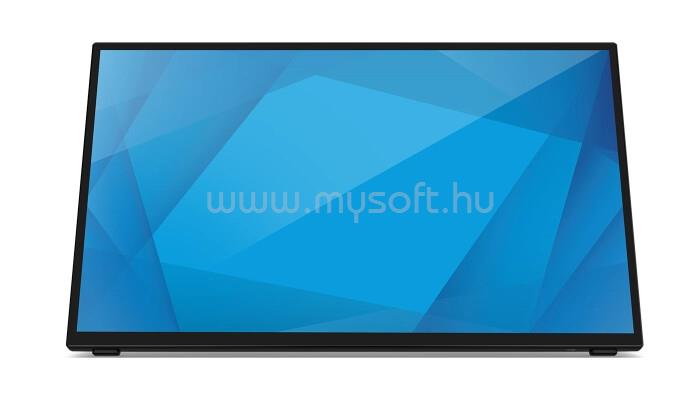

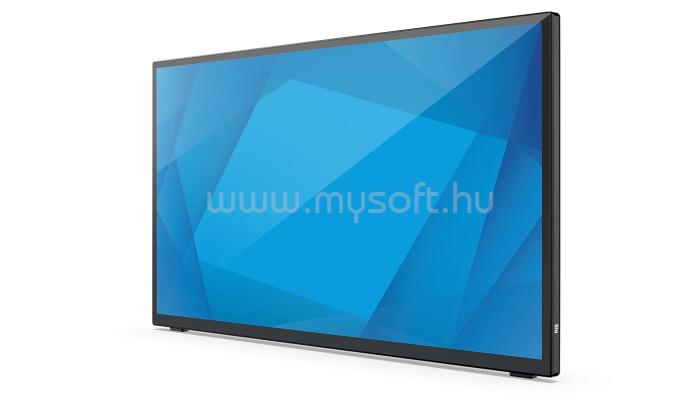

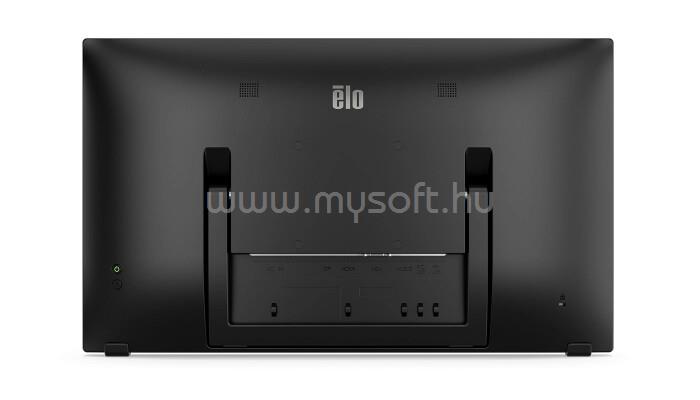

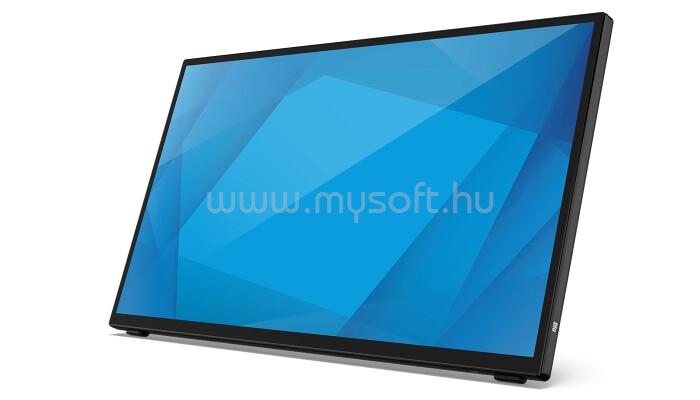

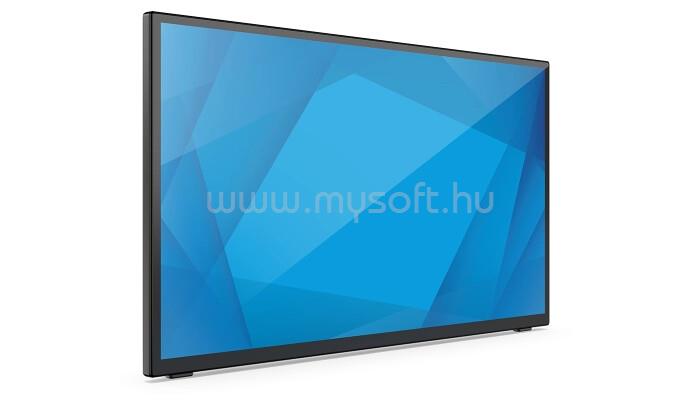

ELO TOUCH 2470L ANTI-GLARE ÉRINTŐKÉPERNYŐS MONITOR (FEKETE)

Kijelző

• Képátló: 23,8"
  Felbontás: 1920x1080
  Panel: TFT-LCD
  Képarány: 16:9

Csatlakozók

• • 1x VGA
  • 0x DVI
  • 1x DisplayPort
  • 1x HDMI
  • TV-tuner

• Specification

• Touch Technology & Capacity
• PCAP (TouchPro© Projected Capacitive) - 10 Touch
• Diagonal Size
• 23.8'' diagonal, Active matrix TFT LCD (LED)
• Aspect Ratio
• 16:9
• Active Area
• 20.75" x 11.67" / 527.04 mm x 296.46 mm
• Resolution
• 1920 x 1080 @ 50, 60Hz
• Other Supported Resolutions
• 640 x 480 60Hz
• 640 x 400 70Hz
• 720 x 400 70Hz
• 800 x 500 60Hz
• 800 x 600 56, 60Hz
• 1024 x 768 60Hz
• 1280 x 720 @ 58Hz, 60Hz
• 1280 x 800 60Hz
• 1280 x 1024 60Hz
• 1366 x 768 60Hz, 60Hz RB
• 1440 x 900 60Hz, 60Hz RB
• 1680 x 1050 60Hz, 60Hz RB
• 1920 x 1080 50 60Hz
• Viewing Angle
• Horizontal: +/-89° or 178° total / Vertical: +/-89° or 178° total
• Number of Colors
• 16.7 million
• Brightness (typical)
• LCD Panel: 250 nits
• TouchPro PCAP: 225 nits
• Response Time-total (typical)
• 16 msec
• Contrast Ratio
• 1000:1
• Touch Interface
• USB
• Surface Treatment
• Anti-glare
• On Screen Display
• Accessible through touch OSD, and press Menu button to pop up touch OSD diagram.
• Controls: Menu, Power
• Settings: Brightness, Contrast, Video Priority, Clock, Phase, H-position, V-position, Auto-Adjust, Color Temperature, Low Blue Light, Volume, Mute, Audio Source Select, Line-in/Headphone Out OSD Timeout, OSD Language, Aspect Ratio, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/OFF, Recall Defaults
• Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
• Lockouts: OSD, Power
• I/O Ports
• AC Input (IEC60320 C6)
• Audio in/out
• VGA
• HDMI
• DisplayPort
• USB 2.0 Type B
• 2x USB 2.0 Type A
• Speakers
• Two x 2W internal speakers
• Video_1
• VGA (Female DB-15 connector)
• HDMI (receptacle type A)
• DisplayPort
• Input Video Frequency
• Horizontal: 30 - 82KHz
• Vertical: 50 - 75Hz
• Power
• AC power input connector: (IEC 60320 C6)
• AC input voltage range: 100-240VAC, 50/60Hz
• Power Consumption (Typical)
• Only display and touch function available:
• ON (Default - 80% Brightness): 14.5 W
• ON (Typical - 100% Brightness): 16.7 W
• SLEEP: 0.5 W
• OFF: 0.16 W
• Monitor Dimensions (without Stand)
• 21.66" x 12.96" x 1.65" / 550.2 mm x 329.3 mm x 41.8 mm
• Shipping Box Dimensions
• 24.80" x 5.35" x 16.46" / 630 mm x 136 mm x 418 mm
• Weight (Unpackaged)
• 10.58 lbs / 4.8 kg
• Weight (Packaged)
• 15.65 lbs / 7.1 kg
• Operating Temperature
• 0°C to 40°C / 32°F to 104°F
• Storage Temperature
• -20°C to 60°C / -4°F to 140°F
• Humidity
• Operating: 20% to 80%; Storage: 10% to 95% (38.7? max wet bulb temperature)
• MTBF
• 50,000 hours demonstrated
• Mounting Options
• VESA 4-hole 100mm mounting interface on rear of unit
• Other Features
• Energy Star 8.0
• TUV Rheinland (Flicker Free)
• TUV Rheinland (Low Blue Light)
• Power collection function via DDCCI
• India BIS
• Impact Protection
• IK07

• What's in the Box

• 2470L Touchmonitor
• Quick Install Guide
• HDMI cable
• Touch USB cable
• NA Power cable
• EU Power cable
• EEI Label (EU)
• 2x EEI Label (UK)
• 2x Replace foot cover
• 5x Cable tie

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
