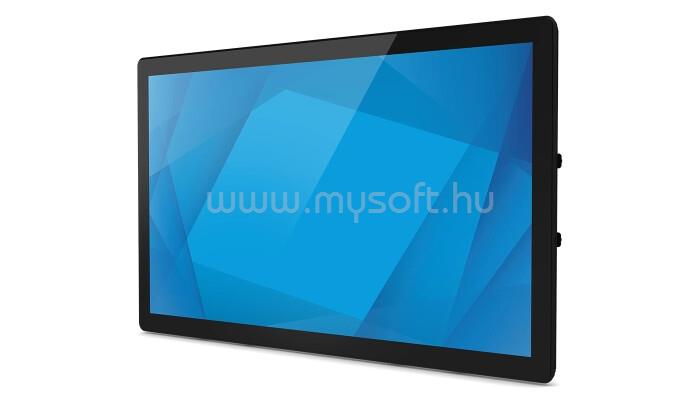

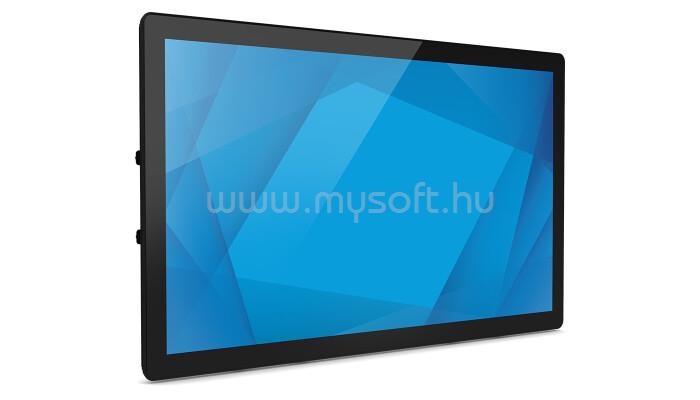

ELO TOUCH 2494L TOUCHPRO PCAP ZERO BEZEL ÉRINTŐKÉPERNYŐS MONITOR

Kijelző

• Képátló: 23,8"
  Felbontás: 1920x1080
  Panel: TFT-LCD
  Képarány: 16:9

Csatlakozók

• • 1x VGA
  • 0x DVI
  • 1x DisplayPort
  • 1x HDMI
  • TV-tuner

• Specification

• Touch Technology & Capacity
• PCAP (TouchPro© Projected Capacitive) - 10 Touch
• Touch Interface
• TouchPro PCAP Zero Bezel, IntelliTouch DT - USB 2.0
• Diagonal Size
• 23.8'' diagonal, Active matrix TFT LCD (LED)
• On Screen Display
• Accessible through switches on the unit's tethered OSD Control box.
• Controls: Menu, Up, Down, Select, Power
• Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Through, USB HID mouse (TouchPro PCAP, Bezel only)
• Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
• Lockouts: OSD, Power
• Aspect Ratio
• 16:9
• Active Area
• 20.75" x 11.67" / 527.04 mm x 296.46 mm
• Resolution
• 1920 x 1080
• Other Supported Resolutions
• 640 x 480 60Hz
• 720 x 400 70Hz
• 800 x 500, 60Hz
• 800 x 600 56, 60Hz
• 1024 x 768 60Hz
• 1280 x 800 60Hz
• 1280 x 1024 60Hz
• 1366 x 768 60Hz, 60Hz RB
• 1440 x 900 60Hz, 60Hz RB
• 1680 x 1050 60Hz, 60Hz RB
• 1920 x 1080 50, 60Hz
• Viewing Angle
• Horizontal: +/-89° or 178° total / Vertical: +/-89° or 178° total
• Number of Colors
• 16.7 million
• Brightness (typical)
• TouchPro PCAP: 225 nits
• Response Time-total (typical)
• 16 msec
• Contrast Ratio
• 3000:1
• I/O Ports
• Serial port (Bezel models only)
• USB Type B
• RJ45 for OSD remote key
• VGA
• HDMI
• DisplayPort
• 12V D/C in
• Input Video Format
• HDMI V1.3 Type A receptacle for HDMI input
• Analog VGA on Female DB-15 connector
• DisplayPort V1.1a - Supports later versions of DisplayPort video input
• Input Video Frequency
• Horizontal: 30 - 82 KHz
• Vertical: 50 - 75 Hz
• Power Supply
• External DC - Optional power brick (sold separately)
• Input power connector (Monitor)
• Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)
• Input Voltage
• 12VDC +/- 5%
• Adapter Output Power Connector
• DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)
• Power Consumption (Typical)
• ON (Default - 75% Brightness): 15.24 W
• ON (Typical - 100% Brightness): 17.46 W
• SLEEP FROM PC (monitor + adapter): 1.07 W
• OFF (monitor + adapter): 0.2 W
• Dimensions
• TouchPro PCAP: 22.41" x 13.43" x 1.5" / 569.2 mm x 341.1 mm x 38 mm
• Shipping Box Dimensions
• 27.24" x 17.8" x 7.48" / 692 mm x 452 mm x 190 mm
• Weight (Unpackaged)
• TouchPro PCAP: 13.6 lbs / 6.17 Kg
• Weight (Packaged)
• TouchPro PCAP: 17.79 lbs / 8.07 Kg
• Operating Temperature
• 0°C to 40°C / 32°F to 104°F
• Storage Temperature
• -20°C to 60°C / -4°F to 140°F
• Humidity
• Operating: 20% to 80%
• Storage: 10% to 95%
• Sealability
• Touchscreen sealed to bezel
• Touchscreen sealed to LCD
• MTBF
• 50,000 hours demonstrated
• Compliance
• GLI 27 kV air / 8 kV contact ESD compliant for PCAP model
• UL 62368 ball-drop compliant for PCAP and SecureTouch models
• IK08 impact compliant for PCAP and SecureTouch models
• IP65 front side for PCAP ZB model
• Mounting Options

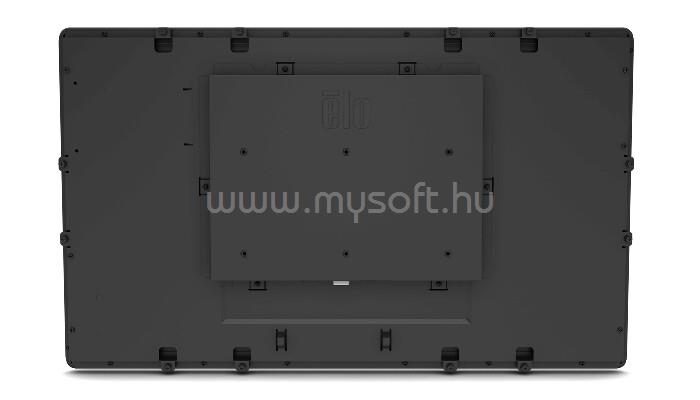

• 200x100mm VESA mount on rear of unit
• 4 Hole mounting interface on all four sides (IntelliTouch/IntelliTouch Dual Touch/ TouchPro PCAP Bezel Models)
• Side mount with included "L" brackets (IntelliTouch/IntelliTouch Dual/ TouchPro PCAP Bezel Models)
• Front mount with optional bezel kit (IntelliTouch/IntelliTouch Dual Touch/ TouchPro PCAP Bezel Models)
• Flush mount with included brackets (TouchPro PCAP Zero Bezel Models)
• See dimensional drawings for details

• What's in the Box

• HDMI cable
• VGA Cable
• RJ45 OSD Remote
• Touch USB Cable
• Quick Install Guide;
• For Zero-Bezel Models: Flush Mount Brackets w/Screws
• For Bezel Models: "L" (Side Mount) Brackets and w/Screws
• EEI Label
• Japan Class-B TM info sheet

Garancia fogyasztók részére

• 3 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
