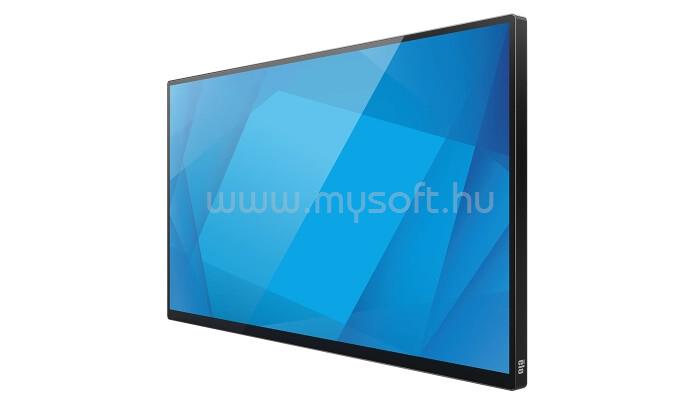

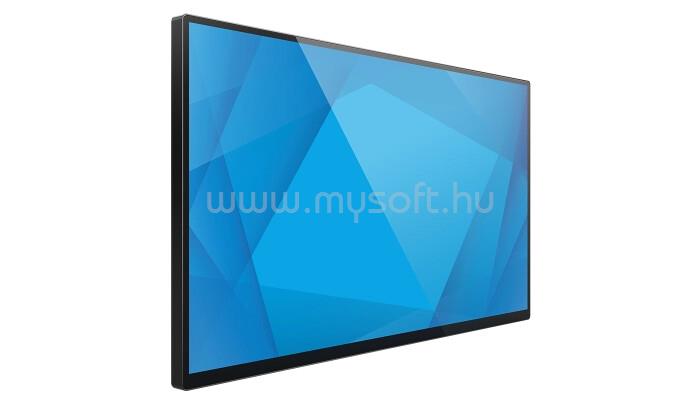

ELO TOUCH 2410L EMEA ÉRINTŐKÉPERNYŐS MONITOR

Kijelző

• Képátló: 23,8"
  Felbontás: 1920x1080
  Panel: TFT-LCD
  Képarány: 16:9

Csatlakozók

• • 1x VGA
  • 0x DVI
  • 1x DisplayPort
  • 1x HDMI
  • TV-tuner

• Specification

• Touch Technology & Capacity
• Non-Touch
• Diagonal Size
• 23.8'' diagonal, Active matrix TFT LCD (LED)
• Aspect Ratio
• 16:9
• Active Area
• 20.75" x 11.67" / 527.04 mm x 296.46 mm
• Resolution
• 1920 x 1080
• Other Supported Resolutions
• 640x480 60Hz,
• 640x400 70Hz
• 720x400 70Hz
• 800x600 56, 60Hz
• 1024x768 60Hz
• 1280x720 50, 60Hz
• 1280x800 60Hz
• 1280x1024 60Hz
• 1366x768 60Hz, 60Hz RB
• 1440x900 60Hz, 60Hz RB
• 1680x1050 60Hz, 60Hz RB
• 1920x1080 50Hz, 60Hz
• Viewing Angle
• Horizontal: +/-89° or 178° total / Vertical: +/-89° or 178° total
• Number of Colors
• 16.7 million
• Brightness (typical)
• LCD panel: 250 nits
• With AG screen: 220 nits
• Response Time-total (typical)
• 14 msec
• Contrast Ratio
• 1300:1
• Surface Treatment
• Anti-glare
• On Screen Display
• The unit has on-screen display (OSD) buttons on the back
• Controls: Menu (Select), Down (Minus), Up (Plus), Source (Exit), Power
• Settings: Brightness, Contrast, Eco Mode, Clock, Phase, H. Position, V. Position, Image Ratio, Color Temperature, OSD H. Position, OSD V. Position, OSD Timeout, OSD Language, Input Select, Reset, Information, Auto adjust, Volume, Video Source (triggered by the hotkeys)
• Languages: English, French, Spanish, Simplified Chinese, Traditional Chinese, Korean, Russian, Portuguese. Japanese
• Audio
• Audio in
• Audio out
• Speakers
• Two x 2W internal speakers
• Video
• HDMI V1.4 Type A receptacle for HDMI input
• Analog VGA on Female DB-15 (DE-15) connector
• DisplayPort V1.2 - Supports later versions of Display Port video input
• Input Video Horizontal Sync frequency range: 30 - 82KHz
• Input Video Vertical Sync (frame rate) frequency range: 50 - 75Hz
• Power
• AC power input connector (IEC 60320 C6)
• AC input voltage range: 100-240VAC, 50/60Hz
• Power Consumption (Typical)
• ON (Default - 90% Brightness): 17W
• ON (Typical - 100% Brightness): 18.5W
• SLEEP (monitor + adapter): 0.5W
• OFF (monitor + adapter): 0.3W
• Monitor Dimensions (without Stand)
• 21.37" x 12.57" x 1.69" / 542.68 mm x 319.38 mm x 42.8 mm
• Shipping Box Dimensions
• 27.17" x 16.54" x 5.12" / 690 mm x 420 mm x 130 mm
• Weight (Unpackaged)
• 7.94 lbs / 3.60 kg
• Weight (Packaged)
• 12.43 lbs / 5.64 kg
• Operating Temperature
• 0°C to 40°C / 32°F to 104°F
• Storage Temperature
• -20°C to 60°C / -4°F to 140°F
• Humidity
• Operating: 20% to 80%; Storage: 10% to 95%
• MTBF
• 50,000 hours demonstrated

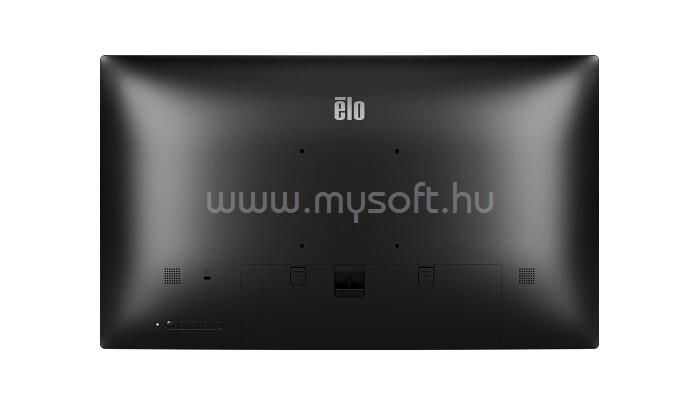

• Mounting Options
• VESA 4-hole 100mm mounting interface on rear of unit
• Compliance
• Energy Star 8.0
• GLI 10 kV air / 8 kV contact ESD compliant
• UL62368 ball-drop compliant
• IK06 impact compliant

• What's in the Box

• Touchmonitor
• HDMI cable
• Quick Install Guide
• EEI Label
• 4 x VESA screws
• EMEA Power Cord

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
