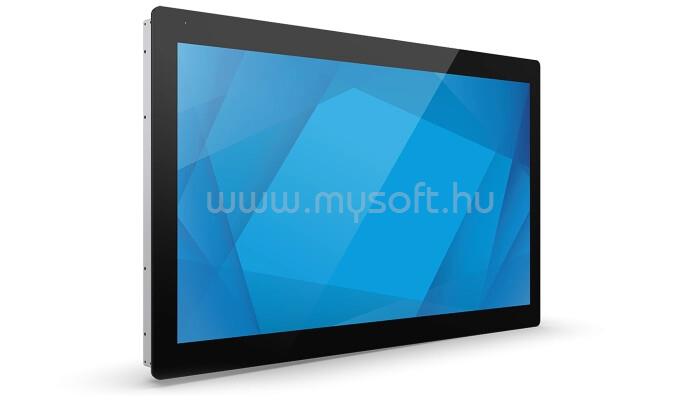

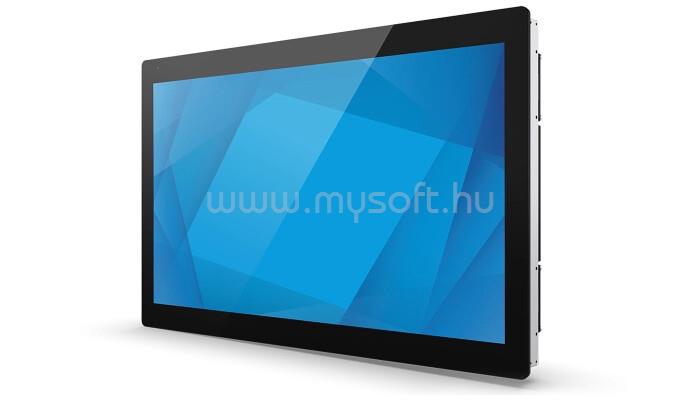

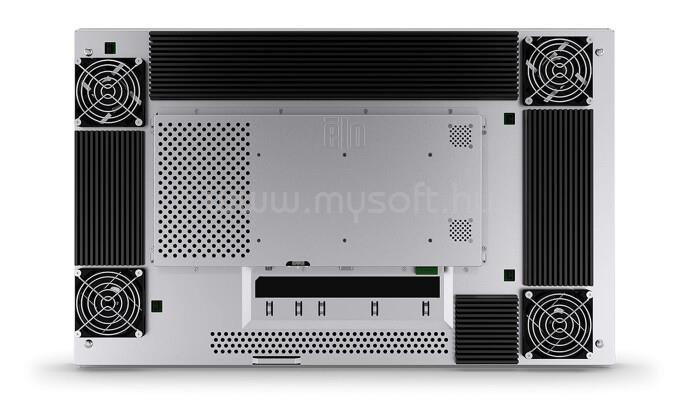

ELO TOUCH 2799L TOUCHPRO PCAP WITH ANTI-GLARE ÉRINTŐKÉPERNYŐS MONITOR

Kijelző

• Képátló: 27"
  Felbontás: 1920x1080
  Panel: TFT-LCD
  Képarány: 16:9

Csatlakozók

• • 1x VGA
  • 0x DVI
  • 1x DisplayPort
  • 1x HDMI
  • TV-tuner

• Specification

• Touch Technology & Capacity
• PCAP (TouchPro© Projected Capacitive) - 10 Touch
• Touch Thru
• Supports up to 6mm / 0.24" glass or 3mm / 0.12" plastic with up to 2 touches
• Touch Interface
• 10 touch with USB 2.0
• 2 touch with RS232 via VGA port with E810917
• Diagonal Size
• 27'' diagonal, Active matrix TFT LCD (LED)
• On Screen Display
• Accessible through switches on the unit's tethered OSD Control box.
• Controls: Menu, Up, Down, Select, Power
• Settings: Brightness, Contrast, Light sensor, Clock, Phase, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Rotation, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch on Sleep Mode, Touch Through, Touch Interface, GPIO Control, Time Setting, On/Off Schedule, Daylight Saving Time
• Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
• Lockouts: OSD, Power
• Aspect Ratio
• 16:9
• Active Area
• 23.54" x 13.24" / 597.89 mm x 336.31 mm
• Resolution
• 1920 x 1080
• Other Supported Resolutions
• 640 x 480 60Hz
• 720 x 400 70Hz
• 800 x 500, 60Hz
• 800 x 600 56, 60Hz
• 1024 x 768 60Hz
• 1280 x 800 60Hz
• 1280 x 1024 60Hz
• 1366 x 768 60Hz, 60Hz RB
• 1440 x 900 60Hz, 60Hz RB
• 1680 x 1050 60Hz, 60Hz RB
• 1920 x 1080 50, 60Hz
• Viewing Angle
• Horizontal: +/-89° or 178° total / Vertical: +/-89° or 178° total
• Number of Colors
• 16.7 million
• Brightness (typical)
• LCD panel: 1500 nits
• TouchPro PCAP: 1320 nits
• Response Time-total (typical)
• 14 msec
• Contrast Ratio
• 1000:1
• I/O Ports
• Locking for all ports, including USB TypeB, RJ45 for OSD remote key, VGA, HDMI, DisplayPort, 12V D/C in, Terminal Block for GPIO control (4 pins)
• Video
• HDMI V1.3 Type A receptacle for HDMI input
• Analog VGA on Female DE-15 (DB-15) connector (Support RS232 touch via E810917)
• DisplayPort V1.1a - Supports later versions of DisplayPort video input
• Input Video Horizontal Sync frequency range: 30 - 82K KHz
• Input Video Vertical Sync (frame rate) frequency range: 50-75Hz
• Power
• External DC - Optional power brick (sold separately)
• Monitor input power connector: Coaxial power jack (2.5mm (+0.0 -0.1mm) pin outer diameter, 5.7mm (+/- 0.1mm) barrel inner diameter, 9.5mm (+/- 0.2mm) Barrel depth)
• Monitor input voltage range: 12V - 24V DC +/- 5%
• Adapter output power connector: DC barrel plug (2.5mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 7.5mm (+/- 0.5mm) Barrel length)
• Adapter input voltage range: 100-240 VAC
• Input frequency: 50-60 Hz
• Power Consumption (Typical)
• Monitor + adapter
• ON: 70W
• SLEEP from PC: 1.23W
• OFF: 0.26W
• Dimensions
• 16.34" x 25.90" x 2.6" / 415 mm x 658 mm x 66 mm
• Shipping Box Dimensions
• 22.25" x 32.29" x 9.06" / 565 mm x 820 mm x 230 mm
• Weight (Unpackaged)
• 30.00 lbs / 13.6 kg
• Weight (Packaged)
• 36.60 lbs / 16.6kg
• Operating Temperature
• -20°C to 60°C / -4°F to 140°F
• Storage Temperature
• -30°C to 80°C / -22°F to 176°F
• Humidity
• Operating: 10% to 90%
• Storage: 10% to 95% (38.7° maximum wet bulb temperature)
• Sealability
• Sealable to IP66 / NEMA 4x
• MTBF
• 50,000 hours demonstrated
• Compliance
• GLI 15 kV air / 8 kV contact ESD compliant
• UL ball-drop compliant
• IK10 impact compliant
• Mounting Options
• 200x100mm VESA mount on rear of unit
• 4 Hole mounting interface on all four sides.
• Flush mount with included brackets
• Other Features
• Polarize sunglasses view: portrait and landscape
• Ambient light sensor (1x)
• Thermal sensor (2x)
• Internal fan (2x)
• External fan (4x)
• GPIO Control (1x input, 1x output, VCC, GND)

• What's in the Box

• 2799L
• HDMI cable with screw-locked type
• VGA Cable
• Remote OSD
• Touch USB Cable with screw-locked type
• Quick Install Guide
• Flush Mount Brackets w/Screws
• EEI Label

Garancia fogyasztók részére

• 3 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 2 év gyártó által biztosított szervizgarancia
