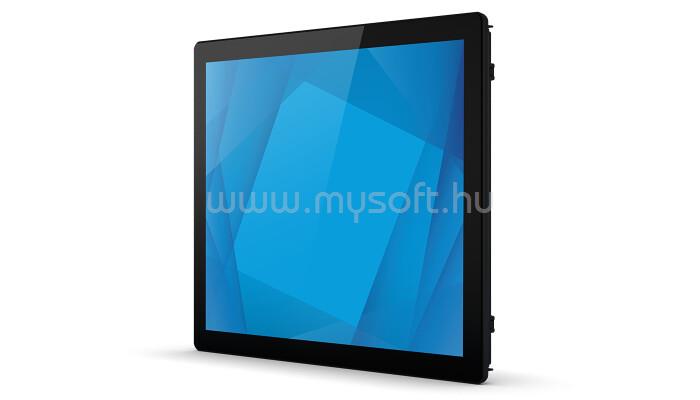

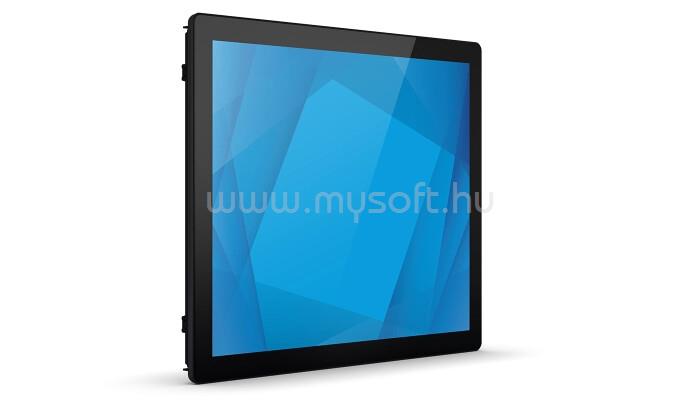

ELO TOUCH 1991L TOUCHPRO PCAP ZERO BEZEL ÉRINTŐKÉPERNYŐS MONITOR

Kijelző

• Képátló: 19"
  Felbontás: 1280x1024
  Panel: TFT-LCD
  Képarány: 5:4

Csatlakozók

• • 1x VGA
  • 0x DVI
  • 1x DisplayPort
  • 1x HDMI
  • TV-tuner

• Specification

• Touch Technology & Capacity
• PCAP (TouchPro© Projected Capacitive) - 10 Touch
• Touch Interface
• TouchPro PCAP Zero Bezel - USB 2.0
• Diagonal Size
• 19'' diagonal, Active matrix TFT LCD (LED)
• On Screen Display
• Accessible through switches on the unit's tethered OSD Control box.
• Controls: Menu, Up, Down, Select, Power
• Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Through, USB HID mouse (TouchPro PCAP, Bezel only)
• Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
• Lockouts: OSD, Power
• Aspect Ratio
• 5:4
• Active Area
• 14.76" x 11.80" / 374.78mm x 299.83mm
• Resolution
• 1280 x 1024
• Other Supported Resolutions
• 640 x 480 60Hz
• 720 x 400 70Hz
• 800 x 500, 60Hz
• 800 x 600 56, 60Hz
• 1024 x 768 60Hz
• 1280 x 800 60Hz
• 1280 x 1024 60Hz
• Viewing Angle
• Horizontal: +/-89° or 178° total / Vertical: +/-89° or 178° total
• Number of Colors
• 16.7 million
• Brightness (typical)
• TouchPro PCAP: 225 nits
• Response Time-total (typical)
• 14 msec
• Contrast Ratio
• 1000:1
• I/O Ports
• USB Type B
• RJ45 for OSD remote key
• VGA
• HDMI
• DisplayPort
• 12V D/C in
• Input Video Format
• HDMI V1.3 Type A receptacle for HDMI input
• Analog VGA on Female DB-15 connector
• DisplayPort V1.1a - Supports later versions of Display Port video input
• Input Video Frequency
• Horizontal: 30 - 82 KHz
• Vertical: 50 - 75 Hz
• Power Supply
• External DC - Optional power brick (sold separately)
• Input power connector (Monitor)
• Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)
• Input Voltage
• 12VDC +/- 5%
• Adapter Output Power Connector
• DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)
• Power Consumption (Typical)
• ON (Default - 75% Brightness): 10.82 W
• ON (Typical - 100% Brightness): 12.12 W
• SLEEP (monitor + adapter): 1.5 W
• OFF (monitor + adapter): 0.5 W
• Dimensions
• Zero-Bezel: 16.54" x 13.70" x 1.60" / 420.1mm x 348.1mm x 40.7mm
• Shipping Box Dimensions
• 20.71" x 17.72" x 6.85" / 526mm x 450mm x 174mm
• Weight (Unpackaged)
• 10.14 lbs / 4.6 Kg
• Weight (Packaged)
• 16.31 lbs / 7.4 Kg
• Operating Temperature
• 0°C to 40°C / 32°F to 104°F
• Storage Temperature
• -20°C to 60°C / -4°F to 140°F
• Humidity
• Operating: 20% to 80%
• Storage: 10% to 95%
• Sealability
• Touchscreen sealed to bezel
• Touchscreen sealed to LCD
• MTBF
• 50,000 hours demonstrated
• Compliance
• GLI 27 kV air / 8 kV contact ESD compliant for PCAP model
• UL 62368 ball-drop compliant for PCAP and SecureTouch models
• IK07 impact compliant for PCAP and SecureTouch models
• IP65 front side for PCAP ZB model

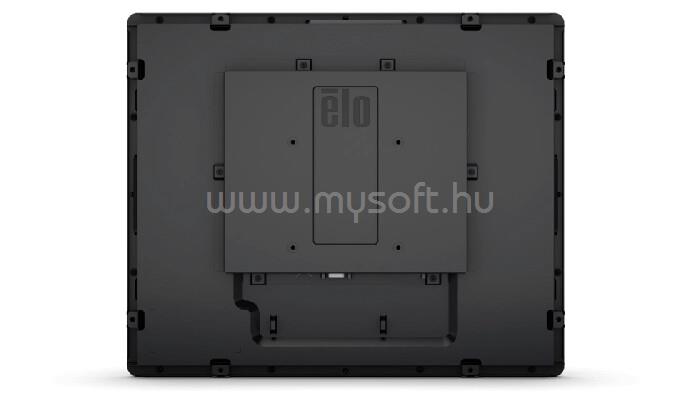

• Mounting Options
• 100 mm VESA mount (TouchPro PCAP Zero Bezel Models)
• 75 mm and 100mm VESA mount (IntelliTouch/AccuTouch/SecureTouch/TouchPro PCAP Bezel Models)
• 2 Hole mounting interface on all four sides.
• Rear mount (TouchPro PCAP Zero Bezel Models)
• Front mount with optional bezel kit (IntelliTouch/AccuTouch/SecureTouch/TouchPro PCAP Bezel Models)
• Rack mount with optional bezel kit (IntelliTouch/AccuTouch/SecureTouch/TouchPro PCAP Bezel Models)
• Flush mount with included brackets (TouchPro PCAP Zero Bezel)
• See dimensional drawings for details

• What's in the Box

• HDMI cable
• VGA Cable
• RJ45 OSD Remote
• Touch USB Cable
• Quick Install Guide;
• For Zero-Bezel Models: Flush Mount Brackets w/Screws
• EEI Label
• Japan Class-B TM info sheet

Garancia fogyasztók részére

• 3 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
