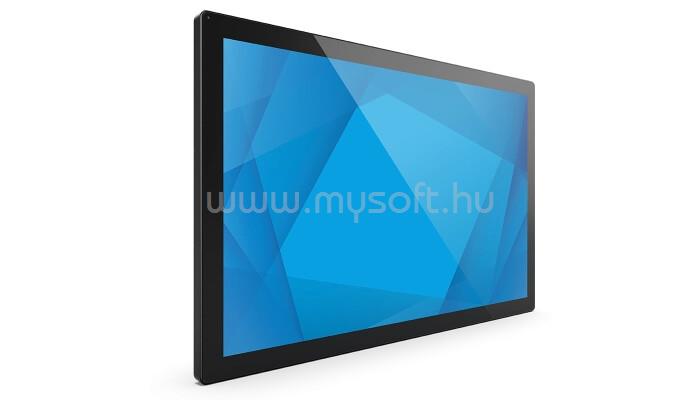

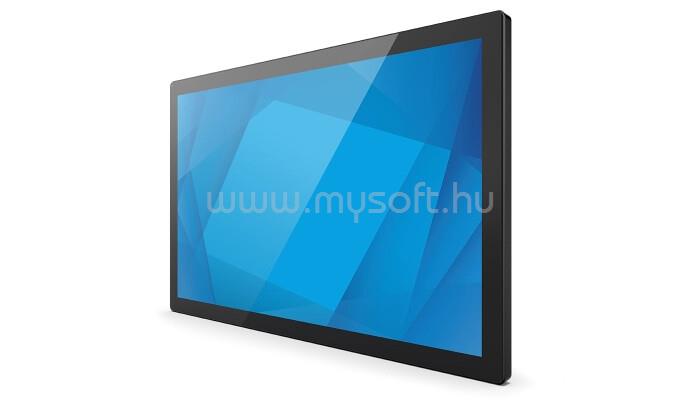

ELO TOUCH 3204L TOUCHPRO PCAP ÉRINTŐKÉPERNYŐS MONITOR

Kijelző

• Képátló: 31.5"
  Felbontás: 1920x1080
  Panel: TFT-LCD
  Képarány: 16:9

Csatlakozók

• • 0x VGA
  • 0x DVI
  • 1x DisplayPort
  • 2x HDMI
  • TV-tuner

• Specification

• Touch Technology & Capacity
• PCAP (TouchPro© Projected Capacitive) - 40 Touch with Palm Rejection and Touch Thru capability
• Touch Thru
• Supports up to 6mm glass/3mm plastic with up to 2 touches. Supports gloves up to 1.4mm
• Touch Interfaces
• USB-C
• Diagonal Size
• 31.5'' diagonal, Active matrix TFT LCD (LED)
• Active Area
• 27.5" x 15.47" / 698.4mm x 392.9mm
• Aspect Ratio
• 16:9
• Resolution
• 1920 x 1080 @ 60hz
• Other Supported Resolutions
• 640 x 480 @ 60Hz
• 800 x 600 @ 56/60Hz
• 1024 x 768 @ 60Hz
• 1280 x 720 @ 60Hz
• 1280 x 960 @ 60Hz
• 1280 x 1024 @ 60Hz
• 1920 x 1080 @ 50/60Hz
• Viewing Angle
• Horizontal: +/-89° or 178° total / Vertical: +/-89° or 178° total
• Number of Colors
• 8-bit (16.7 million)
• Brightness (typical)
• LCD Panel: 400 nits
• PCAP: 320 nits
• Response Time-total (typical)
• 8 msec
• Contrast Ratio
• 3000:1
• Compute mounting options
• Elo Backpack 4 & 5 with Android
• Elo Backpack with Intel
• Intel NUC with 100 mm x 100 mm VESA mounting plate
• BrightSign XT/XD/XC/HD Series Player
• Built-in IoT control
• EloView: Elo Cloud control supported
• Crestron: Crestron Connected V2 supported.
• On Screen Display
• Let's Get Started: Language Selection, Time Setting, Time Zone
• Video Source Select: HDMI-1, HDMI-2, DisplayPort, USB-C
• Video Settings: Video Port Discovery, Brightness, Contrast, Black Level, Sharpness and Aspect Ratio
• Color Settings: Color Temperature, Color Sensor, User Preset (for color), Picture Modes and HDMI Full Range
• Audio Settings: Audio Output, Mute, Volume selection
• Information: Monitor, Temperature, IoT Network status, IoT Error Message, Help and Support
• Power: Power Loss Behavior, Power Lock, Energy Saving Mode, Power Status Light options, HDMI CEC
• Time: Time Set, On/Off Schedule
• OSD Settings: Recall Defaults, OSD Timer, OSD Language, OSD Lock and OSD Portrait Rotation, Touch Through, Tabletop
• Configuration: Source Port Lock (Will sync to EloView when connected), FW Update (via OTA or USB)
• Configuration 2: IoT connectivity setting and Network time sync. switch.
• See user manual for full details.
• I/O Ports
• 2x HDMI 1.4
• USB-C (for Touch control and Video input)
• USB-A (for Wi-Fi Adapter only)
• RJ45 (for IoT LAN port)
• RJ45 (for optional OSD remote)
• DisplayPort 1.2
• 3.5mm TRS jack (for RS232/MDC)
• 3.5mm Audio Headphones out
• 4x Elo Edge Connect Micro USB 2.0
• Control Buttons
• Power
• Video Source Selection
• On Screen Display
• Video
• 2x HDMI on Type A connector (HDCP-capable)
• DisplayPort 1.2 connector (HDCP-capable)
• USB-C connector (HDCP-capable)
• Input Video Horizontal Sync frequency range: FHD: 30 - 70 KHz
• Input Video Vertical Sync (frame rate) frequency range: 24 - 64 Hz
• Headphone Output Connector
• 3.5 mm TRS jack
• Speakers
• 2 x 5 W stereo speakers
• Power
• Input connector (power): IEC 60320-C13
• Input signal specifications (power): 100-240VAC 50/60Hz
• Output connector (bypass input power to backside device): IEC 60320-C14
• AC outlet short cable (IEC C14 to C5 head) power rating: 100V/2A (200Watt), 220V/2A (440Watt)
• Maximum Operating Time
• 24 hours/day
• Power Consumption (Typical)
• ON: 45 W
• SLEEP: 2.3 W
• OFF: 0.29 W
• Dimensions
• 30.07" x 18.04" x1.95" / 763.7 mm x 458.1 mm x 49.6 mm
• Shipping Box Dimensions
• 35.62" x 26.77" x 6.30" / 905 mm x 680 mm x160 mm
• Weight (Unpackaged)
• 26.17 lbs / 10.9 kg
• Weight (Packaged)
• 33.75 lbs / 15.28 kg
• Operating Temperature
• Portrait/Landscape/Tilt (?15°) Mode: 0°C to 40°C / 32°F to 104°F
• Table top Mode: 0° C to 35° C / 32°F to 95°F
• Storage Temperature
• -20°C to 60°C / -4°F to 140°F
• Humidity
• Operating: 20% to 80%
• Storage: 10% to 95% (38.7°C max wet bulb temperature)

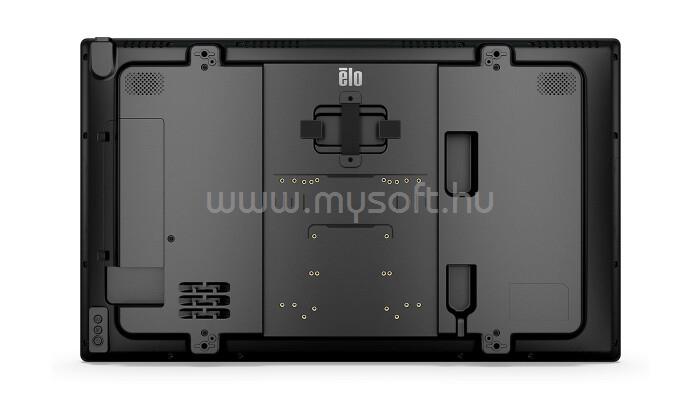

• Mounting Options
• VESA 400 x 400mm, M6
• Sealability
• Touchscreen sealed to bezel
• Touchscreen sealed to LCD
• MTBF
• 50,000 hours demonstrated
• Energy Star
• 8.0
• Other Features
• Ambient Light Sensor - changes panel color to match ambient light, Auto Wake
• OTA FW upgrade

• What's in the Box

• 3204L Interactive Display
• Quick Install Guide
• AC (in) Power cable, IEC 60320-C13 to NA plug
• AC (in) Power cable, IEC 60320-C13 to EU/KR plug
• AC (in) Power cable, IEC 60320-C13 to UK plug
• AC (out) Power cable, IEC 60320-C14 to IEC 60320-C5 (0.3m) (With PSE certified)
• USB cable (1m) (Connector: Type-C to Type-C)
• Energy label according to EU Regulation 2019/2013, 1x EU EEI, 2x UK EEI
• 4x M4x6mm flat head screws (for BrightSign players)

Garancia fogyasztók részére

• 3 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
