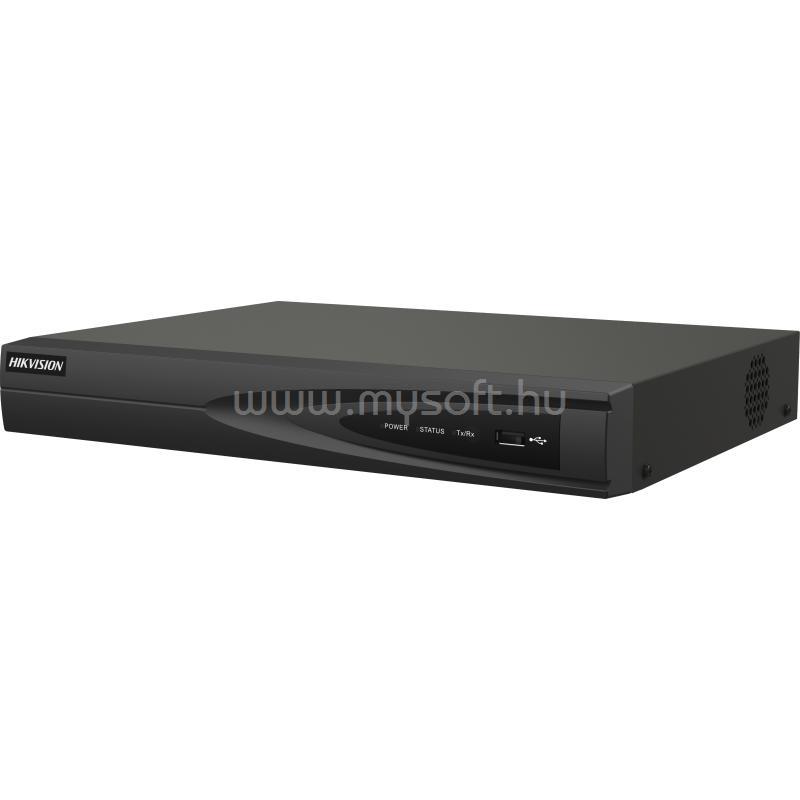

HIKVISION DS-7608NI-Q1/8P NVR RÖGZÍTŐ (8 CSATORNA, 80MBPS RÖGZÍTÉSI SÁVSZÉL., H265+, HDMI+VGA, 2XUSB, 1X SATA, 8X POE)

• Motion Detection 2.0

• Human/Vehicle Analysis
• 4-ch

• Video and Audio

• IP Video Input
• 8-ch
• HDMI Output
• 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;1-ch, 4K(4096x2160)/30Hz,4K (3840×2160) /30Hz, 2K(2560×1440)/60Hz,1920×1080/60Hz,1600×1200/60Hz,1280×1024/60Hz,1280×720/60Hz; HDMI/VGA simultaneous output,;1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; ,HDMI/VGA simultaneous output,
• VGA Output
• 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode
• HDMI/VGA simultaneous output
• Incoming Bandwidth
• 80 Mbps
• Outgoing Bandwidth
• 80 Mbps
• Audio Output
• 1-ch, RCA (Linear, 1 KOhm)
• Two-Way Audio
• 1-ch, RCA (2.0 Vp-p, 1 k Ohm)

• Recording

• Stream Type
• Video, Video & Audio
• Audio Compression
• G.711ulaw/G.711alaw/G.722/G.726

• Decoding

• Decoding Format
• H.265+,H.265,H.264+,H.264
• Decoding Capability
• 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
• *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
• Synchronous playback
• 8-ch
• Recording Resolution
• 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

• Network

• Remote Connection
• 32
• Network Protocol
• TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface
• 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface

• PoE

• Interface
• 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power
• < 75 W

• Auxiliary Interface

• Alarm In/Out
• N/A (4/1 is optional)
• SATA
• 1 SATA interface
• Capacity
• Up to 8 TB capacity for each disk
• USB Interface
• 2 × USB 2.0

• General

• Power Supply
• 48 VDC, 1.88 A
• Consumption
• < 10 W (without HDD and PoE off)
• Working Temperature
• -10 to +55o C (+14 to +131o F)
• Working Humidity
• 10% to 90%
• Dimension (W × D × H)
• 320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
• Weight
• < 1 kg (without HDD, 2.2 lb.)

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
