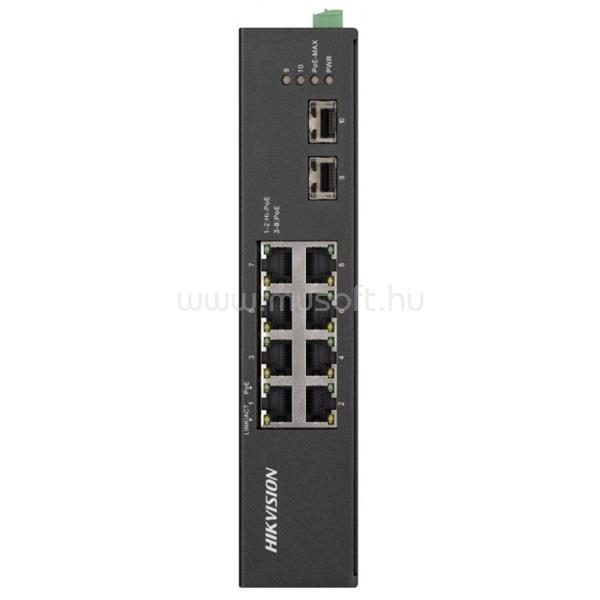

HIKVISION DS-3T0510HP-E/HS SWITCH POE (8 PORT 1000MBPS, 110W, 1XRJ45 1000MBPS, 1XSFP 1000MBPS)

• General

• Shell
• Metal material, fan-free design
• Net Weight
• 0.585 kg (1.29 lb)
• Gross Weight
• 1.11 kg (2.45 lb)
• Dimensions (W × H × D)
• 197.0 mm × 114.2 mm × 42.2 mm (7.76'' × 4.50'' × 1.66'')
• Operating Temperature
• -30 °C to 65 °C (-22 °F to 149°F)
• Storage Temperature
• -40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity
• 5% to 95% (no condensation)
• Relative Humidity
• 5% to 95% (no condensation)
• Power Supply
• 54VDC, 2.5A
• Max. Power Consumption
• 120 W
• Power Consumption in Idle
• 10 W
• Installation Mode
• Desk-Mounted,Rail
• Surge Protection
• 6 kV

• Network Parameters

• Ports
• 8 × Gigabit PoE port,2 × Gigabit fiber optical port
• MAC Address Table
• 4 K
• Switching Capacity
• 20 Gbps
• Packet Forwarding Rate
• 14.88 Mpps
• Internal Cache
• 1.5 Mbits

• PoE Power Supply

• PoE Standard
• IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
• PoE Power Pin
• Ports 1 to 2: 8-pin power: 1/2(-), 3/6(+), ,4/5(+), 7/8(-)
• Ports 3 to 6: End-span: 1/2(-), 3/6(+)
• Ports 7 to 8:8-pin power: 1/2(-), 3/6(+) ,4/5(+), 7/8(-)
• PoE Port
• Hi-PoE: Ports 1 to 2
• PoE: Ports 3 to 8
• Max. Port Power
• Ports 1 and 2: 90 W
• Ports 3 to 8: 30 W
• PoE Power Budget
• 110 W

• Dialing Function

• Long Range
• Ports 7 to 8: up to 300 m
• Long range performance may vary depend on camera model or cable condition.
• Port Isolation
• Ports 1 to 8: port isolation mode to improve network security.
• PoE Watchdog
• Ports 1 to 8: auto detect and restart the cameras that do not respond.

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
