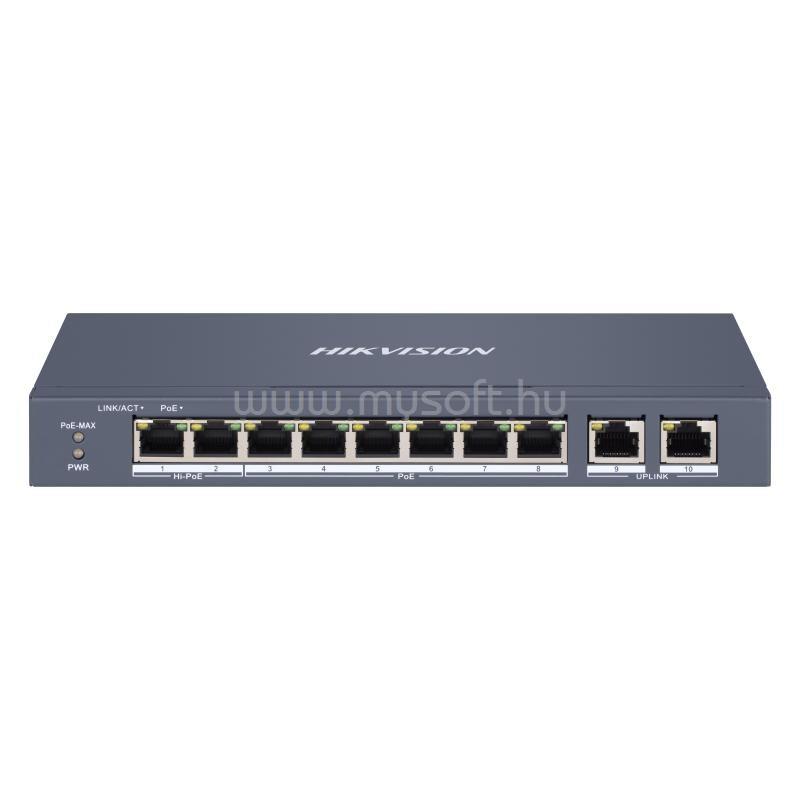

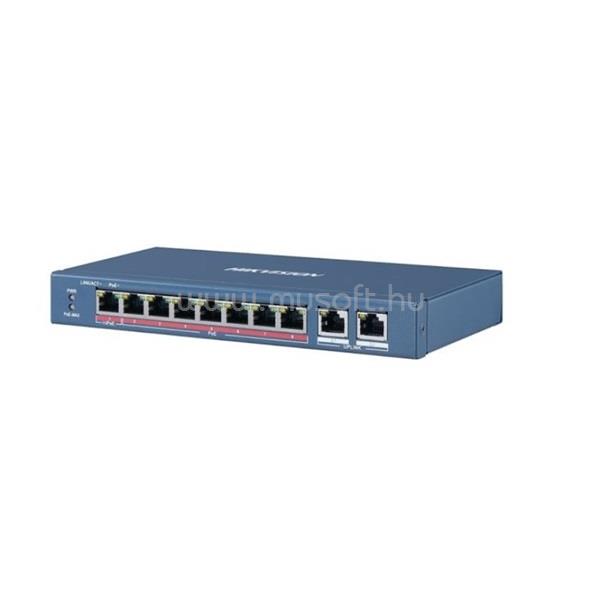

HIKVISION DS-3E1310HP-EI SWITCH POE

• General

• Shell
• Metal material, IP40
• Net Weight
• 0.550 kg (1.21 lb)
• Gross Weight
• 0.950 kg (2.09 lb)
• Dimensions (W × H × D)
• 217.6 mm × 27.8 mm × 103.35 mm (8.56" × 1.09" × 4.06")
• Operating Temperature
• 0 °C to 40 °C (0 °F to 104 °F)
• Storage Temperature
• -40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity
• 5% to 95% (no condensation)
• Relative Humidity
• 5% to 95% (no condensation)
• Power Supply
• 54 VDC, 2.22 A
• Installation Mode
• Desk-Mounted,Wall-Mounted
• Max. Power Consumption
• 120 W
• Power Consumption in Idle
• 4 W
• Surge Protection
• 6 KV

• Network Parameters

• Ports
• 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
• MAC Address Table
• 16 K
• Switching Capacity
• 9.2 Gbps
• Packet Forwarding Rate
• 6.84 Mpps
• Internal Cache
• 4 Mbits

• PoE Power Supply

• PoE Standard
• IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
• PoE Power Pin
• 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE Port
• Hi-PoE: Ports 1 to 2,PoE: Ports 3 to 8
• Max. Port Power
• Port 1 to 2:90 W Ports 3 to 8:30 W
• PoE Power Budget
• 110 W

• Software Function

• Long Range
• Ports 1 to 8: up to 300 m.
• Long range performance may vary depend on camera model or cable condition.
• PoE Watchdog
• Ports 1 to 8: auto detect and restart the cameras that do not respond.
• HPP
• Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
• 1. Display the port rate.
• 2. Display the port bandwidth utilization rate.
• 3. Display the PoE power usage.
• 4. Display topology information.
• 5. Display the alarm status.
• 6. Restart ports and devices.
• 7. Enable port long-rage mode.
• 8. Remotely upgrade the device.
• System Maintenance
• Support device management via web.
• Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
• Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
• Support management via Hik-Central Pro.
• Support remote management via Hik-Partner Pro.
• Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
• Supports 802.1ab LLDP for peer device discovery.
• Support SNMP v1/v2c for third-party management platform access.
• Support port mirroring for fault locating.
