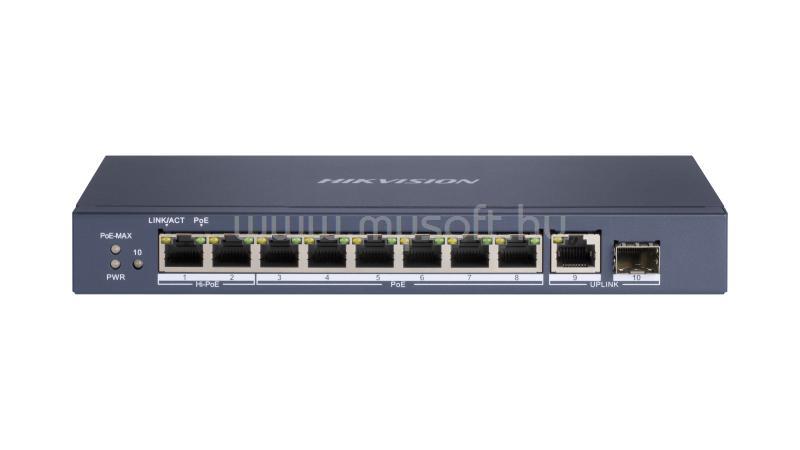

HIKVISION SWITCH POE - DS-3E0510HP-E (8 PORT 1000MBPS, 110W, 1XRJ45, 1XSFP)

• General

• Shell
• Metal material, fan-free design
• Net Weight
• 0.59 kg (1.30 lb)
• Dimensions (W × H × D)
• 217.6 mm × 108.55 mm × 27.8 mm (8.57'' × 4.27'' × 1.09'')
• Gross Weight
• 0.71 kg (1.57 lb)
• Operating Temperature
• 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature
• -40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity
• 5% to 95% (no condensation)
• Relative Humidity
• 5% to 95% (no condensation)
• Power Supply
• 54 VDC, 2.22 A
• Max. Power Consumption
• 120 W
• Power Consumption in Idle
• 10 W
• Installation Mode
• Desk-Mounted
• Surge Protection
• 6 KV

• Network Parameters

• Ports
• 8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
• MAC Address Table
• 4 K
• Switching Capacity
• 20 Gbps
• Packet Forwarding Rate
• 14.88 Mpps
• Internal Cache
• 1.5 Mbits

• PoE Power Supply

• PoE Standard
• IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
• PoE Power Pin
• 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE Port
• Hi-PoE: Ports 1 to 2
• PoE: Ports 3 to 8
• Max. Port Power
• Ports 1 and 2: 90 W
• Ports 3 to 8: 30 W
• PoE Power Budget
• 110 W

• Dialing Function

• Long Range
• Ports 7 to 8: up to 300 m
• Long range performance may vary depend on camera model or cable condition.
• Port Isolation
• Ports 1 to 8: port isolation mode to improve network security.
• PoE Watchdog
• Ports 1 to 8: auto detect and restart the cameras that do not respond.
